2011 Toyota Sienna Serpentine Belt Diagram and Routing Guide

If you’re working on the 2011 Toyota Sienna and need to replace or adjust the drive belts, understanding the belt routing diagram is a must. This diagram shows the exact path each belt should follow and is crucial for ensuring the engine runs smoothly. It can help you identify which components are powered by each belt and avoid mistakes during installation.

To begin with, locate the alternator, air conditioning compressor, power steering pump, and water pump on the diagram. These are the main components driven by the belts. The serpentine belt is the primary belt responsible for powering multiple accessories in the engine, while the timing belt drives the camshaft and other crucial engine components.

Be sure to use the correct diagram for the 2011 model, as different year variations may have different configurations. If you’re replacing the serpentine belt, you’ll need to release the tension using the appropriate tool, and then follow the belt diagram to guide its proper installation. Checking the tension after installation is key to ensuring proper operation and preventing premature wear.

Double-check your work after completing the installation. A quick test start-up can confirm that the belts are running smoothly and no unusual sounds are coming from the engine. This simple step can save you a lot of time and trouble down the road.

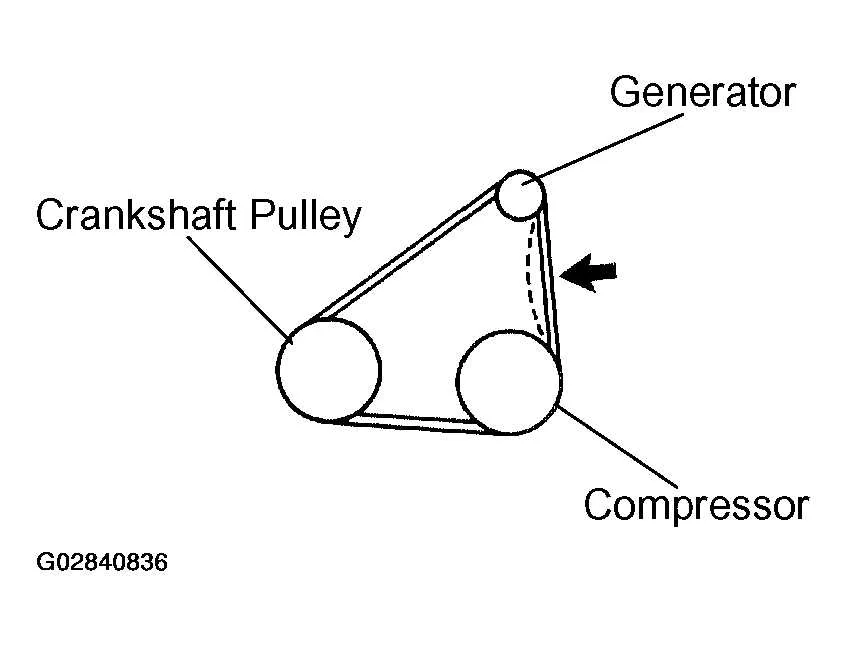

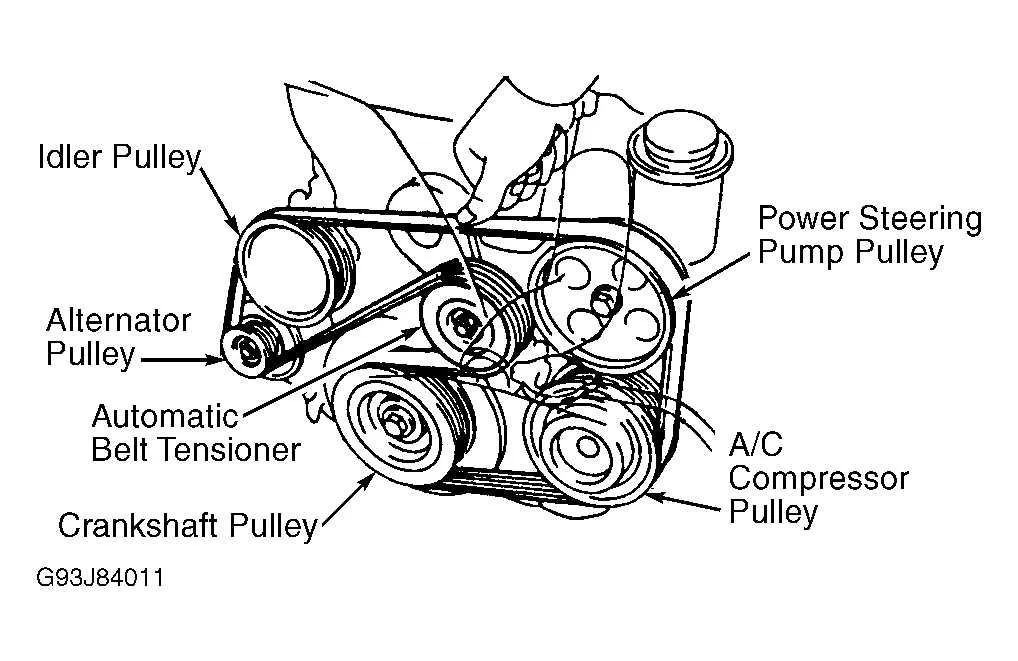

2011 Toyota Sienna Belt Diagram

For accurate installation and maintenance of your 2011 Toyota Sienna’s accessory belts, refer to the belt diagram. The serpentine belt is the primary component, responsible for driving multiple accessories including the alternator, power steering pump, and air conditioning compressor. This belt should be routed properly to avoid misalignment or premature wear.

Ensure the tensioner is in good condition, as it keeps the correct tension on the serpentine belt. If it’s worn, it may cause slipping, leading to engine performance issues. The diagram shows the exact routing of the belt around pulleys, including the alternator, tensioner, idler pulleys, water pump, and air conditioning compressor. The order of components must be strictly followed for proper belt alignment.

Replace the belt when it shows signs of wear, such as cracks or fraying. Make sure to inspect the pulleys and tensioner for smooth operation to avoid unnecessary strain on the new belt. Check the pulley alignment and condition, ensuring they are free from damage or rust.

For visual assistance, follow the diagram included in your service manual. This will guide you step by step, minimizing the risk of errors. If you’re unsure about the process, it’s always a good idea to consult a professional mechanic to confirm the belt is installed correctly.

Common Issues with the Belt System on the 2011 Toyota Sienna and How to Fix Them

One of the most common issues with the belt system on the 2011 Toyota Sienna is belt wear and tear. Over time, belts can stretch, crack, or become frayed, leading to slipping or even breaking. To prevent further damage, inspect the belts for any visible signs of wear and replace them if needed. It’s recommended to change the serpentine belt every 60,000 to 100,000 miles, depending on your driving conditions.

A noisy belt system is another frequent issue. A high-pitched squeal usually indicates a misaligned or loose belt. Adjust the tensioner or replace the tensioner pulley to restore proper belt tension. If the noise persists, check the pulleys and idler bearings for wear, as these components can also contribute to the sound.

Belt misalignment can also occur, leading to inefficient operation and potential damage to other parts of the engine. Misalignment typically results from worn pulleys or an incorrectly positioned alternator. Ensure all pulleys are in proper alignment, and replace any components showing signs of wear.

If the belt is slipping or squealing even after adjustment, the issue may be with the belt tensioner. A faulty tensioner will not maintain adequate tension, causing the belt to slip. Replacing the tensioner will resolve this problem and ensure the system functions smoothly.

Lastly, check the condition of the crankshaft pulley. A damaged or cracked pulley can cause the serpentine belt to slip or come off entirely. If the pulley is worn or cracked, it must be replaced to avoid further complications with the belt system.

Step-by-Step Guide to Replacing the Drive Belt on a 2011 Toyota Sienna

First, disconnect the negative terminal from the battery to prevent any electrical issues. You’ll need a socket wrench, a serpentine belt tool, and a new drive belt. Make sure the engine is cool before you begin working.

Locate the drive belt at the front of the engine. You’ll see the tensioner pulley, which keeps the belt under pressure. Use the serpentine belt tool to rotate the tensioner and release pressure from the belt. Once the tension is off, slide the belt off the pulleys.

Examine the old belt for wear and damage. If it shows signs of cracking, fraying, or glazing, replace it immediately. Lay the new belt next to the old one to ensure it matches in length and size. Install the new belt following the same routing as the old one, making sure it fits correctly on each pulley.

Once the belt is in place, use the serpentine belt tool to rotate the tensioner pulley and apply pressure to the belt. Double-check that the belt is seated properly and runs smoothly across the pulleys.

Reconnect the battery and start the engine to check the belt’s operation. Listen for any unusual noises that could indicate improper installation or tension. If everything runs smoothly, you’ve successfully replaced the drive belt on your 2011 Toyota Sienna.
