2001 Buick LeSabre Serpentine Belt Diagram and Routing Guide
To properly maintain your 2001 Buick LeSabre, understanding the belt configuration is a must. The serpentine belt powers several critical components, including the alternator, power steering pump, and air conditioning compressor. Knowing the belt layout helps prevent potential issues such as belt slippage or wear, ensuring smooth engine performance.
The diagram of the 2001 Buick LeSabre’s serpentine belt layout can be found in the owner’s manual or through various online resources. It typically involves a clear depiction of how the belt interacts with various pulleys and components. Follow the diagram carefully to ensure the belt is routed correctly for optimal function.
If you experience belt noise or squeaking sounds, it’s often a sign of wear or improper tension. Regular inspection and replacement can save time and money by avoiding further damage to the engine components. Keep an eye on the belt’s condition, especially if you notice cracks or fraying along the edges.
Make sure to check the belt’s tension periodically, as it can stretch over time, affecting the system’s overall performance. Proper belt tension ensures that all the accessories are powered effectively. Consult the belt diagram whenever replacing the serpentine belt to avoid incorrect installation, which could lead to system malfunctions.

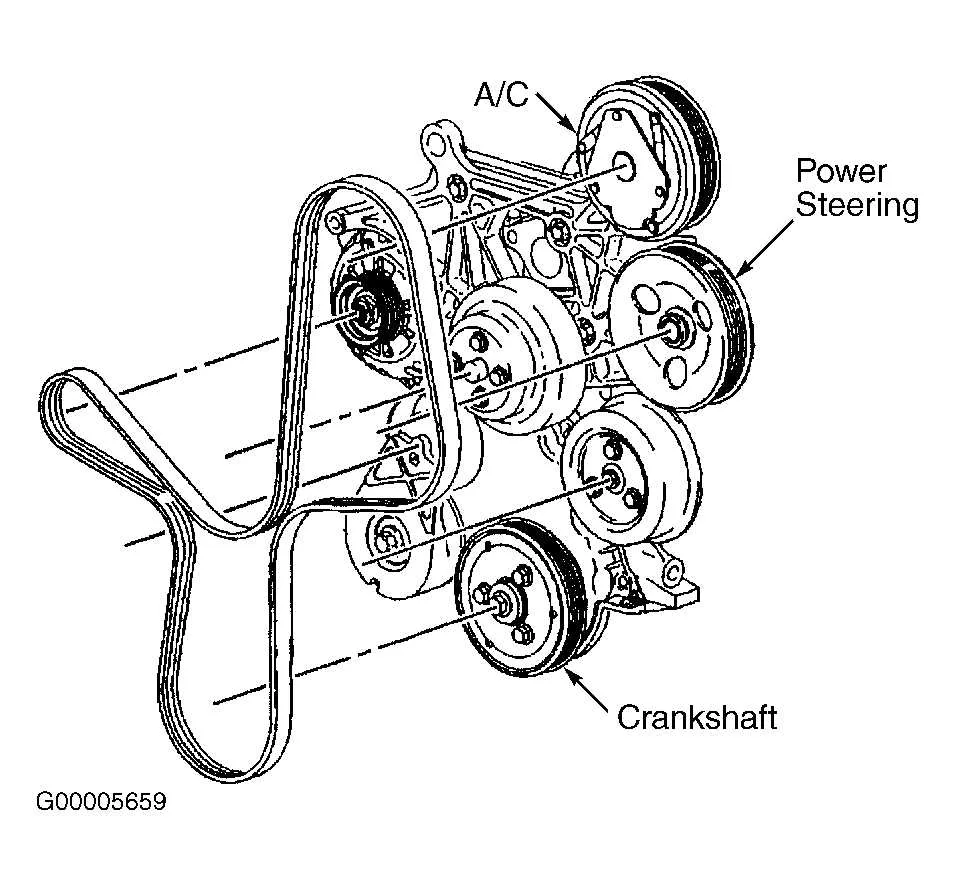

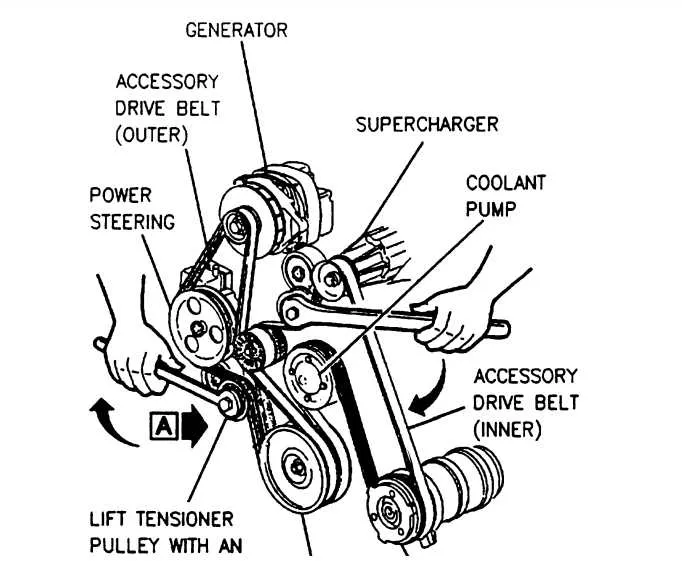

2001 Buick LeSabre Belt Diagram
The 2001 Buick LeSabre uses a serpentine belt system that powers various engine components, such as the alternator, power steering pump, air conditioning compressor, and water pump. The belt layout is crucial for ensuring that all components function smoothly without interruptions.

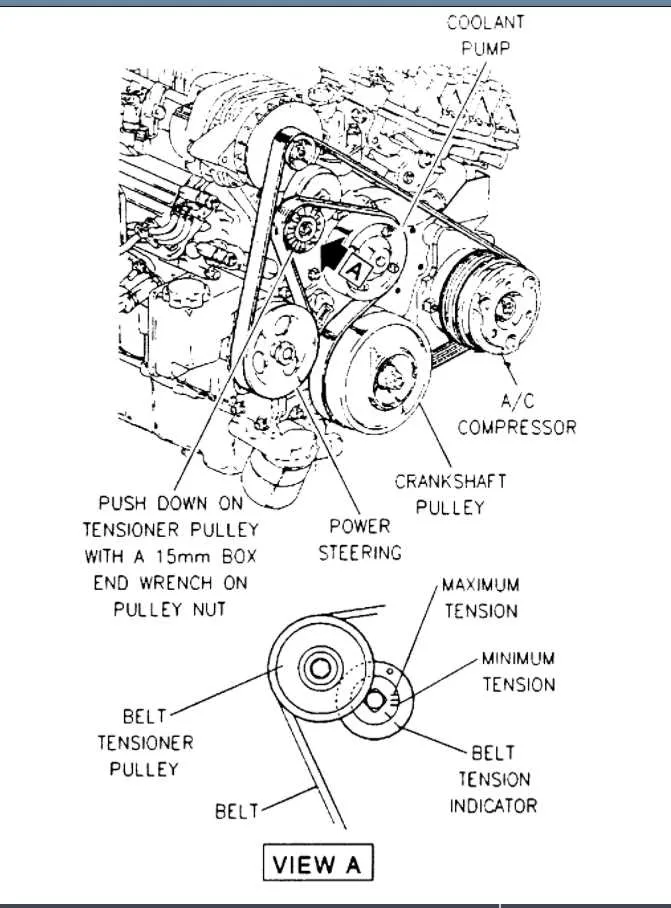

To identify the correct belt path and configuration, check the belt diagram located on the underside of the hood or refer to the vehicle’s service manual. The diagram illustrates the routing of the serpentine belt around pulleys and tensioners.

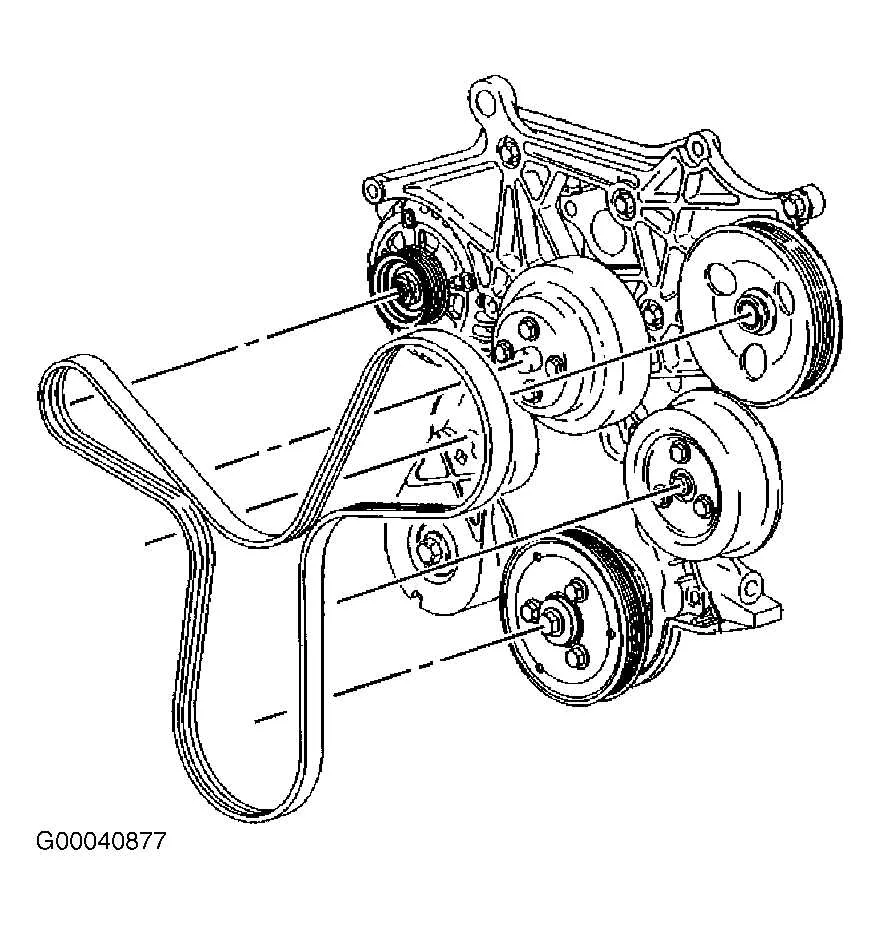

Below is a basic overview of the serpentine belt diagram for the 2001 Buick LeSabre:
| Pulley Component | Description |
|---|---|
| Crankshaft Pulley | Drives the serpentine belt, providing power to all connected accessories. |
| Alternator Pulley | Charges the battery and powers the electrical system when the engine is running. |
| Power Steering Pump Pulley | Controls the power steering system, making it easier to turn the steering wheel. |
| Air Conditioning Compressor Pulley | Drives the compressor for the air conditioning system. |
| Water Pump Pulley | Pumps coolant throughout the engine, regulating temperature. |
| Idler Pulley | Maintains proper tension on the serpentine belt. |
| Tensioner Pulley | Applies pressure to keep the serpentine belt tight. |
Follow this diagram carefully when installing or replacing the serpentine belt. Ensure that the belt is correctly aligned with the pulleys to avoid unnecessary wear or damage. If the belt appears worn, cracked, or frayed, it should be replaced immediately to prevent potential engine damage.
Identifying the Components of the Serpentine Belt System
The serpentine belt system in the 2001 Buick LeSabre consists of several key components that work together to drive various engine accessories. The main elements to identify include the belt itself, tensioner, idler pulleys, and driven accessories such as the alternator, power steering pump, and air conditioning compressor.
The serpentine belt runs across multiple pulleys, which helps transfer power from the engine to these accessories. It’s vital to ensure that the belt is routed correctly through all the pulleys, as any misalignment can lead to premature wear and potential system failure.
Next, check the tensioner pulley. It is responsible for maintaining the correct tension on the belt. If the tensioner is damaged or malfunctioning, it can cause the belt to slip or become loose, leading to a loss of functionality in the engine accessories.
Examine the idler pulleys, which help guide the belt and maintain its path across the system. Worn or damaged idler pulleys can create uneven wear on the belt, potentially leading to failure.
Finally, ensure the accessories driven by the belt are functioning properly. Any malfunction in the alternator, power steering pump, or air conditioning compressor can also affect the belt’s performance and longevity.
Steps to Replace the Serpentine Belt on a 2001 Buick LeSabre
1. Disconnect the negative battery terminal to ensure safety while working around the engine.
2. Locate the serpentine belt on the front of the engine. You will find it running across several pulleys, including the alternator, power steering pump, and air conditioning compressor.
3. Use a serpentine belt tool or a 3/8-inch drive ratchet to loosen the tensioner pulley. Turn the tensioner counterclockwise to relieve tension on the belt.
4. Remove the old serpentine belt from the pulleys. Take note of the belt routing or use a diagram for reference before removing it.
5. Inspect the pulleys for damage or wear. Ensure all pulleys rotate freely and are in good condition before installing the new belt.
6. Install the new serpentine belt, following the exact routing as the old belt. Ensure it is properly seated in the grooves of the pulleys.
7. Use the serpentine belt tool or ratchet to rotate the tensioner pulley again and slip the belt over the tensioner. Make sure the belt is tight and aligned correctly on all pulleys.
8. Reconnect the negative battery terminal.
9. Start the engine and verify the belt is functioning properly. Listen for any unusual noises or squeaks, which could indicate misalignment or improper installation.
Common Issues and Troubleshooting for the Serpentine Belt
One of the most common issues with the serpentine belt on a 2001 Buick LeSabre is belt wear. Over time, the belt can crack, fray, or develop grooves, leading to slipping or complete failure. Inspect the belt for signs of visible damage and replace it if necessary. A worn belt can lead to overheating or failure of critical engine components.
If you notice squealing noises coming from the engine bay, this might indicate a loose belt or misaligned pulley. Check the tensioner to ensure it’s functioning properly. A damaged tensioner can cause the belt to slacken, reducing its effectiveness. Tighten the tensioner or replace it if needed.
Another common issue is the accumulation of oil or coolant on the serpentine belt. This can occur due to leaks from nearby components such as the power steering pump, alternator, or water pump. These fluids can degrade the rubber, leading to belt slipping or early wear. Clean any contaminated areas and fix the leaks before replacing the belt.
Inconsistent belt movement or squeaking at higher engine speeds can signal an issue with one of the pulleys. Inspect each pulley for any signs of misalignment, wobbling, or bearing damage. A damaged pulley can cause the belt to wear unevenly, resulting in poor performance.
If the belt continues to break or slip after addressing the tensioner and pulley issues, check the alignment of the pulleys. Misaligned pulleys can cause the belt to travel at an angle, leading to premature wear. Adjust or replace misaligned pulleys as necessary.
Lastly, if you notice a loss of power or malfunctioning of accessories such as the air conditioning or alternator, the serpentine belt might not be driving these components properly. Ensure the belt is tight and correctly routed according to the manufacturer’s diagram.
