Deck Belt Diagram for John Deere LA145 Mower with Clear Routing Instructions

For accurate maintenance and smooth operation of your John Deere LA145 lawn mower, it’s crucial to follow the deck belt diagram precisely. This guide provides the exact belt routing and placement for the LA145 model to ensure your mower performs at its best. Follow each step carefully to avoid common mistakes and ensure optimal performance.

Start by locating the belt path in the diagram. The routing should be followed exactly as shown, with each twist and turn of the belt mapped out. Incorrect placement can lead to poor cutting performance and unnecessary wear on components. Pay attention to the position of the belt around pulleys, tensioners, and guides.

Ensure the belt is properly tensioned. A slack or overly tight belt can cause premature wear and damage to the deck components. Use the diagram as a reference to make sure the belt maintains the correct tension across all areas of the deck system.

Regularly inspect the belt for damage. Even with proper routing and tension, belts can wear out over time. Check the belt for cracks, frays, or other signs of wear. Replacing the belt at the first sign of damage will prevent more significant issues down the line.

Deck Belt Diagram for John Deere LA145

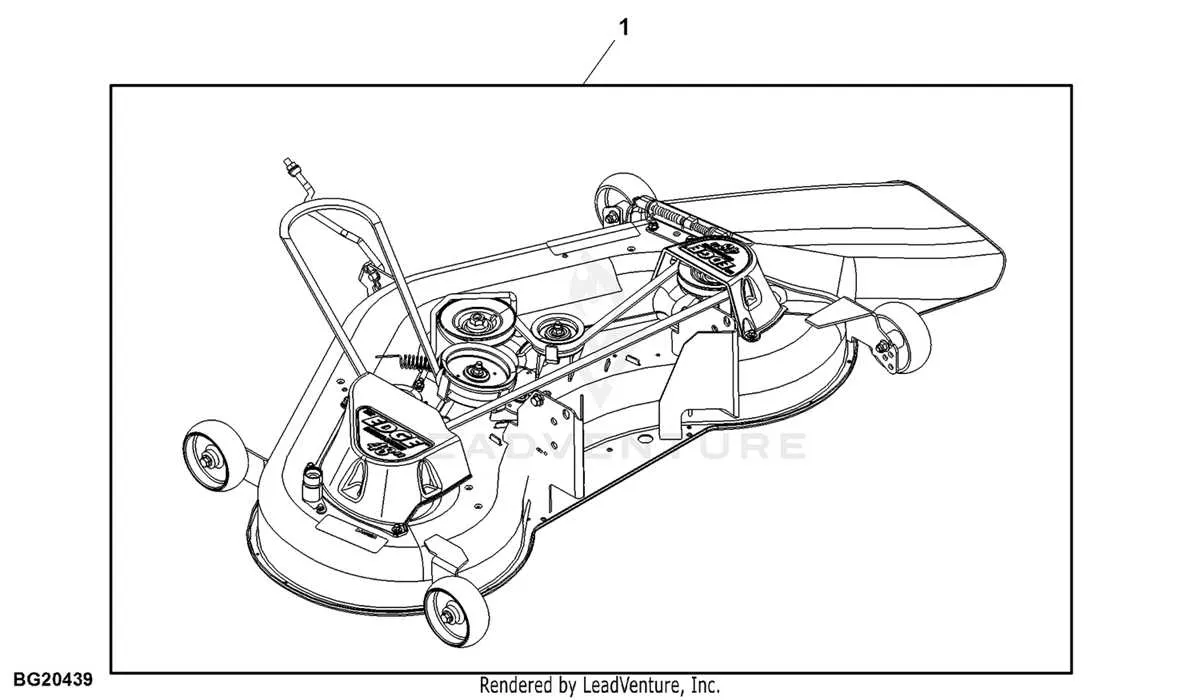

The deck belt on the John Deere LA145 lawn tractor plays a critical role in transferring power from the engine to the mower blades. To ensure proper function and avoid breakdowns, understanding the belt routing and its components is key.

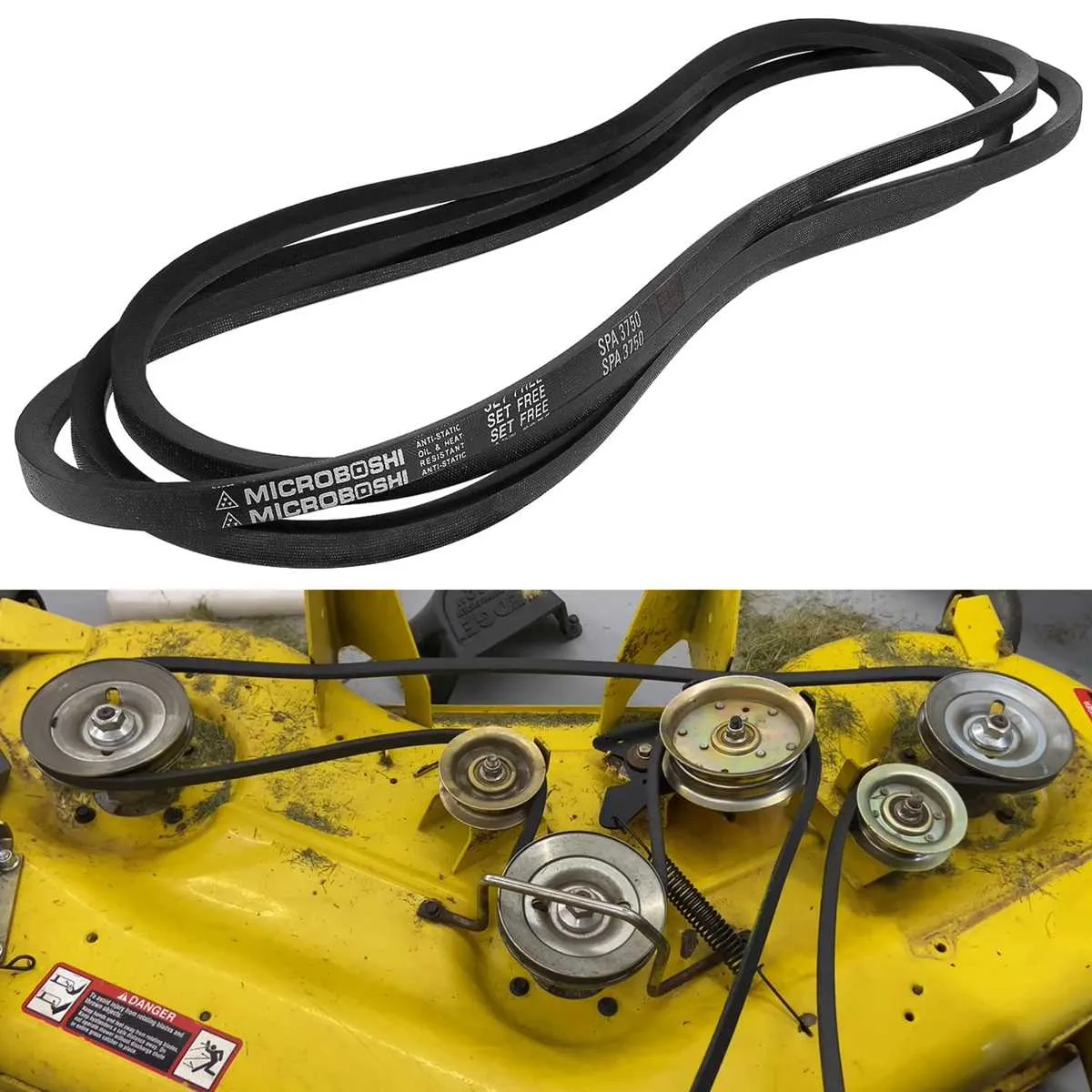

The belt routing diagram for the LA145 consists of a series of pulleys and idlers. The belt wraps around the engine pulley, which drives the spindle pulleys connected to the mower blades. It also passes over an idler pulley to maintain tension, ensuring that the blades rotate smoothly. Be sure to follow the diagram closely to avoid any misalignment or improper tensioning that can lead to reduced performance or damage.

When replacing the deck belt, begin by loosening the idler arm and removing any obstacles blocking the belt’s path. Carefully route the new belt according to the diagram, ensuring that it rests correctly in the pulley grooves. Check the tension by adjusting the idler pulley, and test the mower’s operation before reassembling the deck fully.

Regular maintenance of the deck belt includes checking for signs of wear such as fraying or cracking. If the belt shows significant damage, it should be replaced immediately to prevent further issues during mowing.

How to Read the Deck Belt Diagram for John Deere LA145

Start by identifying the key components shown on the diagram: the engine pulley, the deck pulleys, and the idler pulleys. The diagram should clearly indicate the routing of the belt, with arrows showing the direction of travel.

Follow the path of the belt from the engine pulley to the deck pulleys, ensuring that it loops around the various idler pulleys in the correct order. Take note of any specific alignment requirements, especially for pulleys that must be in a particular orientation for the belt to function properly.

Check for any tensioner pulleys indicated on the diagram. These components apply pressure to the belt to maintain proper tension. The diagram may show how to adjust the tension, which is vital for optimal performance.

Verify that the belt follows the diagram’s path without any twists or overlaps. Any deviation can cause slippage or damage to the system, reducing efficiency or leading to premature wear.

Finally, compare the diagram to the actual mower to ensure everything is aligned correctly. The diagram provides a guide, but real-world adjustments may be necessary depending on wear or minor differences in pulley alignment.

Step-by-Step Guide to Installing the Deck Belt on John Deere LA145

First, raise the mower deck to its highest position using the lift lever. This will give you enough space to work under the deck.

Next, disconnect the battery to prevent accidental starts while working on the mower.

Remove any debris or grass around the deck area to ensure clear access to the components you’ll be working with.

Use a wrench to remove the deck from the mower. This will involve loosening the bolts connecting the deck to the mower frame. Keep these bolts in a safe place for reinstallation.

Once the deck is detached, locate the old belt. Use a wrench to remove any components blocking the belt, such as pulleys or guards. Take note of how the belt is routed before removing it. This will help during reinstallation.

Install the new deck belt, following the exact routing of the previous belt. Make sure the belt fits properly over the pulleys and guides. Check the path carefully to ensure there are no twists or misalignments.

Once the belt is in place, reassemble any components that were removed, such as the pulleys or guards. Tighten the bolts securely to avoid any loose parts during operation.

Reattach the deck to the mower and secure it with the bolts you removed earlier.

Finally, reconnect the battery and test the belt by engaging the blades. Ensure the belt moves smoothly and without slipping, and check that all parts are working as expected.

Troubleshooting Common Deck Belt Issues for John Deere LA145

If your John Deere LA145 is experiencing belt-related issues, follow these steps to identify and resolve common problems.

• Belt Slippage: Check for any visible signs of wear or stretching on the deck belt. If the belt is loose, it may slip off the pulleys. Adjust the tension by tightening the belt or replacing it if needed.
• Uneven Cutting: An improperly installed deck belt can cause uneven blade rotation, leading to poor cutting performance. Inspect the belt routing to ensure it matches the manufacturer’s diagram.
• Belt Breakage: If the belt has broken, carefully check for any debris or obstacles around the pulleys that may have caused it. Replace the damaged belt and clear the area around the pulleys.
• No Power to Blades: A malfunctioning belt can also prevent the blades from receiving power. Inspect the belt for fraying, cracks, or damage. A worn-out belt should be replaced immediately to restore blade functionality.
• Belt Off-Pulley: If the belt has come off one or more pulleys, inspect the alignment of the pulleys and ensure that the belt is correctly routed. Misalignment may cause the belt to dislodge during operation.

Regular maintenance of the deck belt is crucial to avoid these issues. Always refer to the manufacturer’s guidelines when replacing or adjusting the belt.
