Complete 2007 Toyota Camry Belt Diagram Guide for Engine and Accessory Components
Locate your serpentine belt quickly using the 2007 Toyota Camry belt diagram to identify the routing for the alternator, power steering pump, air conditioning compressor, and crankshaft pulley. Following the correct path prevents slippage and ensures smooth operation of all connected components.
Check tensioner placement as shown in the diagram to avoid over-tightening, which can damage bearings, or under-tightening, which can cause the belt to slip. The belt diagram clearly marks the automatic tensioner location, making replacement straightforward.
Compare belt size and layout with the diagram before purchasing a replacement. The 2007 Camry uses a single serpentine belt for most engine configurations, and confirming the routing saves time and prevents installation errors.
Use the diagram for maintenance checks to quickly spot wear or misalignment. Tracing the belt path visually helps identify cracks, fraying, or glazing, allowing for timely replacement before failure occurs.
Keep a printed or digital copy of the belt diagram in your glove compartment. Having it on hand makes routine inspections and belt swaps faster, reducing the risk of mistakes during the installation process.
2007 Toyota Camry Belt Diagram Guide
Locate the serpentine belt routing on the 2007 Toyota Camry by referring to the belt diagram inside the engine bay cover or the owner’s manual. This vehicle typically uses a single serpentine belt for the 2.4L 4-cylinder engine and a separate belt configuration for the 3.5L V6 engine.

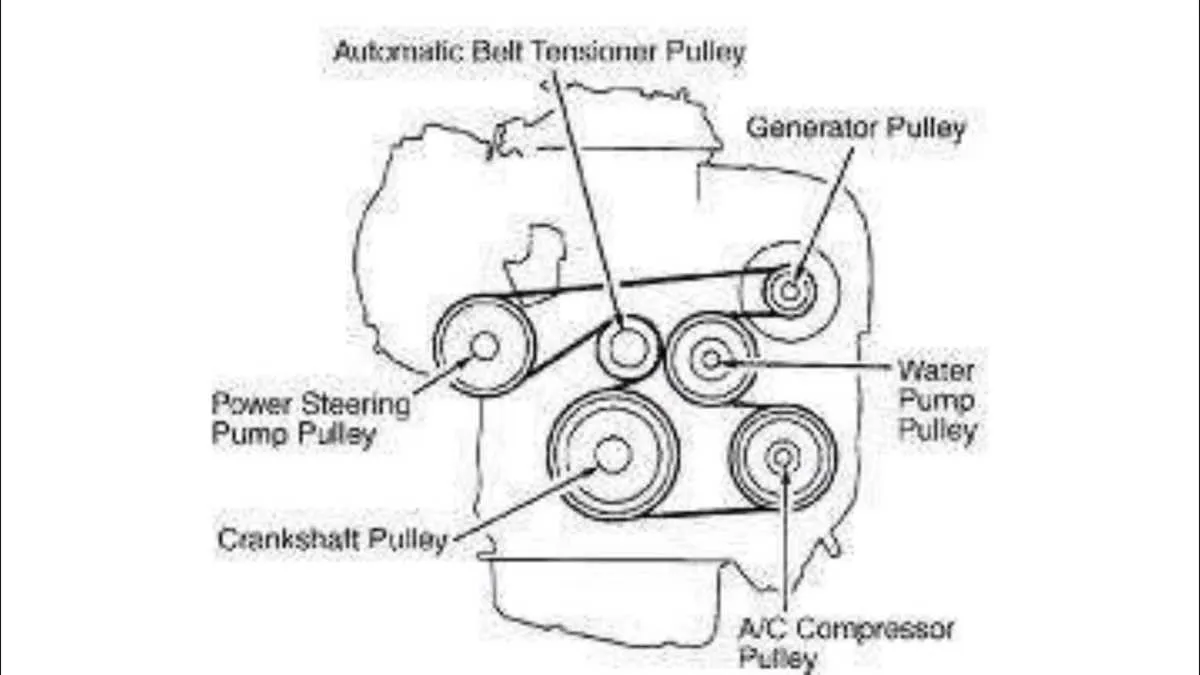

For the 2.4L engine:
- Start at the crankshaft pulley, which drives the water pump, alternator, and power steering pump.
- Route the belt over the idler pulleys to maintain proper tension.
- Ensure the belt sits correctly in each pulley groove to prevent slipping or squealing.

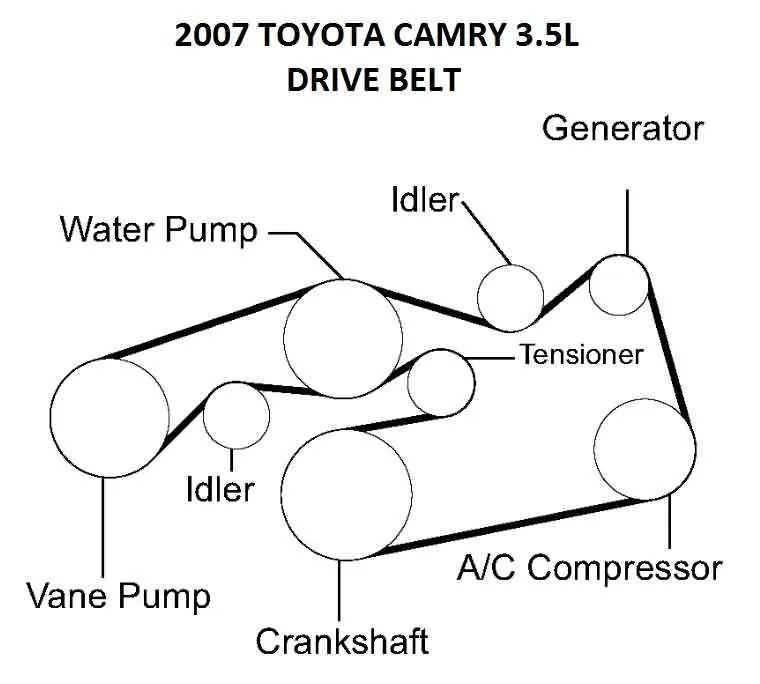

For the 3.5L V6 engine:
- Begin at the crankshaft pulley, looping the belt around the alternator, tensioner, water pump, and air conditioning compressor.
- Check alignment with the automatic belt tensioner; adjust if necessary using a wrench on the tensioner pulley.
- Inspect each pulley for wear or misalignment before final installation.
Use a clear diagram to trace the exact path and mark pulleys if needed. Replace the belt if it shows cracks, glazing, or fraying. Tighten the belt according to manufacturer torque specifications to maintain engine performance and prevent premature wear.
Keep a spare belt and tools handy for emergency replacement. Routine inspection every 30,000 miles or during major service can prevent breakdowns and maintain smooth engine operation.
Locating and Identifying Each Belt on a 2007 Camry Engine
Begin by opening the hood and positioning yourself on the passenger side of the engine bay for clear access. The 2007 Camry with a 2.4L or 3.5L engine uses two primary belts: the serpentine belt and the timing belt.
The serpentine belt runs along the front of the engine, driving the alternator, power steering pump, water pump, and air conditioning compressor. Look for a long, ribbed belt looping around multiple pulleys. Trace it from the crankshaft pulley at the bottom; this will help confirm the routing through each accessory pulley. The belt tensioner sits near the center and has a square hole for a ratchet tool to release tension safely.
The timing belt is located behind the timing cover on the driver’s side of the engine. It coordinates the rotation of the crankshaft and camshaft, ensuring precise engine timing. Remove the cover to reveal a toothed rubber belt. Match the camshaft and crankshaft marks to identify the correct orientation. On the 3.5L V6, the timing belt runs through two timing covers and requires removing additional components such as the serpentine belt and possibly the engine mount for full visibility.
Labeling each belt during inspection prevents confusion during reinstallation. For the serpentine belt, note which pulley connects to which accessory. For the timing belt, mark the timing alignment points clearly before removal. Keep a diagram or take a photo to reference the exact routing, especially if tensioners or idlers are repositioned during maintenance.
Check each belt for cracks, fraying, or glazing while identifying them. The serpentine belt often shows surface wear, while the timing belt may have small teeth wear or oil contamination. Replacing worn belts promptly avoids engine damage or accessory failure.
Step-by-Step Visual Reference for Serpentine and Timing Belts
Locate the serpentine belt routing diagram on the engine compartment or under the hood. Ensure the engine is off and cool. Use a flashlight to clearly see pulleys, tensioners, and accessories. Identify the alternator, power steering pump, water pump, and crankshaft pulley. Follow the belt path exactly as shown in the diagram, noting any twists or crossed segments.
Release tension carefully using a wrench on the tensioner pulley. Rotate it slowly to relieve tension, then slide the belt off the pulleys. Inspect the belt for cracks, fraying, or glazing. Compare it against the recommended OEM part number for your 2007 Toyota Camry to confirm compatibility.
Install the new serpentine belt by following the routing diagram in reverse order. Begin with the crankshaft pulley, then work through accessories. Maintain tension on the tensioner while sliding the belt into place. Double-check alignment on each pulley and ensure ribbed sides match the grooves.
Access the timing belt by removing the timing cover. Align the crankshaft and camshaft timing marks according to the service manual. Use locking tools if available to secure pulleys and prevent rotation. Slide the timing belt over the pulleys, keeping consistent tension.
Verify timing alignment before securing the timing cover. Rotate the engine manually two full revolutions and recheck marks. The belt should sit flush on pulleys without slack or overlap. Reinstall the cover, reconnect components, and run the engine at idle to confirm smooth operation and correct belt tracking.
Use clear diagrams and photos for reference whenever possible, as visual guidance reduces errors and improves accuracy during belt replacement.
Troubleshooting Belt Wear and Alignment Issues
Inspect the serpentine belt for cracks, fraying, or glazing at least every 12,000 miles. A worn belt can slip on pulleys, causing squealing and reduced accessory performance.
Check belt tension using a tension gauge or by pressing midway between pulleys; it should deflect approximately 1/2 inch under moderate pressure. Overly tight belts strain bearings, while loose belts skip and wear unevenly.
Examine pulleys for misalignment by sighting along the belt path or using a straightedge. Even slight pulley misalignment can produce uneven wear patterns, leading to premature belt failure.
Listen for irregular noises such as chirping or rattling, which indicate either misaligned pulleys or hardened belt surfaces. Replace any worn idler or tensioner pulleys to restore smooth operation.
After replacing a belt, rotate the engine manually to confirm the belt seats correctly on each pulley and maintains consistent contact. Recheck tension after the first 500 miles to account for initial stretching.
Maintain a clean pulley surface free of oil or coolant residue, as contamination accelerates belt deterioration and reduces grip. Use a dry cloth to wipe pulleys during routine maintenance checks.
