2008 Kia Optima Serpentine Belt Diagram and Installation Guide

For accurate belt routing on your 2008 Kia Optima, refer to the serpentine belt diagram. This diagram is a vital tool for ensuring the proper placement of the serpentine belt around the pulleys and components such as the alternator, power steering pump, and air conditioning compressor. The correct belt routing prevents potential damage to engine parts and improves overall vehicle performance.

The serpentine belt in the 2008 Kia Optima operates multiple engine accessories at once. When replacing or inspecting the belt, always confirm the correct belt length and tension to avoid misalignment. If you notice wear or cracks in the belt, it’s important to replace it immediately to avoid unexpected breakdowns.

To make the replacement process easier, use the diagram as a guide for pulley alignment. The diagram shows the belt path in detail, ensuring you don’t miss any important steps. The tensioner pulley is a key part of the system, and proper adjustment will prevent unnecessary wear.

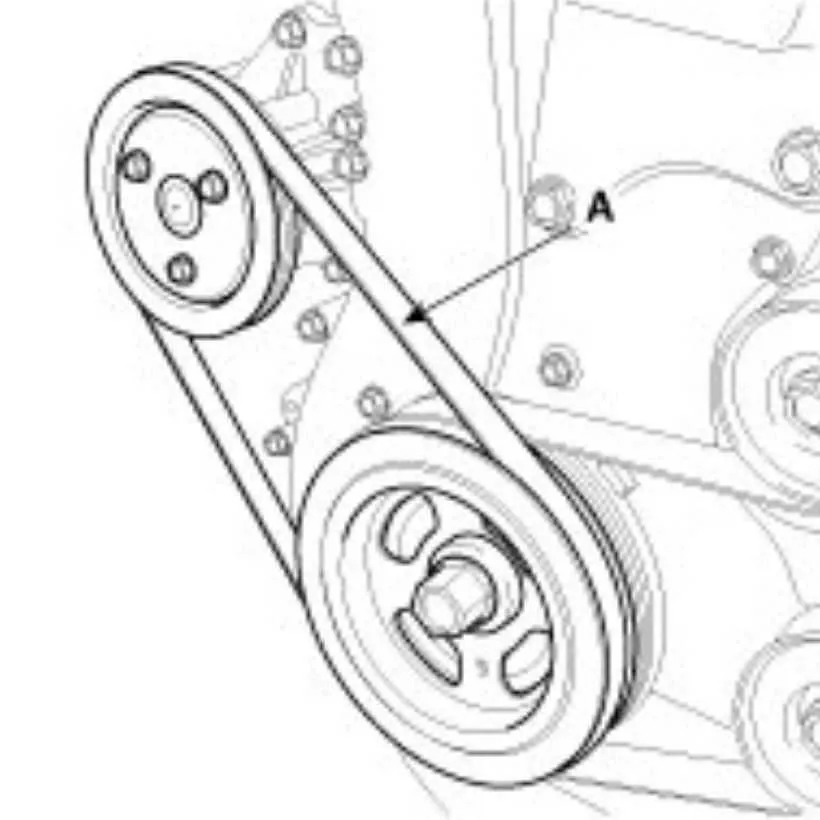

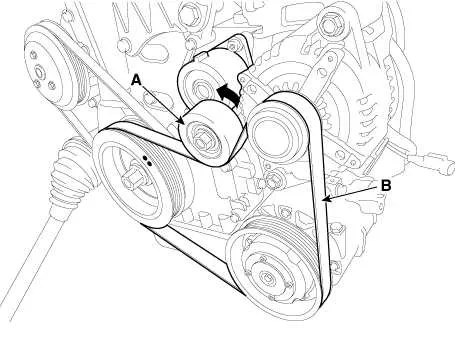

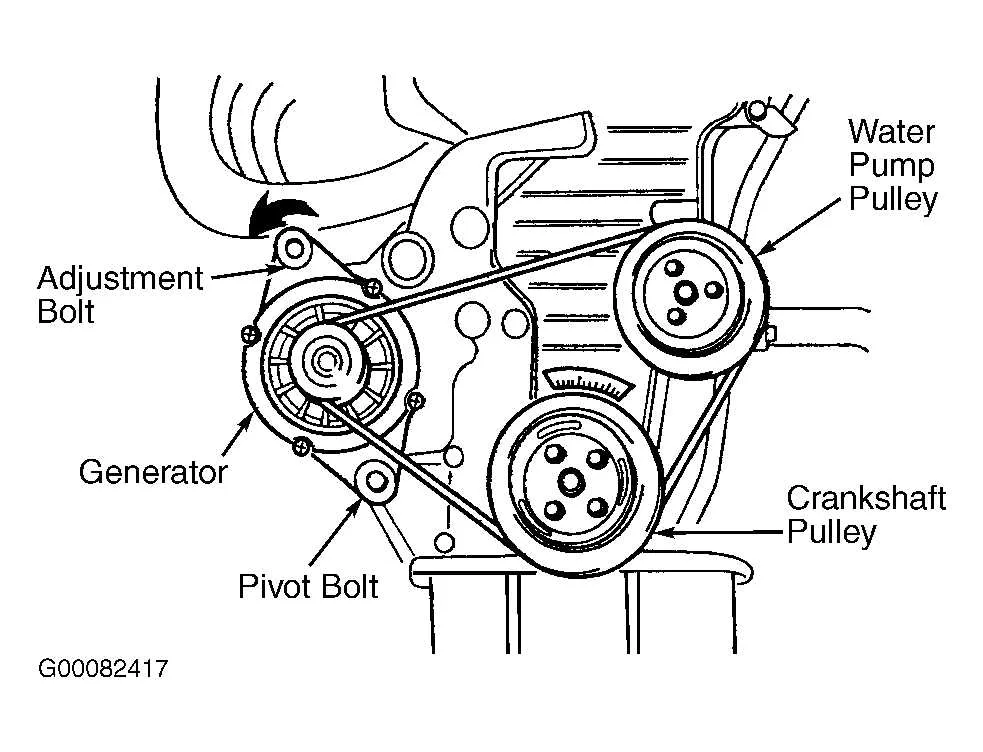

2008 Kia Optima Serpentine Belt Diagram

The serpentine belt in your 2008 Kia Optima drives multiple engine components, including the alternator, power steering pump, air conditioning compressor, and water pump. To replace or inspect it, it’s important to follow the correct routing of the belt. Refer to the diagram below to ensure proper placement and avoid damage to the engine components.

In the 2008 Kia Optima, the serpentine belt routes over the crankshaft pulley, then over the idler pulley, through the power steering pulley, and around the alternator. It should also pass through the air conditioning compressor and the tensioner pulley. The belt’s tension is maintained by the automatic tensioner. A visual check for wear and cracks is recommended at regular intervals to ensure the belt remains functional.

If the belt has slipped off its pulleys or shows signs of damage, it must be replaced promptly to prevent further engine damage. Consult the belt diagram printed on the engine compartment or your vehicle’s manual for more details on the belt routing and recommended replacement interval.

Identifying the Components of the 2008 Kia Optima Serpentine Belt System

The serpentine belt system in the 2008 Kia Optima drives several critical components in the engine. Understanding these parts helps in identifying issues quickly and ensuring proper maintenance.

• Serpentine Belt – The main belt that powers multiple components, including the alternator, power steering pump, water pump, and air conditioning compressor. It is routed around pulleys and tensioners.
• Idler Pulley – This pulley helps guide the serpentine belt and maintains its path. It also ensures that the belt is taut and aligned correctly.
• Tensioner Pulley – A spring-loaded pulley that keeps the belt tight. It adjusts the tension of the serpentine belt automatically to prevent slipping.
• Alternator – Powered by the serpentine belt, the alternator charges the battery and powers the electrical systems in the vehicle.
• Power Steering Pump – The serpentine belt drives this pump, which helps make steering easier by pressurizing the power steering fluid.
• Water Pump – The water pump circulates coolant through the engine to maintain proper temperature. The serpentine belt plays a critical role in keeping the pump running.
• Air Conditioning Compressor – The belt powers the AC compressor, allowing the air conditioning system to function and provide cool air inside the cabin.

Each component plays an important role in keeping the engine running smoothly. If any of these parts fail or the belt becomes damaged, it can lead to significant engine performance issues. Regular inspection of the serpentine belt system is crucial to ensure everything is operating as expected.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Kia Optima

Begin by disconnecting the negative battery terminal. This prevents any accidental electrical issues while working on the engine.

Next, locate the serpentine belt. It runs across several components, including the alternator, power steering pump, and air conditioning compressor. Use the diagram on the hood or a repair manual to identify the correct belt path.

Use a socket wrench to release tension on the tensioner pulley. The tensioner is spring-loaded, so applying pressure will allow you to remove the belt. Take note of the belt’s routing before removing it, as you will need to install the new belt in the same pattern.

Once the belt is off, inspect the pulleys and accessories for any damage or wear. This is a good time to replace a pulley if it’s loose or damaged. Clean any debris from the area to ensure the new belt runs smoothly.

Install the new serpentine belt by following the same routing as the old one. Ensure it fits snugly over each pulley and is aligned properly. Double-check the positioning on the tensioner pulley to ensure it is installed correctly.

Release the tensioner to tighten the new belt. Give the belt a few turns by hand to confirm that it’s running smoothly over all pulleys.

Reconnect the battery, start the engine, and visually check that the belt is running correctly without any noise or misalignment. If the belt seems loose or off-track, turn off the engine and adjust it before testing again.

With the new belt in place, your 2008 Kia Optima should be back in action without any issues related to the serpentine belt.

Common Issues with the Serpentine Belt System on the 2008 Kia Optima

Check for cracks, frays, or wear signs on the serpentine belt regularly. A worn-out belt can cause poor performance or lead to engine damage. If the belt slips or shows visible damage, replace it immediately.

The tensioner pulley is another component to watch. Over time, the pulley can lose its ability to maintain proper tension, leading to belt slippage or noise. If you hear squealing or grinding sounds from the engine, it could be a sign that the pulley is failing.

Inspect the idler pulley for any play or signs of wear. A worn idler pulley can cause uneven tension, leading to misalignment or premature belt wear. It’s critical to address this early to prevent more serious damage to the system.

In some cases, misalignment of the serpentine belt can occur due to faulty pulleys or an improperly installed belt. Misalignment leads to uneven stress on the belt, causing it to wear out faster. Ensure all pulleys are properly aligned and the belt is correctly routed.

Low-quality belts may degrade quicker than their higher-quality counterparts. Always opt for OEM or reputable aftermarket brands to ensure longevity and better performance from your serpentine belt system.

If you notice any engine overheating issues, check the serpentine belt system. A malfunctioning belt can affect components like the water pump, alternator, or air conditioning system, potentially leading to engine strain.
