2004 Acura TL Belt Diagram Routing and Component Layout Guide
Refer directly to the belt diagram to correctly position the serpentine and accessory belts on a 2004 Acura TL. Each pulley, including the alternator, power steering, and AC compressor, must follow the exact routing illustrated to prevent slippage or premature wear.
Check belt tension using a manual tension gauge or the built-in tensioner adjustment. Proper alignment ensures smooth operation and reduces strain on the engine components. Replace worn or cracked belts immediately to maintain consistent performance and avoid engine damage.
Use the diagram to identify each belt’s orientation during removal and reinstallation. Pay attention to the routing around the tensioner pulley, which controls belt pressure. Lubricate tensioner pivots if needed, and verify that all pulleys rotate freely before completing installation.
Maintain a record of the belt replacement schedule by noting mileage and condition. Following the diagram strictly prevents misrouting, which can trigger warning lights or reduce accessory efficiency. Keep the diagram accessible in the vehicle for reference during future maintenance or troubleshooting.
2004 Acura TL Belt Diagram Detailed Guide for Maintenance and Replacement
Check the tensioner before removing the serpentine belt. The 2004 Acura TL uses a single serpentine belt routing multiple accessories, including the alternator, power steering pump, and A/C compressor. Verify the belt is aligned with all pulleys to prevent uneven wear.
Use the diagram to identify each component accurately. The crankshaft pulley drives the belt, looping around the alternator on the top-left, the power steering pump on the lower-left, and the A/C compressor on the lower-right. Ensure each pulley matches the diagram during installation.
Inspect the belt for cracks, fraying, or glazing. If any signs of damage appear, replace the belt immediately. Release tension with a wrench on the tensioner pulley and carefully slide the belt off the pulleys.
Install the new belt by following the exact routing in the diagram. Begin at the crankshaft pulley, loop around each accessory in sequence, and finish by securing it under the tensioner pulley. Rotate the crankshaft manually to confirm smooth movement and proper alignment.
After installation, double-check that the belt sits correctly in each pulley groove. Run the engine for a few minutes while observing the belt for slippage or misalignment. Adjust if necessary to maintain consistent performance and extend the belt’s lifespan.
Locate and Identify All Belts in the 2004 Acura TL Engine Bay
Begin by opening the hood and visually inspecting the front of the engine. The 2004 Acura TL typically has a serpentine belt and a timing belt. The serpentine belt runs along the front of the engine, connecting the alternator, power steering pump, air conditioning compressor, and water pump. It usually follows a clear routing path marked on a sticker under the hood or in the owner’s manual.

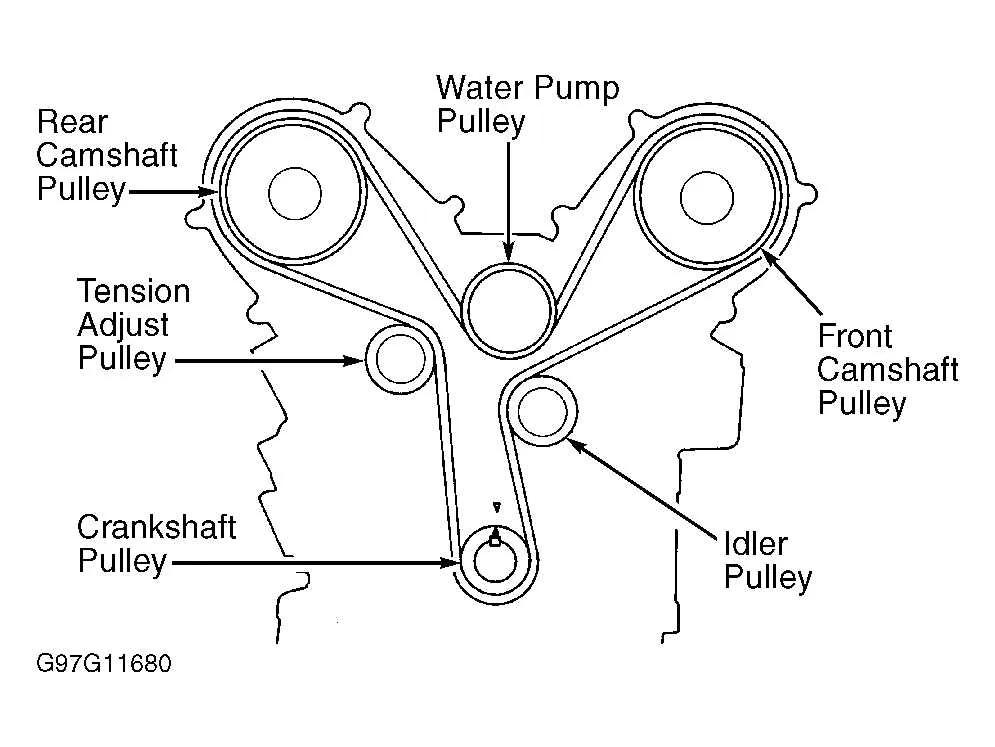

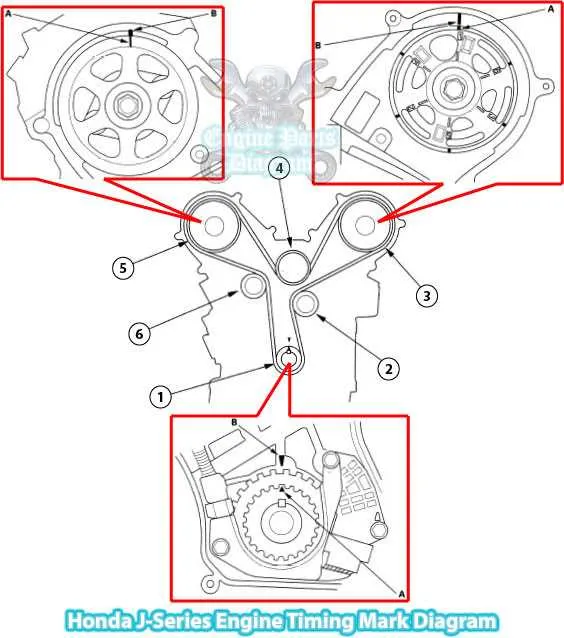

The timing belt is located behind the engine cover on the passenger side and requires removal of the front engine cover for access. It synchronizes the rotation of the crankshaft and camshafts, ensuring proper valve timing. Look for the belt’s teeth engaging with the pulleys of the camshaft and crankshaft.
Check the tensioner pulley for the serpentine belt, which maintains correct belt tension. Identify idler pulleys that guide the belt around engine components. Confirm the condition of each belt for cracks, fraying, or glazing before proceeding with any maintenance.

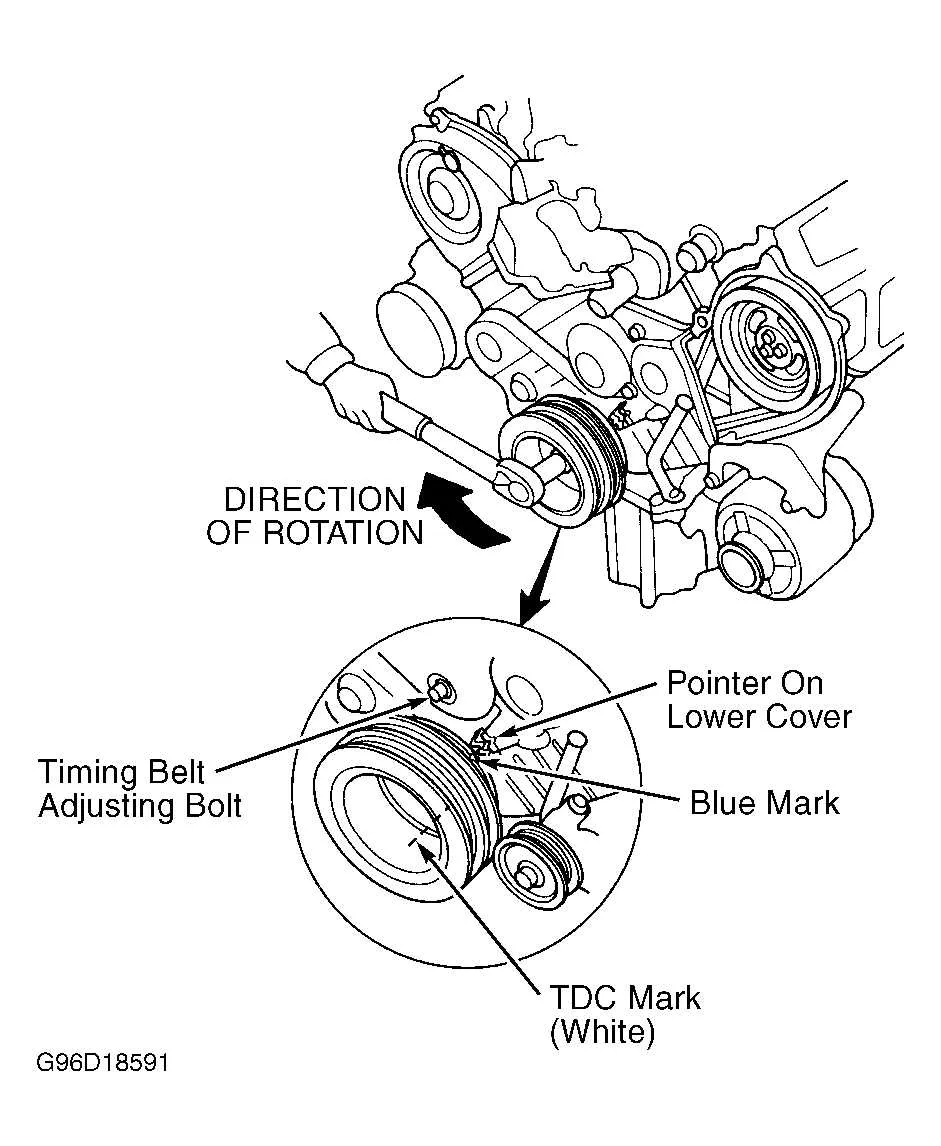

Use a flashlight to trace each belt path carefully. For the serpentine belt, follow it from the crankshaft pulley upward to the alternator, around the AC compressor, and along the power steering pump. For the timing belt, align the camshaft and crankshaft timing marks according to the service manual before any inspection or replacement.
Mark the belt routing on paper or take a photo before removal to ensure correct reinstallation. Proper identification of all belts prevents misalignment, reduces wear, and maintains engine performance. Keep a set of wrenches ready to release the tensioner when necessary.
Step-by-Step Instructions for Removing and Installing Serpentine Belts
Locate the serpentine belt routing diagram near the engine or in the vehicle manual to identify the correct path before removal.
- Disconnect the negative battery terminal to prevent accidental electrical contact.
- Use a wrench or serpentine belt tool to rotate the tensioner pulley clockwise, relieving tension on the belt.
- While holding the tensioner, slide the belt off one of the accessible pulleys to release it from the system.
- Slowly release the tensioner and remove the belt completely from all pulleys.
- Inspect all pulleys for wear, damage, or misalignment. Replace any faulty components before installing the new belt.
- Compare the new belt with the old one to ensure matching length and rib pattern.
- Route the new belt according to the diagram, starting with the lower pulleys and leaving the tensioner pulley for last.
- Rotate the tensioner pulley again to allow the belt to slide fully into place over the final pulley.
- Release the tensioner slowly, confirming that the belt sits correctly in all pulley grooves without twists.
- Reconnect the negative battery terminal and start the engine to verify proper belt operation and alignment.
Check for smooth rotation and absence of squeaking or slipping. Re-inspect the belt after a short test drive to confirm stable performance.
Check Belt Tension and Alignment to Prevent Premature Wear

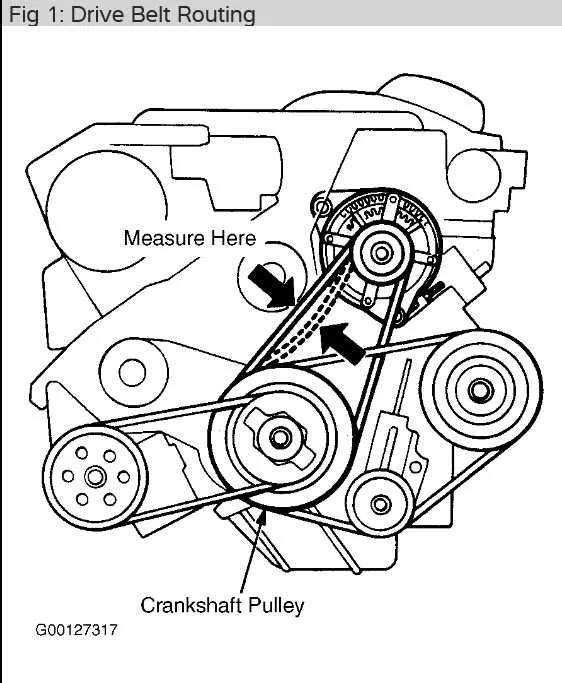

Measure the serpentine belt tension using a gauge at the midpoint between the alternator and crankshaft pulleys. For the 2004 Acura TL, the belt should deflect approximately 1/4 to 1/2 inch under moderate thumb pressure.
Examine the belt path for uniform contact across all pulleys. Any deviation, such as edge fraying or partial slippage, indicates misalignment or uneven tension.
Inspect each pulley for side-to-side play or wobble. Tighten loose mounting bolts and replace pulleys with noticeable movement to maintain proper alignment.
Run the engine briefly and watch the belt in motion. Twisting, jumping, or vibrations suggest a tensioner adjustment is required or that a pulley may be failing.
After adjustments, recheck tension and pulley alignment. Maintain consistent pressure and straight alignment to prevent premature belt wear and reduce the risk of operational failure.
