Simplicity 52 Inch Mower Deck Belt Diagram for Accurate Replacement and Maintenance
Check the belt routing on the Simplicity 52 inch mower deck by inspecting each pulley and spindle before starting any adjustment. Verify that the belt follows the factory path around the idler pulleys and main drive pulley without twists or slack. Replace any belt with frayed edges or glazing to maintain steady blade rotation and avoid uneven cutting.
Use a 3/8-inch drive ratchet to release the deck tension spring and remove the old belt. Slide the belt off the mandrel pulleys and idler arms, noting the exact sequence of the belt path. Install the new belt by reversing the steps, ensuring the v-side sits properly in the pulley grooves and the tensioner arm moves freely.
After installation, rotate each blade by hand to confirm smooth movement and correct belt alignment. Tighten the tension spring securely and check that the belt maintains firm contact with all pulleys. Regularly clean debris from the deck to extend belt life and preserve consistent cutting performance.

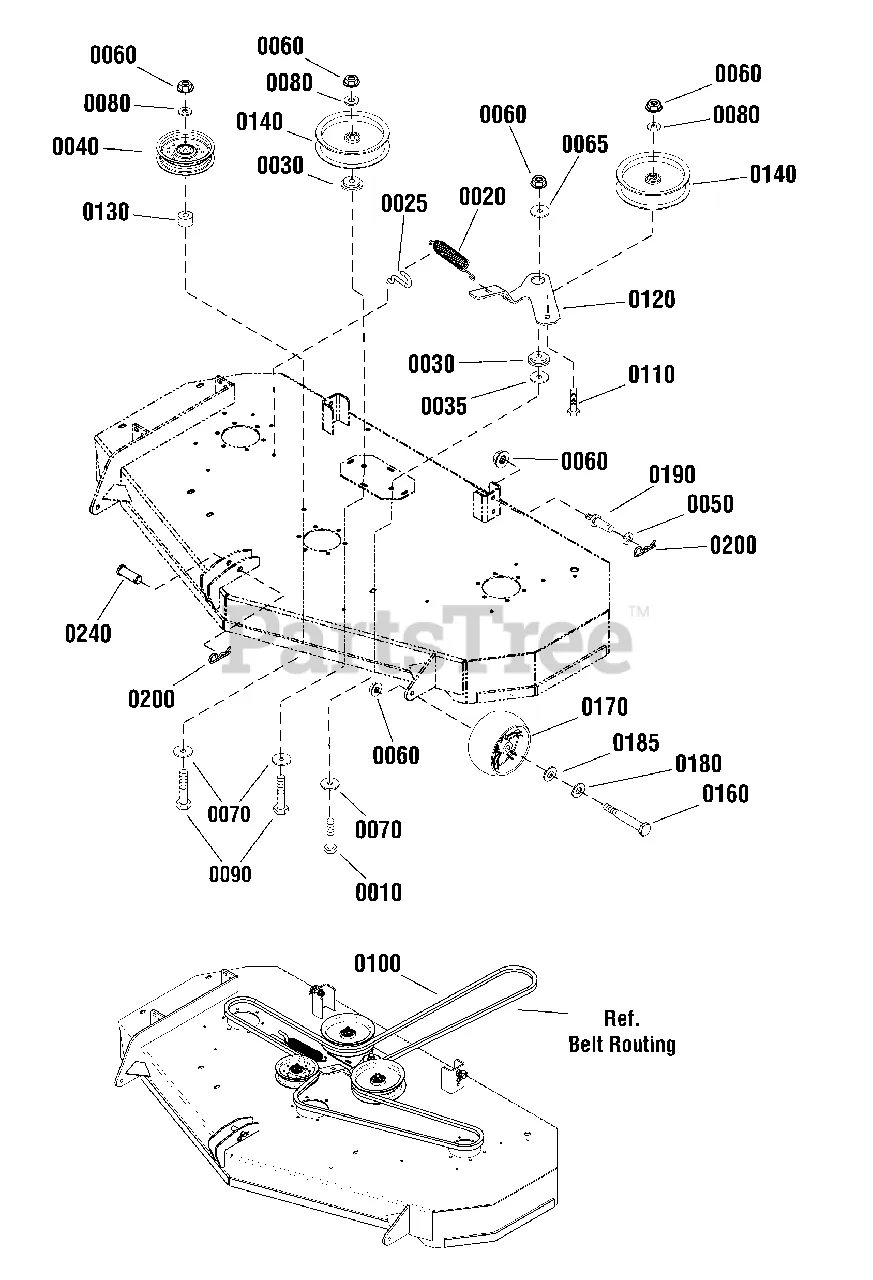

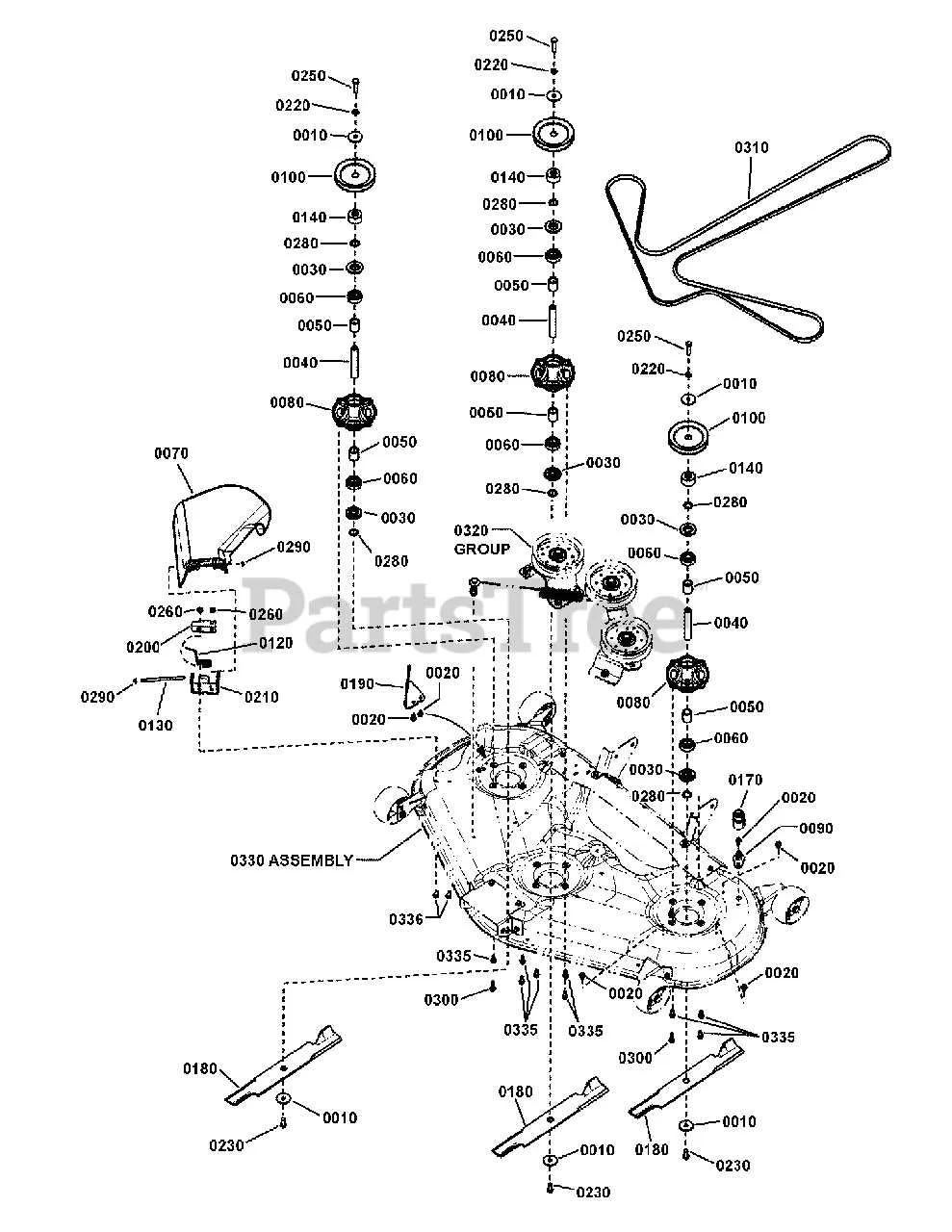

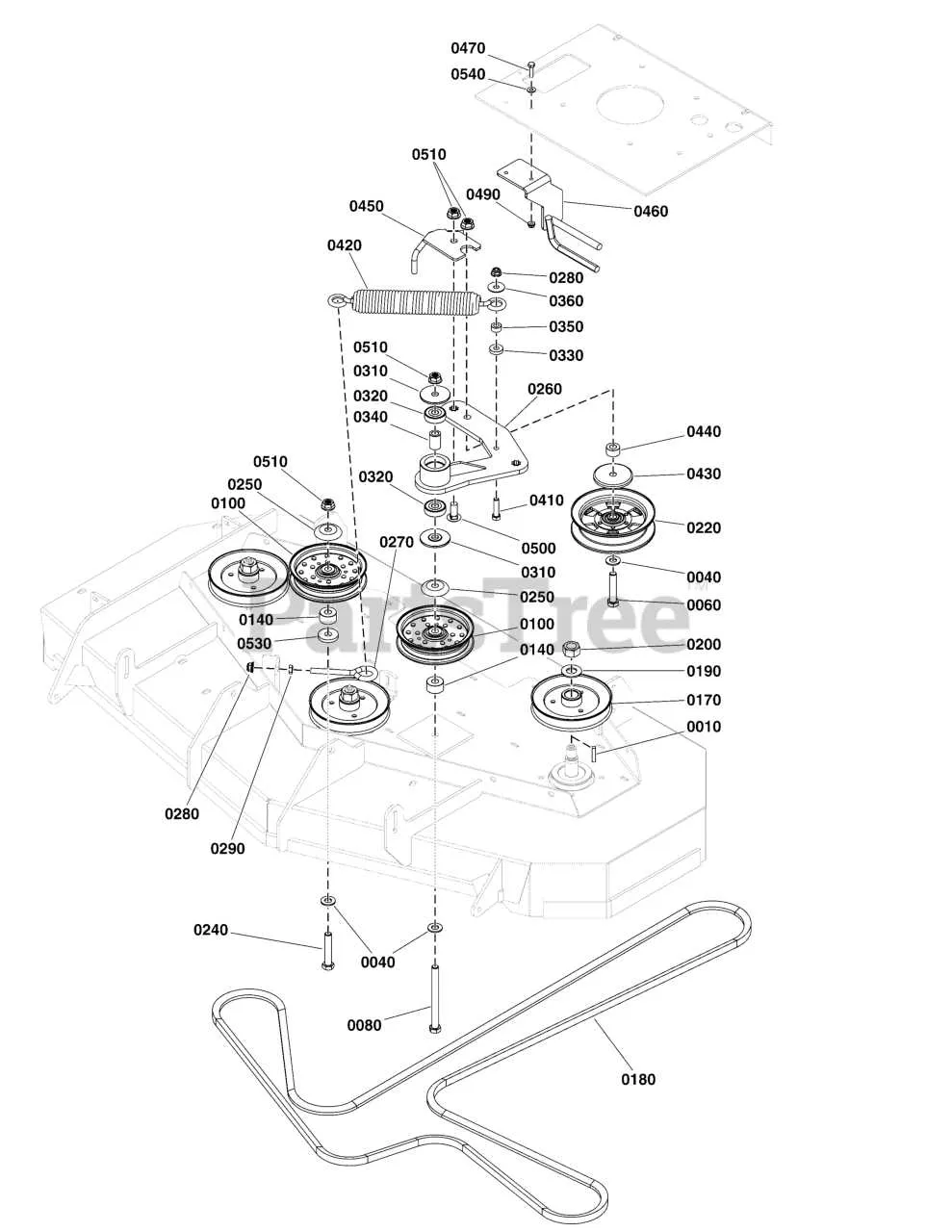

Simplicity 52 Inch Mower Deck Belt Diagram
Verify the belt routing by comparing the mower deck to the manufacturer’s diagram for a 52-inch model. Align the belt so it wraps around the primary drive pulley, then pass it through the idler pulleys without twisting. Keep the flat side of the belt against flat pulleys and the V-side seated inside the groove of the spindle pulleys.
Check belt tension by applying moderate hand pressure midway between the pulleys. The belt should deflect about ½ inch. Adjust the idler spring or tension arm if the deflection is greater. A loose belt slips under load and wears quickly, while excessive tension strains bearings and spindle assemblies.
Inspect the belt path for debris or bent brackets before reinstalling the deck. Replace any pulley with visible wobble or rough bearings. Use only a manufacturer-approved belt with the correct length and cross-section to maintain reliable power transfer and reduce premature wear.
Identifying the Correct Belt Routing for the 52 Inch Deck Model
Confirm the deck is fully lowered and the engine is off before working. Remove the spark plug wire to prevent accidental start. Clean the pulleys and idler arms to expose all grooves and reduce debris interference.
Place the belt around the center spindle pulley first to establish the primary loop. Route it to the left and right spindle pulleys, ensuring the V side of the belt seats firmly in each groove. Maintain tension while feeding the belt through the deck guides to avoid slack.
Lead the belt around the flat idler pulley with the flat side of the belt touching its surface. Pass the belt under the spring-loaded idler arm and verify that the belt rests against the tensioner pulley without twisting. Pull the tensioner arm back slightly to create enough slack to secure the final pulley connection.
Inspect alignment by rotating the pulleys manually one full turn. Check that the belt stays centered in each groove and clears all belt keepers. Reattach the spark plug wire and engage the blade briefly to confirm smooth movement and stable tension.
Steps to Safely Remove and Install the 52 Inch Deck Belt
Park the mower on a flat surface and set the parking brake. Turn off the ignition key and remove it. Disconnect the spark plug wire to block accidental engine start.
- Lower the mower deck fully and slide out the belt covers from both sides of the deck.
- Release the tension on the idler pulley by moving the idler arm toward the center of the deck and lock it with the provided notch or use a locking tool.
- Slip the belt off the engine pulley and carefully remove it from the spindle pulleys and idler pulleys, noting the belt path for reinstallation.
- Inspect each pulley and bearing for wear or damage and clean debris from the deck housing.
- Route the new belt following the original diagram, keeping the ribbed side inside the pulley grooves and the flat side on the idler pulleys.
- Re-engage the idler arm to restore belt tension and verify that the belt sits evenly on every pulley.
- Reattach the belt covers and reconnect the spark plug wire before testing the deck operation at low throttle.
Check belt alignment after the first few minutes of operation and readjust if the belt has shifted on any pulley.
Adjusting Belt Tension and Checking Pulley Alignment After Installation
Place the mower on a level surface and disengage the PTO to prevent blade movement. Set the parking brake and disconnect the spark plug wire for safety. Inspect the belt’s path and confirm it sits fully inside each pulley groove without twists.
Locate the tensioner spring and adjust the idler arm until the belt deflection measures about 3/8 inch under moderate finger pressure. Use a ruler or belt tension gauge to maintain accuracy. Secure the idler arm bolt and verify the spring provides consistent pressure through the full range of deck height settings.
Spin each pulley by hand and observe the belt tracking. If the belt rides high or drifts sideways, loosen the pulley mounting bolts and shift the pulley until the belt centers smoothly. Tighten bolts to the manufacturer’s torque specification, typically 35–40 ft-lb, and recheck alignment by rotating the blades slowly.
Reconnect the spark plug wire and engage the PTO briefly while the deck is raised. Listen for abnormal sounds and watch for any belt vibration. Shut off the engine and recheck tension after the belt cools, as minor settling may require a final quarter-turn adjustment of the idler arm.
