Step by Step Guide to Replacing the Drive Belt on a Snapper Riding Mower Mower Deck
Replacing the drive belt on your Snapper riding mower is a straightforward task, but it’s crucial to follow the correct steps to ensure a smooth operation afterward. Begin by raising the mower deck to give yourself enough space to work. Disconnect the battery to avoid any accidental starts while working on the mower.
Next, carefully inspect the current drive belt for wear and damage. If the belt is visibly cracked or worn, it’s time for a replacement. Use the provided diagram to identify the belt routing and determine the exact path the new belt must follow. Ensure you have the correct replacement belt, matching the specifications listed in the owner’s manual.
Remove the old belt by loosening the tension and sliding it off the pulleys. It’s essential to take note of the pulley arrangement to avoid confusion when installing the new belt. Follow the diagram closely, making sure the belt sits properly on each pulley without slipping out of place. Tighten the tension to secure the belt, ensuring it’s not too tight or too loose.
Finally, test the mower by starting the engine and engaging the drive system. Check the belt for proper movement and alignment. A properly installed belt will run smoothly, providing efficient power transfer from the engine to the mower deck.

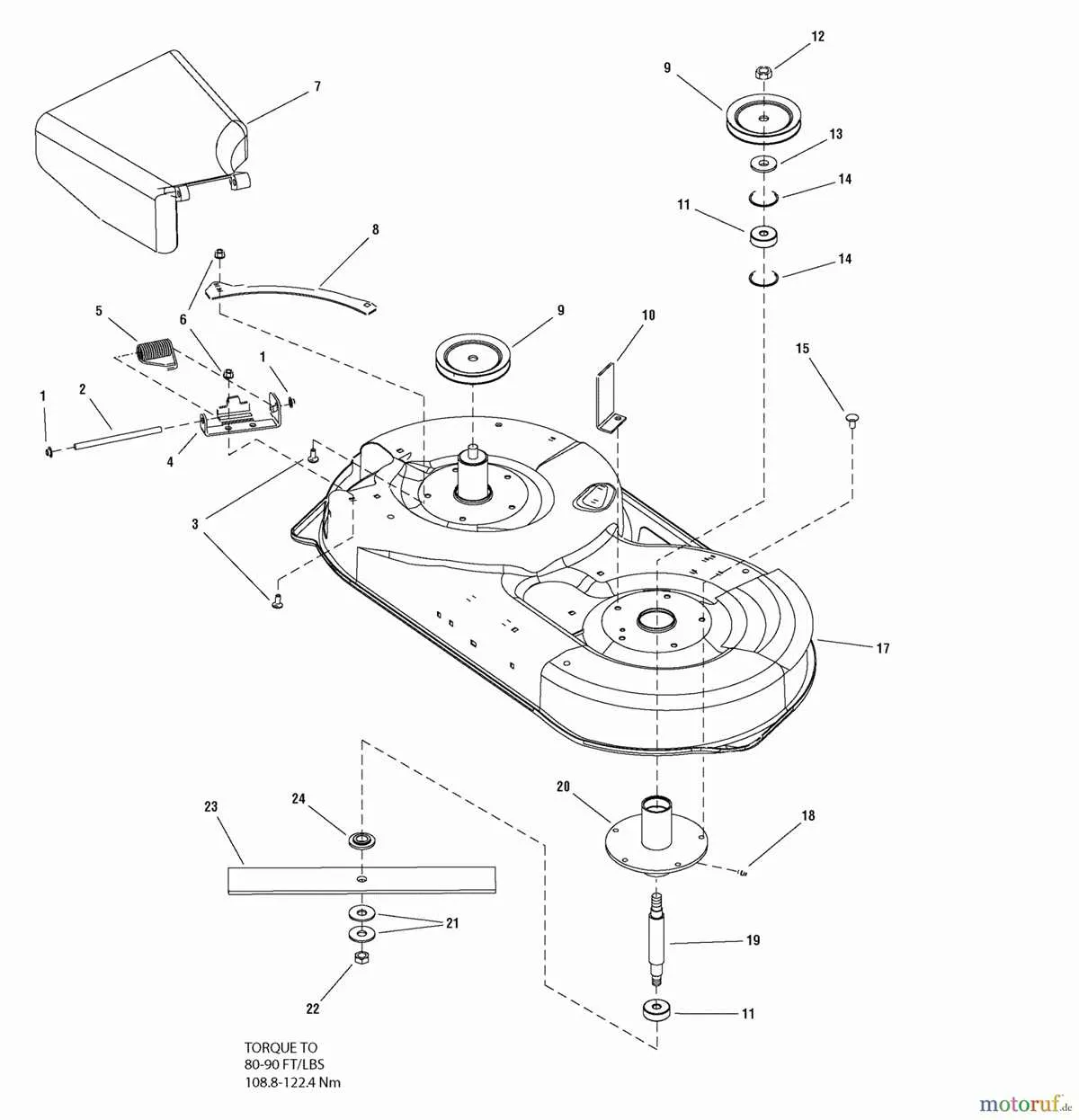

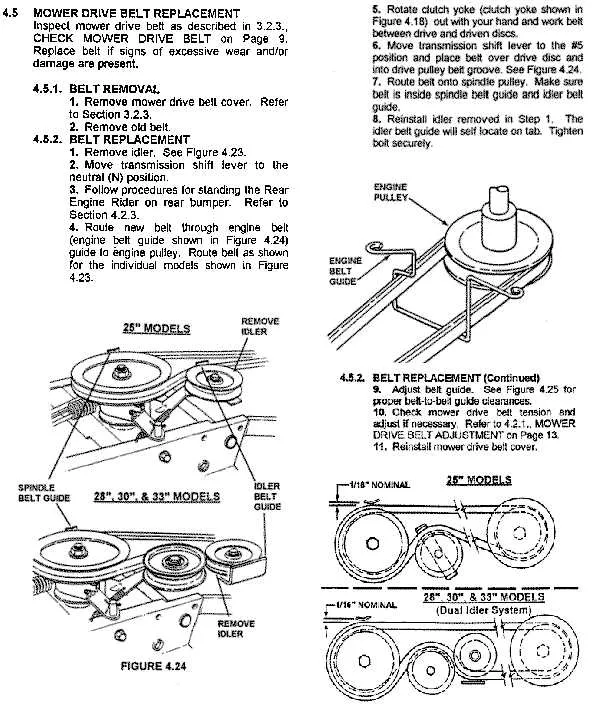

Mower Deck Snapper Riding Mower Drive Belt Replacement Diagram
To replace the drive belt on your Snapper riding mower, begin by lifting the mower deck. This allows easy access to the components involved in the replacement process. Locate the belt, which runs between the engine pulley and the mower deck pulleys. You’ll need a socket wrench set to remove the fasteners securing the deck in place. After removing the deck, disconnect the old drive belt from the pulleys.
Consult the diagram of your specific Snapper model for belt routing. This diagram will show the exact path the belt follows, ensuring proper installation. Before placing the new belt, check the pulleys for any damage or wear that could affect the performance of the new belt.
Once you have the new belt in hand, follow the diagram to position it on the pulleys. Pay close attention to the direction of the grooves on the belt to ensure it’s installed correctly. After the belt is in place, reattach the mower deck to the frame and secure all fasteners. Test the belt by manually turning the pulleys to confirm proper tension and alignment.
If the belt is too loose or tight, adjust the idler pulley accordingly for optimal performance. With everything securely in place, you’re ready to start your mower and begin cutting grass again.
Locating the Drive Belt on Snapper Riding Mower
The drive belt on a Snapper riding mower is typically located under the mower deck. To find it, first, ensure the mower is off and the engine is cool. Lift the front of the mower, either using a jack or the designated lifting mechanism, if available.
The drive belt runs from the engine’s pulley to the mower deck pulleys. You’ll see the belt winding around several idlers and pulleys. The belt’s routing is designed to transfer power from the engine to the blades and drive system. To make belt replacement easier, take note of how it’s routed, or refer to the diagram on the underside of the mower deck, if provided.
If the deck is difficult to access, you may need to remove certain parts, like the deck’s guard or the belt shields. Once those are removed, the belt should be more visible. Inspect it for wear or damage if you’re replacing it, and ensure that the new belt matches the original routing before securing it in place.
Step-by-Step Process for Removing the Old Drive Belt
First, lift the mower deck to access the drive belt. Make sure the mower is off and the ignition key is removed. Position the deck lift lever to its lowest setting.
Locate the belt guard on the mower. Use a wrench to remove the bolts securing the guard and set it aside. This will expose the belt and allow you to examine its path.
Next, loosen the tension on the drive belt. Identify the idler pulley and use a ratchet or wrench to relieve the tension. This will allow the belt to be removed more easily.
Carefully slide the belt off the pulleys. Begin by detaching it from the engine pulley and then work your way around the other pulleys. Keep track of the belt’s routing for reference when installing the new belt.
If necessary, remove any additional components blocking access to the belt. This may include removing the mower’s blades or other parts as specified in your model’s manual.
Inspect the old belt for any damage as you remove it. If it’s still in good condition, it can be reused, but most likely, it will need replacement due to wear and tear.
Once the belt is completely removed, check the pulleys for any debris or signs of damage. Clean the pulleys before installing the new belt to ensure smooth operation.
Installing the New Drive Belt on the Mower Deck
Position the mower on a flat, level surface to prevent movement during the installation. First, disconnect the spark plug to ensure safety while working on the mower.
Remove any debris or dirt from the mower deck and surrounding areas to gain clear access to the drive components. Use a wrench to release the tension from the old drive belt by loosening the tensioner pulley. If the tensioner is difficult to move, carefully inspect for any obstructions or damage that could be affecting its movement.
Take the new belt and align it with the pulleys, following the routing diagram for your specific Snapper riding mower model. Be sure the belt fits snugly into the grooves of each pulley, making sure it’s not twisted. The belt should pass through the tensioner pulley last, ensuring proper tension is applied once it’s fully installed.
Before reassembling the mower, manually rotate the pulleys to check that the belt moves freely without any binding. If there is resistance, recheck the belt alignment. Tighten the tensioner pulley back into place to secure the belt. Finally, reconnect the spark plug and test the mower briefly to confirm the new belt operates smoothly.
