2012 Subaru Forester Serpentine Belt Diagram and Routing Guide
If you’re working on a 2012 Subaru Forester, understanding the serpentine belt layout is a key step in keeping the engine running smoothly. This diagram shows how the belt routes around the various components, providing power to critical parts like the alternator, power steering pump, air conditioning compressor, and more. Ensuring the belt is properly aligned can help avoid unnecessary wear and potential failure of these systems.
The serpentine belt on the 2012 Subaru Forester is a single, long belt that loops around several pulleys. You’ll want to refer to the diagram for the exact routing, especially when replacing the belt or performing maintenance. Each pulley plays an important role, so it’s crucial to know the correct order for the belt to move through them. Pay close attention to the tensioner and idler pulleys, which ensure the belt remains tight and runs smoothly.
In the event of belt damage or wear, it’s a good idea to inspect the diagram to confirm proper installation of a replacement. Also, note that if the belt is too loose or too tight, it could lead to more severe engine issues. Regular inspection of the belt and pulleys, as well as timely replacement, will keep your Subaru Forester running at its best.

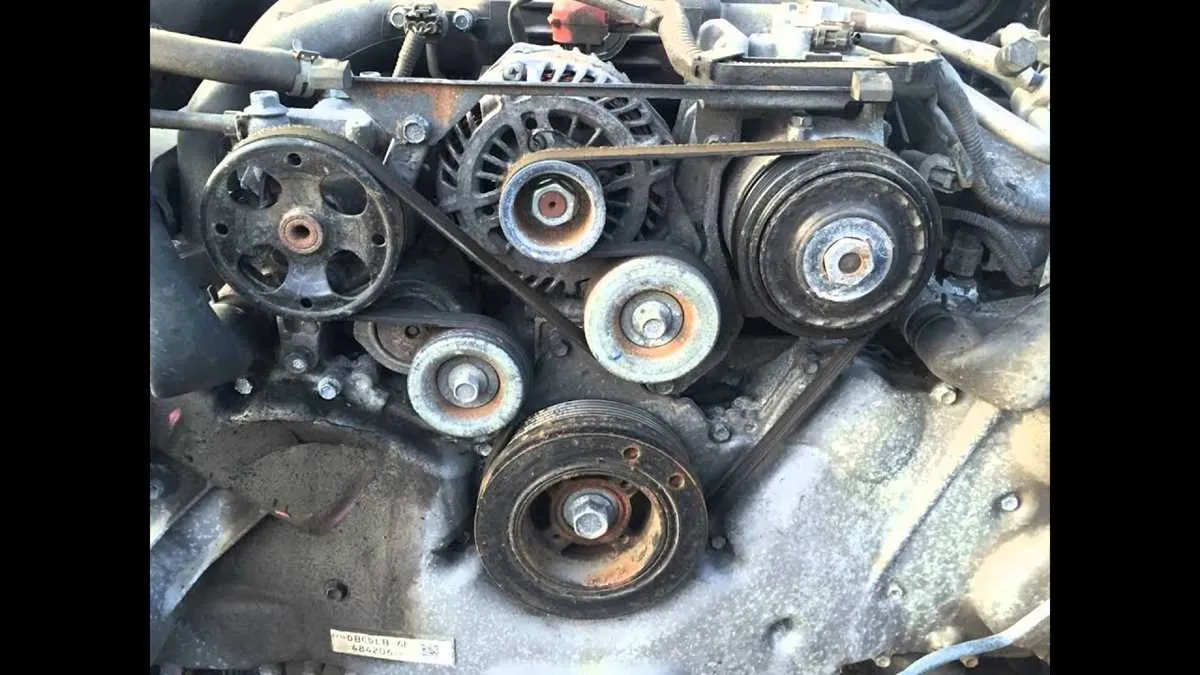

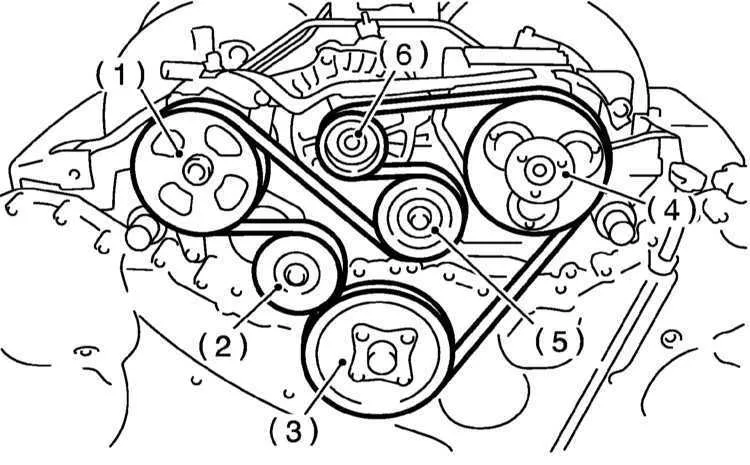

2012 Subaru Forester Serpentine Belt Diagram
The 2012 Subaru Forester uses a serpentine belt to power various engine accessories like the alternator, power steering pump, air conditioning compressor, and water pump. Ensuring the correct routing of the serpentine belt is crucial to prevent damage and maintain optimal performance.
In this model, the serpentine belt follows a specific path around the pulleys. To correctly install or replace the belt, first, identify the following components: the crankshaft pulley, alternator pulley, power steering pulley, and tensioner. The belt should pass over each of these pulleys in the correct order, with the tensioner keeping the belt tight. The path typically runs from the crankshaft pulley, up around the power steering pulley, then over the alternator and air conditioning compressor, before returning to the crankshaft pulley.
Refer to the diagram printed under the hood for the exact belt routing, as it can slightly vary depending on the engine type. If you’re replacing the belt, make sure to use the correct size to avoid under or over-tightening. Always check the belt for wear, cracks, or fraying before installation to ensure it performs well.
If you need more precise information, consider consulting your Subaru owner’s manual or a professional mechanic to avoid mistakes during the installation.
How to Identify the Correct Serpentine Belt Routing for 2012 Subaru Forester
Check the vehicle’s owner’s manual for the exact serpentine belt diagram. If it’s unavailable, look for the diagram on the radiator support or engine compartment lid. If these aren’t options, finding a clear diagram online or on auto parts websites is a great backup.
Inspect the belt routing by locating the components it drives. These include the alternator, power steering pump, air conditioning compressor, and the crankshaft pulley. Make sure you confirm which accessories your Forester model has, as some variations (like models with a turbo engine) may have different setups.
Before installing, ensure the new serpentine belt matches the old one in terms of length and rib count. The belt should fit snugly in the grooves of the pulleys without being too tight or loose. A tensioner will help maintain the correct tension, but make sure it is properly adjusted to avoid slippage.
If you’re having difficulty with routing or the belt appears worn, it may be helpful to reference the repair manual or consult with a certified mechanic for assistance. Keeping the belt correctly routed and in good condition prevents unnecessary engine strain and premature wear on components.
Common Issues with the Serpentine Belt on 2012 Subaru Forester and How to Fix Them
If you notice squealing or whining noises coming from the engine area, your serpentine belt might be worn or loose. It’s a common issue in the 2012 Subaru Forester that can lead to a range of problems, including engine overheating or electrical issues if not addressed quickly.
- Belt Wear and Cracking: Over time, the serpentine belt can crack due to friction and exposure to heat. Inspect the belt regularly for visible signs of wear. Replace it if cracks are visible to avoid unexpected failures. Use a new OEM belt to ensure proper fit and durability.
- Belt Slippage: Slipping can occur if the tensioner is worn out or misaligned. A loose belt may cause reduced power to components like the alternator, water pump, or AC. To fix this, replace the belt tensioner or adjust the belt to the proper tension, ensuring it’s aligned with the pulleys.
- Noisy Belt: A squealing serpentine belt can result from lack of lubrication, dirt, or misalignment. Clean the belt and pulleys and check if the belt is properly aligned with the pulleys. If the noise persists, replace the belt or check the pulleys for wear.
- Pulley Issues: Worn-out pulleys can also cause belt issues. They may not rotate smoothly, putting excessive strain on the belt. Inspect each pulley for wear and replace them if necessary. You can use a pry bar to test if the pulley moves freely.
- Overheating: A malfunctioning serpentine belt can stop the water pump from circulating coolant, causing the engine to overheat. If you notice engine temperature spikes, check the belt for tightness and cracks. Replace it promptly to avoid engine damage.
Regular maintenance of the serpentine belt is critical for preventing costly repairs. Inspect the belt every 30,000 to 50,000 miles or sooner if you hear unusual noises or notice any of the above symptoms. Replacing the belt or its components can save you from further damage to the engine and related systems.
Step-by-Step Guide to Replacing the Serpentine Belt on 2012 Subaru Forester
To replace the serpentine belt on your 2012 Subaru Forester, gather the necessary tools first: a wrench, socket set, and a new serpentine belt. Ensure your vehicle is parked on a flat surface, the engine is off, and the keys are removed from the ignition.
1. Locate the serpentine belt. It runs across the front of the engine and powers several components, such as the alternator, power steering pump, and air conditioning compressor.
2. Release tension from the belt. Use a ratchet wrench and socket to rotate the tensioner pulley counterclockwise. This will loosen the belt enough to remove it. Be cautious as the pulley might require some force.
3. Remove the old belt. Once the tension is released, carefully slide the belt off the pulleys, taking note of its path for proper installation of the new belt.
4. Compare the new belt with the old one. Make sure the new belt matches in length and width to avoid any issues during installation.
5. Install the new belt. Start by routing it over the pulleys according to the diagram located in the engine bay. Ensure the belt is seated correctly in each pulley groove.
6. Reapply tension. Rotate the tensioner pulley back into position with the wrench, ensuring the belt is tight but not too tight. Check for proper alignment on all pulleys.
7. Test the installation. Turn on the engine and observe the belt’s movement. Listen for any unusual noises or squeaks. If everything looks good, you’re done!
Table: Serpentine Belt Routing Diagram
| Component | Location |
|---|---|
| Alternator | Top, near driver’s side |
| Power Steering Pump | Front, below alternator |
| Air Conditioning Compressor | Near the front of the engine |
| Crank Pulley | Bottom, center of engine |
