Buick LeSabre Serpentine Belt Routing Diagram for Accurate Installation and Maintenance

Locate the tensioner first to relieve belt tension safely. On most Buick LeSabre models, the tensioner sits near the front of the engine, usually above the alternator. Use a wrench or serpentine belt tool to rotate it and free the belt for removal.

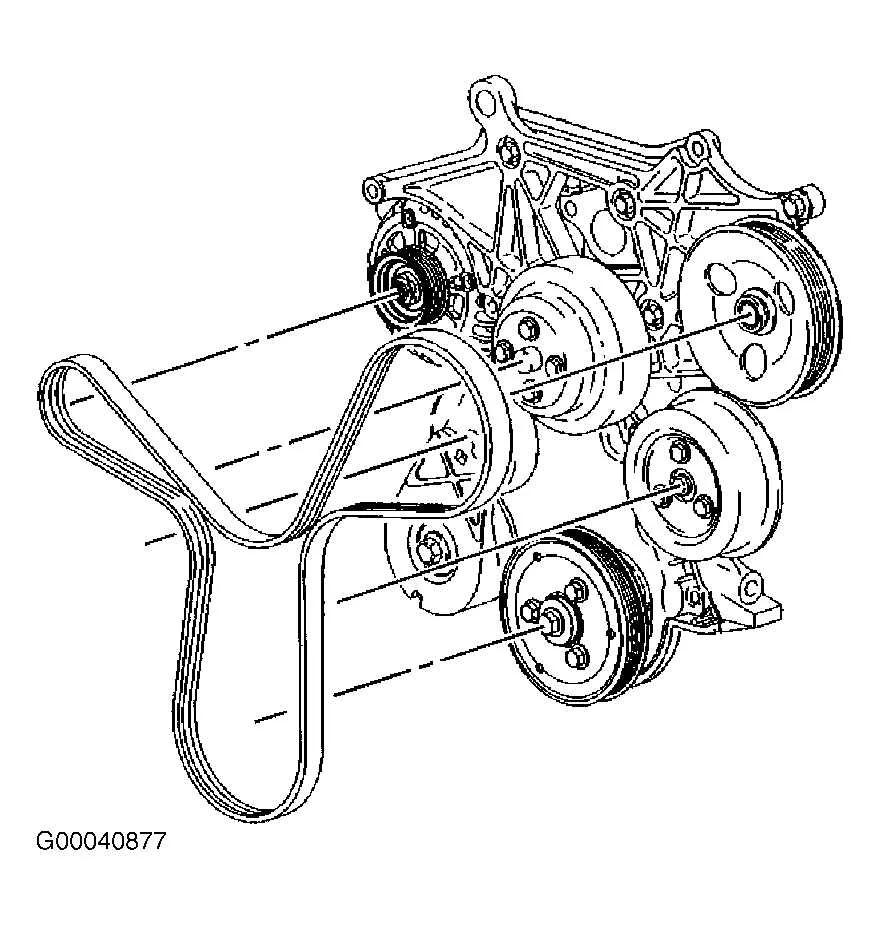

Follow the routing diagram carefully when installing a new belt. The typical configuration wraps around the crankshaft pulley, alternator, power steering pump, and air conditioning compressor. Skipping any step can cause misalignment, leading to noise or premature wear.

Check pulleys and components while the belt is off. Inspect the alternator, idler pulleys, and tensioner for smooth rotation and absence of play. Replace any worn parts to avoid belt slipping or breaking shortly after installation.

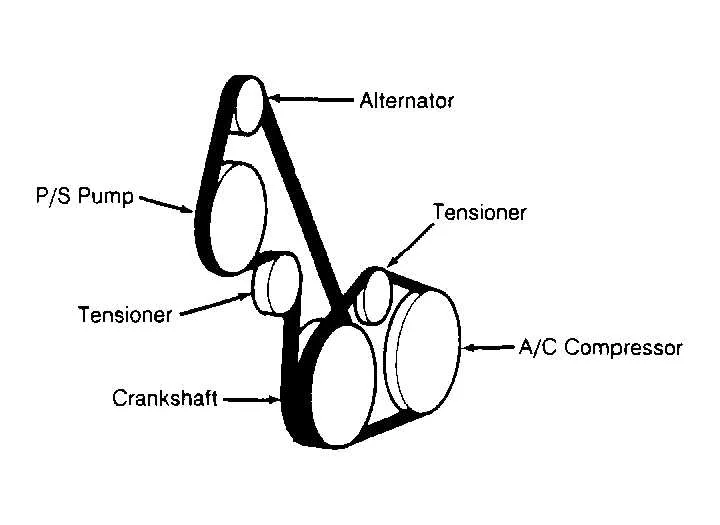

Use a clear diagram for reference. Many service manuals and online resources provide a labeled image showing exact belt paths for each engine option. Print or keep a digital copy visible during installation to prevent mistakes.

Tighten and test after routing the belt. Release the tensioner gradually and ensure the belt sits evenly in all pulley grooves. Start the engine briefly to verify smooth operation, listening for unusual noises or misalignment.

Buick LeSabre Serpentine Belt Diagram

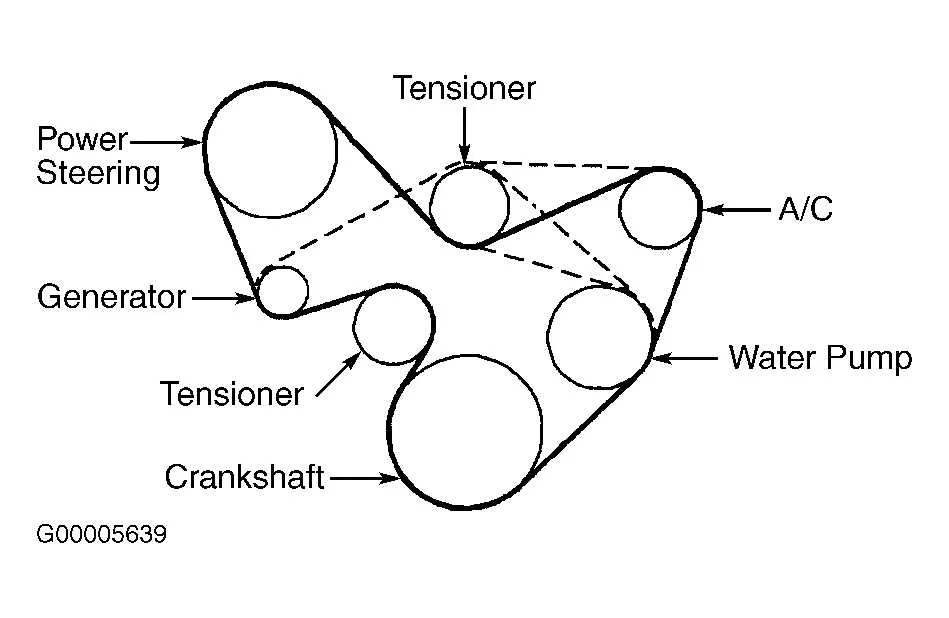

Refer to the vehicle-specific diagram to route the serpentine belt correctly on a Buick LeSabre. For most 3.8L V6 engines, the belt wraps around the crankshaft pulley, alternator, power steering pump, water pump, and air conditioning compressor in a precise sequence. Follow the diagram to prevent misalignment that can cause noise, slippage, or premature wear.

Check the tensioner position in the diagram. Release tension using a wrench or serpentine belt tool, slide the belt onto all pulleys except the tensioner, then apply tension carefully. Ensure the belt sits fully in the grooves of each pulley, as an off-track belt may damage components.

Compare the diagram against the existing belt before installation to confirm pulley placement. Inspect all pulleys for wear, cracks, or wobble while the belt is off. Replace any defective parts to maintain proper operation and extend belt life.

After installation, rotate the engine manually at least one full turn to verify alignment. The diagram shows the correct routing and helps identify proper tensioner positioning, preventing slippage and maintaining consistent performance across all accessory systems.

Locate and Identify Belt Routing on Buick LeSabre Engines

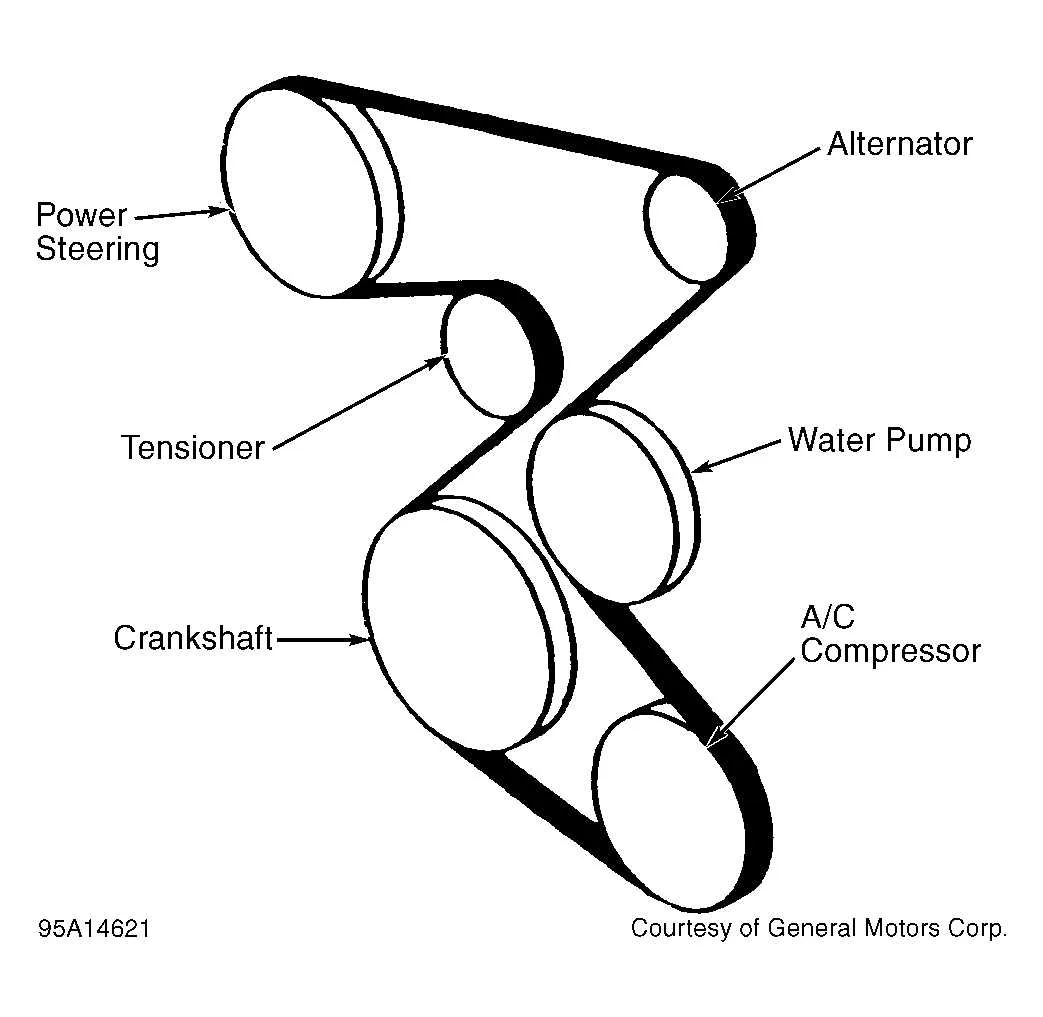

Identify the serpentine belt routing by first locating the belt diagram sticker, typically found on the radiator support or under the hood near the engine. This diagram shows the exact path around the pulleys for your specific engine model.

If the sticker is missing, follow the belt manually from the crankshaft pulley. Note each component it loops around:

• Alternator
• Power steering pump
• Air conditioning compressor
• Water pump
• Tensioner pulley

Mark the pulleys with chalk or tape to prevent confusion during reinstallation. Observe the tensioner pulley carefully; it maintains the correct belt tension and often has a directional arrow indicating the release direction.

Compare the traced path with diagrams from the vehicle manual or reliable online sources to confirm accuracy. Ensure the belt sits fully within each pulley groove and that any ribbed sides align properly with the pulley surfaces.

For engines with dual belts, identify the primary and secondary routing. The longer belt usually drives the main accessories, while the shorter belt may handle the A/C compressor or additional components.

After placement, rotate the crankshaft by hand to verify smooth movement without slipping or misalignment. Adjust the tensioner if necessary, ensuring the belt tracks evenly across all pulleys.

Step-by-Step Replacement Procedure Using the Diagram

Locate the serpentine belt routing diagram under the hood or in the owner’s manual. Verify it matches your Buick LeSabre’s engine configuration before removing the old belt.

Release tension on the belt tensioner using a wrench or ratchet. Rotate the tensioner clockwise to create slack, allowing the belt to slide off the pulleys.

Inspect pulleys and components for wear, damage, or misalignment. Replace any worn tensioners or idler pulleys to prevent premature belt failure.

Compare the new belt to the old one to ensure length and rib configuration match. Lay the belt over the pulleys following the routing diagram, keeping it under the tensioner last.

Apply tension carefully by rotating the tensioner again and slipping the belt into place. Verify the belt sits evenly in all pulley grooves.

Double-check alignment against the diagram. Spin the engine manually with a wrench on the crankshaft pulley to confirm smooth operation without misalignment or rubbing.

Start the engine and observe the belt in motion. Listen for unusual noises and ensure proper tension. Adjust if necessary before driving.

Troubleshooting Belt Alignment and Tension Issues

Inspect the serpentine belt visually for fraying, cracking, or glazing along the ribs. Misalignment often causes uneven wear patterns, so check the pulleys for debris or bent components. Use a straightedge along the pulleys to confirm they are parallel and aligned properly.

Test belt tension by pressing on the longest span between pulleys. For most Buick LeSabre models, the deflection should measure approximately ½ inch under moderate finger pressure. If the belt is too loose, adjust the tensioner until the correct deflection is achieved. For automatic tensioners, ensure the arm moves smoothly and provides consistent tension.

Listen for squealing noises during engine operation. High-pitched squeals often indicate misalignment or insufficient tension. Inspect the idler and tensioner pulleys for smooth rotation and absence of wobble. Replace any pulley showing roughness, excessive play, or damaged bearings.

After adjustments, run the engine and observe the belt tracking across all pulleys. It should ride evenly within the pulley grooves without lateral movement. Recheck tension after initial operation, as new belts may stretch slightly and require minor retightening.

Document the belt routing using a diagram or photograph before removal. Incorrect routing can exacerbate tension and alignment issues. Follow the factory diagram for the 2000–2005 Buick LeSabre to ensure all accessories receive proper drive and reduce premature wear.
