2012 Ram 3500 6.7 Serpentine Belt Diagram and Guide
Understanding the serpentine belt layout on your 2012 Ram 3500 6.7 is critical for smooth engine operation. The serpentine belt connects vital engine components like the alternator, water pump, and power steering pump. A proper understanding of this system helps with belt replacements and troubleshooting.
Inspecting the belt tension regularly ensures the serpentine belt runs smoothly without slipping or breaking. Use a belt tension gauge to check its tightness. If the belt feels loose or the gauge shows a reading outside the recommended range, consider adjusting or replacing it.
Identifying wear and tear is key in maintaining your vehicle’s performance. A worn serpentine belt can cause a host of problems, from poor alternator charging to overheating. Look for signs of cracks, fraying, or glazing on the belt surface. If any of these issues are present, replace the belt immediately.

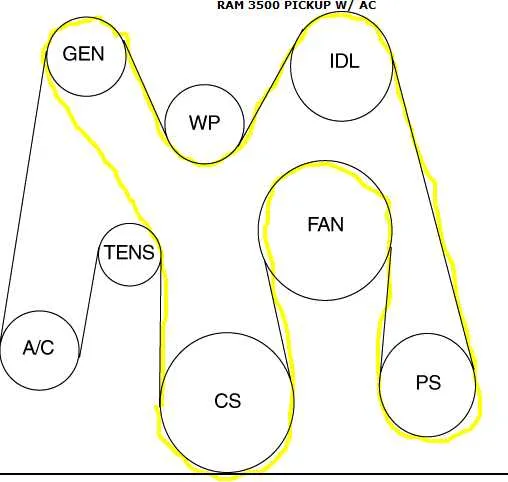

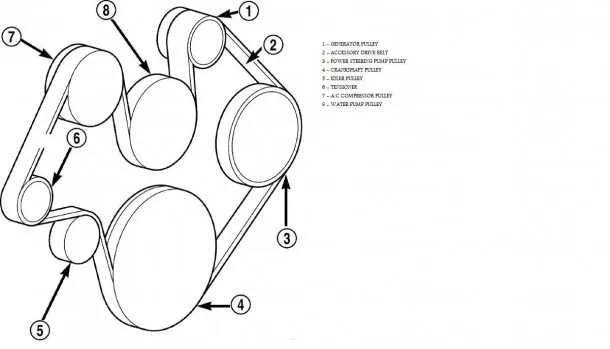

2012 Ram 3500 6.7 Belt Diagram
To correctly install or inspect the serpentine belt on a 2012 Ram 3500 6.7, follow the diagram that illustrates the routing path. Ensure the belt is aligned with each pulley and tensioner. The diagram will provide a clear view of how the belt should pass over the alternator, power steering pump, water pump, and other components. Check for wear signs like cracks, fraying, or glazing before installation.
When replacing the belt, use a proper tensioning tool to apply the correct amount of tension. The tensioner should be able to move freely to keep the belt tight during engine operation. Always compare the belt routing with the diagram to avoid misalignment that could cause premature wear or failure.
If you’re troubleshooting, listen for squeaks or unusual sounds that could indicate a misaligned or damaged belt. A visual inspection can help spot any pulleys out of alignment. Tightening or adjusting the tensioner might resolve some issues, but always refer to the diagram for confirmation.
For smoother operation and better longevity, inspect the pulleys and tensioners regularly. They should rotate smoothly without resistance or play. Replace them if necessary to avoid unnecessary strain on the belt.
How to Identify the Serpentine Belt Layout on the 2012 Ram 3500
To identify the serpentine belt layout on the 2012 Ram 3500, begin by locating the belt diagram. This diagram is typically found on the engine bay, either on the radiator support or near the front of the engine. The layout will provide a visual guide showing the path of the serpentine belt around the pulleys.
Follow these steps to identify the serpentine belt layout:
- Open the hood and secure it in place to access the engine bay.
- Look for the belt diagram, which usually includes a clear drawing of the belt routing along with pulley names or numbers.
- Examine the diagram to understand the path the serpentine belt follows, identifying which pulleys it moves across (such as the alternator, power steering pump, air conditioning compressor, and crankshaft pulley).
- If the diagram is missing or damaged, use a flashlight to inspect the belt’s path. Trace it from the crankshaft pulley to the various components.
- Note the tensioner pulley location. It is often a spring-loaded pulley designed to keep the belt tight.
If you’re unsure about the layout, refer to the vehicle’s service manual or consult a professional mechanic for further assistance.
Step-by-Step Guide to Replacing the Serpentine Belt in the 2012 Ram 3500
1. Begin by locating the serpentine belt routing diagram. It’s usually found on a sticker near the radiator support or on the engine cover. Familiarize yourself with the path of the belt to ensure proper reinstallation.
2. Use a wrench to relieve tension on the tensioner pulley. Position the wrench on the bolt at the center of the tensioner and rotate it counterclockwise. This will loosen the belt so it can be removed.
3. Carefully remove the serpentine belt from the pulleys, making sure to note the order in which it was installed. Pay attention to the direction of the belt’s grooves to ensure proper reinstallation.
4. Inspect the new belt for any damage or defects before installing it. Make sure it matches the length and rib count of the original belt. If in doubt, consult the vehicle’s manual for specifications.
5. Begin installing the new belt, following the path shown in the routing diagram. Ensure the belt sits properly in the grooves of each pulley. Pay close attention to the alignment of the pulleys to avoid skipping teeth or improper tension.
6. Once the belt is in place, rotate the tensioner pulley again using the wrench to relieve the tension and allow the belt to fit securely around the pulleys. Double-check that the belt is aligned properly on each pulley.
7. After installation, manually rotate the engine by hand to check the belt’s alignment and to ensure the system runs smoothly without any unusual noise or resistance.
8. Start the engine and observe the belt during operation. Make sure it runs quietly and smoothly without any slipping or vibration.
Troubleshooting Common Issues with the Serpentine Belt in the 2012 Ram 3500
If the serpentine belt in your 2012 Ram 3500 is making unusual noises, slipping, or showing signs of wear, it may be time to inspect or replace it. Common issues include belt misalignment, tension loss, or physical damage like cracks and fraying.
Start by checking the belt for visible signs of wear. Look for cracks, tears, or frayed edges, which can indicate that the belt is nearing the end of its lifespan. If the belt appears in good condition but is still making noise, it may be misaligned. Use a belt tension gauge to measure the belt’s tension; it should not be too tight or too loose.
Another common issue is a worn-out tensioner. A malfunctioning tensioner can cause the belt to slip or become loose, leading to poor engine performance. Inspect the tensioner for signs of damage or wear, and replace it if needed.
If you notice the belt is slipping or squealing, check the pulleys for signs of damage or wear. A damaged pulley can cause the belt to slip, leading to poor performance. Ensure that all pulleys are aligned properly and rotate smoothly without resistance.
Finally, if the belt appears to be properly tensioned and there is no visible wear, the problem may lie in one of the components powered by the belt. Check the alternator, power steering pump, and air conditioning compressor for any signs of malfunction or abnormal operation. If any of these components are faulty, it may be necessary to replace them before installing a new belt.
