2007 Buick LaCrosse Serpentine Belt Routing Diagram and Installation Guide

Locate the serpentine belt routing on your 2007 Buick LaCrosse using the diagram to ensure correct installation. The belt drives the alternator, power steering pump, water pump, and air conditioning compressor, so proper alignment prevents premature wear and engine issues.

Follow the diagram to thread the belt around each pulley precisely. Start at the crankshaft pulley, then move to the alternator, tensioner, and other components. Use a wrench on the tensioner to release or apply tension smoothly during installation.

Check the belt for cracks, fraying, or glazing before reinstalling. Replacing a worn belt according to the diagram avoids misalignment that could cause noise, slipping, or component failure. Keep the diagram handy for future maintenance or belt replacement cycles.

After installation, run the engine and observe the belt movement. It should track along all pulleys without deviation or vibration. Adjust the tensioner as needed to maintain consistent tension and optimal performance of the engine accessories.

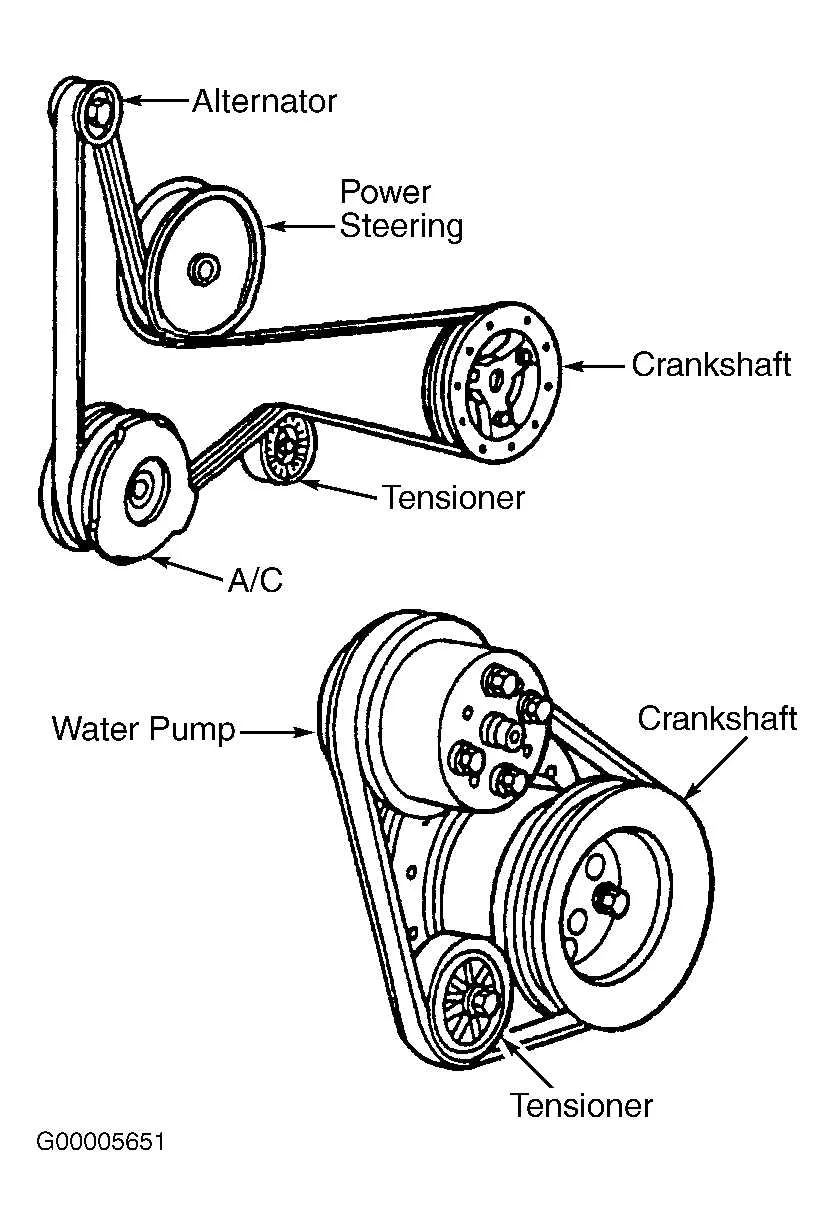

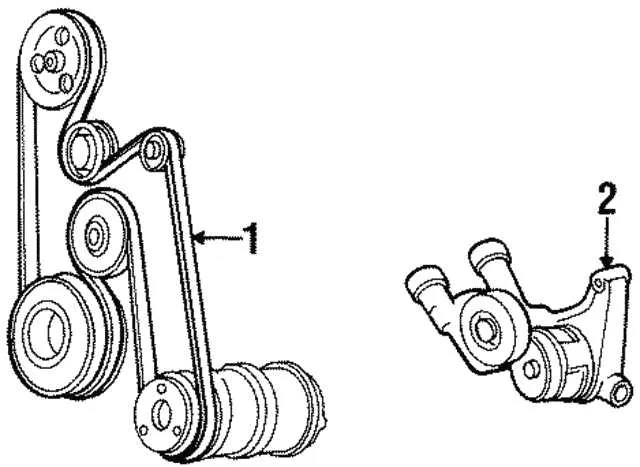

2007 Buick LaCrosse Serpentine Belt Diagram

Locate the serpentine belt routing on the 2007 Buick LaCrosse by referencing the diagram near the engine compartment or the owner’s manual. The belt wraps around the crankshaft pulley, alternator, power steering pump, water pump, and air conditioning compressor. Follow the diagram closely to avoid misalignment, which can cause squealing or premature wear.

When replacing the belt, relieve tension using the tensioner pulley. Ensure the belt sits properly in all pulley grooves. Double-check the routing against the diagram before starting the engine.

If the vehicle has a V6 engine, note that the routing differs slightly between the 3.8L and 3.6L versions. Identify the correct diagram based on the engine type to prevent incorrect installation.

Inspect all pulleys for damage or excessive play during replacement. Replace any worn components to maintain consistent belt performance and prevent future breakdowns.

Keep the diagram accessible for future maintenance. Proper routing ensures smooth operation of the engine accessories and prolongs the life of the belt.

Locating the Serpentine Belt on a 2007 Buick LaCrosse Engine

Open the hood and face the front of the engine to access the serpentine belt. On the 2007 Buick LaCrosse, the belt wraps around the crankshaft pulley at the bottom, the alternator on the upper left, the power steering pump near the center, the water pump at the top right, and the A/C compressor on the lower right. Identify the tensioner pulley, located near the center of the engine, which keeps the belt tight.

Trace the belt visually from the crankshaft upward, noting each accessory it contacts. Confirm the routing matches the diagram stamped on the engine cover or the sticker under the hood. The belt should sit properly in the grooves of each pulley without twisting or misalignment.

Release tension with a wrench on the tensioner pulley to inspect or replace the belt. Always follow the routing path carefully during installation to prevent skipping or premature wear. Double-check that the belt sits evenly in every groove before starting the engine.

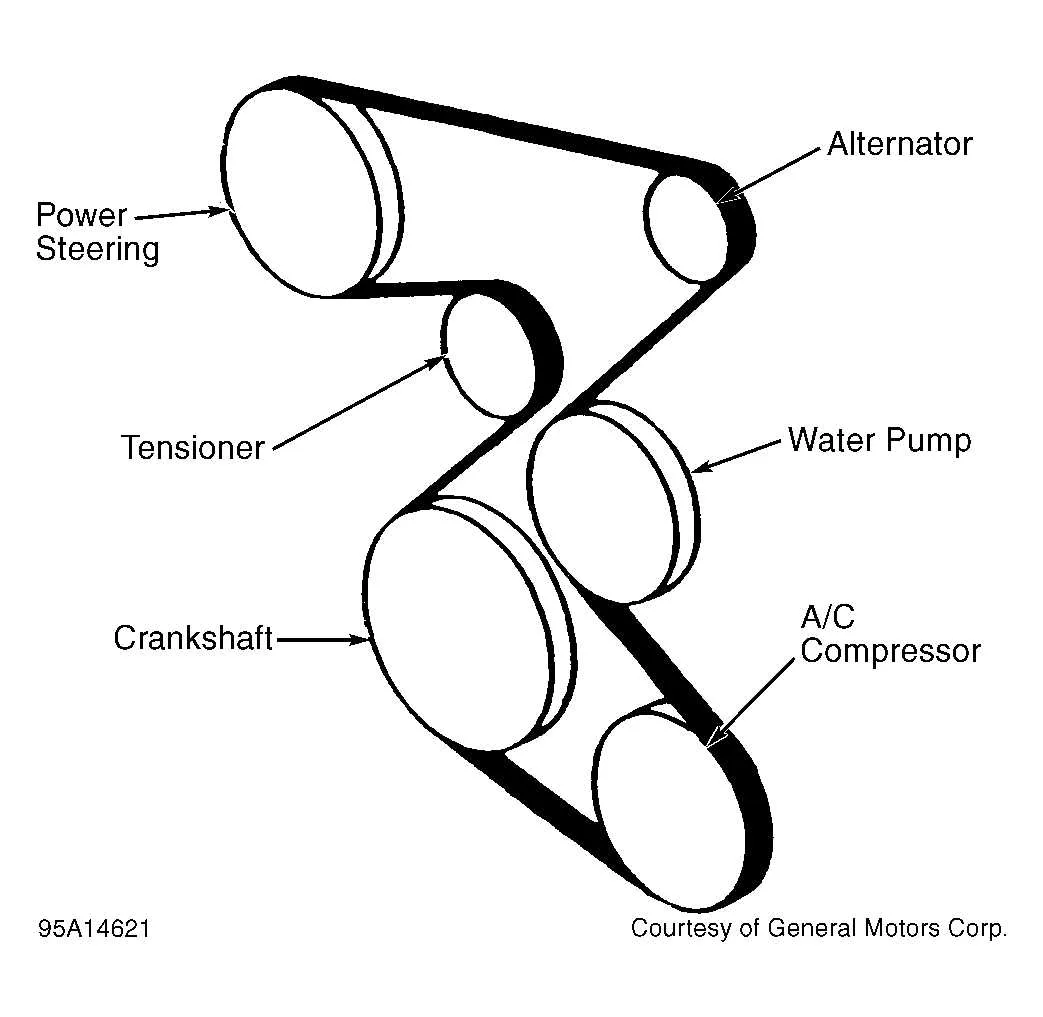

Step-by-Step Guide to Reading the Serpentine Belt Diagram

Locate the diagram printed on the radiator support or under the hood near the engine. Compare it directly with your engine layout to identify each component accurately.

Identify the crankshaft pulley first, as it drives the belt. Trace the belt path from this pulley to the alternator, water pump, power steering pump, and air conditioning compressor, following the arrows if present.

Check for tensioner and idler pulleys. Note their position and rotation direction, since they maintain proper belt tension and alignment. Mark them on the diagram if necessary.

Verify pulley labels against the actual components. Ensure every loop and twist matches the diagram, paying close attention to multi-groove pulleys and serpentine belt routing around corners.

Look for any optional accessories that may not be installed on your model. Adjust your interpretation of the diagram by skipping these components while maintaining the correct belt path.

Double-check the complete route before removing or installing the belt. Follow the path exactly, confirming alignment with every pulley to avoid misrouting and premature wear.

Common Belt Routing Issues and Troubleshooting Tips

Check the tensioner pulley immediately if you notice squealing noises or belt slippage. A loose or misaligned tensioner often causes uneven wear and reduces belt lifespan.

Inspect the belt for cracks, fraying, or glazing on the ribbed side. Replace any belt showing visible wear to avoid sudden failure while driving.

• Ensure the belt sits correctly on each pulley groove. Misalignment can lead to premature wear and may affect the alternator, power steering, or AC performance.
• Verify that all pulleys spin freely without wobbling. A seized or damaged pulley can throw the belt off track and generate noise.
• Check for proper routing according to the 2007 Buick LaCrosse serpentine belt diagram. Routing the belt incorrectly can prevent accessories from operating correctly.
• Look for signs of oil or coolant contamination on the belt. Fluids can soften the rubber and reduce friction, causing slippage.

If the belt repeatedly comes off, examine the idler pulley and tensioner alignment carefully. Minor adjustments or replacement can restore proper routing and prevent repeated issues.

Test drive after installation and listen for unusual noises. Smooth operation across all engine speeds confirms correct installation and tension.
