2011 6.7 Powerstroke Serpentine Belt Routing Diagram and Guide

For maintaining your 2011 6.7 Powerstroke engine, it’s critical to understand the serpentine belt routing. The serpentine belt is responsible for driving multiple engine components, including the alternator, water pump, and power steering pump. Incorrect routing can lead to damage or failure of these components, so having the right diagram is key.

Refer to the diagram below to ensure the correct belt installation. The serpentine belt should run smoothly across all pulleys without twists or tension issues. A proper setup guarantees the efficiency of all connected systems, preventing wear and tear.

If you notice any issues such as squeaking, wear marks, or power loss, double-check the routing against the diagram. It’s also a good idea to inspect the belt for signs of cracking or fraying. Regular checks will help you avoid costly repairs and ensure your engine’s longevity.

2011 6.7 Powerstroke Serpentine Belt Diagram

The serpentine belt on the 2011 6.7 Powerstroke engine plays a key role in powering multiple accessories like the alternator, air conditioning compressor, and power steering pump. Proper installation and maintenance of this belt are critical for smooth engine operation. The belt should be routed around the components as shown in the diagram for optimal function.

To identify if the serpentine belt is correctly installed, start by checking that the belt runs over the tensioner pulley and under the other pulleys without slack. Ensure that the ribbed side of the belt faces the grooves of the pulleys for proper grip and friction. If the belt is misaligned, it can cause wear and lead to premature failure.

Inspect the belt regularly for signs of wear, such as cracking, fraying, or stretching. A worn serpentine belt can slip off or snap, resulting in the loss of power to vital engine components. If you notice any issues, replacing the serpentine belt immediately is necessary to avoid further damage to the engine’s accessories.

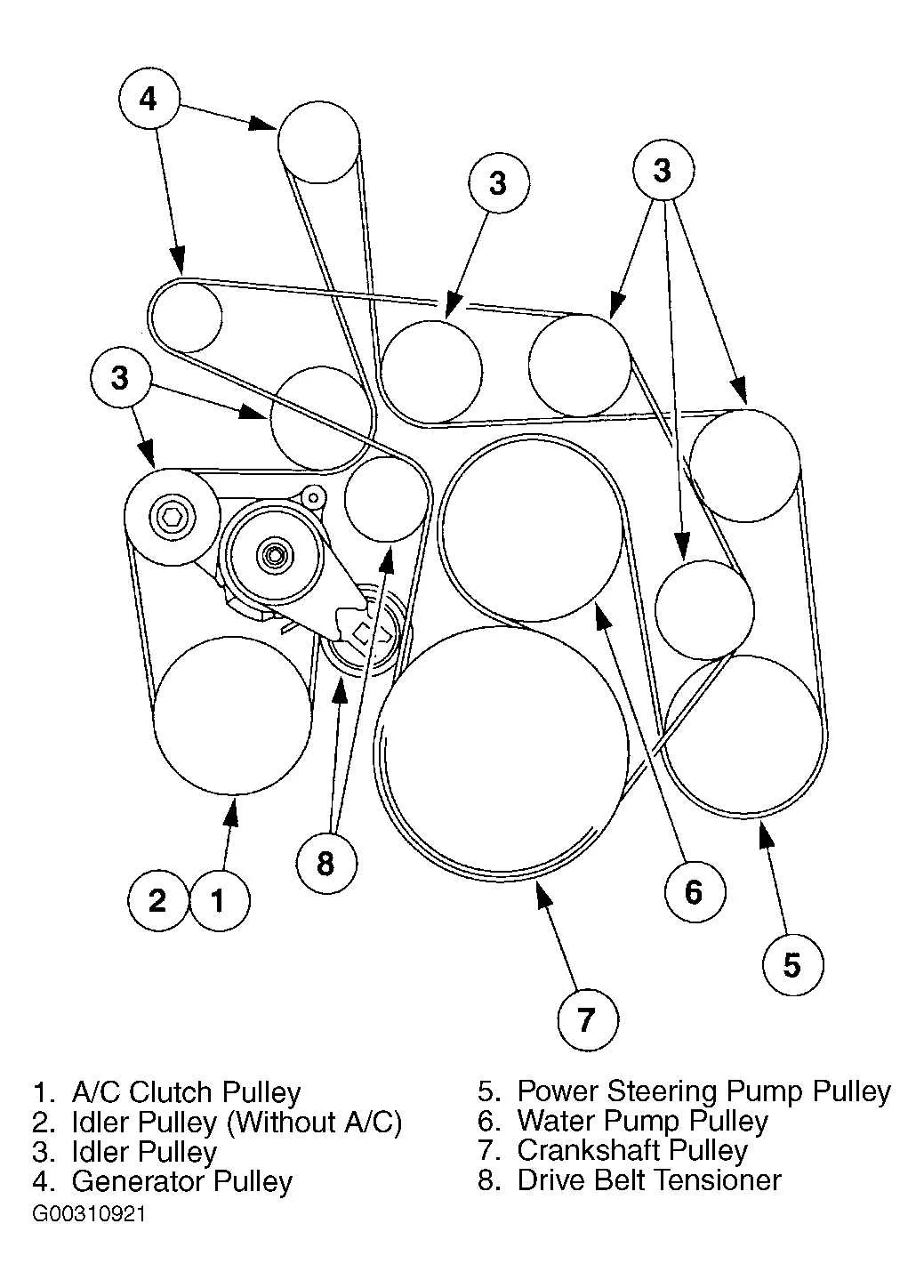

The diagram for the 2011 6.7 Powerstroke serpentine belt includes details on pulley placement and routing. Following the exact diagram is important to avoid incorrect tension and damage. Make sure to use the specified belt length and tension settings for your model to ensure longevity and performance.

For a smooth, hassle-free replacement, always refer to the official diagram and use the correct tools to adjust the tensioner. If unsure, consulting a professional mechanic can save time and prevent costly mistakes. Regular maintenance will extend the life of your vehicle’s components and keep the engine running efficiently.

Understanding the Belt Routing for 2011 6.7 Powerstroke

The serpentine belt routing for the 2011 6.7 Powerstroke engine is straightforward when you follow the specific path dictated by the system. First, ensure the belt passes over the main components: the alternator, water pump, and power steering pump, keeping it under the tensioner pulley. The belt should also wrap around the crankshaft pulley, driven by the engine’s rotation, which provides power to other accessories.

Pay attention to the correct alignment of the idler pulleys, as any deviation from the correct path can lead to belt wear or failure. The tensioner pulley should keep the belt tight enough, preventing it from slipping while allowing it to maintain proper tension during engine operation. Double-check the direction of the pulleys to avoid issues with belt installation. If you notice excessive wear or fraying, replacing the belt before it fails will help avoid engine performance issues.

Use a diagram specific to your vehicle model to confirm the precise routing path. This ensures that you are following the correct sequence of pulleys and avoiding potential misrouting, which can lead to mechanical problems. A tight fit without excessive slack will extend the lifespan of the belt and prevent slipping, which can cause the engine to overheat or the alternator to stop charging.

Common Issues with the Serpentine Belt and Troubleshooting Tips

When the serpentine belt on your 2011 6.7 Powerstroke shows signs of wear or damage, it can lead to several performance issues. Here’s how to address common problems and avoid more serious damage.

• Squealing or Chirping Noises: A high-pitched noise usually indicates belt slippage or misalignment. Check for excessive wear, debris, or loose components. Replace the belt if it’s cracked or glazed.
• Belt Wear or Cracking: Regularly inspect the belt for signs of cracking, fraying, or glazing. These indicate that the belt is nearing the end of its lifespan and should be replaced to prevent failure during operation.
• Overheating Engine: A loose or broken serpentine belt can lead to the engine overheating due to a failure in the cooling system. If the belt appears loose or broken, replace it immediately and check for any misaligned pulleys.
• Power Steering Loss: A slipping or broken serpentine belt can cause a sudden loss of power steering, making it difficult to steer. Inspect the belt for damage and ensure it’s properly tensioned.
• Charging Issues: A malfunctioning serpentine belt can prevent the alternator from charging the battery properly. If the battery light comes on, inspect the belt to ensure it’s in good condition and properly routed.

By regularly inspecting the belt and pulleys, and replacing the belt at the first signs of wear, you can avoid these issues and maintain smooth vehicle performance.

How to Replace the Serpentine Belt on a 2011 6.7 Powerstroke

Begin by ensuring the engine is off and cooled down to avoid injury. Lift the front of the vehicle and secure it with jack stands for safety.

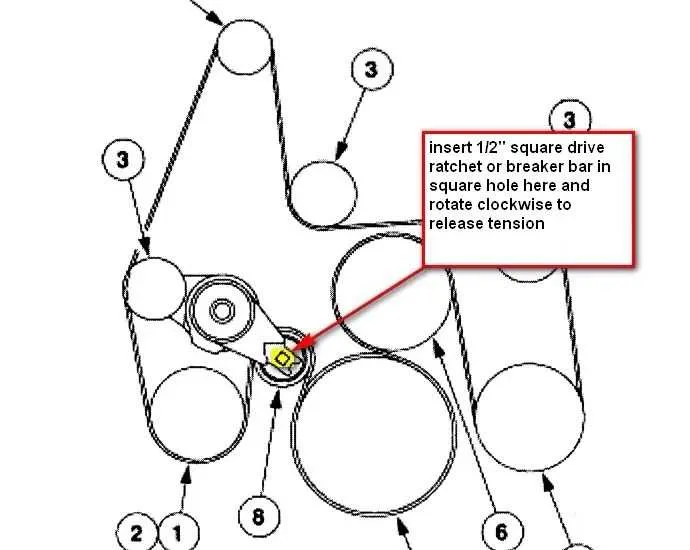

Locate the serpentine belt tensioner, which is typically near the bottom of the engine. Use a wrench or socket to relieve tension on the belt by turning the tensioner counterclockwise. This will release the tension, allowing you to remove the belt from the pulleys.

Once the belt is free, examine it for wear or damage. If it appears cracked or frayed, it’s best to replace it. Compare the old belt with the new one to ensure proper length and rib count.

Install the new belt by routing it around the pulleys according to the diagram for the 2011 6.7 Powerstroke. Make sure the belt is properly aligned on each pulley. Begin by fitting the belt around the crankshaft pulley, then move to the alternator, idler pulleys, and power steering pump, ensuring each pulley is correctly seated.

Once the belt is in place, use the wrench to reapply tension to the tensioner. Double-check that the belt is properly tensioned and aligned across all pulleys. Spin the engine by hand (using the crankshaft) to ensure the belt runs smoothly without slipping or misalignment.

Finally, lower the vehicle and start the engine to verify that the new belt operates correctly. Listen for any unusual noises or squeaks, and inspect the belt for any signs of slippage or misalignment.
