Complete 6.7 Powerstroke Serpentine Belt Diagram and Routing Guide for Engine Maintenance

Check the tensioner location first when replacing the serpentine belt on a 6.7 Powerstroke. Positioning the belt correctly around the alternator, water pump, and crankshaft pulley ensures smooth operation and prevents premature wear. Use the diagram specific to your model year for accurate alignment.

Follow the belt path carefully through the idler pulleys and A/C compressor to maintain proper routing. Misrouting can trigger warning lights and reduce accessory performance. Keep a wrench or breaker bar ready to relieve tension from the tensioner spring during installation.

Inspect each pulley for signs of wobble, cracks, or glazing while the belt is off. Replacing worn pulleys alongside the belt reduces noise and avoids frequent adjustments. Make sure the serpentine belt fits snugly in the grooves without twisting or rubbing edges.

After installation, rotate the engine by hand to verify smooth movement. Confirm all accessories turn freely and the tensioner maintains proper pressure. A correctly routed belt improves fuel efficiency and extends the life of the engine components.

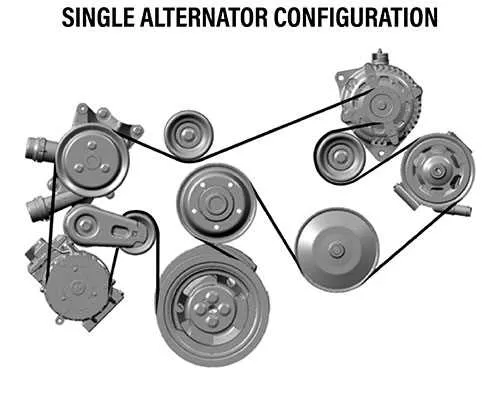

Powerstroke Serpentine Belt Diagram

Follow the exact routing diagram for the 6.7 Powerstroke to prevent premature belt wear or accessory malfunction. The belt wraps around multiple components, including the crankshaft pulley, alternator, A/C compressor, power steering pump, and tensioner pulley.

Use these steps to correctly route the serpentine belt:

• Start at the crankshaft pulley at the bottom center of the engine.
• Route the belt upward to the alternator on the passenger side.
• Wrap around the A/C compressor pulley located on the driver’s side.
• Pass the belt through the idler pulley to maintain proper tension.
• Loop over the power steering pump on the driver’s side top corner.
• Finish at the tensioner pulley, ensuring the belt sits fully in each groove.

Check belt alignment after installation. Misalignment can cause squealing or rapid deterioration. Rotate the crankshaft manually to confirm smooth movement over all pulleys. Inspect the belt for cracks, fraying, or glazing before finalizing installation.

Replace the tensioner and idler pulleys if they show signs of wear. Applying a small amount of belt dressing can improve grip on older belts but avoid over-application, which can attract dirt and cause slippage.

Keep a printed diagram in the engine bay for future reference. Proper routing prevents unnecessary engine strain and ensures consistent accessory operation.

Locating the Serpentine Belt Routing on 6.7 Powerstroke Engines

Check the driver’s side of the engine block near the front; the serpentine belt routing diagram is typically stamped on a metal plate or printed on a sticker. Look around the radiator support or the inner fender area if it’s not immediately visible on the engine itself.

Use the diagram to trace each belt path precisely, ensuring it matches the pulleys for the alternator, water pump, AC compressor, and power steering. The 6.7 Powerstroke uses a single serpentine belt with a tensioner pulley, so identifying the correct route prevents misalignment or premature wear.

If the original diagram is damaged or missing, consult the vehicle’s service manual or manufacturer’s resources. Capture a photo of the routing before removing the old belt, or draw a clear sketch, labeling each pulley. This saves time during installation and guarantees proper alignment.

Double-check the tensioner’s position and spring pressure after routing the belt. Proper engagement with all pulleys avoids slipping and ensures consistent accessory function. Rotate the engine manually once after installation to confirm smooth movement along the entire belt path.

Step-by-Step Guide to Removing and Replacing the Serpentine Belt

Locate the serpentine belt routing diagram on the engine or in the vehicle’s service manual. This ensures correct reinstallation and prevents misalignment that can damage pulleys or accessories.

Loosen the tensioner using a 3/8-inch or 1/2-inch ratchet, depending on your model. Rotate the tensioner clockwise to release belt tension and carefully slide the belt off the pulleys.

Inspect all pulleys while the belt is removed. Check for wear, wobbling, or buildup on the tensioner, idler, alternator, and AC compressor pulleys. Replace any faulty components before installing the new belt.

Compare the old belt with the new one to verify length and rib count. Using the wrong size can cause squealing, slippage, or premature wear.

Follow the routing diagram as you position the new belt around each pulley. Start by looping the belt over the crankshaft pulley and work your way to the tensioner last.

Release the tensioner slowly to apply proper tension to the new belt. Confirm the belt sits fully in each pulley groove and aligns evenly across all pulleys.

Rotate the engine manually two full turns using a wrench on the crankshaft pulley. This helps the belt settle and allows you to spot misalignment or rubbing before starting the engine.

Start the engine and observe the belt for smooth operation. Listen for unusual noises and inspect for correct tracking on all pulleys. Adjust if necessary.

Troubleshooting Common Serpentine Belt Issues on 6.7 Powerstroke

Inspect the serpentine belt for visible cracks, fraying, or missing ribs. These signs indicate imminent failure and require immediate replacement. Use a flashlight to check the belt’s contact with all pulleys, ensuring proper alignment and tension.

Listen for squealing noises while the engine runs. A high-pitched squeal often points to a loose belt or a failing tensioner. Verify tensioner operation by manually pressing on it; the belt should maintain firm resistance without excessive slack.

Check for glazing or shiny spots on the belt’s ribbed surface. Glazing reduces grip on pulleys, causing slippage and accessory malfunction. Replace the belt if glazing is present, and inspect pulleys for wear or buildup that can accelerate belt wear.

Observe engine accessories such as the alternator, power steering pump, and AC compressor. Irregular operation or intermittent function may indicate a slipping belt. Adjust or replace the tensioner and ensure proper routing according to the 6.7 Powerstroke serpentine belt diagram.

Examine pulleys for wobble or rough rotation. A damaged pulley can misalign the belt, producing noise and uneven wear. Replace any pulley with excessive play and lubricate tensioner pivots if necessary.

Monitor belt tension over time. Heat cycles can stretch the belt, reducing performance. If tension drops consistently, swap the belt and check the tensioner spring for fatigue to maintain reliable operation.
