2015 Nissan Sentra Serpentine Belt Diagram and Installation Guide
If you’re working on the 2015 Nissan Sentra and need to replace or inspect the serpentine belt, understanding the layout of the belt system is crucial. The serpentine belt is responsible for driving multiple components, such as the alternator, power steering pump, and air conditioning compressor, all from the engine’s crankshaft. A correct diagram ensures you can replace or reinstall the belt properly without confusion.
The 2015 Nissan Sentra uses a specific routing pattern for its serpentine belt, with each component connected in a precise sequence to maintain proper function. You’ll want to make sure that the belt is positioned correctly on the pulleys to avoid unnecessary wear and ensure smooth operation. Incorrect routing can lead to premature failure and costly repairs.
To locate the correct diagram, look for a label on the engine bay or refer to the vehicle’s manual for the specific routing. The diagram will show the path the belt takes, including any tensioner pulleys or idler pulleys involved. It’s always a good idea to check the condition of the belt and pulleys during the inspection to prevent future issues. Regular maintenance of the serpentine belt helps keep the car running smoothly and can save you time and money in the long run.
2015 Nissan Sentra Serpentine Belt Diagram
The serpentine belt diagram for the 2015 Nissan Sentra provides a clear overview of the belt’s routing across various engine components. This diagram is crucial for correctly installing or replacing the belt, ensuring the proper function of accessories like the alternator, power steering pump, air conditioning compressor, and more.

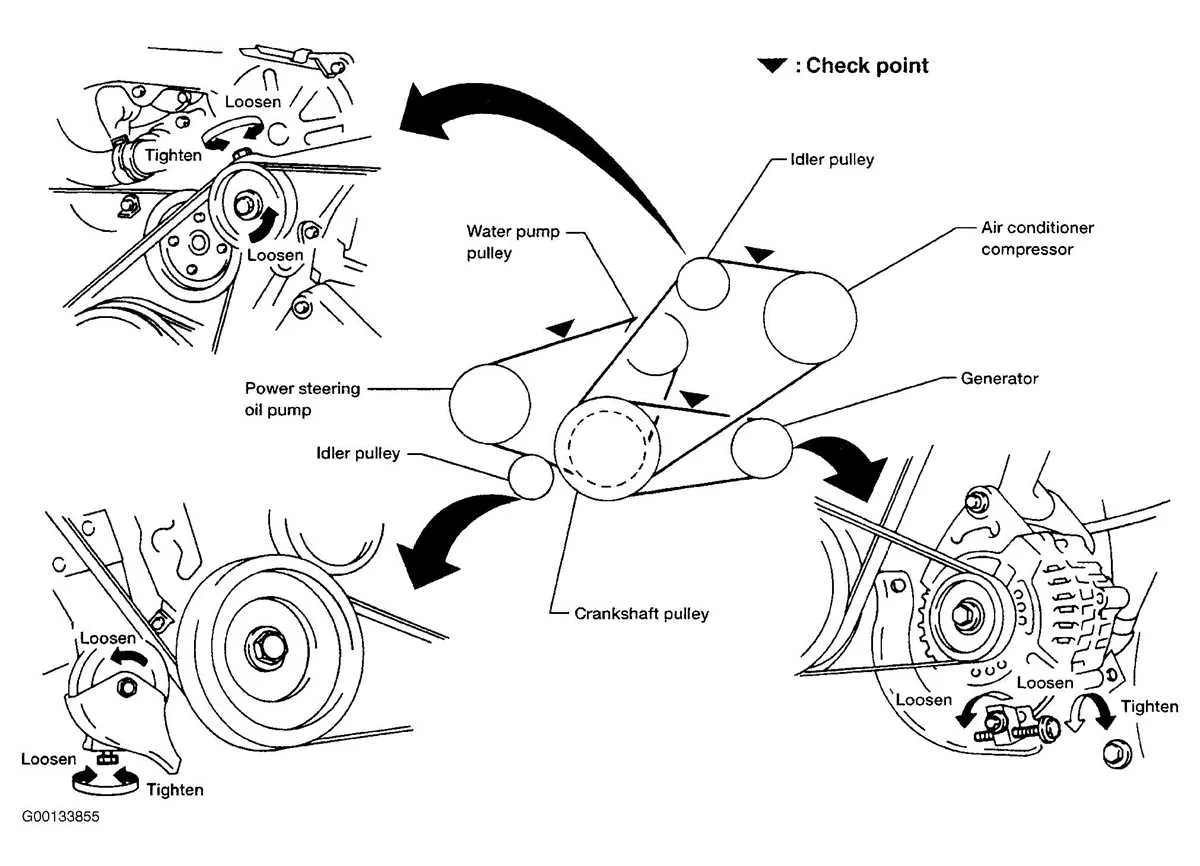

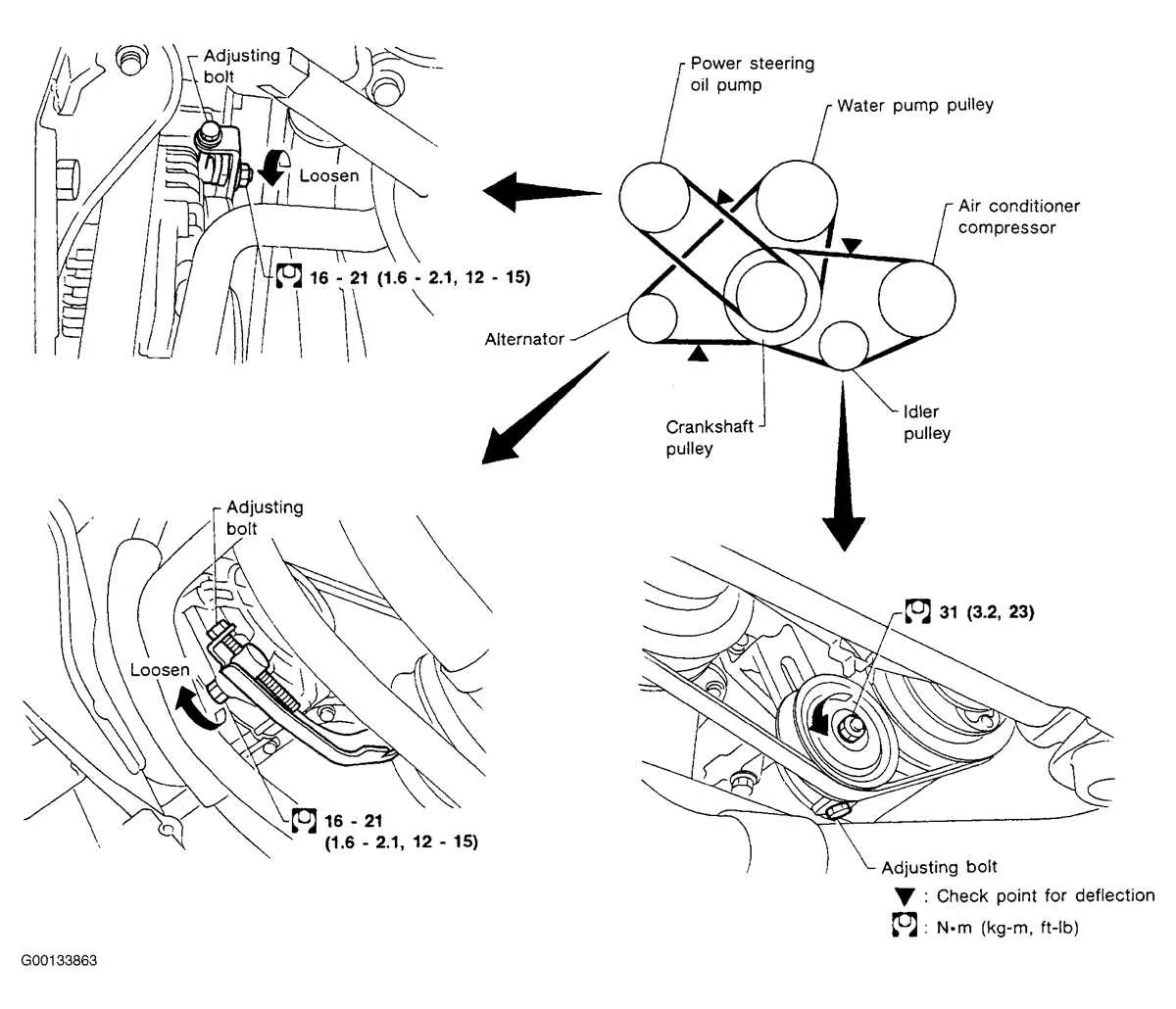

Refer to the diagram below when replacing or inspecting the serpentine belt. The routing starts from the crankshaft pulley, loops around the tensioner, alternator, and various other pulleys, ending at the water pump. Pay attention to the direction of the grooves, as they must align precisely with the corresponding pulleys to ensure smooth operation.
Ensure the serpentine belt is properly tensioned to avoid slipping or wear. It should have slight deflection when pressed in the middle, but not too loose. When replacing the belt, check for any signs of wear such as cracks, fraying, or glazing, as these can affect performance.
If you’re unsure, always verify the part number and belt specifications according to your vehicle’s manual or consult with a professional for the correct belt size and tensioning requirements.
Understanding the Layout of the 2015 Nissan Sentra Serpentine Belt System
The serpentine belt system in the 2015 Nissan Sentra powers critical engine components, such as the alternator, air conditioning compressor, and power steering pump. The layout consists of a single belt that runs over several pulleys, ensuring efficient distribution of power across these components.
To identify the correct path, start by locating the crankshaft pulley, which drives the entire system. The belt loops around the crankshaft pulley, and then moves to the alternator pulley, which generates electrical power for the vehicle’s systems. The air conditioning compressor and power steering pump are positioned next in the sequence, driven by the same belt.
Ensure the tensioner pulley is in good condition, as it maintains the correct belt tension. If the belt tensioner fails, it can lead to improper belt alignment or slippage, damaging the system and causing potential overheating or battery drain.
For correct installation, refer to the diagram to verify the belt path around all pulleys. Any deviation can cause severe engine damage, especially if the serpentine belt skips a pulley or becomes dislodged. Regular inspection is necessary to check for wear, cracks, or fraying, as a damaged belt can result in loss of power to crucial engine components.
Step-by-Step Guide to Replacing the Serpentine Belt in a 2015 Nissan Sentra
Replace the serpentine belt in your 2015 Nissan Sentra to keep the engine running smoothly. Follow these steps carefully to ensure a successful replacement.
- Gather the Necessary Tools and Parts:
- New serpentine belt (check your vehicle’s manual for the correct part number)
- Socket set
- Ratchet and breaker bar
- Belt tensioner tool or long-handled ratchet
- Locate the Serpentine Belt:
Open the hood and locate the serpentine belt, which wraps around multiple engine components, such as the alternator, power steering pump, and air conditioning compressor.
- Release Tension from the Belt:
Use a ratchet or belt tensioner tool to relieve tension from the belt. The tensioner pulley has a special spot to insert the tool for proper leverage. Rotate the tensioner counterclockwise to release the belt.
- Remove the Old Belt:
Once the tension is released, carefully remove the serpentine belt from the pulleys. Take note of its routing for reinstallation.
- Inspect the Pulley System:
Before installing the new belt, inspect all pulleys and components for any signs of wear, damage, or misalignment. Check for smooth rotation of the pulleys by hand.
- Install the New Serpentine Belt:
Follow the belt routing diagram (usually located on a label near the engine bay) to correctly place the new belt over each pulley. Make sure the belt fits snugly in each groove.
- Reapply Tension:
Rotate the tensioner back into place to apply tension to the new belt. Ensure it’s tight enough to prevent slippage but not over-tightened.
- Double-Check the Installation:
Verify the belt’s position on all pulleys. Ensure the belt is not twisted and sits properly in its grooves.
- Test the Engine:
Start the engine and listen for any unusual noises. Check the belt’s operation by observing it running smoothly on all pulleys.
With the new serpentine belt installed and running smoothly, your Sentra should be good to go. Regularly inspect the belt to ensure its continued performance.
Common Issues with the Serpentine Belt in 2015 Nissan Sentra and How to Identify Them
Worn or damaged serpentine belts in the 2015 Nissan Sentra can lead to engine performance issues. Here are the most common problems and how to spot them:
1. Squealing or Chirping Sounds: If you hear a high-pitched squeal when starting the car or during acceleration, the serpentine belt might be slipping due to wear or misalignment. Inspect the belt for cracks or wear marks, especially near the pulleys.
2. Power Steering Loss: A worn-out serpentine belt can result in loss of power steering. If the steering becomes stiff or hard to turn, check the belt for slack or fraying. A damaged belt can prevent the power steering pump from functioning properly.
3. Overheating Engine: The serpentine belt powers the water pump. If the belt is damaged or broken, the water pump may stop working, causing the engine to overheat. If you notice the temperature gauge rising, inspect the serpentine belt for any obvious damage.
4. Battery Warning Light: The serpentine belt drives the alternator. If the belt is loose or worn, the alternator won’t charge the battery properly, triggering the battery warning light on the dashboard. Check the tension and condition of the belt to confirm if it’s the issue.
5. Belt Fraying or Cracking: Regularly inspect the belt for visible signs of wear, such as fraying edges or cracks. A belt that shows these signs is at risk of snapping, which can cause engine damage or leave you stranded.
Replacing the serpentine belt before it fails can prevent costly repairs. If you notice any of these issues, inspect the belt, or have it checked by a mechanic.
