Yard Machine Riding Mower Drive Belt Diagram and Maintenance Guide

To ensure the proper functioning of your Yard Machine riding mower, it’s crucial to understand the layout of the drive belt system. Start by inspecting the routing of the drive belt as outlined in the diagram. This will help you identify potential wear or misalignment issues that may affect performance.

The drive belt is a key component that transfers power from the engine to the wheels, allowing the mower to move forward and reverse. If you notice irregular movement or if the mower isn’t responding to throttle adjustments, check the belt for any signs of fraying or slack. Refer to the diagram to understand how the belt should run and make necessary adjustments accordingly.

If the belt has slipped off or is damaged, replacement is simple with the right tools. Refer to the step-by-step guide in the diagram for guidance on removing and installing a new drive belt. Ensuring the correct tension will prevent further issues with operation, so double-check the belt tension once installed.

Consult the diagram regularly to confirm the belt’s integrity. Regular maintenance, including inspecting the belt’s alignment and tension, is key to prolonging the life of your mower.

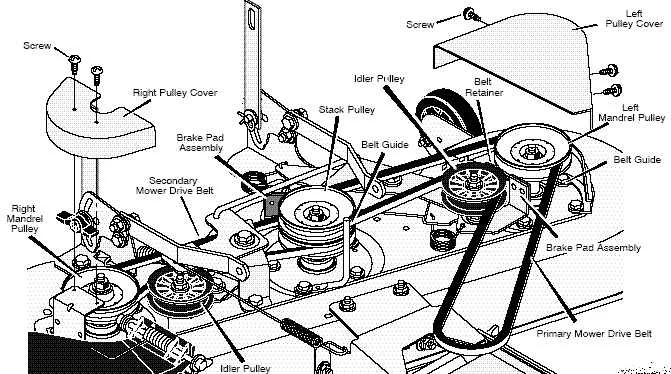

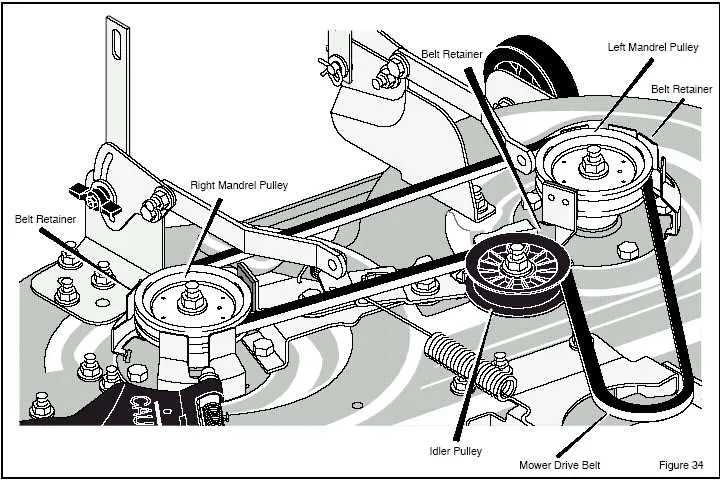

Yard Machine Riding Mower Drive Belt Diagram

To replace or maintain the drive belt on a Yard Machine riding mower, refer to the following diagram for a clear visual guide. It shows the correct positioning and routing of the belt for optimal performance.

The drive belt connects the engine to the transmission, allowing the mower to move forward. A precise installation of the belt is critical for preventing slippage or premature wear. Check the diagram carefully to ensure that the belt is placed over the correct pulleys and rollers. This will prevent misalignment, which can cause the belt to wear out quickly.

Inspect the diagram to identify the tensioner pulley, which plays a key role in keeping the belt tight. If the belt is too loose or too tight, it can lead to mechanical issues such as inefficient power transfer or potential damage to the mower’s engine. Adjusting the tensioner according to the diagram’s instructions ensures proper belt tension.

If you notice that the belt has stretched or shows signs of wear, replacing it immediately is recommended. Use the diagram as a reference to install the new belt correctly. Make sure to follow the routing and positioning steps outlined in the diagram to prevent future issues.

Refer to the owner’s manual for additional instructions on replacing the belt, and always check the diagram for the most accurate details on pulley positions and routing before starting the repair process.

How to Identify and Troubleshoot Common Drive Belt Issues

Start by inspecting the drive belt for visible damage such as cracks, fraying, or wear. If you notice any of these signs, it’s time to replace the belt to prevent further issues.

If the mower is not moving smoothly or is slipping, check the tension of the drive belt. A loose belt can cause insufficient power transfer, leading to poor performance. Adjust the tension according to the manufacturer’s instructions for optimal results.

Listen for any unusual noises during operation. A squealing or grinding sound might indicate that the belt is misaligned or improperly installed. In this case, turn off the mower and realign the belt to ensure it sits properly on the pulleys.

If the mower fails to start or operates inconsistently, inspect the belt for signs of debris buildup, such as grass clippings or dirt. Clean the belt and surrounding areas to remove any obstructions that could affect its movement.

For persistent issues, check the pulleys for wear or damage. A damaged pulley can cause the belt to slip or wear unevenly, so replace any faulty pulleys to restore proper function.

Step-by-Step Guide to Replacing the Drive Belt on a Yard Machine Mower

Start by ensuring the mower is turned off and the ignition key is removed. This will prevent accidental starts while working.

Locate the drive belt cover and remove any screws or bolts securing it. Use a wrench or screwdriver depending on the type of fasteners used.

Once the cover is removed, inspect the current drive belt. Take note of the routing path before removing it, as you’ll need to install the new belt in the same configuration.

Remove the old belt by gently sliding it off the pulleys. Be cautious of any tension on the belt, and relieve it by loosening the idler pulley if necessary.

Place the new belt over the pulleys, following the path of the old belt. Ensure it fits snugly on all the pulleys and that there is no slack.

Adjust the idler pulley to apply the correct tension to the new belt. Check the tension by pressing down on the belt with your fingers; it should feel taut but not overly tight.

Replace the belt cover and secure it with the screws or bolts you previously removed.

Finally, test the mower by starting it and engaging the drive system to ensure the new belt operates smoothly. Listen for any unusual sounds or signs of misalignment.

Understanding the Components of the Yard Machine Drive Belt System

The drive belt system of the Yard Machine riding mower consists of several key components that work together to transfer power from the engine to the wheels and blades. These include the drive belt, pulleys, tensioner, and idler arm. Each component plays a specific role in ensuring the mower operates smoothly and efficiently.

The drive belt is the central component, transferring the rotational power from the engine’s output shaft to the drive pulleys. The quality and condition of the belt are critical for smooth operation. Over time, belts can wear out, crack, or stretch, which can lead to slipping or failure.

Pulleys help guide and support the movement of the drive belt. These are typically located on the engine, transmission, and blade assembly. The pulleys ensure that the belt runs in a precise path, allowing for efficient power transfer. Check for any damage or misalignment in the pulleys, as these can cause improper belt tension or premature wear.

The tensioner maintains the correct tension in the drive belt. A spring-loaded mechanism adjusts the tension to compensate for wear. If the tensioner is faulty or the spring is weak, the belt can become too loose, reducing the effectiveness of the system.

Lastly, the idler arm helps guide the belt and maintain proper alignment. If the idler arm is worn out or misaligned, the belt may not run correctly, leading to skipping or slipping issues.

Regular inspection and maintenance of these components are vital for preventing common drive belt issues and ensuring optimal performance of the mower.
