Audi 3.0 T Belt Diagram and Maintenance Tips

Properly understanding the Audi 3.0 T belt diagram is vital for maintaining your vehicle’s engine performance. The timing belt and associated components are responsible for synchronizing the engine’s critical functions. Replacing or servicing the belt according to the manufacturer’s specifications ensures proper engine timing and prevents costly repairs due to belt failure.

Always refer to the correct belt diagram for your model year, as there may be slight variations in belt routing or tensioner placement. The diagram serves as a reliable guide for installing the timing belt, water pump, and related parts. Be sure to check all components for wear or damage before starting the installation process.

For proper maintenance, it’s recommended to replace the timing belt around every 75,000 to 100,000 miles, depending on your driving conditions. Always use high-quality parts and tools to avoid future complications. Follow the diagram carefully during installation to ensure proper alignment of the belt and all pulleys, as incorrect installation can lead to severe engine damage.

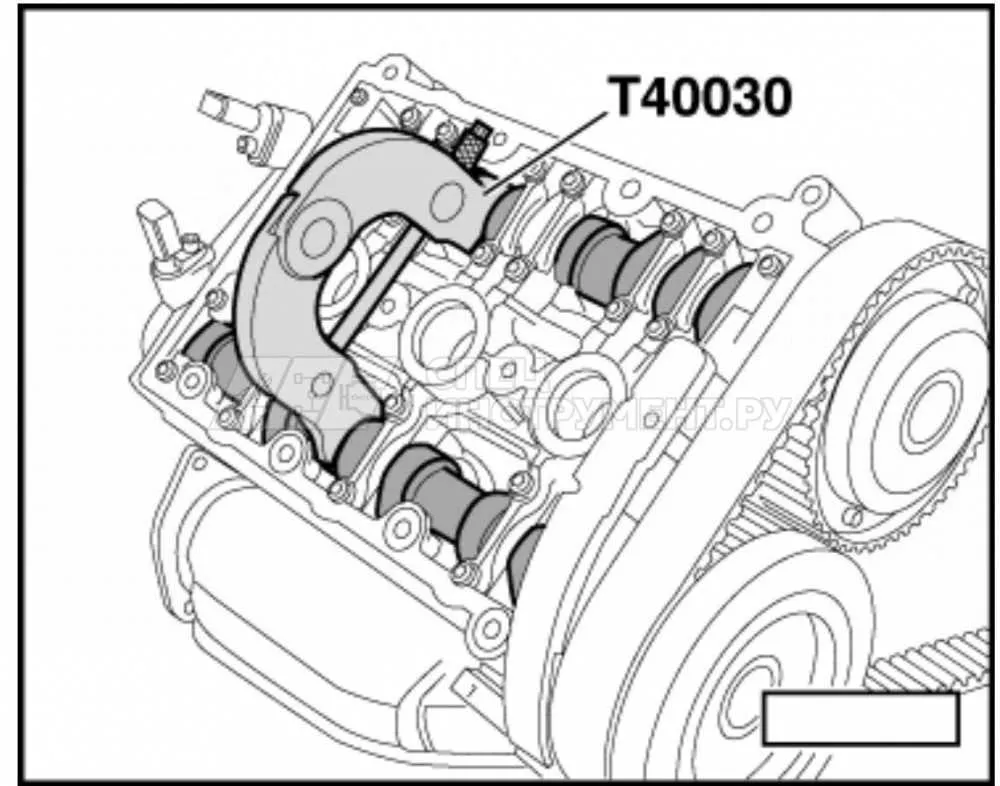

Audi 3.0 T Belt Diagram

To ensure proper function of the Audi 3.0 T engine, refer to the belt diagram to correctly position the timing and accessory belts. Accurate belt alignment avoids engine damage and enhances longevity.

First, locate the timing belt on the engine’s front. It connects the crankshaft pulley to the camshaft gears, controlling the timing of the engine’s intake and exhaust valves.

Follow the diagram for pulley and tensioner placement:

• Crankshaft pulley: Located at the bottom of the engine, this drives the timing belt.
• Camshaft pulleys: These control the timing of the valves. Ensure the diagram matches the pulley teeth to the camshaft gear.
• Tensioner pulley: Adjust the tension of the timing belt for proper fit and function.
• Idler pulley: Prevents belt slack and ensures smooth operation.

Ensure correct alignment of all components. Misplacement can result in poor engine performance or even cause damage. Use a torque wrench to tighten the bolts to the manufacturer’s specifications.

After installation, rotate the engine by hand to confirm the belt aligns correctly. Check for any unusual noises or movement. If the belt slips, immediately recheck the tension and alignment.

For optimal performance, replace the belt at the recommended intervals to avoid premature wear and engine damage.

How to Identify the Correct Belt for Audi 3.0 T

To identify the correct belt for the Audi 3.0 T, start by checking the vehicle’s manual for specific belt part numbers. These numbers are often listed in the maintenance section. If the manual is unavailable, look at the belt itself for markings that indicate the part number.

Next, inspect the belt’s size, width, and length. The Audi 3.0 T typically uses a serpentine belt, which is responsible for powering multiple engine components. Measure the belt’s length and width using a tape measure or caliper, and compare these dimensions with the replacement belts available in the market.

Additionally, verify the number of grooves on the belt. Most Audi 3.0 T models use a multi-ribbed serpentine belt. Count the number of grooves and ensure that the replacement belt matches this specification. It’s crucial to get an exact match to avoid performance issues.

If you’re still unsure, consult an authorized Audi dealership or a trusted auto parts supplier. They can help you cross-reference the part number with your vehicle’s model year and engine specifications.

Step-by-Step Guide to Replacing the Timing Belt on Audi 3.0 T

Begin by removing the front engine covers. Use a socket wrench to detach the bolts securing the covers. This will give you access to the timing belt area.

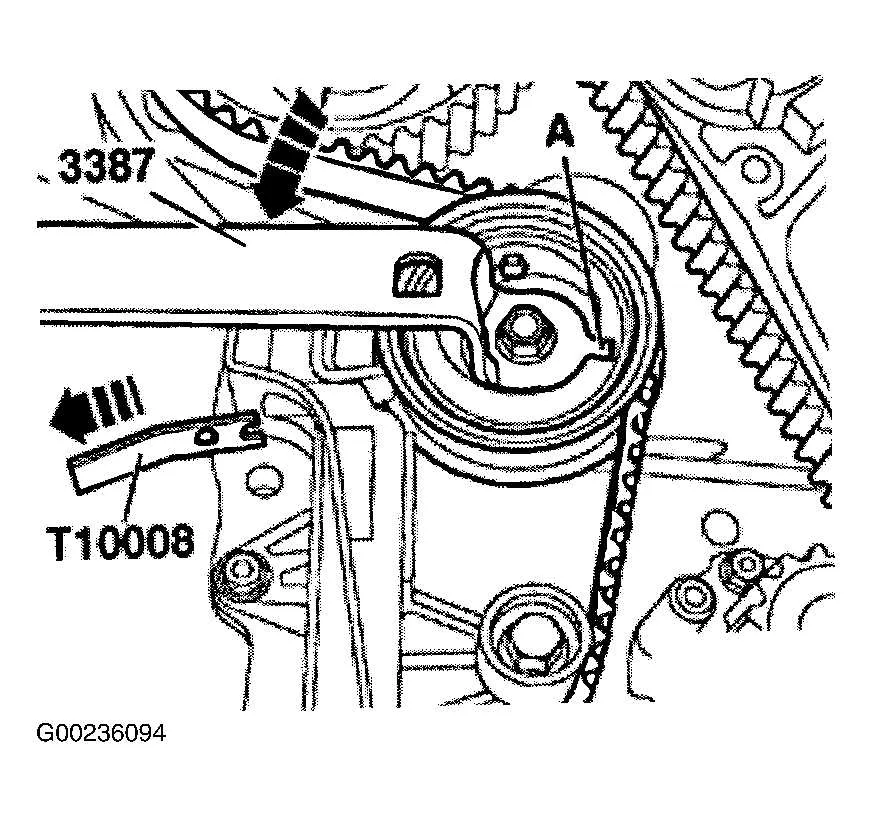

Next, relieve the tension on the timing belt by loosening the tensioner. Use a wrench to rotate the tensioner pulley, then remove the belt carefully, ensuring that no other components are damaged in the process.

Take note of the timing marks on the camshaft and crankshaft pulleys. These marks ensure that the timing remains correct during reinstallation. Rotate the engine manually to align the marks properly.

Before installing the new belt, check the condition of the tensioner and pulleys. If any parts are worn, replace them with new ones to avoid future issues.

Install the new timing belt, ensuring it fits snugly around the camshaft, crankshaft, and auxiliary pulleys. Pay close attention to the alignment of the timing marks to maintain correct engine timing.

Once the belt is in place, re-tighten the tensioner. This will apply the necessary tension to the belt. Rotate the engine by hand a few times to ensure everything moves smoothly.

Reinstall the front engine covers and any other components that were removed during the process. Double-check that all bolts are properly secured before closing the hood.

Finally, start the engine and listen for any unusual sounds. If the timing belt is installed correctly, the engine should run smoothly with no issues.

Common Issues and Troubleshooting Audi 3.0 T Belt Setup

Incorrect belt tension can cause significant damage to the timing belt system. If you notice a rattling sound or erratic engine behavior, check the tension. A loose belt may skip teeth or slip, affecting engine timing. Adjust the tension according to Audi’s specifications.

Misalignment of the belt is another common issue. If the belt is not aligned with the pulleys, it may wear unevenly and cause premature failure. Inspect the pulleys and ensure they are seated correctly. Look for any signs of wear or damage that could be contributing to misalignment.

Worn-out tensioner or idler pulley can lead to belt slippage. Over time, these components degrade, losing the ability to maintain the proper belt tension. Replace the tensioner or idler pulley if you notice any unusual noises, such as squeaking or grinding, when the engine is running.

Belt degradation is a natural result of age and wear. Check for visible cracks or fraying along the belt’s surface. If the belt appears worn or cracked, it is time to replace it to avoid sudden failure while driving.

Incorrect installation is a frequent cause of issues with the timing belt. If the belt is installed incorrectly, it may not engage with the gears properly. Always follow the manufacturer’s instructions for the correct routing and positioning of the belt to prevent installation errors.

Overheating can cause premature belt failure. Ensure the engine cooling system is functioning correctly. High engine temperatures can accelerate wear on the belt, so monitor the engine’s temperature to avoid overheating problems.

Pulley or crankshaft damage may result from incorrect belt installation or from using subpar parts. Check the crankshaft and pulleys for any wear or deformation, as these can cause the belt to misalign or wear unevenly.
