2016 Ram 1500 5.7 Serpentine Belt Routing Diagram and Replacement Guide

For a smooth-running engine, ensuring the serpentine belt on your 2016 Ram 1500 5.7 is properly installed and in good condition is key. The serpentine belt plays a critical role in driving several essential components like the alternator, water pump, and power steering pump. If you’re replacing or inspecting the belt, you’ll need to follow the exact path indicated by the belt diagram to avoid unnecessary wear or malfunction.

The 2016 Ram 1500 5.7 uses a specific serpentine belt routing that must be adhered to precisely. The belt runs from the crankshaft pulley, looping around the alternator, power steering pump, water pump, and other critical components. When replacing the belt, it’s important to align the components in their correct order, paying attention to pulley grooves and tension to prevent slipping or damage to other parts.

To ensure your new serpentine belt runs correctly, refer to the factory belt diagram, usually located under the hood or in the vehicle manual. If you’re not sure about the correct routing or need more guidance, there are plenty of detailed resources and videos online to help you. Always double-check the belt’s tension to avoid the common issue of slippage, which can lead to engine overheating or battery drain.

2016 Ram 1500 5.7 Serpentine Belt Diagram

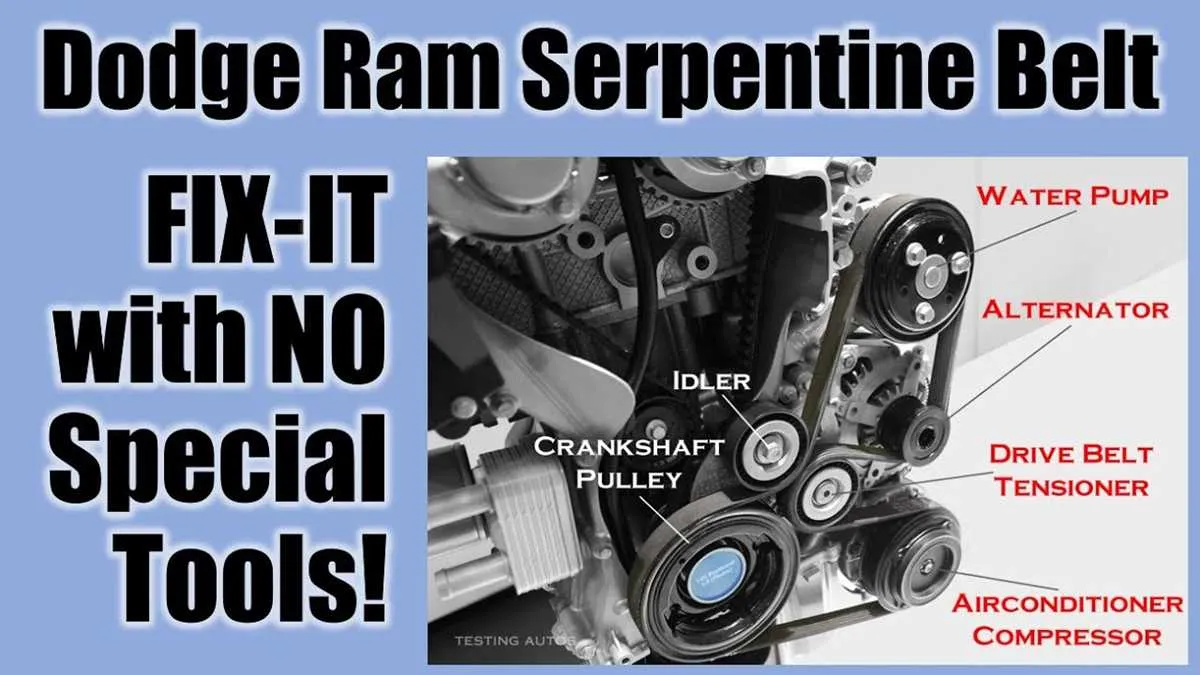

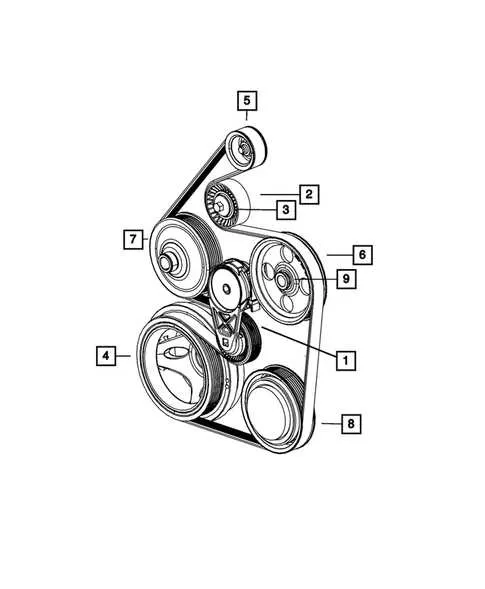

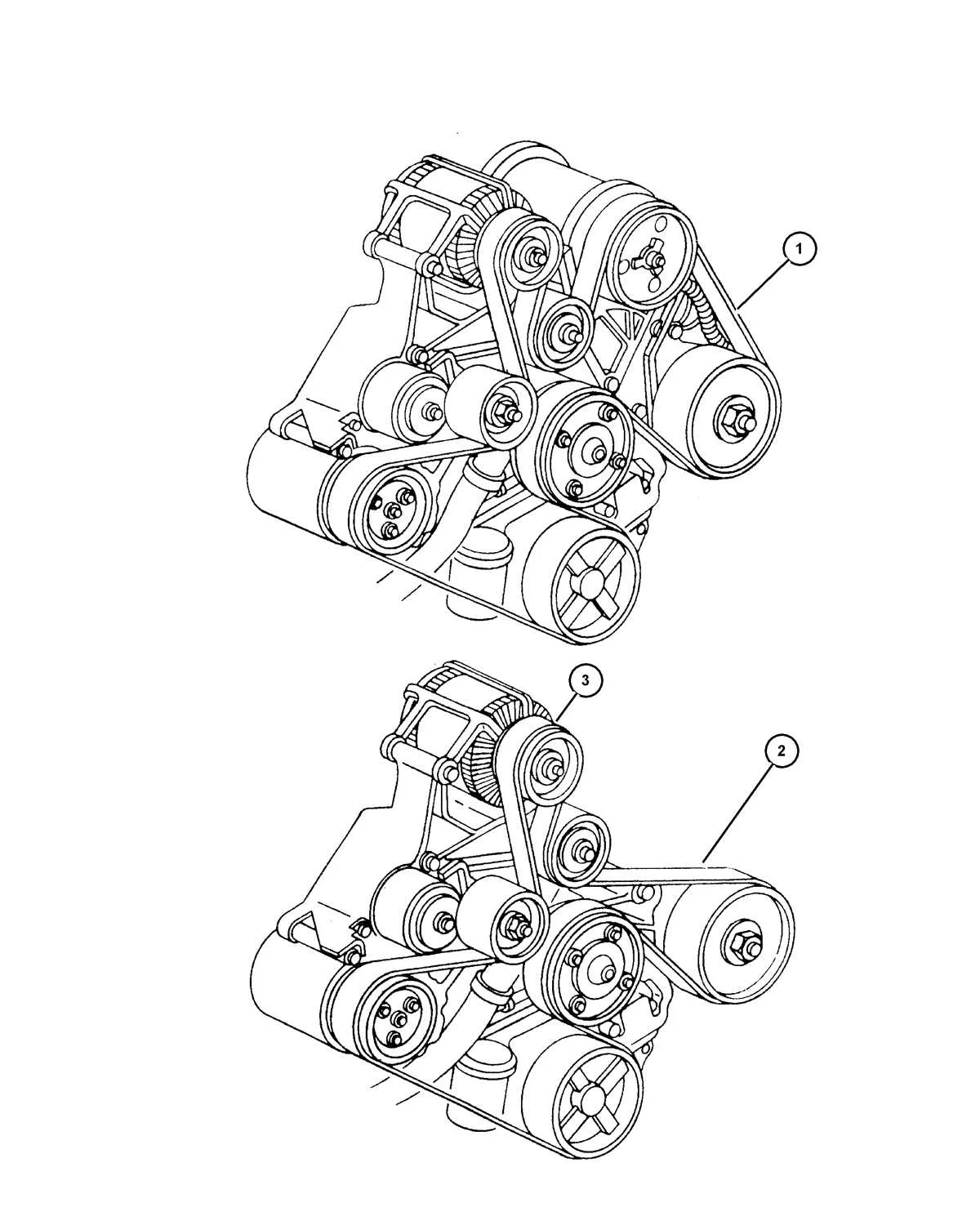

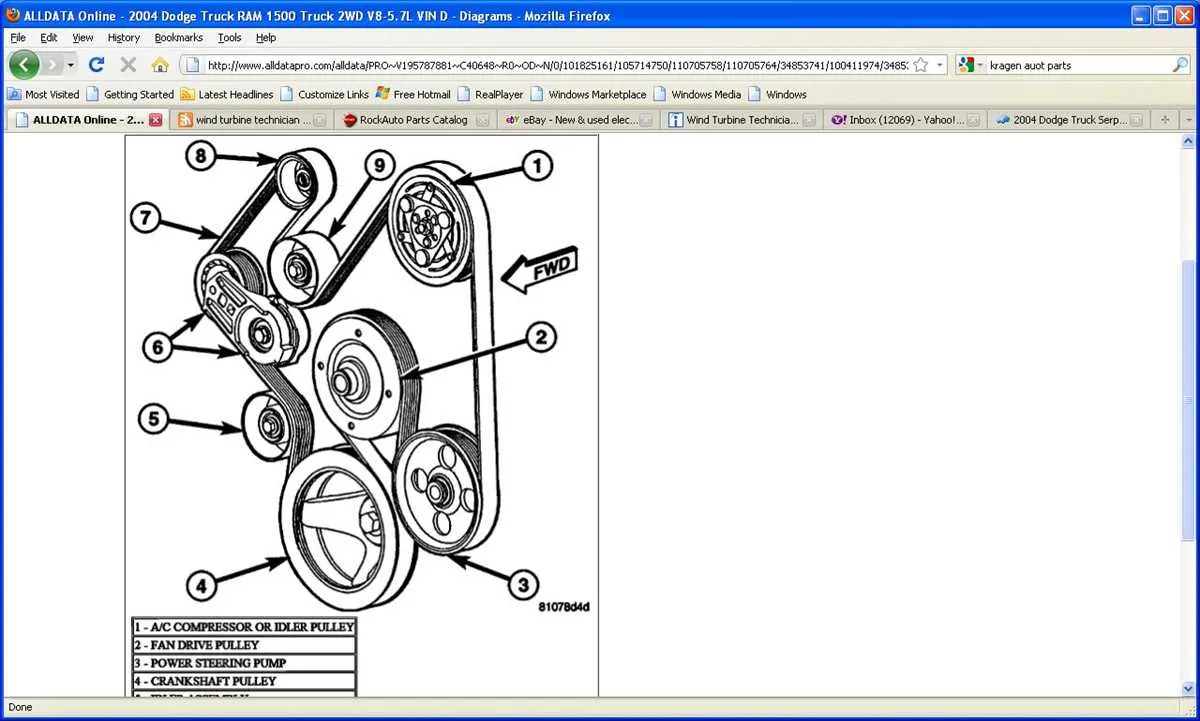

The serpentine belt on a 2016 Ram 1500 with a 5.7L engine powers multiple components, including the alternator, power steering pump, and air conditioning compressor. To ensure the belt operates smoothly, refer to the diagram below for proper routing.

• The serpentine belt should start at the crankshaft pulley.
• It loops around the A/C compressor, then to the idler pulley.
• From the idler pulley, it continues to the power steering pump and alternator.
• The belt then wraps around the water pump and tensioner pulley.
• Finally, it returns to the crankshaft pulley to complete the loop.

Always check the belt for signs of wear, such as cracks or fraying. A damaged serpentine belt can cause engine overheating or loss of power to critical components. If the belt needs replacement, ensure it’s routed correctly according to the diagram to avoid misalignment or undue stress on the engine parts.

If you’re in doubt, consult the vehicle’s service manual for the exact tension specifications and pulley positions to ensure proper installation.

Understanding the Serpentine Belt Routing for 2016 Ram 1500 5.7

To properly route the serpentine belt on the 2016 Ram 1500 5.7, follow this sequence: Start by placing the belt over the crankshaft pulley, then move it along the water pump, ensuring it loops around the alternator. Make sure the belt goes over the tensioner pulley, around the idler pulley, and then fits tightly around the power steering pump. Finally, check that the belt rests securely over the AC compressor pulley.

The tensioner pulley plays a key role in keeping the belt taut. Use a wrench to move the tensioner when installing or removing the belt. Pay attention to belt wear and ensure it is routed correctly to avoid slipping or misalignment.

After installation, inspect the belt alignment to ensure it’s not off-track. A misaligned belt can lead to premature wear and potential failure. Always replace any worn-out pulleys that may affect the belt’s performance.

How to Identify a Faulty Serpentine Belt in Your Ram 1500 5.7

Look for visible cracks, fraying, or signs of wear on the serpentine belt. If you notice any damage to the belt’s surface, it may not be providing the proper grip for your engine’s accessories, like the alternator or power steering pump.

Pay attention to unusual noises. A squealing or screeching sound, especially after starting the engine, indicates the belt is slipping. This could mean the belt is loose or worn, and may need tightening or replacement.

Check for a decrease in performance. If your Ram 1500’s alternator isn’t charging properly or you experience loss of power steering, it may be due to a faulty serpentine belt. A damaged belt can cause these systems to work inefficiently.

Inspect the tension of the belt. If it appears loose or sagging, it could mean the tensioner is worn out or the belt has stretched. A tight belt with no slack is ideal, but too much slack can cause issues with performance.

Look for signs of overheating. A slipping or damaged serpentine belt can cause the engine to overheat due to improper cooling system operation. Keep an eye on your engine temperature gauge, especially during warm weather or heavy use.

If your Ram 1500 5.7 shows any of these symptoms, replace the serpentine belt sooner rather than later to avoid further damage to other engine components.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2016 Ram 1500 5.7

Before starting, ensure you have the necessary tools: a socket wrench set, a serpentine belt tool or breaker bar, and a replacement serpentine belt. Double-check the belt size with your vehicle’s manual to ensure proper fitment.

1. Locate the Serpentine Belt: Open the hood and find the serpentine belt running along the front of the engine. It’s usually located near the alternator, power steering pump, and air conditioning compressor.

2. Release the Tension: Use a serpentine belt tool or a breaker bar to rotate the tensioner pulley counterclockwise. This will relieve the tension on the belt. Carefully remove the belt from the pulleys once the tension is released.

3. Inspect Components: Before installing the new belt, check the pulleys, tensioner, and idler pulleys for wear. Replace any worn or damaged parts to avoid future issues.

4. Install the New Belt: Refer to the serpentine belt diagram for the 2016 Ram 1500 5.7 to ensure proper routing. Start at one end of the engine and loop the belt over the pulleys, following the diagram carefully.

5. Apply Tension: Once the belt is in place, use the serpentine belt tool to rotate the tensioner pulley again and slip the belt over the last pulley. Ensure the belt is properly seated on all pulleys.

6. Double-Check: Inspect the belt to ensure it’s aligned correctly and has the proper tension. The belt should not be too tight or loose.

7. Start the Engine: Turn on the engine and observe the serpentine belt in motion. Listen for any abnormal noises or signs of slipping.

By following these steps, you should have your new serpentine belt installed and running smoothly on your 2016 Ram 1500 5.7.
