2012 Buick Enclave serpentine belt diagram with routing details and placement guide
Check the routing diagram under the hood before replacing the serpentine belt on the 2012 Buick Enclave. The correct path ensures proper tension and prevents accessory failures such as alternator or power steering issues. Missing one pulley or reversing the order can cause immediate malfunction.
The 2012 Enclave uses a single serpentine belt to drive multiple components, including the alternator, power steering pump, air conditioning compressor, and water pump. Knowing the exact pulley layout saves time and reduces the risk of damage to the new belt. A diagram provides a clear guide so you can route it correctly the first time.
Locate the belt tensioner to release pressure before removing the old belt. Use a wrench or serpentine belt tool to rotate the tensioner arm, then slide the belt off the pulleys. After referencing the diagram, route the new belt over the correct pulleys and slowly return tension to secure it. Always inspect pulleys and tensioner movement before completing the installation.
Following the 2012 Buick Enclave belt diagram not only simplifies replacement but also extends component life. A properly installed belt delivers smooth operation and prevents unexpected breakdowns, especially during long drives.
2012 Buick Enclave Belt Diagram

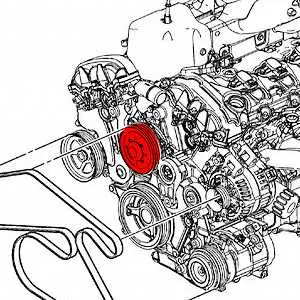

Check the serpentine belt routing sticker located under the hood before replacing the belt. If the sticker is missing, use this diagram as a reference: the belt moves around the crankshaft pulley, tensioner, alternator, power steering pump, A/C compressor, and water pump in a continuous loop. The tensioner keeps the correct tightness, so always rotate it clockwise with a wrench to release the belt.
Use a 15mm socket on the tensioner bolt, relieve the pressure, and slide the old belt off carefully. Place the new belt over all pulleys except the tensioner. Double-check that the ribs align perfectly with each groove to avoid premature wear. Once the belt is routed correctly, rotate the tensioner again and slip the belt onto its pulley.
After installation, inspect the belt path against the diagram one more time. A misaligned belt can damage pulleys or cause squealing. Start the engine briefly to verify smooth operation. For best reliability, replace the serpentine belt every 60,000 to 100,000 miles or sooner if cracks, glazing, or fraying appear.
Serpentine Belt Routing for 2012 Buick Enclave
Place the new serpentine belt over the crankshaft pulley first, then route it around the idler pulley and tensioner. Continue over the alternator and guide it across the power steering pump. From there, position it on the air conditioning compressor and finish by wrapping it around the water pump.
Check that the ribbed side of the belt sits securely in the grooves of each pulley and the flat side rests on smooth pulleys. Apply pressure to the tensioner with a breaker bar or ratchet, slip the belt fully into place, and release the tensioner slowly to lock the belt under proper tension.
Spin each pulley by hand to confirm smooth rotation and alignment. A properly installed belt will track evenly without jumping or fraying. Recheck routing against the diagram under the hood before starting the engine to prevent misalignment.
How to Identify Pulleys and Components in the Diagram
Locate the crankshaft pulley at the bottom center of the diagram; it drives all other components and has the largest diameter. Trace the serpentine belt upward to find the alternator pulley, usually positioned near the top with cooling vents visible in real inspection. Move sideways to spot the power steering pump pulley, which has a smooth face compared to the ribbed surface of the alternator.
Follow the belt toward the passenger side to identify the air conditioning compressor pulley, often slightly lower and connected by thicker lines in diagrams. The tensioner pulley stands out because it presses against the belt from an adjustable arm. The idler pulley looks similar but remains fixed, serving only as a guide for proper routing.
Match each pulley to its component by noting belt path direction: driven accessories such as the alternator and compressor connect along the ribbed side, while smooth pulleys like the tensioner and idler contact the back side. This distinction helps prevent confusion when replacing or routing the belt on a 2012 Buick Enclave.
Steps to Replace the Serpentine Belt Safely
Park the vehicle on a level surface, set the parking brake, and disconnect the negative battery cable to avoid accidental starts. Allow the engine to cool before working near moving parts.
- Locate the serpentine belt routing diagram under the hood or create a quick sketch of the existing path before removal.
- Use a socket wrench on the tensioner pulley bolt and rotate it clockwise to release tension.
- Slide the old belt off the pulleys carefully, checking each pulley for wear or damage.
- Route the new belt around the pulleys according to the diagram, leaving the tensioner pulley for last.
- Rotate the tensioner again, slip the belt into place, and slowly release tension.
- Inspect the belt alignment on every pulley to confirm it sits fully in the grooves.
- Reconnect the battery, start the engine, and watch the belt while the engine idles to confirm smooth rotation without slipping.
Dispose of the old belt properly and keep the diagram handy for future maintenance.
