2013 Buick Enclave Serpentine Belt Routing Diagram and Guide
To replace or inspect the serpentine belt on your 2013 Buick Enclave, first ensure that you have the correct diagram for the belt routing. This diagram provides precise information on how the belt should be routed around various components of the engine. Having the right diagram is key to a smooth installation process, preventing potential damage to the belt or related engine parts.
The serpentine belt on the 2013 Buick Enclave drives several crucial engine components, such as the alternator, power steering pump, and air conditioning compressor. Incorrect installation can lead to performance issues or premature wear. The diagram will clearly indicate the proper path the belt needs to take, making it easier to follow during installation.
For a proper replacement, ensure the engine is off, and the belt tensioner is relieved of pressure before removing the old belt. Once the belt is removed, compare it to the new belt to confirm the correct size. Follow the diagram carefully when installing the new belt, making sure the belt is seated properly in each groove and aligned with all pulleys.

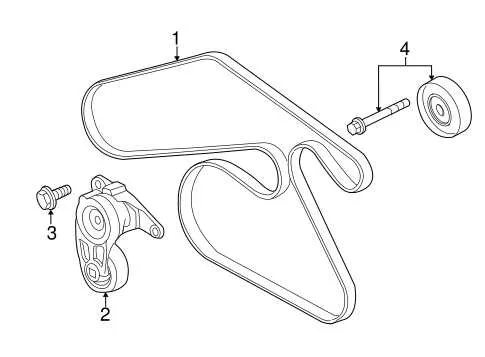

2013 Buick Enclave Belt Diagram
The 2013 Buick Enclave uses a serpentine belt to drive multiple engine components. Understanding the exact routing of this belt is crucial for maintenance and repair. The belt is routed around the crankshaft pulley, alternator, water pump, power steering pump, and air conditioning compressor.
Start by identifying the belt tensioner, which is typically located near the alternator. Using a wrench or a belt tool, rotate the tensioner counterclockwise to release the tension. This allows you to remove the belt. Always replace the serpentine belt with the correct part number and ensure it is routed in the proper direction to prevent any malfunction.
For proper installation, follow the routing guide closely. The belt needs to be routed around the components in a specific pattern to ensure correct operation. After installing the new belt, check for proper tension. The tensioner should maintain a consistent pressure to prevent the belt from slipping.
How to Locate the Serpentine Belt Routing on a 2013 Buick Enclave
To locate the serpentine belt routing on your 2013 Buick Enclave, follow these steps:
-
Open the hood and locate the engine bay’s top section. The serpentine belt is typically found on the front of the engine, wrapped around various pulleys and components.
-
Look for the belt diagram sticker, which is often attached to the radiator support or the underside of the hood. The diagram will show you the correct routing of the serpentine belt around each pulley.
-
If the diagram is missing or unclear, refer to the owner’s manual for a detailed illustration of the belt routing. It should provide exact details of the belt’s path and pulley order.
-
Identify key components such as the alternator, power steering pump, water pump, and tensioner pulley, which the serpentine belt connects to. Ensure the belt follows the correct path around these components as indicated in the diagram.
-
If you still have trouble, consider using a repair manual or online resources with step-by-step instructions for your model. These sources may include photos or video tutorials that help you visualize the belt routing more clearly.
Double-check the alignment of the belt to ensure it’s properly positioned on all pulleys to avoid premature wear or damage.
Steps to Replace the Serpentine Belt on a 2013 Buick Enclave
Lift the front of the vehicle using a jack and secure it with jack stands to ensure safety. Remove the passenger-side front wheel to gain better access to the serpentine belt and pulleys.
Locate the serpentine belt tensioner. Use a ratchet wrench with the proper size socket to relieve tension on the belt. Rotate the tensioner counterclockwise to release the belt from the pulleys.
Carefully remove the serpentine belt from all pulleys, taking note of the routing for reinstallation. It may be helpful to take a picture of the current belt configuration for reference.
Inspect the new belt for any defects and compare it with the old belt to ensure compatibility. Install the new belt by following the routing diagram. Make sure the belt sits properly on all pulleys and is aligned correctly.
Re-engage the tensioner by rotating it counterclockwise again, ensuring the belt is tight. Double-check the alignment and tension of the new belt.
Reinstall the front wheel and lower the vehicle. Start the engine and verify the belt’s operation. Listen for any unusual noises, and check for any misalignment or slippage.
Troubleshooting Common Serpentine Belt Issues on a 2013 Buick Enclave
If you notice squealing or chirping sounds from the engine, the serpentine belt might be worn, misaligned, or loose. Inspect the belt for signs of cracks or fraying. A belt that shows visible wear should be replaced immediately to prevent further damage to other engine components.
Another common issue is a belt that slips or comes off the pulleys. This often happens when the tensioner is faulty or the pulleys are misaligned. Check the tensioner for proper operation. If it’s not maintaining correct tension, replace it. Also, inspect the pulleys for any debris or misalignment that could cause the belt to slip off.
If your dashboard lights are flickering or electrical components aren’t functioning properly, the serpentine belt may not be spinning the alternator effectively. In this case, inspect the belt’s condition and ensure it’s routed correctly over all the pulleys. A loose or damaged belt can prevent the alternator from charging the battery properly.
Finally, excessive vibrations can be a sign of a misaligned or damaged serpentine belt. Check for any bent or broken pulleys. A damaged pulley can put extra stress on the belt, leading to further wear or breakage. Replace any faulty pulleys immediately to prevent a belt failure.
