Chevy Equinox Serpentine Belt Diagram and Installation Guide
The serpentine belt in your Chevy Equinox plays a key role in powering several critical components, such as the alternator, air conditioning, power steering, and more. Understanding its layout and function can make it easier to troubleshoot issues and perform maintenance tasks on your vehicle. A proper diagram helps ensure you install the belt correctly, minimizing wear and maximizing efficiency.
Refer to the Chevy Equinox serpentine belt diagram to identify the correct routing path and components it drives. The diagram typically shows the belt’s path around pulleys, tensioners, and the various accessories it powers. Make sure to align the belt with the indicated direction of travel, ensuring it fits snugly over all pulleys without slack or tension.
Before replacing or inspecting your serpentine belt, check for any wear signs such as cracking, fraying, or unusual squealing sounds. If the belt appears worn out or damaged, it’s time for a replacement. Follow the diagram carefully during installation to avoid misalignment, which can lead to premature belt failure and other mechanical issues.

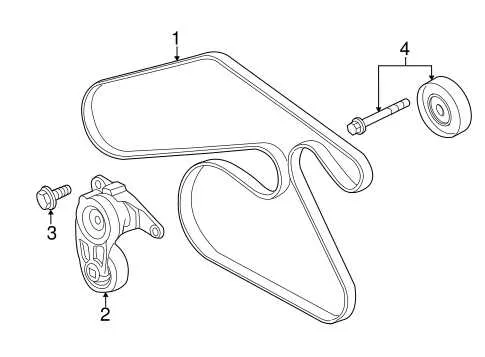

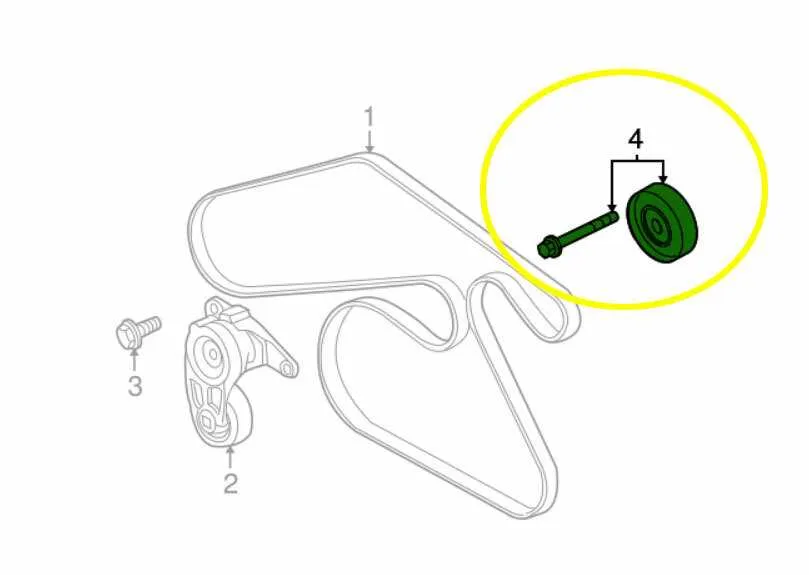

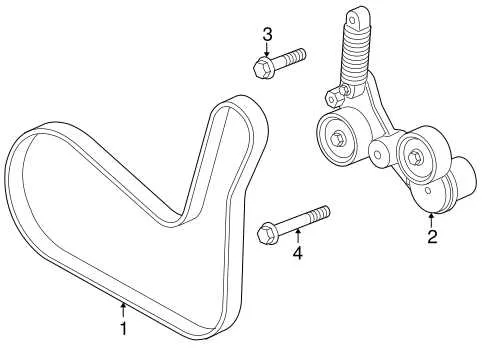

Chevy Equinox Serpentine Belt Diagram
The serpentine belt diagram for the Chevy Equinox helps you understand the precise routing of the belt around various engine components. A clear diagram is vital for proper installation or maintenance. Ensure you follow the manufacturer’s instructions closely for the correct positioning of the belt. It typically routes through components like the alternator, power steering pump, AC compressor, and the tensioner pulley.
If you’re replacing or inspecting the serpentine belt, the first step is to locate the tensioner pulley. Use a wrench to relieve tension and slide the belt off the pulleys. Afterward, refer to the diagram for a clear path when installing the new belt. Double-check the alignment before tightening the tensioner pulley back into place.
The correct installation of the serpentine belt ensures all accessories function properly without undue strain on the engine. Keep the diagram handy during any repair or replacement procedure for an efficient process. For a visual guide, consult the specific diagram for your Equinox model year to confirm the exact routing.
Be mindful of the belt’s condition during inspections. Look for cracks, frays, or wear marks. Replace the belt if any damage is noticeable to prevent further engine issues or belt failure. Always use a high-quality replacement belt designed for your model to avoid premature wear.
How to Read the Serpentine Belt Diagram for Chevy Equinox
Begin by identifying the main components on the diagram. Look for the serpentine belt’s path and the components it loops around, such as the alternator, power steering pump, air conditioning compressor, and tensioner. The diagram will show you which pulley each part connects to. Pay attention to the direction of the belt’s movement, marked by arrows. This is crucial for understanding the correct installation and belt routing.
Locate the belt tensioner in the diagram. It’s usually a spring-loaded pulley, and the diagram might show a specific tool or procedure for releasing tension when you replace the belt. This is key for removing or installing the belt without causing damage to the system.
Check for any belt routing guides, especially around the crankshaft pulley. This pulley often drives the rest of the accessories. If the diagram includes numbered steps or labels, follow them sequentially for clarity in installation.
Look for notes on any specific configurations, such as the presence of an idler pulley or double belt loops. Some Equinox models may have slightly different setups depending on engine size or model year, so verify the details against your specific vehicle.
Finally, ensure that the belt’s tension is set correctly according to the diagram. Incorrect tension can cause premature wear or even belt failure. If the diagram includes torque specifications, use them to adjust the tensioner accurately.
Common Serpentine Belt Problems in Chevy Equinox and Their Solutions
Loose or worn serpentine belts can lead to engine performance issues in your Chevy Equinox. A common sign of this problem is a squealing noise coming from the engine bay, which usually indicates a slipping belt. If you notice this sound, check for tension or cracks on the belt. Replace the serpentine belt if you see significant wear or damage to prevent further issues.
Another problem is belt misalignment. If the serpentine belt isn’t properly aligned with the pulleys, it can cause uneven wear, leading to premature failure. Inspect the pulleys for any signs of misalignment or damage. Misaligned pulleys can often be the result of faulty tensioners or damaged bearings, both of which should be replaced immediately to avoid further belt damage.
Aging serpentine belts can also lead to overheating. As the belt deteriorates, it can affect the cooling system, causing the engine to overheat. Ensure the belt’s condition is checked regularly and replaced if there are any visible signs of cracking, glazing, or fraying. An overheating engine could indicate that the belt is not driving the water pump effectively.
Weak or faulty tensioners can cause the serpentine belt to lose its proper tension, leading to slipping or even complete failure. If you notice poor performance of accessories such as the air conditioning or power steering, the tensioner might be at fault. Replacing a faulty tensioner will restore correct belt tension and improve accessory performance.
Lastly, oil or coolant leaks can also damage the serpentine belt. These fluids can soften the rubber, causing it to lose grip and leading to slippage. If you notice leaks around the engine, fix the source of the leak before replacing the belt to avoid repeating the damage.
Step-by-Step Guide to Replacing the Serpentine Belt on Chevy Equinox
Replacing the serpentine belt on your Chevy Equinox is a straightforward task if you follow the right steps. The serpentine belt drives several essential components, including the alternator, air conditioning, and power steering. Here’s how to get the job done efficiently.
- Gather the Tools: Before you begin, make sure you have the following tools:
- New serpentine belt
- Socket set
- Torque wrench
- Serpentine belt tool or breaker bar
- Ratchet and extension
- Locate the Belt Routing Diagram: Check the engine bay for a diagram showing how the belt is routed around the pulleys. If the diagram is missing, use the vehicle’s manual for reference or take a photo of the current setup before removing the old belt.
- Release Tension on the Belt: Use the serpentine belt tool or breaker bar to release the tension from the tensioner pulley. This will allow you to remove the belt easily. Make sure the tool is properly engaged with the tensioner to prevent damage.
- Remove the Old Belt: Once the tension is released, slide the serpentine belt off the pulleys. Take note of how the belt is routed, as you will need to replicate this when installing the new belt.
- Install the New Serpentine Belt: Begin routing the new belt around the pulleys, following the diagram or your reference photo. Ensure that the belt sits securely on all pulleys, and double-check the alignment as you go.
- Apply Tension: Use the serpentine belt tool or breaker bar again to rotate the tensioner and allow the new belt to slip into place. Once the belt is properly tensioned, release the tool slowly to ensure the tensioner locks the belt in place.
- Inspect the Installation: Double-check that the belt is routed correctly and that it sits snugly on all pulleys. Rotate the crankshaft pulley by hand to ensure the belt is properly tensioned and operating smoothly.
- Test the Engine: Start the engine and observe the belt’s movement. Make sure there is no squeaking or slipping. If you hear any unusual sounds, turn off the engine and check the installation again.
By following these steps, you’ll have the serpentine belt replaced in no time. If you experience issues with the new belt, it might be worth checking the pulleys or the tensioner for damage.
