Simplicity 48 Inch Mower Deck Belt Diagram and Installation Guide

If you need to replace or troubleshoot the belt on your Simplicity 48-inch mower deck, start by identifying the correct routing pattern. A precise belt diagram will help prevent installation mistakes, saving time and effort. Make sure the belt is the right size for your model to avoid unnecessary tension or slippage.

Next, examine the routing diagram carefully to ensure all pulleys and idlers are correctly aligned. Misrouting can lead to damage, overheating, and even belt failure. Keep a close eye on the tensioning mechanism–too much slack or too tight can significantly reduce the lifespan of the belt.

If your mower deck belt is showing signs of wear or damage, replacing it according to the diagram will maintain proper performance. A worn belt can slip, causing uneven cutting or reduced power transfer. Regular checks will prevent larger issues down the road, ensuring your mower operates smoothly throughout the season.

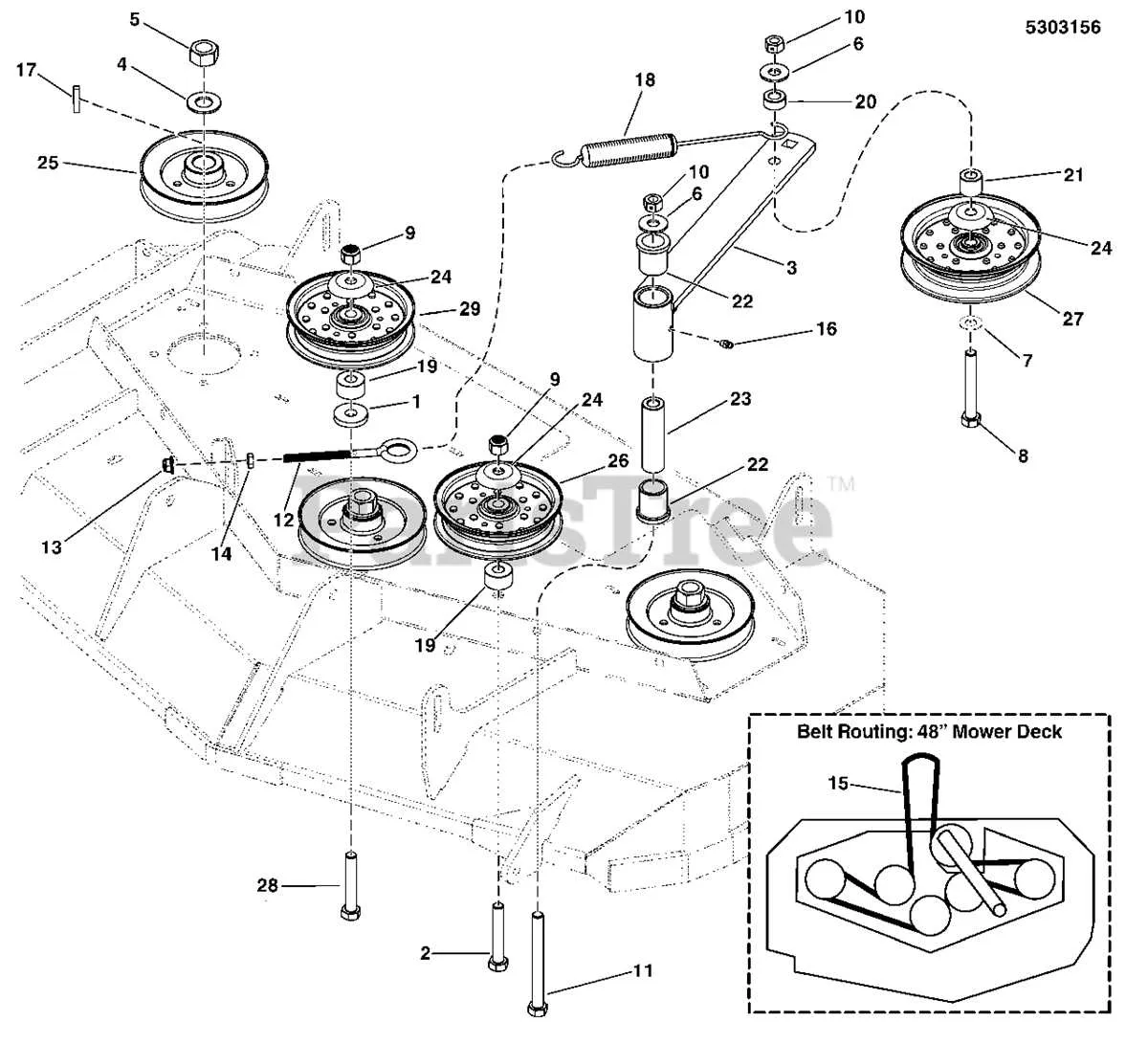

Simplicity 48 Inch Mower Deck Belt Diagram

To replace or inspect the mower deck belt on a Simplicity 48-inch model, follow these steps. The belt routing diagram provides clarity on the belt’s path around the pulleys, ensuring optimal functionality.

The deck belt loops around several pulleys, including the engine pulley, spindle pulleys, and idler pulley. Begin by disconnecting the spark plug wire to ensure safety before handling the mower. Locate the tension spring that secures the belt on the idler pulley; remove it to relieve tension and free the belt.

Once the belt is loose, take note of the direction in which it is routed through the pulleys. Refer to the diagram for the exact path. The belt should be placed on the engine pulley, following the correct routing around the spindle pulleys and idler. Check for any signs of wear or damage before installing the new belt.

Install the new belt by following the reverse order of removal, ensuring that the belt is properly seated on all pulleys. Reattach the tension spring to secure the belt in place. Finally, double-check the routing and adjust if needed before reconnecting the spark plug wire.

Consult the manufacturer’s diagram for accurate measurements and belt specifications to ensure compatibility with your mower deck model. Regular maintenance of the belt helps prevent premature wear and extends the lifespan of your mower.

How to Identify the Correct Belt for Your Simplicity Mower

To ensure your Simplicity mower operates smoothly, it’s crucial to select the correct replacement belt. Here’s how to identify the right one:

• Check the Model Number: Look for the model number on your mower’s frame or user manual. This is the most accurate way to find the belt specification for your mower deck.
• Consult the Manufacturer’s Diagram: Simplicity provides a belt diagram for each model. This diagram shows the correct routing and the belt size needed. You can find this information in the user manual or on the manufacturer’s website.
• Measure the Old Belt: If the old belt is still intact, measure its length and width. Use a tape measure to check the circumference and width, then compare it to the specifications listed in your mower’s manual.
• Note the Belt Type: Simplicity mowers typically use a V-belt or a serpentine belt. Make sure you know which type your mower requires, as they are not interchangeable.
• Consider the Belt Material: Ensure you select a belt made of durable materials like rubber or polyurethane. These materials offer the best longevity and performance for your mower.

By following these steps, you can easily find the right belt for your Simplicity mower, avoiding unnecessary downtime or damage to the mower’s components.

Step-by-Step Guide to Installing the Mower Deck Belt

Begin by lifting the mower deck to a comfortable working height using the deck lift lever. Secure the deck in place to prevent accidental lowering.

Next, remove any debris or grass buildup around the belt and pulleys. This ensures smooth installation and avoids obstruction during operation.

Locate the old belt. Take note of its routing around the pulleys. If necessary, consult the mower’s manual for reference.

Loosen and remove the old belt by detaching it from the pulleys. You may need to remove the deck spindle bolts or other components that restrict the belt’s path. Keep track of any hardware removed for reassembly.

Take the new belt and begin routing it around the pulleys, following the same pattern as the old belt. Ensure that the belt sits correctly in the grooves of each pulley to avoid slippage or premature wear.

Once the belt is properly routed, check for any slack or uneven positioning. Adjust the tension by using the spring-loaded idler pulleys, ensuring that the belt is tight enough to prevent slipping but not so tight as to cause excessive wear.

Reattach any components that were removed during the process, including spindle bolts or deck supports.

Finally, test the belt by manually turning the deck blades. Ensure that the belt moves freely and without resistance. Lower the deck back into position, start the mower, and check for smooth operation.

Troubleshooting Common Belt Issues on Simplicity Mowers

If the mower deck belt on your Simplicity mower is slipping or not functioning properly, the first step is to check the belt for visible signs of wear, such as cracks, fraying, or glazing. If any of these issues are present, it’s time to replace the belt.

One common issue is the belt becoming too loose, which can cause it to slip off or fail to turn the blades effectively. Check the tensioner pulley to ensure it’s not damaged or worn out. If the tensioner is faulty, it won’t apply enough pressure to keep the belt tight, resulting in a loss of power transfer. Adjust or replace the tensioner if necessary.

Another issue is the belt misaligning on the pulleys. This can happen if the pulleys are clogged with debris, which prevents the belt from staying in its proper position. Clean the pulleys and inspect them for any damage. If the pulleys are worn or misaligned, they need to be adjusted or replaced to ensure smooth belt operation.

If the mower is making strange noises, it could be due to the belt rubbing against other components. Inspect the belt’s path to ensure it is correctly routed according to the manufacturer’s diagram. A belt that is off-track can cause noise, damage other parts, and even lead to premature wear.

Lastly, always verify that you are using the correct belt for your specific Simplicity mower model. An incorrect size or type can lead to improper performance. Refer to the mower’s manual for the exact specifications needed for your machine.
