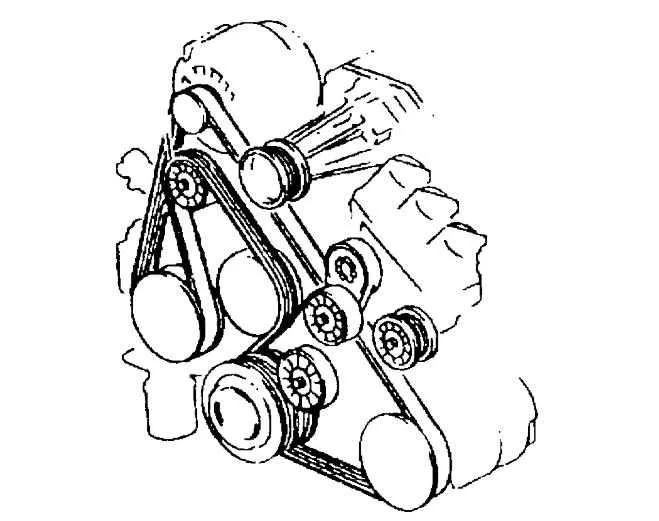

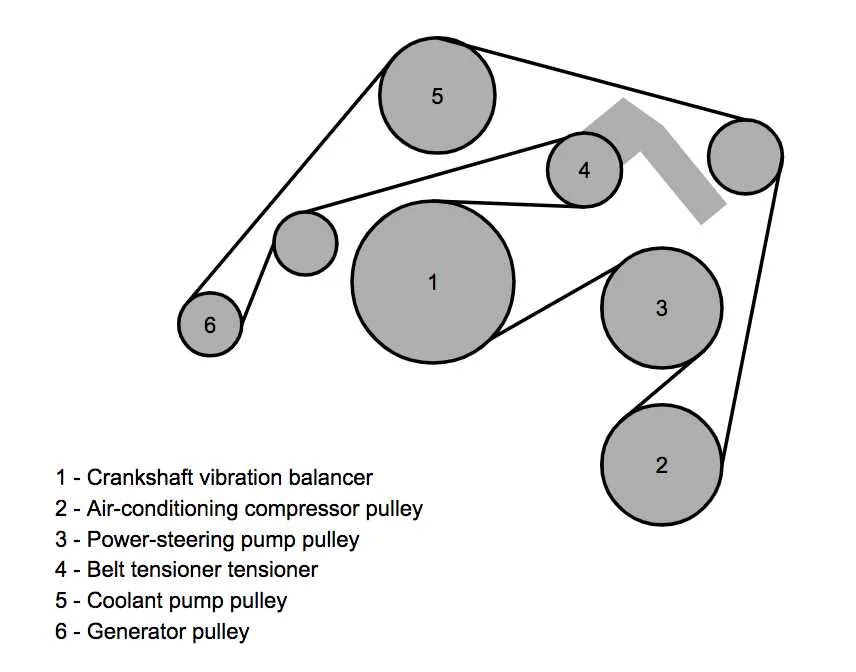

2006 Pontiac Grand Prix Engine Belt Diagram and Routing Guide

Locate the serpentine belt routing on your 2006 Pontiac Grand Prix by following the clearly marked diagram under the hood. The belt drives the alternator, power steering pump, water pump, and A/C compressor, so correct placement prevents premature wear and engine damage.

Check the belt for cracks, fraying, or glazing before installation. Align each pulley according to the diagram, ensuring the tensioner maintains proper tension without forcing the belt. Misalignment can cause squealing or accelerated deterioration.

Use a wrench on the tensioner to slip the belt over each pulley as shown in the diagram. Confirm that the belt sits fully in all grooves and rotates smoothly when the engine turns. Replace the belt immediately if it shows significant wear or damage.

Maintain a record of belt inspections and replacements. Following the diagram precisely helps avoid costly repairs and keeps the engine running reliably under normal operating conditions.

06 Pontiac Grand Prix Belt Diagram Detailed Guide for Proper Routing and Maintenance

Locate the serpentine belt on the front of the engine, wrapping around the crankshaft pulley, alternator, power steering pump, and A/C compressor. Confirm the belt type using the part number stamped on its sidewall to match the replacement precisely.

Follow the factory belt routing diagram, ensuring the belt sits fully in each pulley groove. Start installation at the crankshaft pulley, working clockwise, keeping the belt under tension while slipping it over the tensioner last. Use a wrench to relieve tension on the automatic tensioner for easy placement.

Inspect all pulleys and the tensioner before installation. Rotate each pulley by hand to detect roughness or play, which can indicate bearing wear. Replace any pulley showing damage or excessive movement to prevent premature belt failure.

Check the belt alignment visually along each pulley path. Misalignment can cause squealing or rapid wear. Adjust brackets or tensioner positions as needed to maintain parallel alignment with the pulleys.

After installation, start the engine and observe the belt while running. Look for smooth movement without slipping, twisting, or excessive vibration. Recheck tension and alignment after the first few miles of driving.

Maintain the belt by inspecting every 10,000 miles for cracks, fraying, or glazing. Replace it immediately if any damage is found. Keep pulleys free from oil or coolant contamination to extend belt life and maintain consistent performance.

Locate and Identify All Engine and Accessory Belts on 2006 Pontiac Grand Prix

Begin by opening the hood and securing the vehicle on a flat surface. The 2006 Pontiac Grand Prix features a serpentine belt that drives multiple accessories, including the alternator, power steering pump, and air conditioning compressor. Inspect the belt routing diagram on the radiator support or inside the fuse box cover for exact positioning.

Locate the serpentine belt at the front of the engine. Identify the alternator by following the wire harness; the belt wraps around its pulley. The power steering pump pulley sits lower on the passenger side; trace the belt to ensure correct engagement. The air conditioning compressor pulley is near the bottom passenger side, typically larger and round, with the belt running smoothly across it.

Check the idler pulleys and tensioner. The automatic tensioner maintains proper belt tension; it is usually spring-loaded and located near the center of the belt path. Verify that the belt passes over all pulleys without twisting, misalignment, or wear. The water pump pulley is located near the center of the engine; the belt contacts it directly, circulating coolant efficiently.

Confirm belt condition by looking for cracks, fraying, or glazing. Use a flashlight for a detailed inspection. Replace any worn or damaged belts immediately to prevent failure and maintain proper operation of all engine accessories. Ensure the belt sits correctly in all pulley grooves and rotates freely without slipping.

Step-by-Step Belt Routing Instructions for Correct Installation

Position the vehicle on a level surface and ensure the engine is completely off and cool before handling the belts. Gather the required tools, including a serpentine belt tool or a suitable wrench for the tensioner.

1. Locate the serpentine belt tensioner. Rotate the tensioner clockwise to release tension and remove the old belt. Keep the old belt as a reference if necessary.

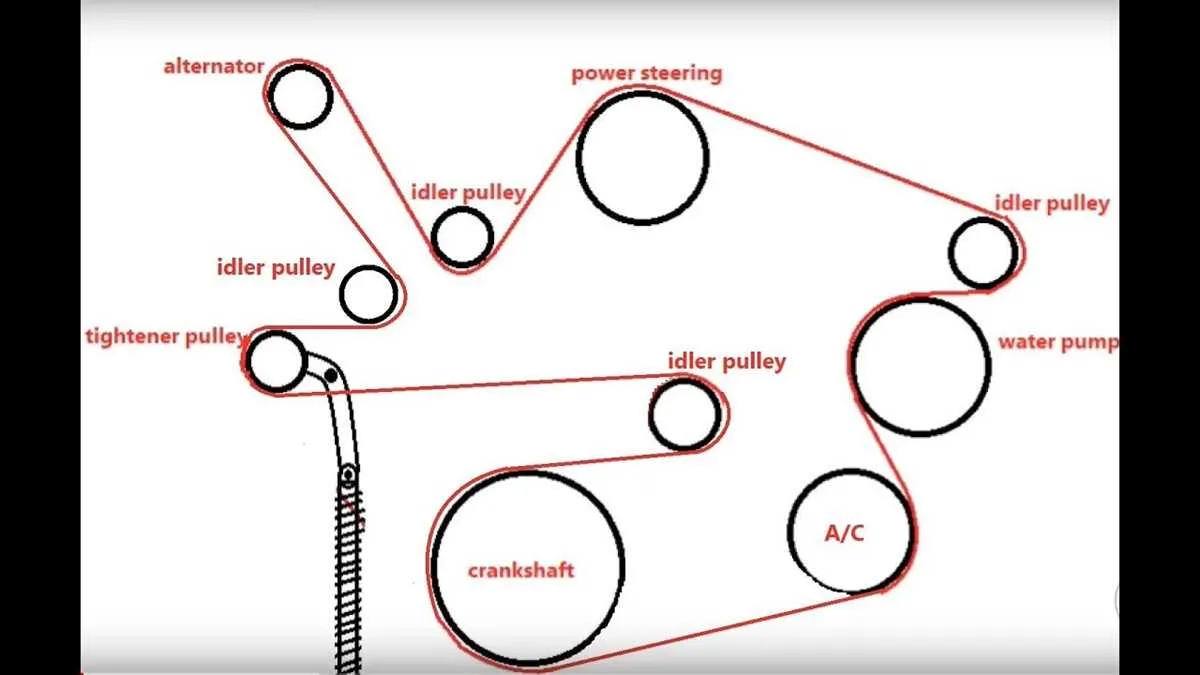

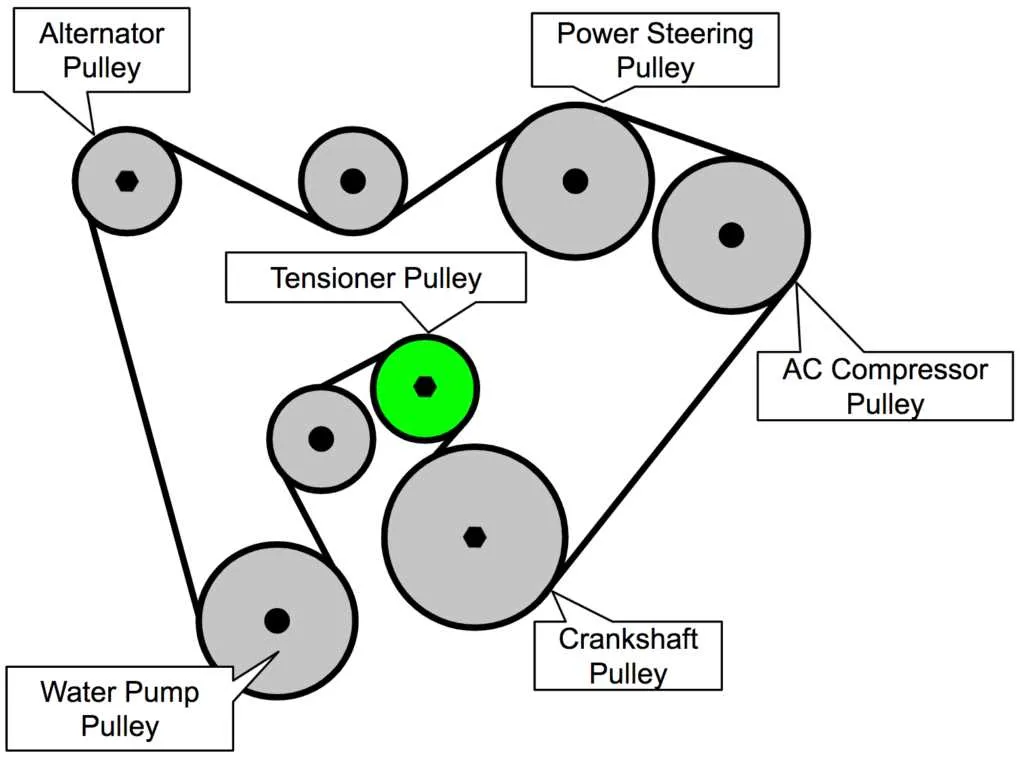

2. Refer to the belt routing diagram specific to the 2006 Pontiac Grand Prix. Identify the path for the belt over each pulley: crankshaft, alternator, power steering pump, water pump, and air conditioning compressor.

3. Start by routing the belt around the crankshaft pulley, making sure the ribbed side aligns with the pulley grooves.

4. Route the belt sequentially over the water pump and alternator pulleys, maintaining proper alignment. Avoid twisting or crossing the belt.

5. Pass the belt over the tensioner last, keeping it slightly slack to allow proper tension adjustment.

6. Slowly release the tensioner to apply tension to the belt. Confirm that the belt seats evenly on all pulleys and that the ribbed side matches the grooved pulleys.

7. Inspect the routing visually, ensuring no contact with hoses or sharp edges. Rotate the engine manually two full turns to verify smooth operation and proper tension.

8. Start the engine and observe the belt for several seconds. Check for any misalignment, unusual noises, or slipping. Readjust if necessary by repeating the tensioner adjustment.

Maintain proper belt tension and inspect periodically for wear or cracks to prolong the service life of the serpentine system.

Troubleshoot Common Belt Wear, Tension, and Misalignment Issues

Check the serpentine belt for visible cracks, fraying, or glazing. Replace the belt if any of these signs appear to prevent sudden failure.

Measure belt tension using a tension gauge. The 2006 Pontiac Grand Prix typically requires a deflection of about 1/2 inch when moderate pressure is applied at the midpoint between pulleys. Adjust the tensioner if the belt is too loose or too tight.

Inspect pulleys for wobbling or misalignment. Use a straightedge across the pulley faces to ensure they are parallel. Replace worn pulleys or realign them to correct belt tracking.

Listen for squealing or chirping noises during engine operation. These sounds often indicate improper tension or misaligned pulleys. Retighten or realign the belt as needed.

Check for oil, coolant, or other fluid contamination on the belt. Clean pulleys and replace the belt if it has absorbed fluids, as this can cause slipping and accelerated wear.

Examine the belt’s ribbed side for uniform wear. Uneven wear patterns can signal a misaligned pulley, failing tensioner, or improper installation. Correct the underlying cause before installing a new belt.

Rotate the belt manually to feel for stiffness or binding. Resistance in certain sections indicates damaged internal cords. Replace the belt immediately to avoid engine accessory failure.

Verify tensioner spring operation. A weak or stuck tensioner can lead to inconsistent belt tension. Replace the tensioner if it does not maintain proper pressure throughout rotation.
