1999 Jeep 4.0 Serpentine Belt Diagram and Maintenance Guide
The 1999 Jeep 4.0 engine relies on a serpentine belt system to drive multiple components like the alternator, power steering pump, and air conditioning compressor. To ensure these systems function properly, it’s crucial to maintain the belt’s tension and integrity. A worn or misaligned belt can cause various mechanical issues, affecting the vehicle’s performance and reliability.
When replacing the serpentine belt on a 1999 Jeep 4.0, start by identifying the correct belt routing. The diagram will show how the belt should pass around the various pulleys. Ensure the tensioner is working properly, as a faulty tensioner can cause the belt to slip or wear unevenly.
Regularly check for signs of wear such as cracking, fraying, or glazing. If you notice any of these symptoms, it’s time for a replacement. Always use the correct belt length and width according to the manufacturer’s specifications to avoid future issues.
If you need help locating the belt diagram, it can usually be found on the engine compartment’s sticker or in the vehicle’s manual. Having a clear understanding of the belt layout makes it easier to replace or troubleshoot the belt system efficiently.
1999 Jeep 4.0 Belt Diagram

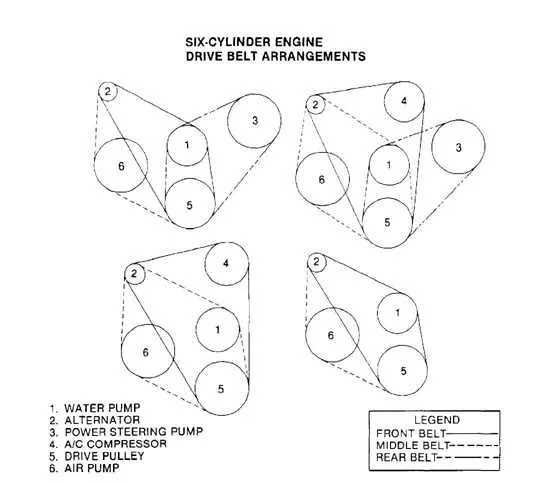

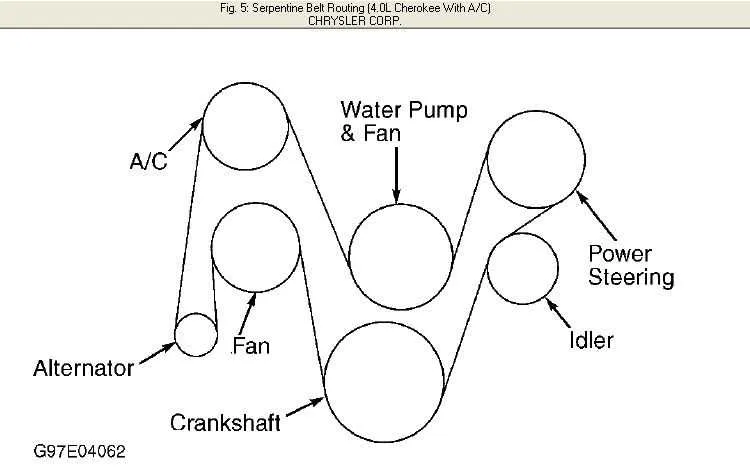

To properly understand the serpentine belt system of the 1999 Jeep 4.0, it’s crucial to examine the belt routing and component placement. This diagram outlines how the serpentine belt connects various engine accessories, such as the alternator, power steering pump, and air conditioning compressor.
The belt should be routed as follows:
- Start from the crankshaft pulley.
- Route the belt around the power steering pump pulley.
- Pass over the alternator pulley.
- Continue to the air conditioning compressor pulley.
- Loop around the tensioner pulley to maintain proper belt tension.
Ensure the belt maintains proper tension to avoid slipping or wear. If the belt shows signs of cracking, fraying, or glazing, replace it promptly to prevent potential damage to other engine components.
Use a suitable tension gauge to check the tightness of the belt. If the tensioner pulley is failing, replace the tensioner to ensure optimal performance and avoid excessive wear on the belt.

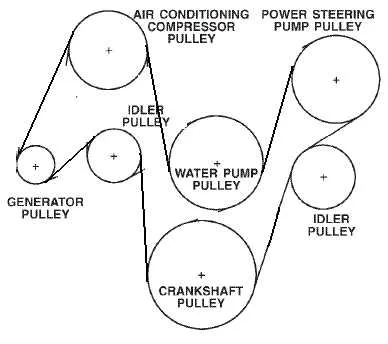

For a more detailed view, refer to the specific diagram for the 1999 Jeep 4.0, which shows the exact belt routing for your vehicle’s configuration.
How to Diagnose Common Issues with the Belt System on 1999 Jeep 4.0
To diagnose belt system issues on the 1999 Jeep 4.0, start by inspecting the serpentine belt for signs of wear, cracking, or glazing. Look for uneven tension, as a loose or too-tight belt can cause various engine problems. Ensure that the belt is aligned properly along the pulleys and that no parts are misaligned or damaged.
Listen for squeaking or squealing noises, which often indicate a slipping or worn-out belt. Check the tensioner and idler pulleys for any excessive movement or noise, as these components may be worn out and need replacing.
Examine the alternator, power steering, and other belt-driven accessories for any irregularities in function. A malfunctioning accessory can place extra stress on the belt system, leading to premature failure. If the belt has visible damage or any components fail to operate smoothly, replacement or adjustment may be necessary.
Lastly, check the alignment of the pulleys with a straightedge. Misalignment could signal an issue with the pulley system, which would require realignment or replacement of the affected components.
Step-by-Step Guide to Replacing the Serpentine Belt on 1999 Jeep 4.0
To replace the serpentine belt on your 1999 Jeep 4.0, begin by gathering the necessary tools: a socket wrench, a serpentine belt tool or breaker bar, and a new serpentine belt matching your vehicle’s specifications. Also, have a jack and jack stands on hand to lift the vehicle for easier access.
1. Lift the Vehicle: Use the jack to lift the front of the vehicle and secure it with jack stands. Ensure the vehicle is stable before proceeding.
2. Locate the Serpentine Belt: The serpentine belt on a 1999 Jeep 4.0 runs over multiple pulleys. It’s accessible from the front of the engine bay. Identify the belt routing diagram, usually found on the radiator support or under the hood. If the diagram is missing, take note of how the belt is routed before removal.
3. Release the Tension: Locate the tensioner pulley, which is spring-loaded. Use a serpentine belt tool or breaker bar to rotate the tensioner clockwise or counterclockwise, depending on the vehicle’s design. This will relieve tension on the belt. While holding the tensioner, slide the belt off the pulleys.
4. Remove the Old Belt: Once the tension is released, carefully remove the serpentine belt from the pulleys. Check for wear or damage on the old belt. If it’s damaged, make sure to replace it with a new one of the correct size.
5. Install the New Belt: Place the new serpentine belt onto the pulleys, following the belt routing diagram. Make sure the belt is properly aligned on each pulley. Ensure there is no slack in the belt once installed.
6. Re-engage the Tensioner: Rotate the tensioner back into position to apply tension to the new belt. Double-check that the belt is aligned properly on all pulleys.
7. Test the Installation: Start the engine and observe the belt while it’s running. Look for any unusual noises or slipping. If everything looks good, lower the vehicle and secure it back to the ground.
8. Check Belt Tension: After driving for a short time, check the tension of the new belt. Adjust if necessary.
