Gravely ZT HD 52 Belt Diagram and Troubleshooting Guide
When troubleshooting or replacing components on your Gravely ZT HD 52, understanding the belt diagram is critical. It helps ensure that the belts are routed correctly and function efficiently. Refer to the diagram as a reference point before you begin any disassembly.
The diagram outlines the precise path each belt takes through various pulleys and components. It’s recommended to inspect the belt regularly for any signs of wear, cracks, or misalignment. Make sure to follow the exact routing to avoid causing any unnecessary strain on the system, which could lead to more significant mechanical failures.
Always use high-quality replacement belts that meet the manufacturer’s specifications. Incorrect or low-quality belts can compromise performance and potentially damage the mower. Consult your Gravely ZT HD 52 user manual for specific part numbers and maintenance intervals to maintain peak operation.

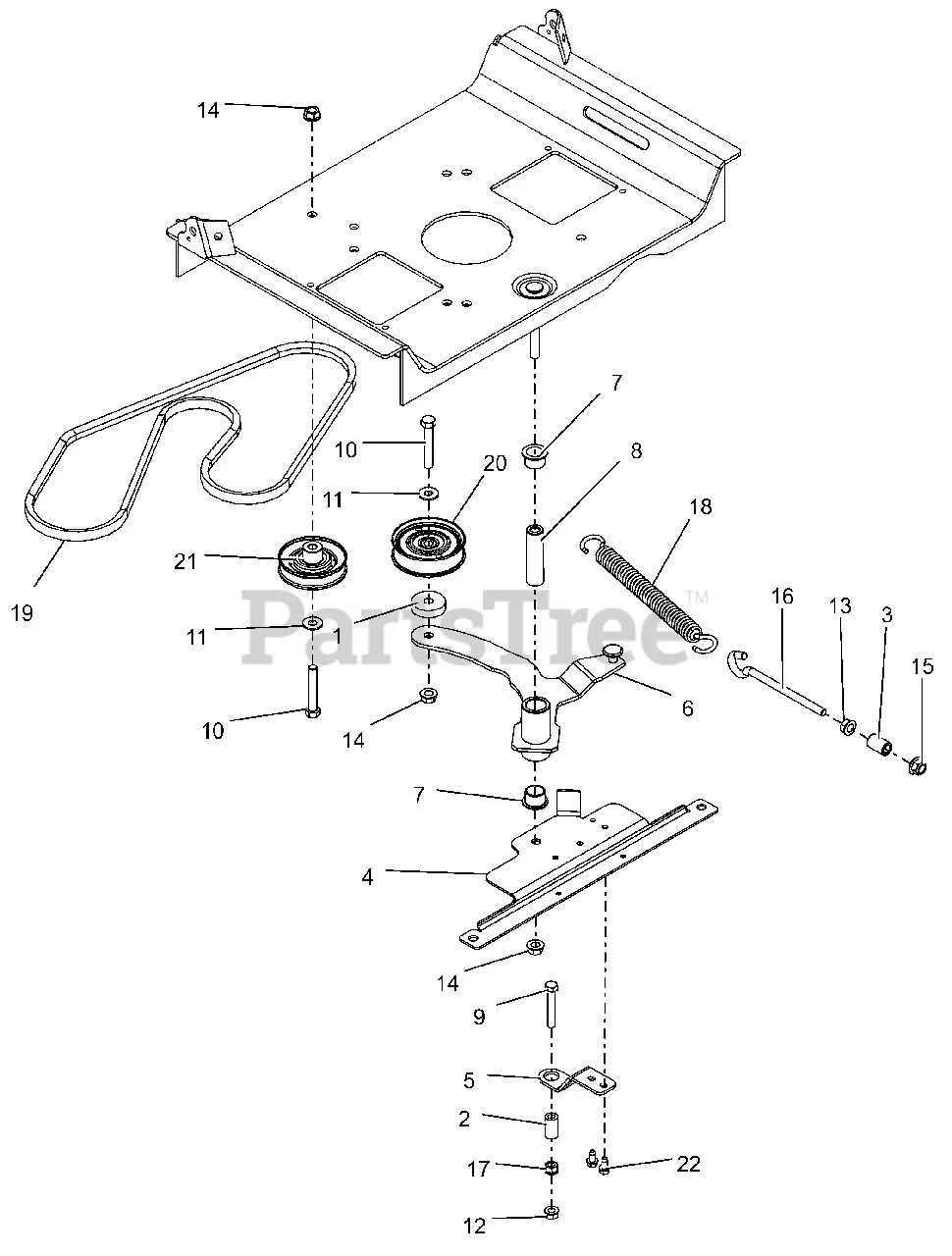

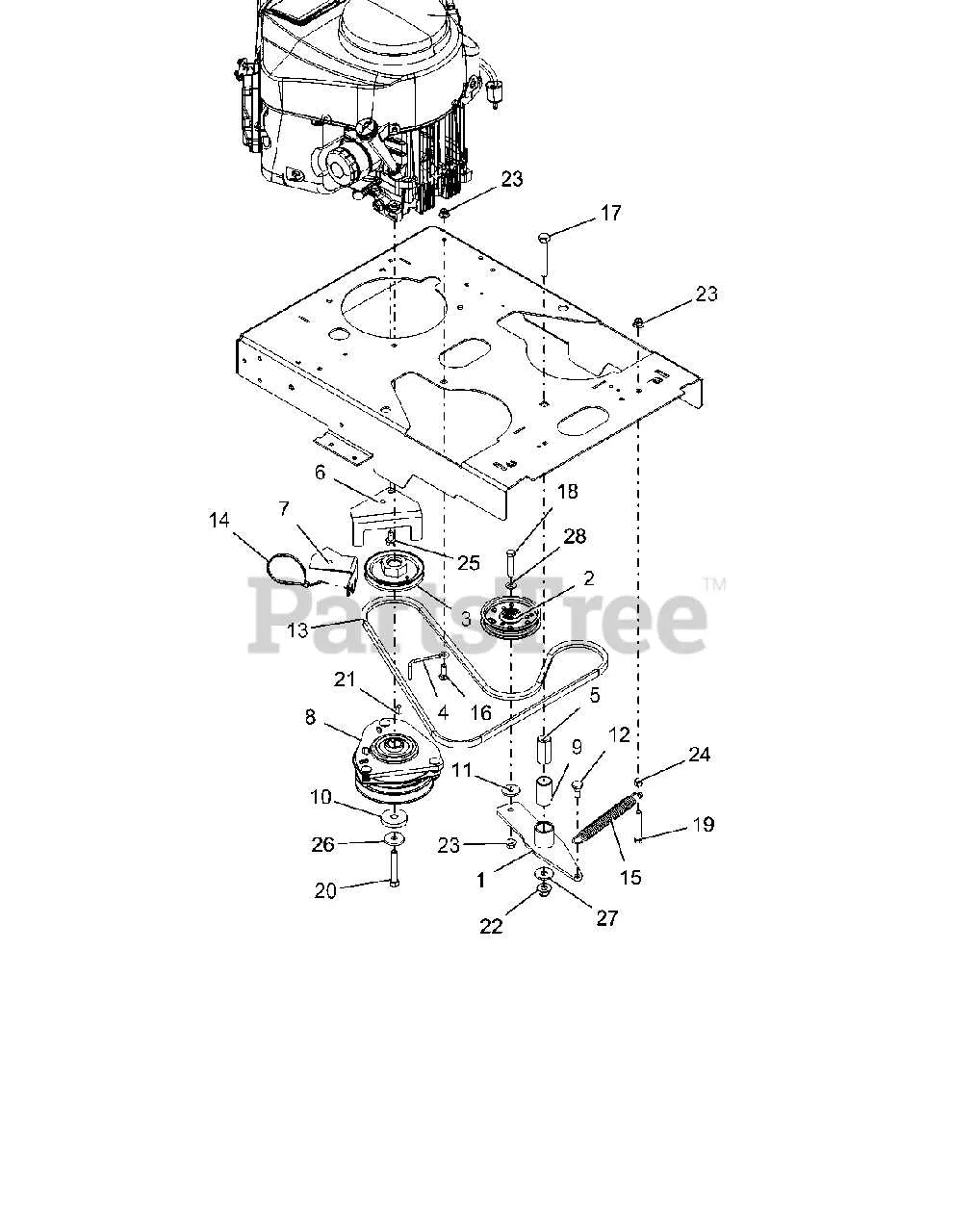

Gravely ZT HD 52 Belt Diagram
The Gravely ZT HD 52 features a complex belt system that plays a critical role in the functionality of the mower. To ensure smooth operation, it is vital to have a clear understanding of the belt routing and how to properly maintain it.
The drive belt is responsible for transferring power from the engine to the cutting deck and other components. It is important to follow the correct path when installing or replacing the belt to avoid unnecessary wear or malfunction. Refer to the manufacturer’s manual for the most accurate and detailed belt routing diagram.
Begin by checking the condition of the existing belt before attempting any replacements. If there are signs of excessive wear, cracks, or fraying, replace the belt immediately to prevent further damage to the mower. Always use belts that match the specifications for the Gravely ZT HD 52 for optimal performance.
To install the belt, start at the engine pulley and work your way down to the cutting deck, following the precise routing outlined in the manual. Ensure the belt sits properly in the pulley grooves and is tensioned according to the recommended specifications. A loose belt can cause slipping, while an overly tight belt can lead to premature wear on the components.
Regular inspection and maintenance of the belt system are key to prolonging the lifespan of the Gravely ZT HD 52. Replace any worn components, check for proper tension, and ensure that the belt is aligned correctly to avoid unnecessary stress on the engine and deck pulleys.
How to Identify the Belt Routing on Gravely ZT HD 52
To properly identify the belt routing on the Gravely ZT HD 52, follow these steps:
- Locate the belt diagram. Typically, the belt routing diagram is found on the mower’s frame or under the engine cover. It provides a visual guide for how the belt should be arranged.
- Inspect the tensioner pulleys. The tensioner is responsible for keeping the belt tight. Make sure it is positioned correctly along the diagram’s path and that it moves freely.
- Check the direction of the pulleys. Pay attention to the direction in which each pulley should rotate, ensuring that the belt routing matches the diagram and follows the correct path around the pulleys.
- Ensure the idler pulleys are positioned at the correct angles. These pulleys guide the belt, and incorrect positioning can cause premature wear or improper belt movement.
- Visually confirm the belt path. Follow the belt route through the pulleys, ensuring it is routed according to the diagram, with no twists or incorrect turns.
If the belt is worn or frayed, it’s crucial to replace it with a new one and verify the routing again before use. Incorrect belt routing can lead to performance issues and potential damage to the mower.
Step-by-Step Guide to Replacing the Drive Belt on Gravely ZT HD 52
To replace the drive belt on your Gravely ZT HD 52, follow these steps:
1. Disconnect the Battery: Before beginning, ensure that the mower is turned off, and disconnect the battery to avoid any electrical hazards.
2. Lift the Mower: Use a lift or jack to raise the front of the mower, providing enough clearance to work on the drive system.
3. Remove the Cutting Deck: Take off the cutting deck by removing the pins or bolts holding it in place. This will give you access to the drive belt system.

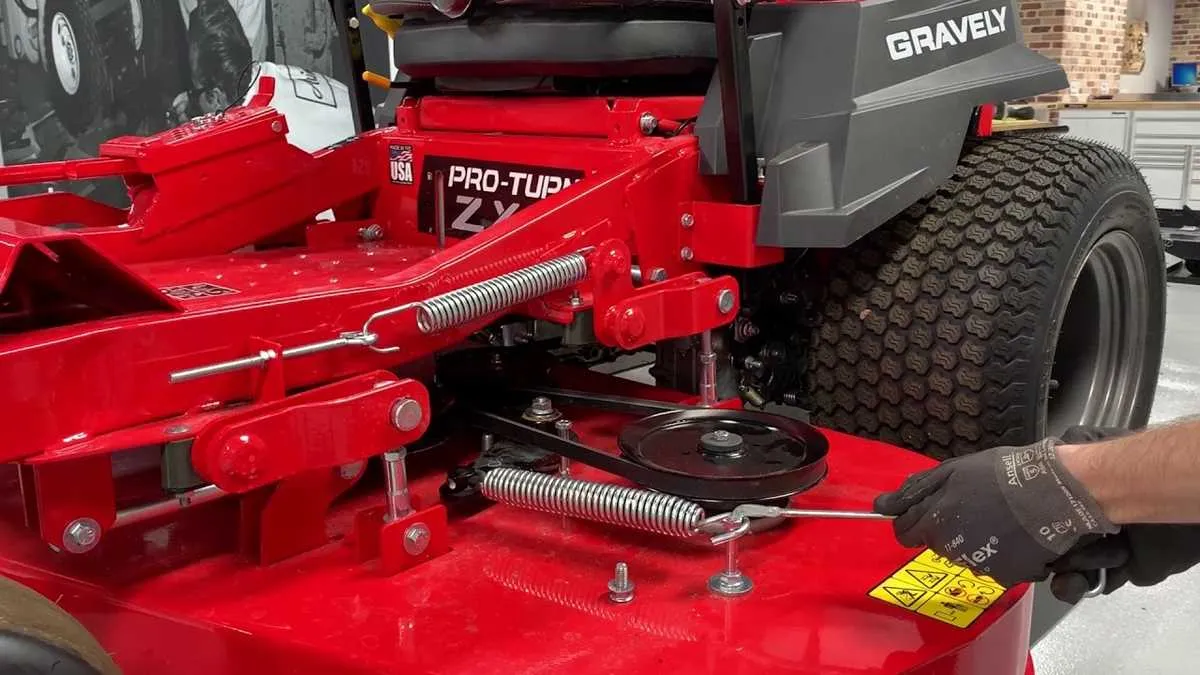

4. Loosen the Tension on the Belt: Locate the tensioner pulley and release the tension by adjusting it. This will make it easier to remove the old belt.
5. Remove the Old Belt: Slide the belt off the pulleys carefully. Note the belt’s routing, as you will need to replicate this when installing the new one.
6. Install the New Belt: Place the new belt onto the pulleys, following the original routing pattern. Ensure the belt sits correctly in the grooves of each pulley to prevent slipping.
7. Tighten the Tensioner Pulley: Adjust the tensioner pulley to apply the right amount of tension to the new belt. The belt should be snug but not overly tight.
8. Reinstall the Cutting Deck: Position the cutting deck back in place, securing it with the necessary pins or bolts.
9. Reconnect the Battery: Reconnect the battery to restore power to the mower.
10. Test the Mower: Start the mower and verify that the new belt runs smoothly. Listen for any unusual noises or signs of improper routing.
Troubleshooting Common Belt Issues on Gravely ZT HD 52
If the drive belt on your Gravely ZT HD 52 is slipping or not functioning properly, the first step is to check for any visible signs of wear or damage. Inspect the belt for cracks, fraying, or excessive wear, which could indicate it needs replacing.
Next, examine the belt tension. An improperly tensioned belt can lead to slipping or inefficient operation. Use the tension adjustment mechanism to ensure the belt has the correct amount of tension. If the belt is too loose, it won’t transfer power effectively. If it’s too tight, it could cause unnecessary strain on the system.
Misalignment of the belt could also be the issue. Check the pulleys to make sure they are in proper alignment. Misaligned pulleys can cause the belt to move unevenly, leading to premature wear. If necessary, adjust the pulleys to ensure they are aligned correctly.
Debris buildup on the belt or pulleys can lead to slipping or reduced performance. Clean the belt and surrounding areas to ensure there is no obstruction or buildup that might affect the belt’s operation. Pay particular attention to grass clippings or dirt that might have accumulated on the components.
Lastly, ensure that the drive system’s components, such as the idler pulley and tensioner, are functioning correctly. A worn or damaged idler pulley can cause the belt to slip or wear unevenly. Replace any faulty components to restore proper functionality to the system.
