2013 Chevy Malibu 2.5 Serpentine Belt Diagram and Installation Guide
The serpentine belt on the 2013 Chevy Malibu 2.5 plays a critical role in driving various engine components like the alternator, power steering pump, and air conditioning compressor. Understanding the routing of this belt is essential for proper maintenance and troubleshooting.
If you notice unusual noises, power loss, or difficulty steering, the serpentine belt may need to be inspected or replaced. Ensure the belt is properly aligned with the pulleys to avoid premature wear or failure.
The diagram below clearly outlines the belt’s routing and shows the direction in which the belt should travel across each pulley. Refer to this diagram when replacing or checking your serpentine belt for proper fitment and alignment.
Key steps to follow:
1. Verify belt tension to avoid slippage.
2. Inspect each pulley for wear or damage that could affect belt operation.
3. Replace the serpentine belt if it shows signs of cracking, fraying, or stretching.
Keep this guide handy for future reference during routine maintenance or repairs.

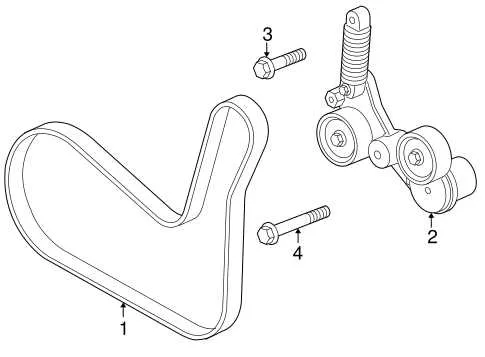

2013 Chevy Malibu 2.5 Serpentine Belt Diagram
The 2013 Chevy Malibu 2.5 uses a serpentine belt to drive multiple components, including the alternator, power steering pump, and air conditioning compressor. Ensure the belt is routed correctly to maintain the proper function of these systems. To replace the serpentine belt, start by locating the tensioner pulley, which must be relieved to remove the old belt. A belt routing diagram can usually be found near the engine compartment or in the owner’s manual.
Check for signs of wear, such as cracks or fraying, which can indicate the need for replacement. It is recommended to inspect the belt regularly and replace it every 60,000 to 100,000 miles, depending on driving conditions. Proper belt tension is also crucial–too much slack or tightness can lead to premature failure or damage to engine components.
When installing the new belt, ensure that it follows the exact routing path as shown in the diagram. Use a wrench or ratchet to release the tension on the pulley, then slide the belt over the pulleys in the proper sequence. Double-check the alignment before tightening the tensioner to its original position.
For any doubts, consult the vehicle’s service manual or seek professional assistance to avoid mistakes that may cause damage to the engine’s drive system.
Understanding the Serpentine Belt Routing for 2013 Chevy Malibu 2.5
The serpentine belt routing for the 2013 Chevy Malibu 2.5 is a critical component that ensures the smooth operation of various engine accessories. The routing diagram helps in identifying the proper belt path, ensuring all systems like the alternator, power steering pump, and air conditioning compressor are properly powered.
To begin, locate the serpentine belt tensioner, which is responsible for maintaining the correct belt tension. It is typically positioned near the front of the engine. The belt should be routed around key pulleys: the crankshaft pulley, the alternator pulley, the power steering pulley, and the air conditioning compressor pulley. Follow the specific path marked in the diagram to avoid improper installation, which can lead to belt slippage or premature wear.
Pay attention to the direction of rotation for each pulley. The belt should run smoothly over each pulley without twisting or slack. Ensure the belt is seated properly in the grooves of each pulley to prevent damage. After installation, inspect the tensioner to make sure the belt is tight and aligned properly. A misaligned belt can lead to unnecessary wear on both the belt and the pulleys.
If the belt shows signs of wear, such as cracking or fraying, it should be replaced immediately. A well-maintained serpentine belt ensures the longevity and reliability of the 2013 Chevy Malibu 2.5 engine.
How to Replace the Serpentine Belt on a 2013 Chevy Malibu 2.5
Replacing the serpentine belt on a 2013 Chevy Malibu 2.5 requires a few basic tools and some attention to detail. Follow these steps to ensure a smooth replacement process:
- Gather Tools: You’ll need a 15mm socket, a ratchet wrench, a serpentine belt tool, and a new serpentine belt compatible with your 2013 Chevy Malibu 2.5.
- Locate the Belt Tensioner: The belt tensioner is typically located near the bottom of the engine. Use the serpentine belt tool to relieve tension on the belt by turning the tensioner counterclockwise.
- Remove the Old Belt: Once the tensioner is released, slide the belt off the pulleys. Carefully remove it from the engine bay.
- Install the New Belt: Compare the new belt with the old one to ensure it is the correct size. Start by threading the new belt around the pulleys, ensuring it follows the correct routing as indicated in the vehicle’s belt diagram. Make sure the belt sits properly on all pulleys.
- Reapply Tension: Use the serpentine belt tool to move the tensioner back into place and tighten the belt. Ensure the belt has the proper tension by checking its tightness by hand.
- Check the Alignment: Double-check that the belt is aligned correctly on all pulleys. It should sit in the grooves without slipping off.
- Test the New Belt: Start the engine and observe the new belt in action. Listen for any abnormal noises and verify that the belt is running smoothly.
With these steps completed, you’ve successfully replaced the serpentine belt on your 2013 Chevy Malibu 2.5.
Common Issues with the Serpentine Belt in 2013 Chevy Malibu 2.5 and How to Fix Them
A worn-out serpentine belt can cause various engine issues, including loss of power steering or overheating. Common problems often include belt slipping, cracking, or misalignment. If you notice unusual squealing noises or if the belt appears frayed, it’s time to inspect and possibly replace it.
If your serpentine belt starts slipping, it could be due to tension loss or a misaligned pulley. To fix this, check the tensioner pulley and replace it if worn. Tightening the tensioner or adjusting its position can resolve slipping if it’s the issue.
Cracking or fraying is a clear sign that the belt is near the end of its service life. When this happens, replace the belt immediately. Ensure you get the correct size and type of belt for the 2013 Malibu 2.5 to avoid any installation issues.
If the belt is misaligned, inspect the pulleys for any damage or wear. A misaligned pulley can wear down the belt unevenly, leading to failure. In some cases, replacing the pulley or adjusting its position may be required to prevent further damage.
Regularly inspecting your serpentine belt for signs of wear can prevent unexpected breakdowns. Always replace the belt if you notice any signs of damage to keep your 2013 Chevy Malibu 2.5 running smoothly.
