2014 Nissan Frontier Serpentine Belt Diagram and Routing Guide
The serpentine belt in your 2014 Nissan Frontier plays a key role in powering essential engine components like the alternator, power steering pump, and air conditioning compressor. If you’re facing issues with any of these systems, inspecting or replacing the serpentine belt may be the solution. Having a clear, detailed diagram can simplify the process of understanding the belt’s routing and replacement.
The serpentine belt on the 2014 Frontier is routed in a specific path across various pulleys. To avoid unnecessary confusion during replacement, refer to a diagram that shows the exact layout of pulleys, tensioners, and the belt itself. It’s important to ensure the belt is installed correctly to avoid damage to the engine or other components.
If you’re planning to replace the serpentine belt yourself, make sure to check the tensioner’s condition, as an old or faulty tensioner may cause the belt to slip or wear prematurely. A well-maintained serpentine belt ensures that your vehicle’s accessories run smoothly and efficiently.
Consulting the official Nissan service manual or a reliable online resource for a visual guide will save you time and effort. Pay attention to belt alignment and pulley conditions to avoid future breakdowns. With the right tools and a bit of patience, replacing the serpentine belt in your 2014 Nissan Frontier can be a straightforward task.

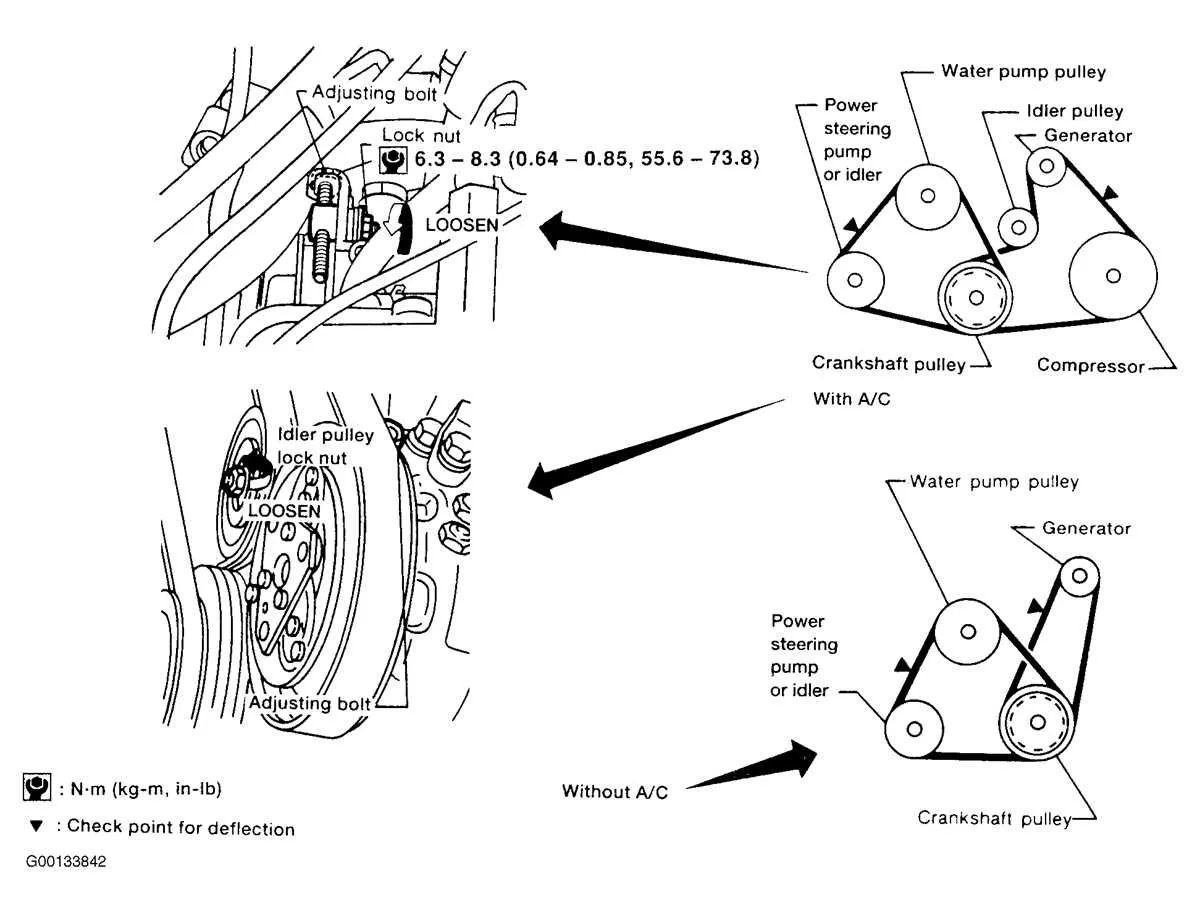

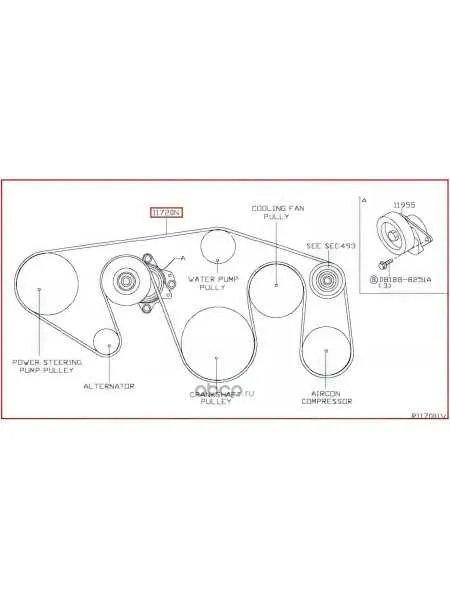

2014 Nissan Frontier Serpentine Belt Diagram
The serpentine belt diagram for the 2014 Nissan Frontier provides the routing details to ensure proper installation and functionality. This diagram is especially useful when replacing the serpentine belt or inspecting belt alignment. It outlines the path that the belt follows around various pulleys, including the alternator, power steering pump, air conditioning compressor, and the tensioner pulley.
To replace the serpentine belt, follow the steps below:
- Locate the tensioner pulley and use a wrench to rotate it counterclockwise, which will relieve tension from the belt.
- Remove the old serpentine belt from the pulleys and compare the new belt with the old one to ensure correct length and size.
- Route the new belt according to the diagram, ensuring that it correctly follows the grooves on all pulleys.
- Once the new belt is in place, slowly release the tensioner pulley to apply tension to the new belt.
- Double-check the belt alignment and ensure all components are running smoothly.
The tensioner pulley and idler pulley play a key role in maintaining proper belt tension. If either of these components is damaged or worn, replace them before installing the new belt.
For visual reference, the serpentine belt routing diagram for the 2014 Nissan Frontier can be found in the owner’s manual or on a label near the engine bay, typically on the radiator support or the front of the engine compartment.
Step-by-Step Guide to Locating the Serpentine Belt on a 2014 Nissan Frontier
To locate the serpentine belt on your 2014 Nissan Frontier, follow these steps:
- Open the hood: Secure the hood in place using the prop rod to get clear access to the engine bay.
- Locate the front of the engine: The serpentine belt runs across the front of the engine, visible from above once the hood is open.
- Identify the belt path: The serpentine belt is looped around various pulleys, including the alternator, water pump, and power steering pump. Look for a long, rubber belt stretching across these components.
- Examine the belt tensioner: On the 2014 Frontier, a spring-loaded belt tensioner holds the serpentine belt in place. It’s typically on the passenger side of the engine near the top. The tensioner pulley is a key part of the system.
- Check for the routing diagram: Often, the engine bay will have a diagram attached to the underside of the hood or near the radiator. This diagram shows the exact routing of the serpentine belt around the pulleys.
- Inspect for wear: If you’re checking for belt issues, look for cracks, fraying, or signs of wear along the belt. The serpentine belt should fit tightly without slack.
Once you’ve located the belt, you can inspect it for wear, replace it if necessary, or simply confirm it’s in the correct position. Regular inspection can prevent further engine damage down the line.
Common Issues with the 2014 Nissan Frontier Serpentine Belt and How to Fix Them
One of the most frequent issues with the 2014 Nissan Frontier serpentine belt is wear and tear caused by age or friction. Over time, the rubber can crack, stretch, or even snap, especially if the vehicle is driven in harsh conditions. If you hear squealing noises from the engine, this is often a sign of a worn-out belt that needs replacement.
Another common problem is misalignment. When the serpentine belt is not properly aligned with the pulleys, it can cause slippage, resulting in inefficient operation of the engine’s components. This misalignment is usually caused by a faulty pulley or tensioner. Check for uneven wear patterns on the belt or visible misalignment of the pulleys to confirm this issue.
To fix a worn or damaged serpentine belt, you’ll need to replace it. Start by releasing the tension on the belt using a serpentine belt tool. Carefully remove the old belt and install the new one, making sure it is aligned correctly with the pulleys. If the problem is caused by a misaligned pulley, inspect the tensioner or idler pulleys. Replacing these components will prevent future belt issues.
If you notice squealing or slipping despite replacing the belt, check the condition of the pulleys. A damaged or faulty pulley can cause the new belt to wear prematurely. It may be necessary to replace one or more pulleys to restore proper functionality. Ensure that the tensioner is also in good condition, as an old or weak tensioner can lead to improper belt tension.
Keep in mind that regular inspections can help prevent unexpected belt failures. Look for signs of wear, such as fraying, cracking, or glazing. A quick check every 20,000 miles can save you from more serious engine problems later on.
How to Properly Replace the Serpentine Belt on a 2014 Nissan Frontier
Before replacing the serpentine belt on your 2014 Nissan Frontier, ensure the engine is off and cool. Start by locating the belt routing diagram, usually found near the radiator or in the engine bay. This diagram shows how the serpentine belt wraps around the pulleys.
Using a 3/8-inch drive ratchet, release tension on the serpentine belt tensioner. Place the ratchet into the square hole on the tensioner pulley and rotate it counterclockwise to loosen the belt. Once the belt is loose, carefully remove it from the pulleys, taking note of its routing for the installation of the new one.
Inspect the new serpentine belt to ensure it matches the old one in length and width. Align the new belt with the pulleys according to the routing diagram, making sure it sits properly in the grooves of each pulley.
With the belt in place, use the ratchet to release the tensioner again, allowing the tensioner to tighten the new belt. Double-check that the belt is seated correctly on all pulleys and is tight enough without being overly stretched.
Start the engine and observe the belt’s operation for a few minutes, ensuring it runs smoothly without any squealing or misalignment. If everything appears to be functioning properly, you’re done.
