2000 Jeep Cherokee Serpentine Belt Diagram and Routing Guide

If you’re working on the 2000 Jeep Cherokee and need a belt diagram, you’re in the right place. The serpentine belt system plays a key role in powering various components, from the alternator to the power steering pump. Getting the routing right is crucial for the vehicle to run smoothly. Below, you’ll find a detailed guide on how to correctly route the belt for optimal performance.

First, check the engine configuration of your Jeep Cherokee. Depending on whether you have a 2.5L or 4.0L engine, the belt routing might slightly differ. Always ensure you have the right diagram for your specific engine model. For most 2000 Jeep Cherokee models, the diagram clearly shows how the belt wraps around the pulleys, tensioner, and various engine accessories.

When installing or replacing the serpentine belt, be sure to use the correct belt tensioner tool to relieve tension on the belt. Once you place the belt in the correct position, check the belt’s alignment with the pulleys to avoid any slipping or excessive wear. A properly routed belt will keep your engine components functioning correctly and prevent costly repairs down the line.

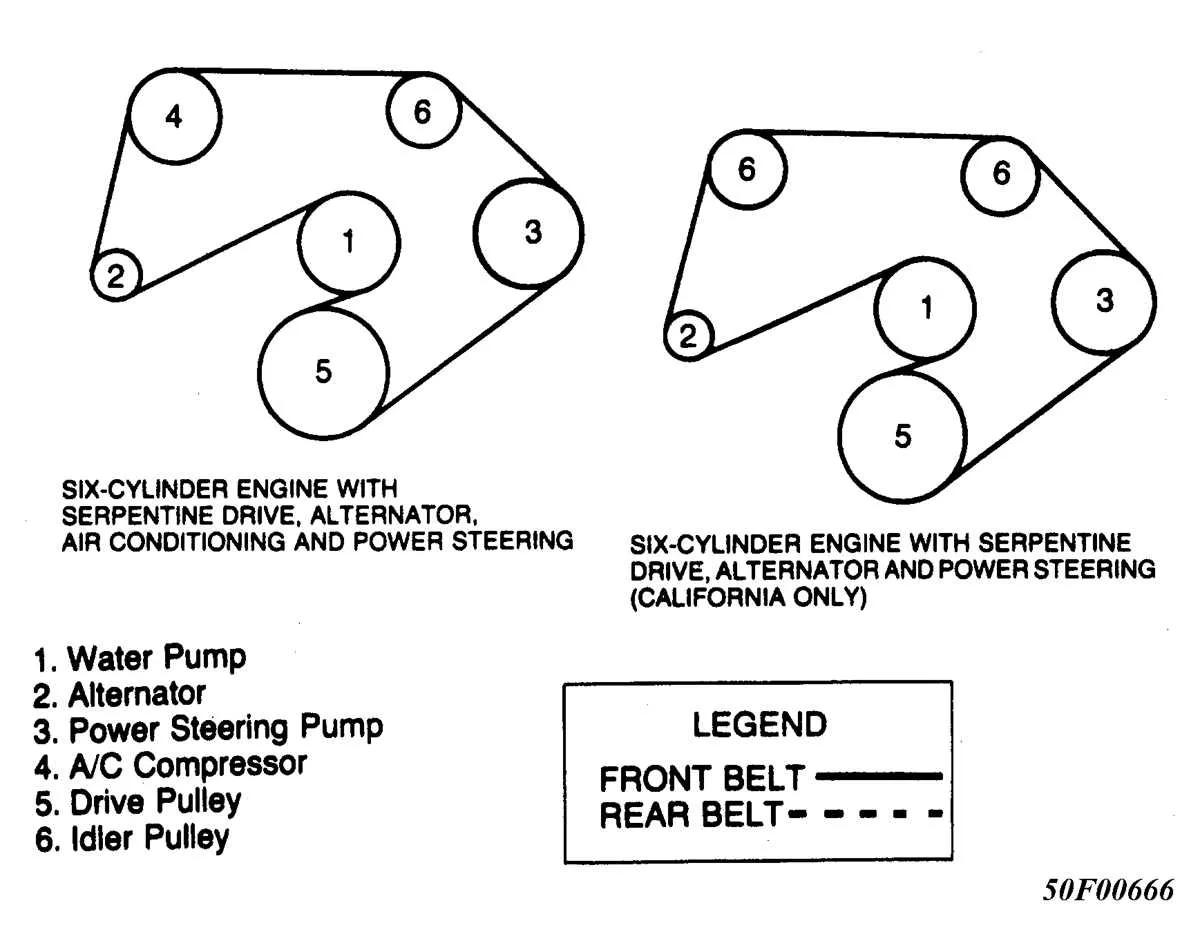

2000 Jeep Cherokee Belt Diagram

If you’re working on your 2000 Jeep Cherokee’s belt system, it’s crucial to understand the layout and the correct routing for the serpentine belt. Here’s the belt diagram and some tips to help you along the way.

The diagram includes a serpentine belt that drives multiple components such as the alternator, power steering pump, air conditioning compressor, and water pump. To replace or inspect the belt, first, locate the belt tensioner and release the tension to remove it safely.

• Serpentine Belt Routing: The belt typically wraps around the crankshaft pulley, power steering pump, alternator, air conditioning compressor, and tensioner.
• Tensioner Location: The tensioner is positioned on the driver’s side of the engine. You’ll need to use a wrench or a belt tool to relieve the tension before removing the belt.
• Inspecting the Belt: Check the belt for any signs of cracking, fraying, or damage. If the belt shows signs of wear, replace it to avoid potential engine damage.
• Replacement: When installing a new belt, ensure it sits in the grooves of each pulley properly. Double-check the belt’s path according to the diagram to avoid misrouting.

Once the new belt is in place, test the system by manually rotating the belt to ensure it runs smoothly across all pulleys. Tighten the tensioner to secure the belt and avoid any slack.

For further assistance, consult the owner’s manual for your specific model, as there may be slight variations in the setup based on the engine configuration.

How to Identify the Correct Belt Routing for Your 2000 Jeep Cherokee

To identify the correct belt routing for your 2000 Jeep Cherokee, first locate the serpentine belt diagram. This is often found on the radiator support or near the engine bay. If you can’t find it, refer to your owner’s manual for a detailed diagram.

Next, inspect the belt’s current routing. If it’s still in place, you can use it as a reference. Note how the belt loops around pulleys, the tensioner, and the alternator. A clear understanding of this pattern helps avoid installation mistakes.

When replacing the belt, make sure it matches the same path as shown in the diagram. Pay close attention to the direction of the belt’s grooves–these must align with the pulleys they engage. Double-check the routing around the tensioner and idler pulley, as a common error is misplacement in these areas.

If you’re unsure, consider using a ratchet and socket to rotate the tensioner and release pressure from the old belt. This will give you the flexibility to remove and compare both belts easily. Always confirm that the new belt matches the size of the old one, ensuring proper tension when installed.

After installation, manually rotate the engine a few times to check if the belt runs smoothly without slipping or misaligning. If everything checks out, your belt is routed correctly.

Common Issues with the Belt System in the 2000 Jeep Cherokee

Check the serpentine belt tension regularly. A loose or worn belt can cause the engine to overheat or lead to other mechanical failures. The 2000 Jeep Cherokee’s serpentine belt often shows signs of wear due to age and mileage, such as cracks or fraying. Replacing it early prevents unexpected breakdowns.

If the belt squeals when starting the engine or during acceleration, it’s a sign of possible belt slippage. This could be caused by either a worn belt or an issue with the tensioner. Inspect the tensioner for proper function and replace it if it’s not maintaining the correct tension.

The alternator, power steering, and air conditioning compressor are all driven by the same serpentine belt. If any of these systems begin malfunctioning, inspect the belt for damage. A damaged belt can prevent components from operating correctly, affecting vehicle performance.

A damaged idler pulley can also lead to belt issues. If the pulley is seized or worn out, it might cause the belt to misalign, resulting in squealing noises or poor engine performance. Keep an eye on the pulleys for any signs of wear or uneven rotation.

Regular maintenance, including belt inspection and replacement, helps to avoid costly repairs and downtime. Don’t wait until the belt shows obvious signs of failure. Keep it in check to ensure smooth engine operation and extend the life of related components.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2000 Jeep Cherokee

1. Gather Your Tools – Before starting, make sure you have the right tools: a socket wrench, serpentine belt tool or breaker bar, and a new serpentine belt for your Jeep Cherokee. Also, a wrench for loosening the tensioner pulley will come in handy.

2. Locate the Serpentine Belt – Open the hood and locate the serpentine belt. It runs along the front of the engine, connecting various pulleys, including the alternator, power steering pump, and air conditioning compressor. Check the condition of the belt before proceeding.

3. Release Tension from the Belt – Find the tensioner pulley. This is typically spring-loaded and keeps the belt tight. Use your wrench or serpentine belt tool to rotate the tensioner and relieve pressure on the belt. Once the tension is off, remove the belt from the pulleys.

4. Install the New Serpentine Belt – Position the new belt following the diagram under the hood or in the vehicle manual. Make sure it loops over each pulley in the proper sequence. Double-check that it sits in the grooves of each pulley correctly.

5. Tighten the Tensioner – Once the belt is in place, use the tensioner tool to rotate the tensioner pulley back into position, applying tension to the new belt. Ensure the belt is tight and correctly aligned across all pulleys.

6. Inspect the Installation – Before starting the engine, double-check the belt alignment. Make sure it’s not twisted and sits snugly in the grooves. Spin each pulley by hand to confirm smooth operation.

7. Test the Engine – Start the engine and listen for any unusual sounds. Ensure the belt is functioning properly by observing it running smoothly without slipping or misaligning.

8. Reassemble and Close the Hood – Once everything is in place and functioning, reassemble any components you removed and close the hood of your Jeep Cherokee. The job is complete!
