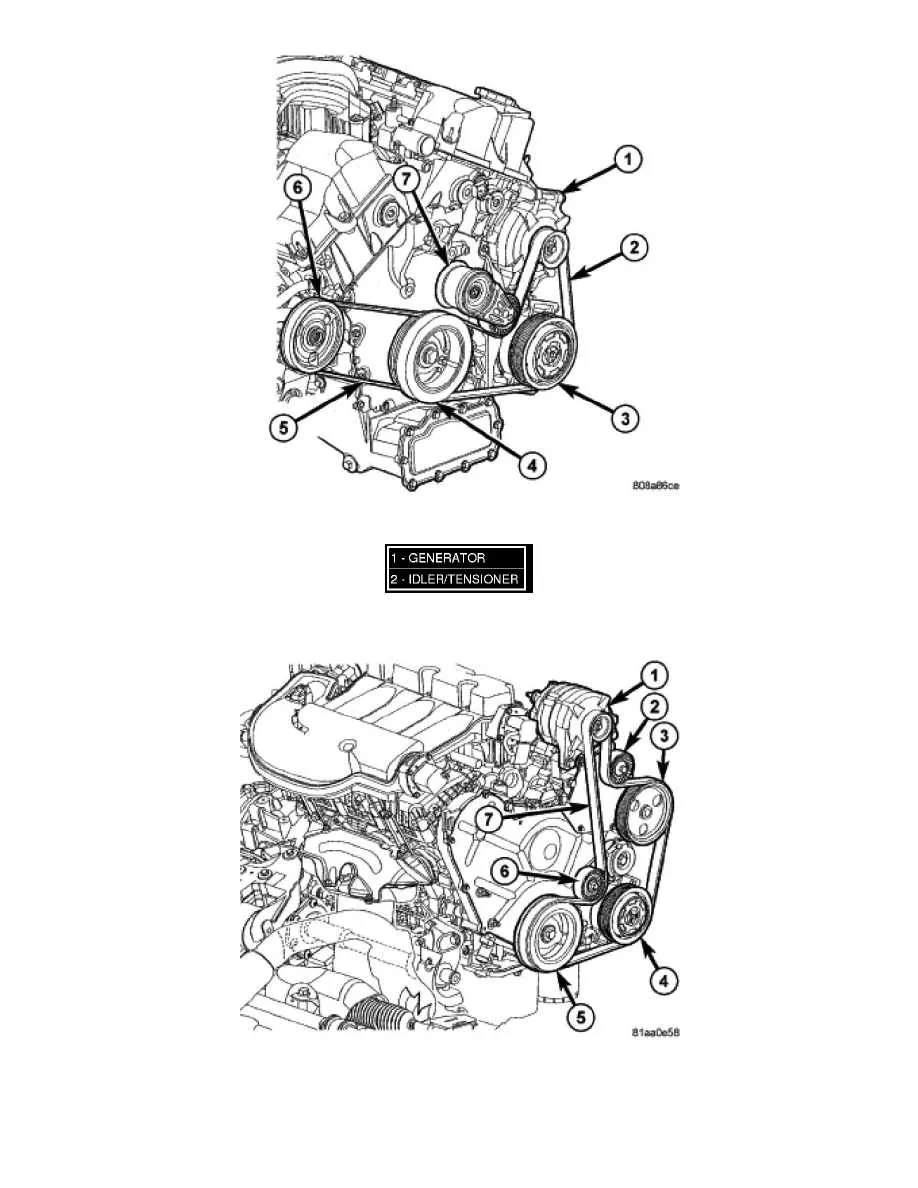

2012 Dodge Avenger Serpentine Belt Diagram and Detailed Routing Guide

Locate the correct routing path for your 2012 Dodge Avenger serpentine belt by referring to the engine-specific diagram. The belt connects critical components such as the alternator, power steering pump, water pump, and air conditioning compressor, ensuring smooth operation across all systems.

Inspect the belt for signs of wear or damage before installation. Cracks, fraying, or glazing on the belt surface indicate the need for replacement. Maintaining proper tension is essential to prevent slippage and premature wear on pulleys and accessory components.

Follow the diagram carefully during installation to avoid misrouting, which can cause engine performance issues or component failure. Use a serpentine belt tool or a wrench to release tension from the tensioner pulley, then align the belt according to the routing path shown in the diagram for your engine configuration.

Regularly check belt alignment and tension after installation. A correctly routed and tensioned belt improves longevity, minimizes noise, and ensures the alternator and other accessories operate efficiently. Replace worn tensioners or pulleys simultaneously to maintain optimal performance.

2012 Dodge Avenger Serpentine Belt Diagram Detailed Maintenance and Troubleshooting Guide

Inspect the serpentine belt regularly for visible cracks, fraying, or glazing. Check the belt tension using a tension gauge or by applying moderate pressure at the midpoint between pulleys; the belt should deflect approximately ½ inch under firm pressure.

Identify the routing pattern by referencing the engine-specific diagram, ensuring each pulley aligns correctly with the belt. Misalignment can cause squealing noises and uneven wear. Pay special attention to the alternator, power steering, and air conditioning pulleys, as they experience the highest load.

Clean pulleys with a lint-free cloth to remove oil or debris that may reduce belt grip. Avoid using solvents that can degrade the rubber. Inspect the belt for signs of slipping or shiny spots, indicating excessive heat or misalignment.

Replace the belt if wear exceeds 50% of its surface depth or if cracks penetrate the cord layer. Use the manufacturer-specified belt length and type to maintain proper tension and prevent premature failure. When installing a new belt, route it according to the diagram, starting with the crankshaft pulley and ensuring all idler pulleys are engaged.

Listen for unusual noises during operation, such as chirping or squealing, which often indicate improper tension or pulley misalignment. Adjust the tensioner or realign pulleys as necessary. Perform a final inspection after 50–100 miles of driving to confirm the belt seats properly on all pulleys.

Document belt replacement dates and mileage to maintain a predictable maintenance schedule. Regular checks prevent sudden failures that can impact alternator performance, power steering, or engine cooling.

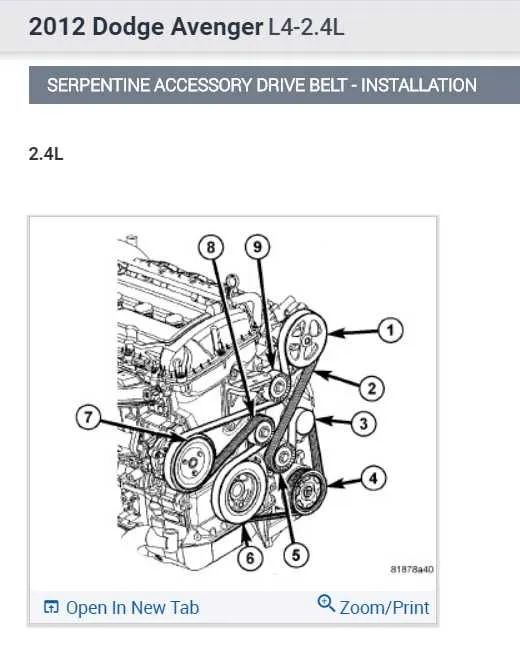

Step-by-Step Serpentine Belt Routing for 2012 Dodge Avenger

Begin by locating the belt routing diagram under the hood or in the owner’s manual. This diagram shows the exact path the serpentine belt follows around all pulleys.

1. Ensure the engine is off and cool. Release tension by using a wrench or serpentine belt tool on the tensioner pulley, allowing the belt to loosen.

2. Start routing the belt around the crankshaft pulley at the bottom center of the engine. This pulley drives all accessory components.

3. Next, loop the belt around the alternator pulley at the top left of the engine. Ensure the belt sits properly in the pulley grooves.

4. Route the belt around the water pump pulley, usually located near the center, maintaining proper alignment with other pulleys.

5. Guide the belt over the power steering pump pulley on the right side. Check that the belt contacts the pulley fully to prevent slippage.

6. Wrap the belt around the A/C compressor pulley, positioned toward the lower right side. Keep the belt aligned and free of twists.

7. Finally, loop the belt around the tensioner pulley again and slowly release the tensioner to apply proper tension to the belt.

8. Double-check the routing against the diagram, confirming the belt sits correctly on all pulleys and in all grooves.

9. Manually rotate the crankshaft a few turns to verify smooth belt movement and proper alignment before starting the engine.

Inspect the belt for even tension across all pulleys. Adjust as needed by repositioning on the tensioner. Regular checks prevent premature wear and maintain proper accessory function.

Common Wear Patterns and Tension Issues to Inspect

Check the serpentine belt for cracks along the ribs, which often appear after 50,000 miles. Inspect for fraying edges caused by misaligned pulleys, especially near the tensioner and idler pulleys. Glazing on the belt surface indicates excessive heat or slippage and reduces grip on accessory pulleys.

Look for missing chunks or uneven wear, particularly on the inner ribs. This can signal a failing pulley bearing or a misaligned component. Examine the belt for signs of stretching; a belt that slips under load may require tension adjustment or replacement.

Inspect the tensioner for smooth operation. A weak or stiff tensioner can cause belt noise, vibration, or accelerated wear. Ensure the tensioner pulley spins freely without wobble and that the spring provides consistent pressure across the belt.

Check alignment of all pulleys, including the alternator, power steering, and A/C compressor. Misalignment often produces edge wear or feathering on one side of the belt. Use a straight edge or laser alignment tool for precise verification if needed.

Listen for squealing noises during engine start or acceleration. This often signals insufficient tension or a worn belt. Replace the belt immediately if cracks, glazing, or significant fraying are present, and verify tension after installation to prevent recurrent wear.

Replacement Procedures and Tools Required for Safe Installation

Begin by disconnecting the negative battery terminal to prevent electrical hazards during belt replacement.

Use a serpentine belt tool or a long-handled ratchet to release tension from the automatic tensioner. Ensure the tool fits securely to avoid slipping that could damage components or cause injury.

Inspect the belt routing diagram located on the radiator support or under the hood to confirm the correct path before removal. Note the orientation of the ribs for proper alignment with pulleys.

Remove the old belt by guiding it off each pulley, starting with the alternator or tensioner pulley. Avoid forcing the belt as this may damage pulley surfaces or the tensioner spring.

Compare the new belt with the old one to verify length, width, and rib count match the factory specifications for a 2012 Dodge Avenger.

Install the new belt by following the routing diagram, ensuring it sits fully in each pulley groove. Start with the crankshaft pulley and work toward the tensioner last.

Reapply tension by carefully moving the tensioner using the serpentine belt tool. Double-check that the belt tracks correctly on all pulleys and that no edges are misaligned.

Reconnect the negative battery terminal and start the engine for a brief test run. Observe the belt for smooth movement, absence of squealing, and correct alignment on all pulleys.

Keep a set of combination wrenches, a serpentine belt tool, and a clean rag nearby to wipe any oil or debris from pulleys before installation, reducing slippage and premature wear.
