John Deere 48 Inch Belt Diagram for Easy Belt Replacement and Maintenance
To replace the belt on your 48-inch John Deere mower, start by identifying the correct diagram for your specific model. This will guide you through the proper routing of the belt to ensure smooth operation and longevity of your machine.
Ensure the mower is powered off and safely positioned before beginning the belt replacement process. Refer to the John Deere manual or trusted diagrams for the exact belt configuration for your model to avoid incorrect installation.
The belt should be routed around the various pulleys with the tensioner in the correct alignment. Pay special attention to how the belt fits into the drive system, as improper installation can lead to premature wear or malfunction. Double-check the tensioner and pulley positions before reassembling the mower.
48 Inch John Deere Belt Diagram: A Practical Guide

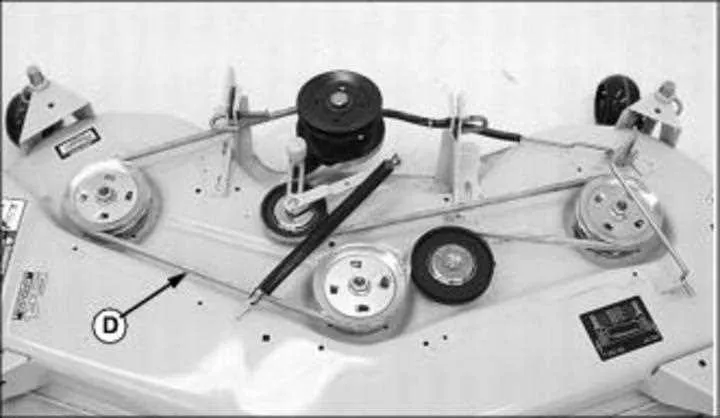

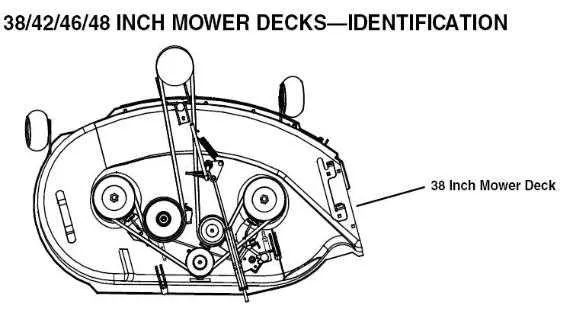

To replace the belt on a 48-inch John Deere mower, start by locating the belt diagram, typically found on the frame or under the deck. This diagram will serve as a visual map for routing the new belt correctly, ensuring optimal performance.
Begin by removing the mower deck from the tractor. Disconnect the battery for safety, then use a wrench to unbolt the deck. Once the deck is removed, carefully examine the belt routing by referencing the diagram. Pay attention to how the belt interacts with pulleys, spindles, and the idler pulley system.
When installing the new belt, start by placing it around the engine pulley, then route it through the appropriate pulleys following the diagram. Be mindful of the belt tensioner: the belt should be properly tensioned to avoid slipping or excessive wear. If your model includes spring-loaded tensioners, ensure they are not damaged or weakened.
Double-check the belt’s positioning before reassembling the mower deck. Once everything is in place, test the belt by manually rotating the blades. If the belt is too loose or tight, adjust the tensioning system accordingly. After confirming proper tension, reconnect the deck to the tractor and test it by running the mower at a low speed.
How to Identify the Correct Belt for Your 48 Inch John Deere Mower
To identify the correct belt for your 48-inch John Deere mower, follow these steps:
- Check the model number of your mower. This can usually be found on the frame or deck of the mower. The correct belt will depend on the specific model of your mower.
- Refer to the owner’s manual. The manual will list the exact part number for the belt, ensuring compatibility with your mower.
- Examine the existing belt. If you’re replacing the belt, measure the old one. Take note of its length, width, and any part numbers on the belt itself.
- Verify belt routing. The mower’s deck and pulleys can vary in design, so make sure the belt matches the routing diagram. The manual or online resources often include a detailed belt diagram specific to your model.
- Consult with a John Deere dealer. If you’re unsure about the belt size or part number, visiting a dealer ensures you get the correct replacement.
By following these steps, you’ll have the right belt for your 48-inch John Deere mower and ensure smooth operation throughout the mowing season.
Step-by-Step Instructions for Installing the Belt on a 48 Inch John Deere
Begin by parking the mower on a flat surface and disengaging the engine. Disconnect the spark plug wire to prevent accidental starts. Raise the mower deck to its highest setting to gain easy access to the belt area.
Remove any debris around the belt and surrounding pulleys. This ensures smooth installation and prevents future issues.
Next, locate the belt cover. Use a wrench or screwdriver to remove the screws or bolts securing it. Once removed, carefully take off the cover and expose the belt and pulleys.
Release the tension on the existing belt by loosening the tension spring or idler pulley. This will allow the belt to slide off the pulleys more easily. Take note of the belt’s routing for reference during installation.
Now, slide the old belt off the pulleys and remove it from the mower. Place the new belt on a clean surface, checking that it matches the required dimensions for your 48-inch John Deere model.
Position the new belt around the pulleys, starting with the bottom pulley. Make sure the belt is properly aligned with each pulley groove and that it sits correctly without twisting.
Reattach the tension spring or idler pulley, ensuring the belt is under proper tension. Check the belt’s alignment again to make sure it runs smoothly over all pulleys.
Once the belt is securely in place, replace the belt cover and fasten it with the screws or bolts. Tighten them carefully to avoid damaging the cover.
Reconnect the spark plug wire and lower the mower deck to its operating height. Test the mower by starting the engine and engaging the drive. Check for any abnormal sounds or movement of the belt. If everything runs smoothly, the installation is complete.
Common Issues and Troubleshooting Tips for John Deere 48 Inch Belt Systems
If your John Deere 48-inch belt system isn’t performing well, inspect the belt for wear or damage. A frayed or cracked belt is often the cause of poor performance. Replace it immediately to restore smooth operation.
Check belt tension regularly. If the belt is too loose, it can slip and fail to engage properly. Tighten the belt using the adjustment mechanism until it has the right amount of tension–just tight enough to prevent slipping, but not too tight to avoid unnecessary strain on the system.
Misalignment of pulleys is another frequent issue. This can cause the belt to rub against surrounding components, leading to accelerated wear. Inspect the pulleys to ensure they are aligned. If you notice any misalignment, adjust them carefully and make sure all bolts are tightened securely.
Inspect the idler pulley for wear. A faulty idler pulley can cause uneven belt tension, leading to improper function. If the pulley doesn’t spin freely or is making noise, replace it with a new one to keep the system running smoothly.
If the belt squeaks or makes unusual noises, it could be a sign of contamination. Clean the pulleys and belt to remove any debris, dirt, or grease. A clean, debris-free surface ensures that the belt operates efficiently and extends its life.
Lastly, verify that the belt routing follows the correct pattern. Incorrect routing can lead to unnecessary wear, overheating, and even belt failure. Refer to the belt diagram specific to your model and double-check the configuration during any maintenance work.
