2013 Nissan Altima 2.5 Serpentine Belt Routing Diagram and Installation Guide

To replace the serpentine belt on a 2013 Nissan Altima 2.5, start by reviewing the belt diagram for proper routing. The diagram shows the precise path the serpentine belt takes around the pulleys, ensuring all components operate smoothly. You’ll notice that the belt runs around the alternator, power steering pump, water pump, and air conditioning compressor. Pay close attention to the tensioner pulley–it must maintain correct tension for the belt to function without slipping.

Before removal, relieve tension from the serpentine belt using the tensioner pulley tool. Carefully follow the diagram to reinstall the new belt. The diagram provides a visual guide, ensuring the belt is placed in the correct orientation. Check all pulleys for wear, and replace any damaged ones before installing the new serpentine belt. After installation, ensure proper tension and alignment by rotating the engine manually, checking for any misalignment or noise.

If you find it difficult to locate the diagram, it can often be found on a label near the engine bay, usually on the radiator support or front of the engine. Always verify the part number of the new belt to match it with the specifications for your specific Altima model.

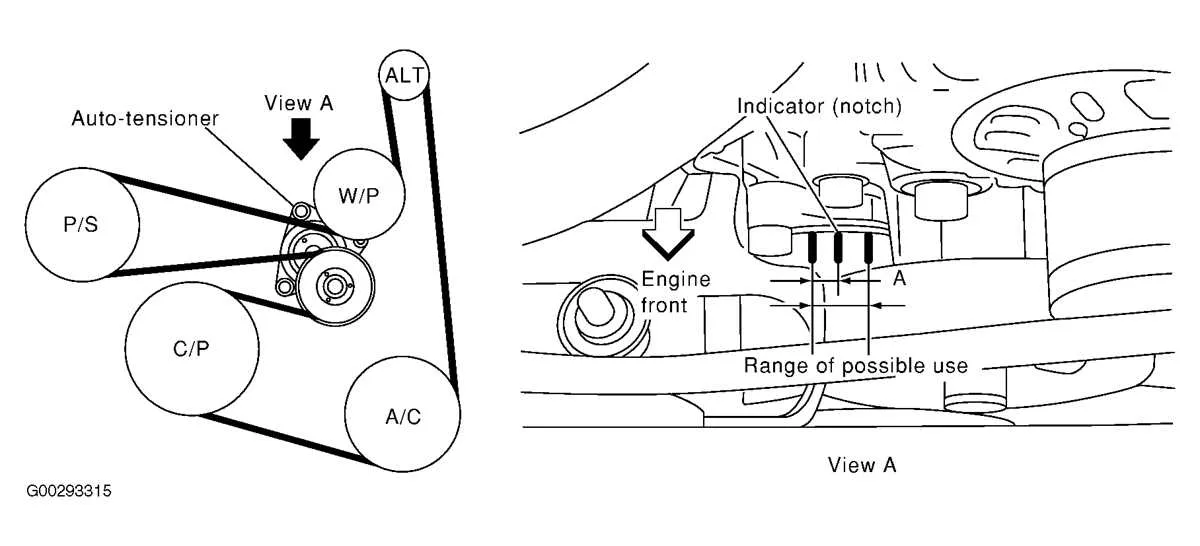

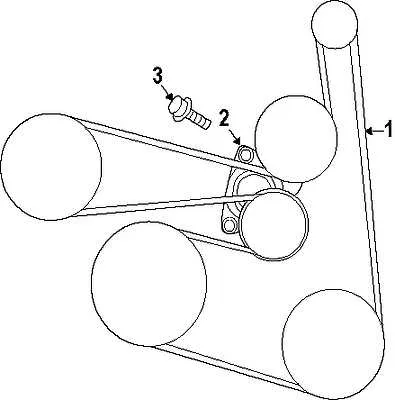

2013 Nissan Altima 2.5 Serpentine Belt Diagram

Check the serpentine belt on your 2013 Nissan Altima 2.5 for proper alignment and condition. Here’s the standard path the belt follows, which will help during replacement or maintenance.

• The serpentine belt wraps around the alternator pulley, tensioner pulley, crankshaft pulley, power steering pump, and air conditioning compressor.
• Start by positioning the belt around the crankshaft pulley at the bottom left of the engine.
• Next, guide the belt upward around the tensioner pulley, which is typically located on the right side of the engine bay.
• Ensure the belt passes around the alternator pulley located on the top right side of the engine.
• Loop the belt around the power steering pump and air conditioning compressor pulleys to finish the routing.

Use a belt tensioner tool to release tension on the belt while installing or removing it. Always verify the belt routing by comparing with the diagram on the engine bay to avoid mistakes.

Step-by-Step Serpentine Belt Routing for 2013 Nissan Altima 2.5

Start by positioning the serpentine belt around the crankshaft pulley. Pull the belt in a clockwise direction to loop it over the tensioner pulley. Make sure the belt is snug against the groove of the crankshaft pulley.

Next, move the belt across the alternator pulley. Ensure the belt fits tightly in the grooves and does not slip off. Check that the tensioner pulley maintains a correct alignment with the belt.

Route the belt over the power steering pump pulley. Keep it aligned within the designated grooves for smooth movement.

Continue the path by placing the belt on the air conditioning compressor pulley. Confirm that it remains properly seated in all grooves, preventing any slipping as you move along.

Finally, loop the belt over the water pump pulley, ensuring it stays tight against each component. The belt should now follow the correct route, and you can release the tensioner to ensure proper belt tension.

Double-check all pulleys to confirm the belt is securely in place and follows the intended routing without any misalignments.

Identifying the Components in the 2013 Nissan Altima 2.5 Serpentine Belt System

The serpentine belt system in the 2013 Nissan Altima 2.5 includes several key components that work together to power various engine accessories. Start by identifying the serpentine belt itself, which runs across multiple pulleys and connects to the engine’s crankshaft. It is responsible for driving essential components like the alternator, power steering pump, air conditioning compressor, and the water pump.

Next, locate the tensioner pulley, which maintains the correct tension on the belt, ensuring smooth operation. The tensioner pulley is spring-loaded and can wear out over time, leading to belt slippage. Check for any signs of wear or noise from this component to avoid premature failure.

The idler pulley also plays a vital role in supporting the serpentine belt’s path. Positioned at a fixed point along the belt’s route, the idler pulley helps guide the belt through the system. Over time, idler pulleys can become loose or damaged, causing the belt to misalign or slip off its track.

Inspect the crankshaft pulley, which connects directly to the engine’s crankshaft and drives the entire serpentine belt system. Any damage or wear to the crankshaft pulley can disrupt the belt’s movement and impact the functioning of connected accessories.

The alternator pulley powers the alternator, which charges the battery. Make sure the pulley and the alternator are functioning correctly, as issues here can affect your car’s electrical system.

Finally, check the air conditioning compressor pulley and power steering pump pulley. These components are essential for the proper operation of the car’s air conditioning and steering systems. Any failure in these pulleys can cause strain on the serpentine belt, leading to overheating or steering issues.

Regular inspection of each pulley and component in the system will help identify problems before they cause significant damage, ensuring the longevity and reliability of the serpentine belt system.

Common Issues and Troubleshooting for the Serpentine Belt on the 2013 Nissan Altima 2.5

If you notice squealing noises, power steering failure, or a dead battery, the serpentine belt on your 2013 Nissan Altima 2.5 might be worn or damaged. Inspect the belt regularly for cracks, frays, or signs of wear. These can lead to poor engine performance or a complete system failure if left unchecked.

First, ensure the belt is tensioned correctly. A loose belt can slip, causing squealing and reduced power to accessories like the alternator or power steering pump. If the belt appears too loose, adjust or replace the tensioner. If the tensioner is faulty, it can lead to inconsistent belt tension, leading to belt wear or failure.

Check for alignment issues. Misalignment of pulleys or a worn-out pulley can also damage the belt. Inspect each pulley for visible wear or wobbling, which may signal a problem with the pulleys themselves.

Examine the belt for signs of glazing. Glazed areas are smooth spots that result from excessive heat or friction. This can reduce the belt’s grip and cause it to slip. If the belt is glazed, replacement is necessary.

Keep an eye on the belt’s routing. Incorrect routing or installation can lead to damage and premature wear. Verify the belt path with a diagram to ensure it’s installed correctly.

If you notice any of these issues, it’s important to replace the belt immediately. A failing serpentine belt can leave your car without power steering, cooling, or even the ability to start the engine.
