Drive Belt Diagram for Gravely ZT 42 and Replacement Guide

Understanding the drive belt system on the Gravely ZT 42 is key for ensuring the mower operates efficiently. If you’re experiencing issues with your machine’s performance or need to replace the belt, knowing the correct diagram is essential. This guide will walk you through the proper belt routing and installation process to get your machine running smoothly again.

Refer to the specific drive belt diagram for the Gravely ZT 42 to identify the exact positioning of the belt on each pulley. This is vital for proper tension and performance. Make sure to replace the belt with the correct part number, as specified by the manufacturer, to avoid premature wear and unnecessary repairs.

Be mindful of the specific routing paths for the drive belt, as misrouting can lead to operational issues or even damage the components. Follow the diagram carefully to maintain optimal performance and longevity of your mower. For accurate results, always consult the official service manual or professional technician for assistance.

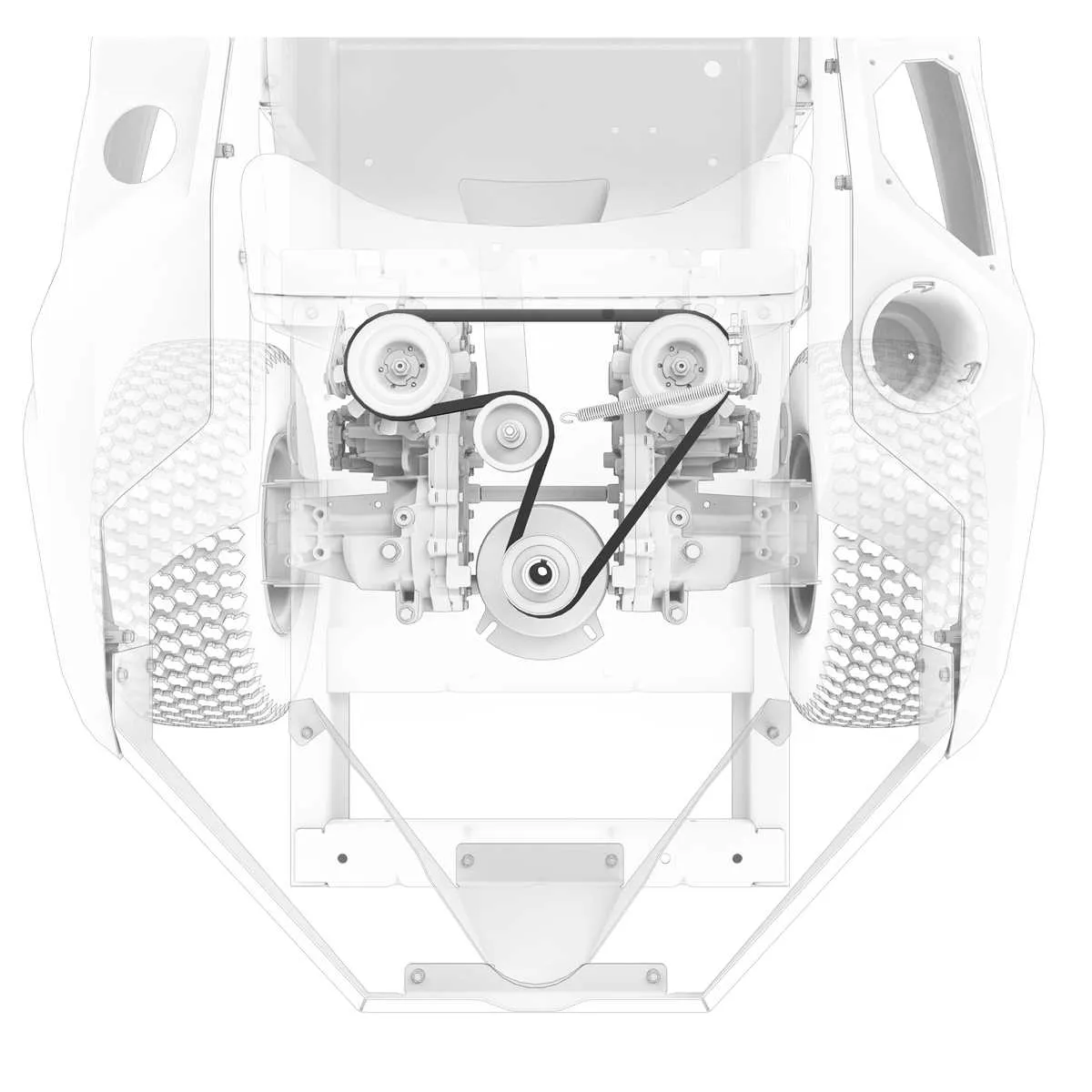

Drive Belt Gravely ZT 42 Belt Diagram

To replace the drive belt on your Gravely ZT 42, it is crucial to understand the belt routing diagram. The belt is responsible for transferring power from the engine to the drive system, so proper installation is key for optimal performance.

Start by locating the drive belt on the mower deck. You’ll need to remove any obstacles blocking access to the belt, such as the engine cover or other protective components. Once visible, observe the path the belt takes around the pulleys. The drive belt typically runs from the engine pulley to the transmission pulley, passing through several guide pulleys.

The diagram for the Gravely ZT 42 shows the precise routing of the belt, including how it interacts with the idler pulleys. This ensures that the belt remains under the correct tension for smooth operation. Pay attention to the tensioner pulley, which helps maintain the right amount of tension to prevent slipping.

When replacing the belt, follow the diagram carefully. It may also be helpful to mark the position of the old belt before removal for reference. After installing the new belt, check the alignment and ensure it moves freely without obstruction. Double-check the belt’s tension before reassembling the mower.

For accuracy, consult the Gravely ZT 42 manual for the most up-to-date diagram and installation instructions. This will help ensure you follow the correct steps for a successful belt replacement.

How to Identify the Correct Drive Belt for Gravely ZT 42

Check the model number of your Gravely ZT 42 for accurate belt selection. It’s located on a label near the engine or frame. Use this number to find the corresponding part number in the owner’s manual or online part catalogs.

Measure the belt’s length and width. A proper fit ensures the belt runs smoothly and does not slip. A tape measure or ruler can help determine the correct dimensions.

Inspect the belt’s material. Gravely recommends using belts made from high-quality rubber compounds. These materials improve durability and performance, especially under heavy load conditions.

Examine the belt’s pattern. The Gravely ZT 42 uses a specific belt pattern designed for optimal engagement with pulleys. Ensure you are using the exact pattern to avoid belt wear or slippage.

Check the manufacturer’s specifications for the correct belt type. Gravely ZT 42 models require specific V-belts, which are different from standard flat or serpentine belts. Confirm the belt type before purchase.

When replacing the belt, avoid using belts that are too old or have been exposed to heat or UV damage. A worn-out belt can lead to reduced power transmission and premature engine strain.

Step-by-Step Guide for Installing the Drive Belt on a Gravely ZT 42

To begin, lift the mower deck using a jack or lift tool to ensure easy access to the drive components. Make sure the machine is powered off and the key is removed.

Next, locate the belt routing diagram on the mower deck or in the manual. This will guide you in ensuring the belt is routed correctly when installed.

Loosen the tension on the old drive belt by removing any covers or shields that may be blocking access. Use a wrench or socket to loosen the tensioner pulley.

Remove the old belt carefully from the pulleys, starting with the ones closest to the engine. Pay attention to how the belt fits around each pulley to help with the reinstallation process.

Take the new drive belt and position it around the pulleys in the same manner as the old belt. Ensure the belt fits snugly on the grooves of each pulley. Follow the belt routing diagram to confirm correct placement.

Once the belt is positioned, use the tensioner pulley to tighten it. Make sure the belt has proper tension by pressing lightly on it; it should have some slack but not be too loose.

Double-check that the belt is properly aligned and that all pulleys are free of debris or obstructions. Replace any covers or shields that were removed during installation.

Test the mower by starting it and running the engine at low speed. Listen for any unusual sounds that might indicate improper belt alignment or tension.

Troubleshooting Common Drive Belt Issues in Gravely ZT 42

If your Gravely ZT 42 is experiencing drive belt issues, check the following common problems. Start by inspecting the belt for signs of wear, such as cracks, fraying, or stretching. A worn-out belt can slip off or fail to transfer power properly, causing performance issues.

Ensure the belt is properly aligned with the pulleys. Misalignment can lead to excessive wear and even belt failure. Inspect the pulleys for damage or debris that might interfere with the belt’s movement. Clean the pulleys if necessary to prevent slipping or uneven wear.

Examine the tension of the belt. If it’s too loose, it won’t provide adequate power to the mower’s drive system, while a belt that’s too tight can strain the engine and components. Adjust the tension according to the manufacturer’s specifications.

Check for any obstructions in the belt path. Debris or dirt buildup can cause the belt to slip or misalign, leading to wear and damage. Clean the area around the belt regularly to ensure smooth operation.

Inspect the idler pulleys and springs for proper function. A faulty idler pulley can cause the belt to wear unevenly or even come off entirely. Replace any worn or damaged pulleys or springs to maintain proper belt tension and alignment.
