2004 Ford F250 6.0 Belt Diagram and Routing Guide
The 2004 Ford F250 6.0 has a complex serpentine belt system that requires attention to detail for proper maintenance. If you need to replace or adjust the belt, knowing the correct diagram is crucial to ensure everything aligns and functions smoothly.
The belt routes around various pulleys, including the alternator, power steering pump, and air conditioning compressor. Each component needs to be carefully positioned to avoid premature wear and prevent engine performance issues. To avoid confusion, always follow the manufacturer’s specified routing diagram for the 6.0 engine, as it ensures proper tension and alignment.
Key components to focus on include the tensioner pulley, which keeps the belt tight, and the idler pulley, which helps guide the belt. If either of these parts is worn, replacing them along with the belt can save you time and money in the long run.
If you’re unsure about the installation process, consider using a belt tensioner tool to adjust the tension properly, as too much or too little tension can lead to belt slippage or failure. Referencing a detailed belt diagram can also help avoid mistakes and get your truck back on the road faster.
2004 Ford F250 6.0 Belt Diagram

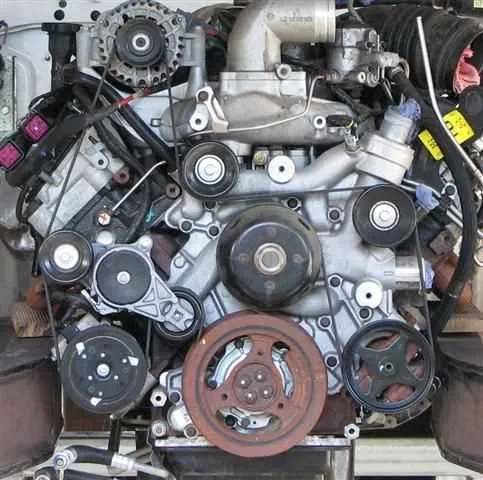

The 2004 Ford F250 6.0L Powerstroke diesel engine utilizes a serpentine belt system for driving essential components like the alternator, power steering pump, air conditioning compressor, and water pump. It’s crucial to ensure that the belt routing follows the correct diagram for proper function and to prevent wear or damage.
The diagram typically includes a belt path that loops around the crankshaft pulley, idler pulleys, and tensioner pulley. The tensioner pulley is spring-loaded and keeps the belt under the correct tension to prevent slippage. Ensure the belt is routed over the components in this specific order: crankshaft, idler pulleys, power steering pump, alternator, A/C compressor, and water pump.
When replacing the serpentine belt, always check the tensioner and pulleys for wear. A worn-out tensioner can cause the belt to slip, leading to performance issues or even damage to the engine components. Additionally, ensure that the belt is correctly aligned with each pulley to avoid misalignment and unnecessary friction.
If you are experiencing squealing noises, excessive wear, or belt slippage, inspecting the belt for cracks or fraying is recommended. If the belt is damaged, replace it immediately with the correct part specified for the 2004 F250 6.0L engine.
How to Identify the Correct Belt Routing for the 2004 Ford F250 6.0
Check the diagram in the engine bay to verify belt routing. It is typically labeled on the front radiator support or near the alternator. Make sure to match the belt’s path to the diagram, ensuring it goes over the alternator, water pump, and power steering pump correctly.
Follow these steps:
- Inspect the belt’s current positioning if it is still attached. Ensure it sits snugly on the pulleys and doesn’t overlap any components.
- Look for tensioners. The 2004 Ford F250 6.0 has an automatic tensioner that adjusts belt tightness. Make sure the belt is under the correct amount of tension, which should be visible when inspecting the tensioner’s position.
- Check the alternator. The belt must pass over the alternator pulley, which is located near the engine. Ensure the belt aligns properly with the alternator’s groove.
- Make sure the belt follows the water pump’s route. It is located on the front of the engine, and the belt needs to pass over its pulley for proper circulation of coolant.
- Double-check the power steering pump. The belt should loop around its pulley without any twists, ensuring smooth power steering performance.
Once all components are aligned correctly, manually rotate the crankshaft pulley to ensure the belt moves smoothly through the system without slack or resistance. This will confirm that the belt is routed properly and securely. Replace the belt if any wear or damage is noticed during this inspection.
Step-by-Step Guide to Replacing the Serpentine Belt on the 2004 Ford F250 6.0
To replace the serpentine belt on the 2004 Ford F250 6.0, follow these straightforward steps to ensure the job is done right. You’ll need a new belt, a socket wrench, a tensioner tool, and a few other basic tools.
1. Locate the Serpentine Belt: The belt runs along the front of the engine and is responsible for driving various accessories like the alternator, power steering pump, and air conditioning compressor. Ensure the engine is off, and the key is removed from the ignition.
2. Release Tension from the Belt: Use the appropriate tensioner tool or a socket wrench to rotate the serpentine belt tensioner counterclockwise. This will loosen the belt enough to remove it from the pulleys. Be mindful of the tensioner, as it can snap back if not controlled properly.
3. Remove the Old Belt: Once the tension is released, slide the belt off the pulleys. Take note of its path–this is critical for correctly installing the new belt. If necessary, refer to the vehicle’s belt diagram for guidance.
4. Inspect Pulleys and Components: Before installing the new belt, inspect all pulleys for wear or damage. Check that each component the belt interacts with is functioning correctly. If you find any issues, address them before moving forward.
5. Install the New Belt: Begin by routing the new belt along the same path as the old one. Start with the tensioner pulley and work your way around the other pulleys, making sure the belt is seated properly in each groove. Double-check the belt’s routing according to the diagram.
6. Reapply Tension: Use the tensioner tool to rotate the tensioner pulley back into position, ensuring the belt is tight. It should be snug but not overly tight. Check the belt’s alignment on all pulleys to ensure it sits correctly.
7. Test the Installation: Start the engine and observe the belt in motion. Listen for any unusual noises or irregular movements. If the belt appears to be running smoothly, the replacement is complete.
8. Final Check: Turn off the engine and double-check the belt’s positioning once more. If everything looks good, close the hood and you’re all set.
Common Issues with Belt Alignment on the 2004 Ford F250 6.0 and How to Fix Them
Misaligned belts on the 2004 Ford F250 6.0 can cause several performance issues, including squealing noises, belt wear, and even engine failure if left unaddressed. The most common reasons behind belt misalignment include worn-out pulleys, incorrect tension, or improper installation. Here’s how to fix them:
1. Worn Pulleys
Pulleys are critical for smooth belt operation. If they become worn or damaged, they can cause the belt to slip out of alignment. Check for signs of wear such as cracks, grooves, or irregular spinning. Replace damaged pulleys with high-quality parts to ensure proper alignment.
2. Incorrect Tension
Both over-tightening and under-tightening the belt can lead to misalignment. Too much tension can cause premature wear on the belt and pulleys, while too little tension can cause the belt to slip off or make noise. Use a tension gauge to adjust the belt to the recommended specification, which is typically around 100–120 lbs of tension on the serpentine belt.
3. Misalignment of the Harmonic Balancer
The harmonic balancer plays a critical role in keeping the belt system in alignment. If it becomes loose or damaged, it can cause the belt to drift. Inspect the balancer for any movement and replace it if necessary to maintain proper alignment.
4. Improper Installation
A belt installed incorrectly or with improper routing can create alignment problems. Always refer to the vehicle’s belt diagram for proper installation, and ensure the belt is correctly seated on all pulleys. Double-check the tension and pulley placement before closing everything up.
5. Pulley Misalignment
If any of the pulleys are installed at an angle or out of place, it will affect the belt’s alignment. Use a straightedge to check the alignment of the pulleys. If they are misaligned, adjust or replace the affected components.
Regular maintenance, such as checking the belt and pulley system for wear, can help avoid most of these alignment issues. Early detection and repairs will prevent more serious engine damage and extend the life of the belt system.
