2012 Nissan Maxima Serpentine Belt Diagram and Installation Guide
For a smooth operation of your 2012 Nissan Maxima, replacing or maintaining the serpentine belt is a key task. This belt connects multiple engine components, such as the alternator, power steering pump, and air conditioning compressor. When the belt shows signs of wear or damage, it can lead to various issues like power loss and overheating. Always inspect the belt for cracks, fraying, or stretching to avoid engine malfunctions.
The serpentine belt diagram for the 2012 Nissan Maxima is crucial for proper installation and troubleshooting. By following this diagram, you can ensure the belt is routed correctly across the engine pulleys, which will help prevent issues like belt slippage or misalignment. A misrouted belt can strain components, causing premature failure and requiring costly repairs.
Before replacing or adjusting the serpentine belt, make sure to loosen the tensioner pulley. Use a wrench or ratchet to relieve the tension, allowing you to remove the belt without damaging other components. Once the new belt is in place, check the tension once again to avoid belt wear or slippage. Regular inspection of the serpentine belt will extend the life of your vehicle’s engine components.

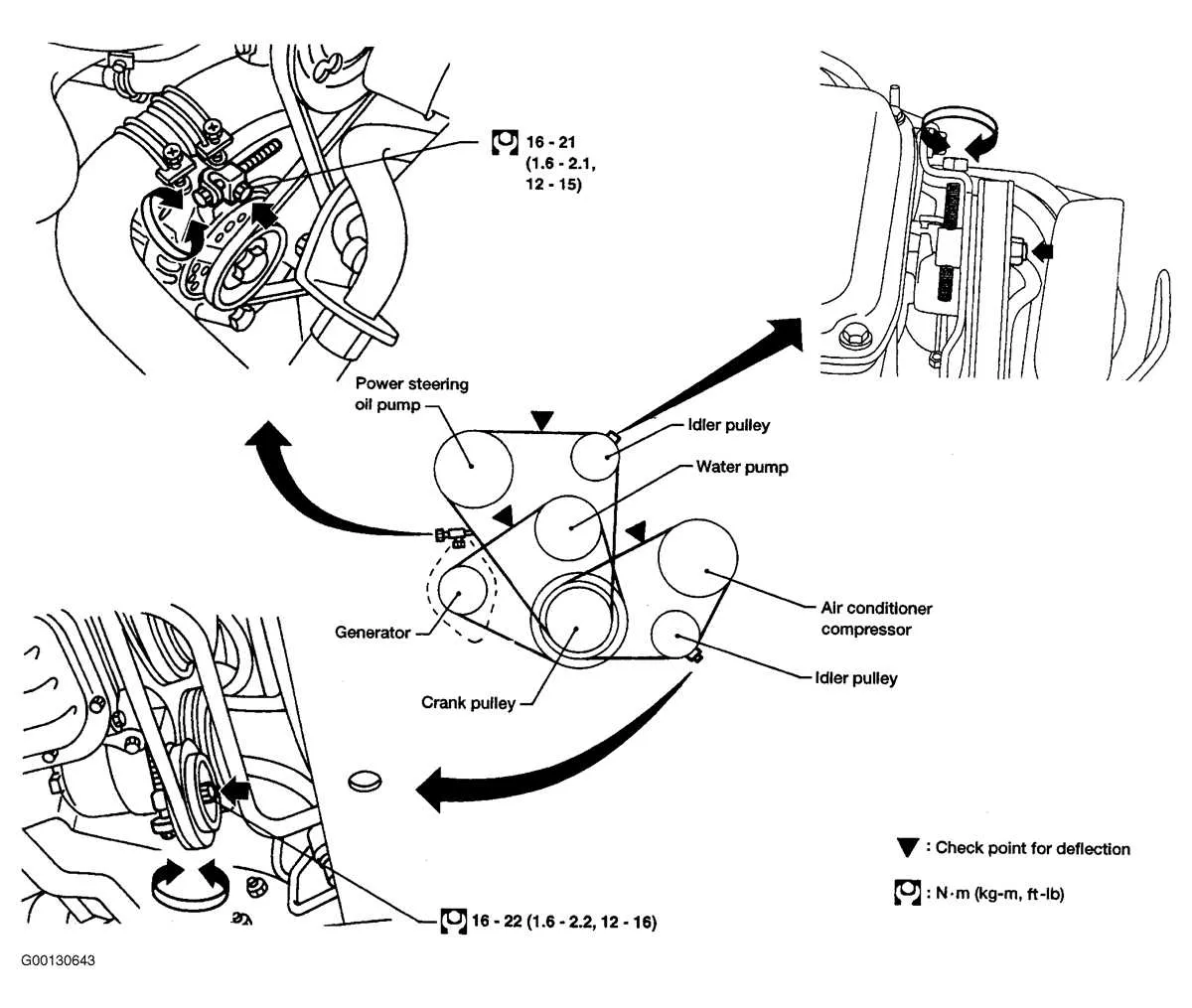

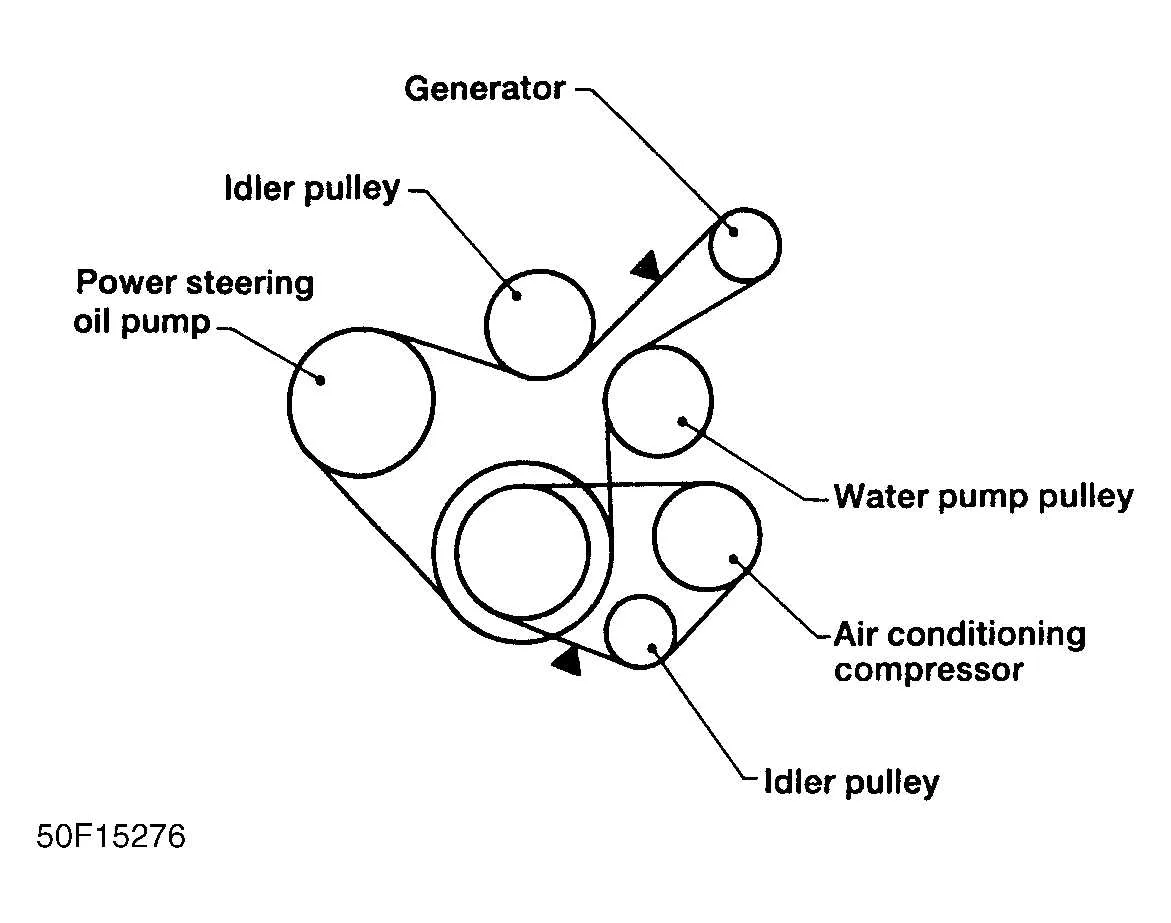

2012 Nissan Maxima Serpentine Belt Diagram
The serpentine belt in the 2012 Nissan Maxima is responsible for driving multiple engine components, such as the alternator, power steering pump, and air conditioning compressor. To replace or inspect the belt, it’s crucial to follow the correct routing pattern. Below is a detailed diagram and steps for proper installation.
The serpentine belt in this model has a specific configuration. Ensure that the belt is routed through the pulleys in the following order: starting at the crankshaft pulley, move to the tensioner, then the alternator, power steering pump, and finally the air conditioning compressor. Each component must be properly aligned to prevent misalignment or wear.
Key Steps for Belt Installation:
- Step 1: Identify the correct belt length and type, typically 6PK2235 for the 2012 Nissan Maxima.
- Step 2: Using a serpentine belt tool or ratchet, relieve tension from the belt by rotating the tensioner pulley counterclockwise.
- Step 3: Carefully remove the old belt and inspect the pulleys for wear.
- Step 4: Install the new belt according to the diagram, ensuring proper tension by releasing the tensioner pulley.
- Step 5: Check that the belt sits correctly on all pulleys and spins freely without resistance.
Pro Tip: Always check the condition of the belt before installation. A cracked or frayed belt can cause system failures. If unsure about proper alignment, refer to the vehicle’s service manual or consult a professional.
How to Locate and Identify the Serpentine Belt on a 2012 Nissan Maxima
To find the serpentine belt on the 2012 Nissan Maxima, open the hood and locate the engine bay. The belt is visible on the front of the engine, running along the various pulleys.
Follow these steps to easily identify it:
- Look for the long, rubber belt that loops around several pulleys and the alternator, power steering pump, and air conditioning compressor.
- Check for the tensioner pulley; it is typically located on the side and keeps the belt tight.
- If needed, consult the engine belt diagram, which can be found on a sticker or label near the front of the engine or in the owner’s manual.
The serpentine belt in the 2012 Nissan Maxima is designed to operate multiple accessories, so it’s easy to identify by its continuous path across different components.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2012 Nissan Maxima
To replace the serpentine belt on a 2012 Nissan Maxima, follow these steps to ensure a smooth and successful process.
1. Prepare the Vehicle
Start by parking the car on a flat surface and ensuring the engine is cool. Disconnect the negative terminal of the battery to prevent any electrical accidents during the replacement process.
2. Locate the Serpentine Belt
The serpentine belt is located at the front of the engine, running across several pulleys. Look for the tensioner pulley to help identify the belt’s route.
3. Loosen the Tensioner
Using a suitable tool, release the tension on the serpentine belt by rotating the tensioner pulley. This will allow you to remove the belt from the pulleys easily. Make sure to note the belt’s routing for reinstallation.
4. Remove the Old Belt
Once the tension is released, carefully slide the belt off the pulleys. Pay attention to any wear and tear on the belt to ensure a proper fit for the new one.
5. Install the New Serpentine Belt
Place the new belt onto the pulleys according to the routing diagram. Ensure it is seated correctly on each pulley and properly aligned with the grooves.
6. Tighten the Tensioner
Once the new belt is in place, use the tensioner pulley to apply the correct tension. The belt should be tight but not excessively so. Double-check the alignment and ensure there is no slack.
7. Inspect the Installation
Rotate the engine by hand using a wrench on the crankshaft pulley to check the belt’s movement. Verify that the belt is correctly positioned and that all pulleys rotate smoothly.
8. Reconnect the Battery
Reconnect the negative terminal of the battery, start the engine, and listen for any unusual sounds. A smooth operation indicates the belt is properly installed.
Following these steps will help you replace the serpentine belt on your 2012 Nissan Maxima effectively. Regular maintenance will ensure your engine components operate efficiently.
Troubleshooting Common Serpentine Belt Issues on the 2012 Nissan Maxima
If your 2012 Nissan Maxima experiences issues with the serpentine belt, check for these common problems:
Squealing or High-Pitched Noise: This is often caused by a loose or worn-out belt. Inspect the belt for visible cracks or signs of wear. If the belt appears damaged, replace it immediately to prevent further engine damage.
Belt Slipping: A slipping serpentine belt can lead to issues with the power steering, air conditioning, or alternator. Ensure the belt is properly tensioned. If the tensioner is faulty, replace it to avoid recurring slipping.
Power Loss or Stalling: A loose or damaged serpentine belt can result in power loss, especially if the alternator is not charging the battery properly. Replace the belt if it’s slipping or cracked and check the alternator’s performance.
Belt Breakage: Frequent breakage may indicate a misalignment or a failing tensioner. Inspect the pulleys for any obstructions or misalignment. If the tensioner is not providing proper pressure, replace it along with the belt.
Visible Cracks or Wear: Check for visible signs of damage, such as fraying or cracks. If you notice any, replace the serpentine belt to maintain optimal engine function and avoid sudden failures.
