2013 Toyota Camry Serpentine Belt Diagram and Maintenance Tips

The 2013 Toyota Camry uses a serpentine belt to drive multiple components such as the alternator, power steering pump, air conditioning compressor, and water pump. Properly routing the belt is key to ensuring the engine runs smoothly and efficiently. If you’re replacing the belt, follow the diagram closely to avoid misrouting or damaging components.

When replacing the serpentine belt, begin by locating the tensioner pulley. Use a ratchet to relieve tension on the belt, which will allow for its removal. Make sure the new belt follows the exact same routing as shown in the diagram to prevent any operational issues. Refer to the manual for belt length specifications and installation tips to avoid complications.

Once installed, ensure the belt is tight and seated properly on all pulleys. A belt that’s too loose or too tight can cause premature wear or even failure. Regularly inspect the belt for cracks or signs of wear to maintain optimal engine performance. Refer to the diagram to double-check the routing if you notice any unusual noises or performance issues.

2013 Toyota Camry Belt Diagram

The 2013 Toyota Camry uses a serpentine belt system for driving essential components like the alternator, power steering pump, air conditioning compressor, and water pump. It’s important to replace the belt when it’s worn or cracked to avoid breakdowns.

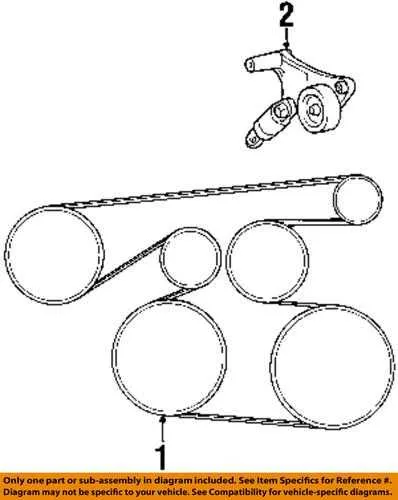

The belt diagram for the 2013 Camry shows the precise routing of the serpentine belt around various pulleys. For proper installation, always refer to the diagram found on the engine bay, usually near the radiator or on the front of the engine cover. This diagram indicates how the belt should loop around pulleys and tensioners.

Start with the crankshaft pulley, then loop the belt around the tensioner, alternator, and power steering pulley. Next, route the belt around the air conditioning compressor, then loop it around the water pump pulley. Finally, ensure the belt rests correctly on all pulleys and is taut, but not overly tight, to avoid damage to the components.

Check the belt periodically for wear signs such as cracks, fraying, or glazing. If the belt is loose, inspect the tensioner; it may need adjustment or replacement. Always ensure the tension is correct to prevent slippage or excessive wear.

To replace the belt, release tension using a wrench on the tensioner pulley. Once the belt is removed, compare the new belt to the old one to ensure proper size. Install the new belt according to the diagram, and recheck the tension before starting the engine.

How to Identify the Components of the 2013 Toyota Camry Belt System

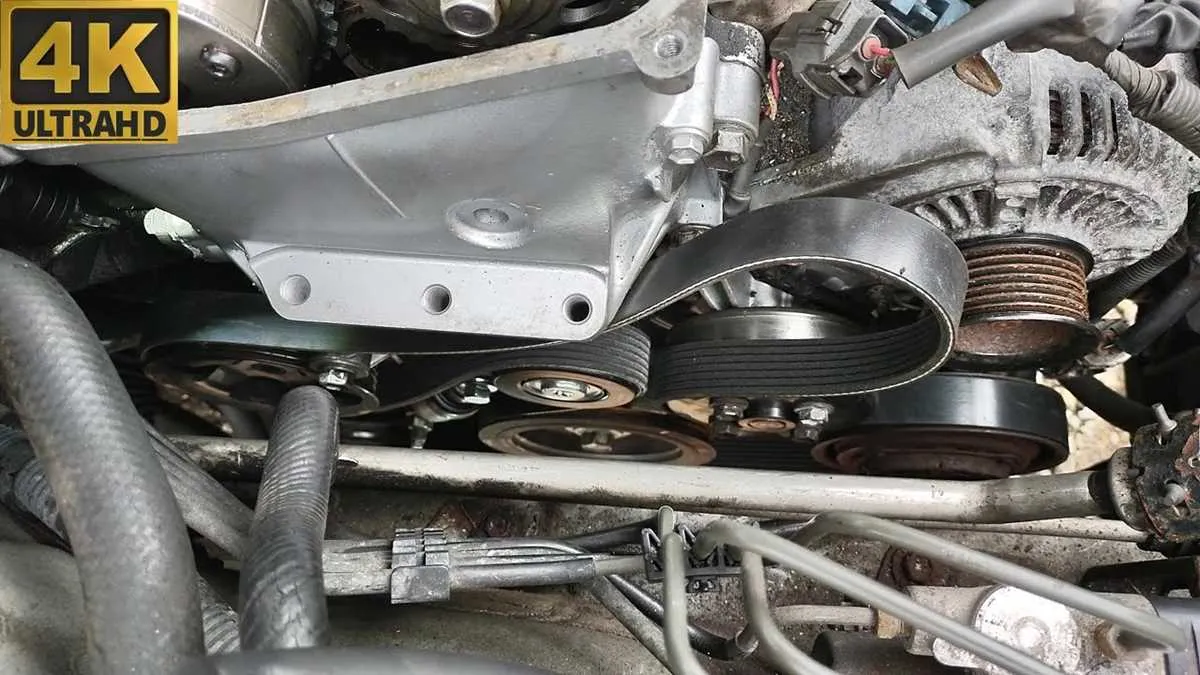

Start by locating the serpentine belt on your 2013 Toyota Camry. It’s typically visible at the front of the engine, running through several pulleys. Identify the key components that interact with the belt:

• Alternator: This is one of the primary components driven by the serpentine belt. It converts mechanical energy into electrical energy to power your vehicle’s systems.
• Power Steering Pump: Found along the belt path, this component allows smooth steering by using hydraulic pressure created from the belt’s rotation.
• Air Conditioning Compressor: It’s another crucial part of the belt system. This pump pressurizes the refrigerant and circulates it through the air conditioning system.
• Water Pump: The water pump is driven by the serpentine belt and helps circulate coolant through the engine to prevent overheating.
• Idler Pulley: This pulley keeps the belt tight and guides it around the other components. If this pulley fails, the belt could slip or snap.
• Tensioner Pulley: The tensioner maintains proper belt tension, ensuring that the belt doesn’t slack and potentially cause slipping or damage.

Next, check for any routing diagrams typically located near the engine bay or in the vehicle’s manual. These diagrams show how the belt loops around each component. Pay attention to the specific orientation of pulleys to avoid mistakes during installation.

If any of these parts show signs of wear, it’s time for a replacement. Inspect the belt for cracks, glazing, or fraying. The components themselves should rotate freely and show no signs of excessive wear. Regular checks can prevent sudden breakdowns and keep your vehicle’s belt system functioning smoothly.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2013 Toyota Camry

Before starting, make sure your engine is cool and the car is in “Park” with the parking brake engaged.

1. Locate the serpentine belt. On the 2013 Toyota Camry, it’s visible on the front side of the engine, running over pulleys and components like the alternator, power steering pump, and air conditioning compressor.

2. Find the tensioner. The serpentine belt is kept tight by a spring-loaded tensioner. You’ll need to relieve this tension to remove the belt.

3. Use a 14mm socket wrench or a serpentine belt tool to rotate the tensioner pulley counterclockwise. This will loosen the belt. Be careful, as the tensioner is spring-loaded and could snap back quickly.

4. While holding the tensioner in the released position, slide the serpentine belt off the pulleys. Take note of how the belt is routed so you can install the new one correctly. You can refer to the belt routing diagram, often found near the radiator or under the hood.

5. Inspect the old belt for any signs of wear, cracks, or fraying. This helps ensure that your replacement belt is the correct one. If your old belt shows significant damage, it’s a clear sign the belt needs replacing.

6. Compare the old belt with the new one to make sure they are the same length and width. You may also check the part number to be certain.

7. Begin installing the new serpentine belt by following the path of the original belt. Start at the crankshaft pulley and carefully work your way around, ensuring the belt is seated properly in each groove of the pulleys.

8. Once the belt is in place, rotate the tensioner pulley counterclockwise again to allow the tensioner to grip the belt tightly. Make sure the belt is snug and properly aligned on all pulleys.

9. Double-check the belt’s alignment, making sure it’s running evenly on all pulleys without any twists or misalignments. It should be centered on each pulley groove.

10. Start the engine and observe the new belt in action. Listen for any unusual noises or squeaks, which might indicate incorrect installation or an issue with the pulleys.

11. If everything looks good, close the hood and take your car for a short drive to ensure proper operation.

Troubleshooting Common Issues with the Belt System on a 2013 Toyota Camry

If your 2013 Toyota Camry experiences unusual noises or performance issues, the belt system might be to blame. Inspecting and addressing common belt problems can prevent further damage to engine components and keep your vehicle running smoothly.

1. Squeaking or Chirping Sounds

A squeaking or chirping noise often indicates a worn or misaligned serpentine belt. Start by checking the belt for any visible cracks, fraying, or wear. If the belt appears in poor condition, replacing it is necessary. Misalignment can occur if the tensioner or pulleys are damaged. Inspect the tensioner for smooth operation and replace any components that don’t move freely.

2. Belt Slipping or Loss of Tension

If the belt slips or doesn’t maintain proper tension, it could be a sign that the belt is too loose or that the tensioner is failing. The tensioner spring could be worn out, which would prevent the belt from staying tight. Replace the tensioner if it shows signs of weakness or failure.

3. Engine Overheating

If the water pump belt is loose or damaged, it may cause the engine to overheat. This belt is responsible for circulating coolant through the system. Check if the belt is properly tensioned and in good condition. If the belt shows signs of wear, replace it to ensure proper cooling system function.

4. Power Steering or Alternator Issues

When the alternator or power steering belt is loose or broken, your car may struggle to start, or you may lose steering control. Examine these belts for damage or wear. A broken or loose belt should be replaced immediately to avoid more serious electrical or steering failures.

5. Vibration or Loss of Power

Vibration or loss of power can occur if the serpentine belt is slipping or if the pulleys are misaligned. Check the belt for signs of slippage, and inspect the pulleys for any signs of damage or wear. If the pulleys are misaligned, realigning them could resolve the issue. If the belt shows wear or damage, replace it to prevent further problems.

Regular maintenance and quick intervention can extend the life of your Camry’s belt system and prevent costly repairs down the road. Keep an eye out for any signs of wear and ensure that all components are functioning properly.
