Complete 97 Jeep Wrangler Serpentine Belt Diagram and Routing Guide for Easy Reference

Check your 1997 Jeep Wrangler’s serpentine belt routing by following the diagram specific to your engine type. The belt drives the alternator, power steering pump, water pump, and air conditioning compressor, so correct alignment prevents premature wear and component damage.

For the 4.0L inline-six engine, the belt wraps around five main pulleys. Start at the crankshaft, loop upward to the alternator, then down to the tensioner, over the water pump, and finally around the power steering and A/C pulleys. Each pulley must sit fully in the belt grooves to maintain proper tension and avoid slipping.

Use a wrench to relieve tension at the automatic tensioner before removing the old belt. Compare the new belt with the old one for length and width to ensure compatibility. Align the belt according to the diagram, then slowly release the tensioner, confirming the belt seats correctly on all pulleys.

Check the routing visually after installation and rotate the engine manually two full revolutions to verify smooth operation. Inspect for any signs of misalignment, rubbing, or unusual noise. A correctly routed serpentine belt keeps the engine running reliably and prevents costly failures.

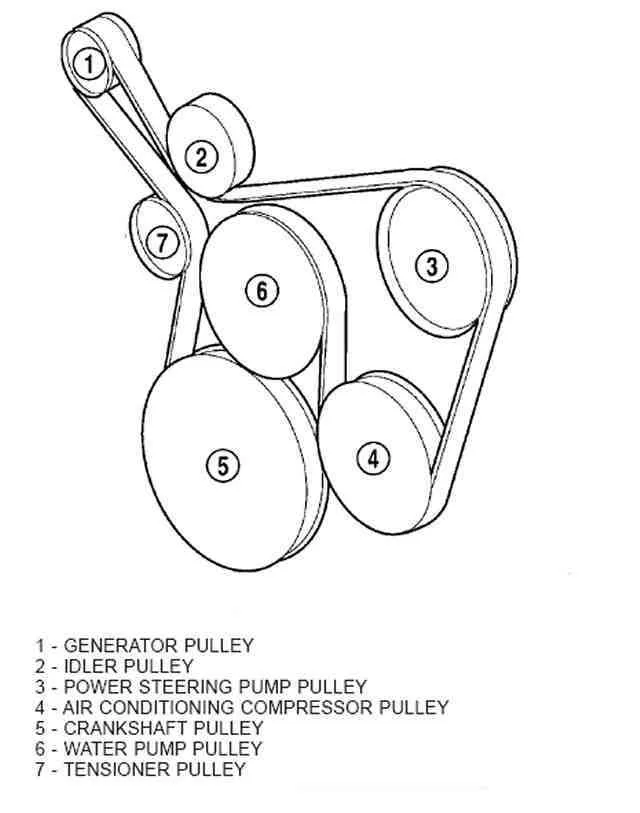

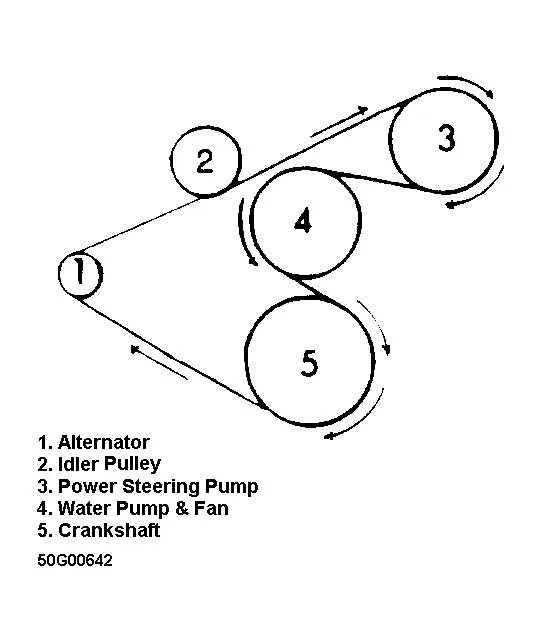

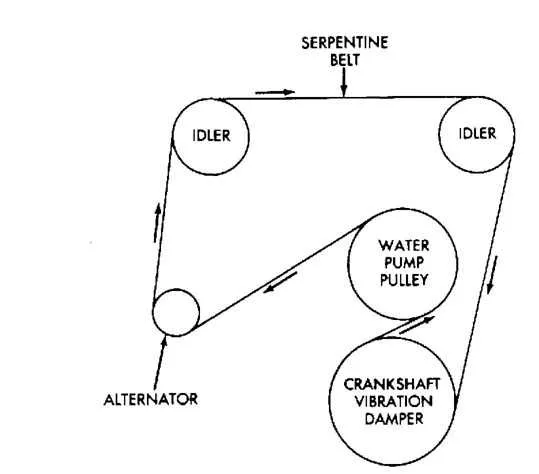

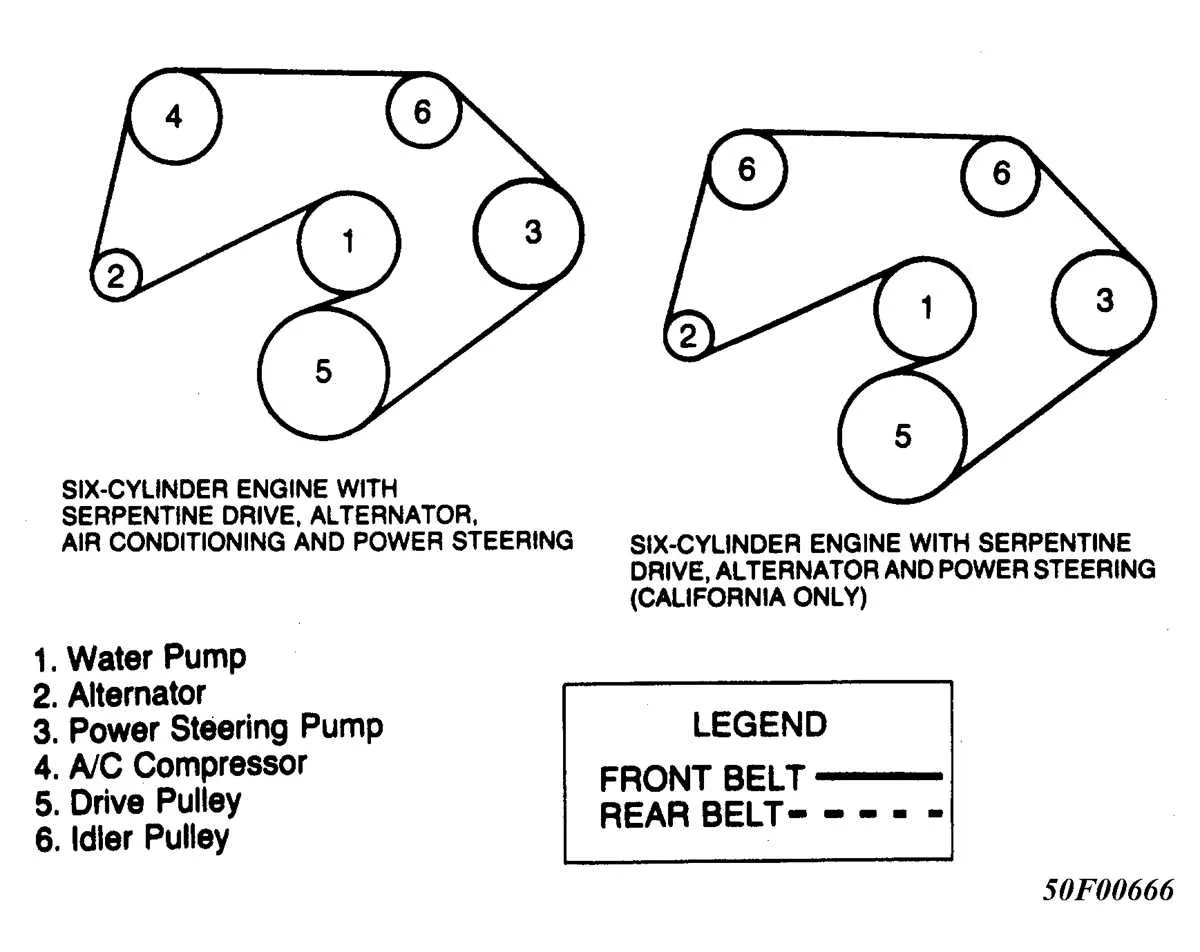

97 Jeep Wrangler Serpentine Belt Diagram

Install the serpentine belt on a 1997 Jeep Wrangler by following the routing clearly outlined in the diagram for your engine type. For the 4.0L inline-six engine, the belt wraps around the crankshaft pulley, water pump, alternator, power steering pump, and tensioner. Ensure the tensioner is fully extended before slipping the belt over the pulleys to prevent misalignment.

Check that each ribbed side of the belt sits properly in the pulley grooves to avoid slipping or premature wear. Use a wrench to release the tensioner slightly while positioning the belt and then allow it to settle back into place, keeping consistent tension across all components.

Inspect the belt for cracks, fraying, or glazing before installation. A worn belt can damage connected accessories or cause engine overheating. Replace the belt with a high-quality OEM or equivalent part to maintain proper performance.

After installation, rotate the crankshaft manually to confirm smooth movement and correct alignment of all pulleys. Listen for unusual noises during the first engine start, which may indicate misrouting or tension issues. Adjust the belt as necessary to ensure proper operation.

Keep a copy of the routing diagram in your glove box for future reference. This prevents confusion during maintenance and simplifies replacements, especially if the tensioner or other pulleys require service.

Locating the Serpentine Belt and Routing on a 1997 Jeep Wrangler

Locate the serpentine belt on the front of the engine, wrapping around the crankshaft pulley at the bottom. The belt snakes over the alternator on the passenger side, the power steering pump above it, and the water pump near the center. The tensioner sits on the driver’s side, angled slightly forward, keeping proper belt tension.

Follow the belt from the crankshaft pulley upward to the water pump, then across to the alternator. From the alternator, route it to the power steering pulley, down to the tensioner, and back to the crankshaft. Each pulley groove must align with the belt ribs to prevent slipping or noise.

Double-check the diagram printed on the radiator support or under the hood; it matches the 4.0L and 2.5L engines with minor variations. Use a wrench on the tensioner pulley to release tension, slide the belt over the final pulley, and slowly release the tensioner to secure it. Inspect for cracks, fraying, or glazing before installation to ensure reliable operation.

Step-by-Step Replacement Process for the Serpentine Belt

Release tension on the serpentine belt by turning the tensioner clockwise with a 3/8-inch ratchet. Ensure the belt is fully relaxed before removing it from the pulleys.

Inspect each pulley for wear or damage, including the idler and tensioner pulleys. Replace any that show cracks, rough spots, or wobbling.

Follow the belt routing diagram for your 1997 Jeep Wrangler. Position the new belt on the crankshaft pulley first, then route it around the alternator, power steering pump, water pump, and tensioner, keeping it aligned in the grooves of each pulley.

Rotate the tensioner back into place slowly, seating the belt securely on all pulleys. Verify that the belt sits evenly and fully in each pulley groove to prevent slipping or misalignment.

Manually spin the engine using a socket on the crankshaft pulley to confirm smooth movement and proper tension. Check for any unusual noise or belt deviation before starting the engine.

Start the engine and observe the belt for 30–60 seconds. Ensure it runs smoothly, maintains proper alignment, and does not squeal under load. Recheck tension after a short test drive and make adjustments if necessary.

Troubleshooting Common Serpentine Belt Issues in a 1997 Jeep Wrangler

Inspect the belt for cracks or fraying along the ribs immediately. A worn belt can slip or break, causing loss of power to the alternator, water pump, and power steering.

Check belt tension using a tension gauge or by pressing down on the belt at its longest span. For a 1997 Jeep Wrangler, the deflection should not exceed 1/2 inch under moderate pressure. Excessive slack may indicate a failing tensioner.

Listen for squealing noises during engine start or acceleration. A high-pitched squeal often signals misalignment or glazing on the belt surface. Remove the belt and inspect the pulleys for wobbling or wear.

Examine the serpentine belt routing against the factory diagram specific to the 1997 Wrangler. Incorrect installation can lead to premature wear or accessory malfunction. Follow this sequence:

• Crankshaft pulley
• Alternator pulley
• Water pump pulley
• Power steering pump pulley
• Air conditioning compressor pulley (if equipped)
• Tensioner pulley

Replace the belt if the ribs appear shiny or smooth, which reduces grip. Use a belt rated for 1997 Jeep Wrangler specifications to ensure proper fit and longevity.

Check tensioner and idler pulleys for free rotation and absence of noise. Replace any pulley with rough bearings to prevent belt damage. Lubricate surrounding components sparingly to avoid oil contamination on the belt.

Inspect alignment by measuring pulley offsets. Even a slight deviation can cause uneven wear. Adjust brackets or replace misaligned pulleys to maintain consistent belt contact.

Monitor belt performance after installation by observing engine operation for unusual vibrations or accessory noise. Retighten the belt after the first 100 miles of driving to compensate for initial stretching.
