2011 Nissan Rogue Serpentine Belt Diagram and Installation Guide
Replacing the serpentine belt on a 2011 Nissan Rogue requires accurate knowledge of the belt routing system. This diagram helps you understand the specific path that the belt takes, ensuring a smooth replacement process. The serpentine belt connects vital engine components such as the alternator, power steering pump, water pump, and air conditioning compressor, so proper installation is crucial for your vehicle’s performance.
Refer to the diagram to confirm the correct belt routing before starting the replacement. A slight mistake in belt alignment can cause unnecessary strain on the engine or even damage components over time. Make sure to inspect the belt tensioner and idler pulleys as well, as worn-out parts could lead to poor performance or failure of the new belt.
Always use the recommended belt size and type specified for your 2011 Nissan Rogue. Choosing the wrong part can cause premature wear or even system malfunction. For peace of mind, check the belt’s condition regularly and replace it if you notice cracks, fraying, or other signs of wear. Proper maintenance of the serpentine belt system helps ensure that your vehicle runs reliably for years.

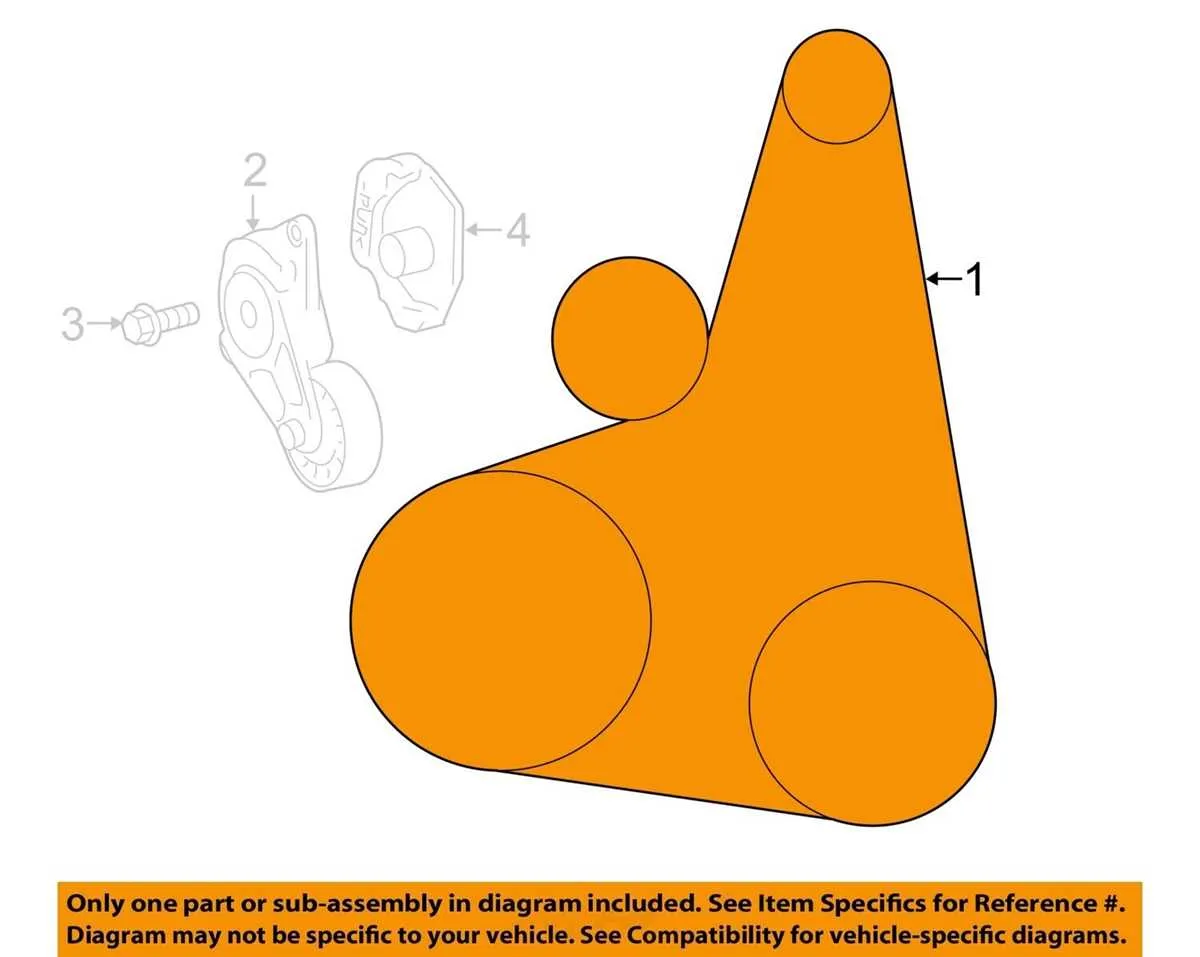

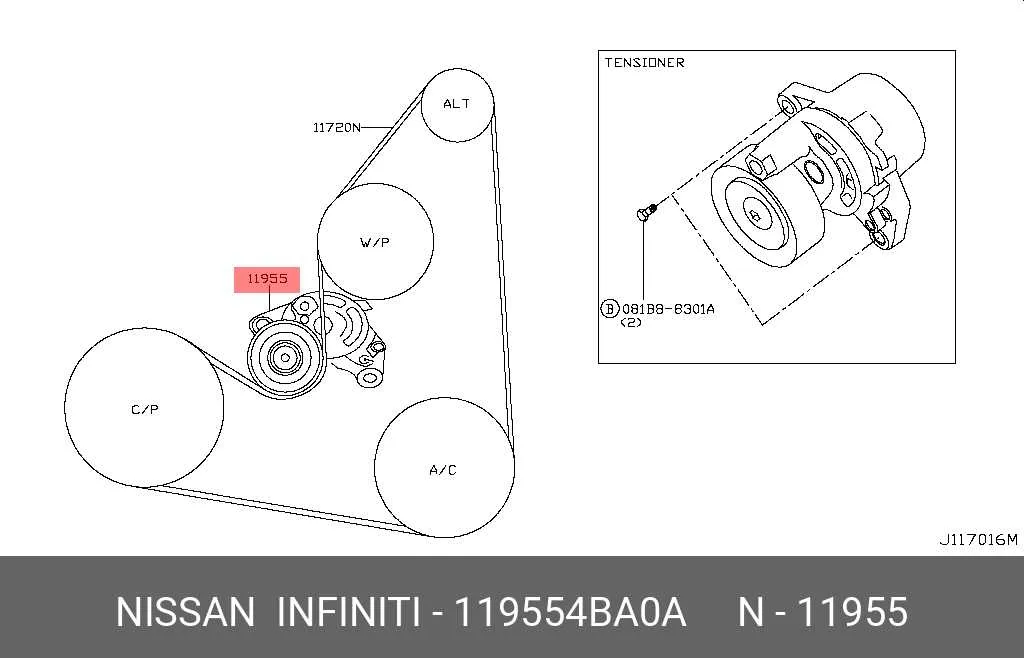

2011 Nissan Rogue Serpentine Belt Diagram
To ensure your 2011 Nissan Rogue runs smoothly, it’s vital to understand the serpentine belt layout. The serpentine belt drives multiple components, such as the alternator, power steering pump, air conditioning compressor, and the water pump. A precise diagram is essential for quick repairs or replacements.
Below is the typical serpentine belt configuration for a 2011 Nissan Rogue:
- The belt runs around the crankshaft pulley, powering the alternator and AC compressor.
- It then loops over the tensioner pulley and idler pulley to keep tension on the belt.
- The belt passes the power steering pump pulley and wraps around the water pump pulley.
- In some models, the belt may also connect to an air pump pulley or other auxiliary components.
To replace or inspect the serpentine belt, follow these steps:
- Locate the belt tensioner and use a wrench or tool to release tension.
- Remove the old belt, noting its position for reference.
- Install the new belt, ensuring it follows the correct routing.
- Double-check the belt’s alignment and ensure it sits properly in all pulleys.
- Test the belt’s function by starting the engine and checking for any unusual noises.
Always refer to your vehicle’s service manual or a trusted resource for the exact diagram and correct belt routing for your specific model. Regular inspection and timely replacement can prevent further issues with your Nissan Rogue’s performance.
How to Identify the Correct Serpentine Belt Routing for 2011 Nissan Rogue
Check the engine diagram label, usually located on the radiator support or under the hood. This diagram provides the correct serpentine belt routing for your 2011 Nissan Rogue.
If the label is missing or unclear, you can find the correct routing in the owner’s manual or repair guides for your vehicle. Many online resources and service manuals offer step-by-step instructions as well.
Inspect the components driven by the serpentine belt, including the alternator, power steering pump, air conditioning compressor, and water pump. Follow the path of the belt around these components, ensuring it passes over or under pulleys as specified in the diagram.
Double-check the tensioner pulley position. This is often a key point in maintaining proper tension and routing. Make sure the tensioner is correctly aligned with the belt before tightening it.
If you’re replacing the belt, ensure the new one matches the length and width specifications listed for your 2011 Nissan Rogue to avoid misalignment or damage.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2011 Nissan Rogue
Before beginning, gather the necessary tools: a socket set, a serpentine belt tool or a long-handled wrench, and a replacement serpentine belt for the 2011 Nissan Rogue. Ensure the engine is cool and the vehicle is parked on a flat surface with the parking brake engaged.
1. Locate the Serpentine Belt: Open the hood and find the serpentine belt. It runs around several pulleys, including the alternator, power steering pump, and air conditioning compressor. Refer to the diagram under the hood to identify the correct path.
2. Release Tension on the Belt: Use a serpentine belt tool or a long wrench on the tensioner pulley. Rotate it clockwise (or counterclockwise, depending on your model) to release the tension and loosen the belt. Once the tension is released, slide the belt off the pulleys.
3. Remove the Old Belt: Carefully remove the serpentine belt from all pulleys, making sure to take note of its routing. Keep the belt as a reference for installing the new one.
4. Inspect the Pulleys: Check each pulley for damage, wear, or misalignment. If any pulleys are worn out or damaged, replace them before installing the new belt.
5. Install the New Serpentine Belt: Start by routing the new serpentine belt around the pulleys according to the diagram. Make sure it sits properly in each groove. Pay attention to the tensioner pulley, ensuring the belt is securely in place.
6. Apply Tension to the Belt: Use the serpentine belt tool or wrench to rotate the tensioner pulley back into place, applying tension to the new belt. Double-check that the belt is properly aligned with all pulleys.
7. Test the Installation: Turn on the engine and observe the belt in action. Listen for any unusual noises, such as squealing or rattling, which could indicate improper installation. Ensure the belt runs smoothly across the pulleys without slipping or misalignment.
8. Close the Hood: Once you’re confident the belt is installed correctly and functioning properly, close the hood and dispose of the old belt.
Common Issues with the Serpentine Belt in 2011 Nissan Rogue and How to Fix Them
Cracks and Fraying: Inspect the serpentine belt regularly for visible cracks or fraying. These usually appear due to age and constant wear. If you see any, replace the belt immediately to avoid potential engine issues, like overheating or loss of power steering.
Slipping or Loss of Tension: If the belt slips or seems loose, the tensioner or belt might be the issue. A loose belt can cause issues with power steering, the alternator, and the air conditioning. Check the tensioner for proper function, and replace the belt if it appears stretched or worn out.
Squeaking or Chirping Sounds: These noises often indicate that the serpentine belt is either too tight or too loose. The sound may also be a sign of a misaligned pulley. Adjust the belt tension or check the pulleys for wear or damage.
Faulty Tensioner: A malfunctioning tensioner won’t keep the belt at the correct tension, leading to slippage and wear. If the tensioner appears worn or doesn’t hold the belt tightly enough, replace it along with the serpentine belt to restore proper function.
How to Fix: Start by inspecting the belt for damage. If any cracks, fraying, or stretching are visible, replace the belt. Check the tensioner and pulleys for any signs of wear or misalignment. If the tensioner is faulty, replace it. Make sure the new belt is properly adjusted for optimal tension.
Prevention: Regularly check the serpentine belt during routine maintenance. If you hear any strange noises or experience issues with power accessories, inspect the belt for potential problems. Replacing the belt at the first sign of wear will help prevent major engine issues.
