2006 5.9 Cummins Belt Diagram and Routing Guide

The 2006 5.9 Cummins belt system requires accurate installation to ensure proper engine function. The belt drives multiple components, such as the alternator, power steering pump, and air conditioning compressor. Follow the specific routing guidelines to prevent slippage or excessive wear.

Start by verifying that the tensioner pulley is in good condition. If the tension is too loose, the belt may slip, leading to power loss. Replace the belt if you notice signs of wear, such as cracks or fraying, as these can cause failure during operation.

Consult the belt routing diagram for the correct belt placement around the pulleys. Incorrect routing can damage components and reduce the efficiency of the system. Double-check the alignment of the belt with all pulleys before starting the engine.

Finally, always replace the belt at the recommended intervals to avoid unexpected breakdowns. Regular maintenance of the belt system helps maintain engine performance and extends the lifespan of key components.

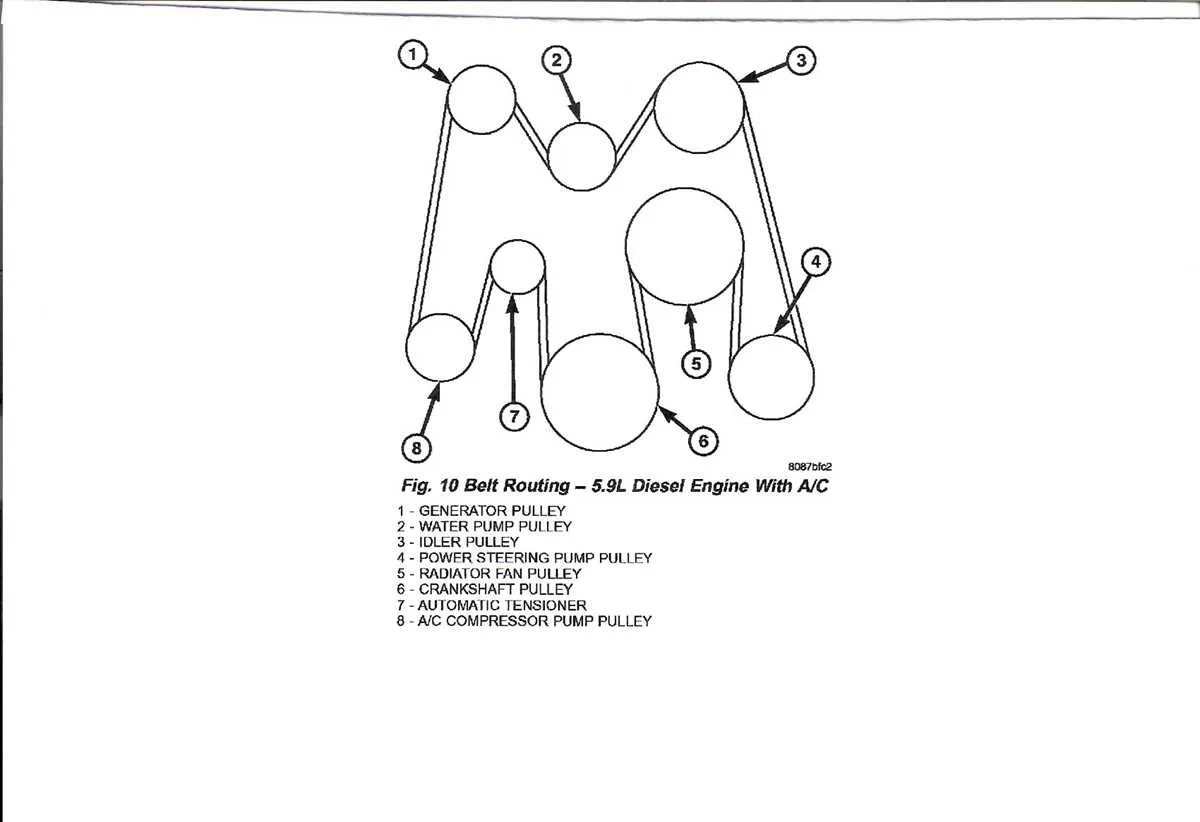

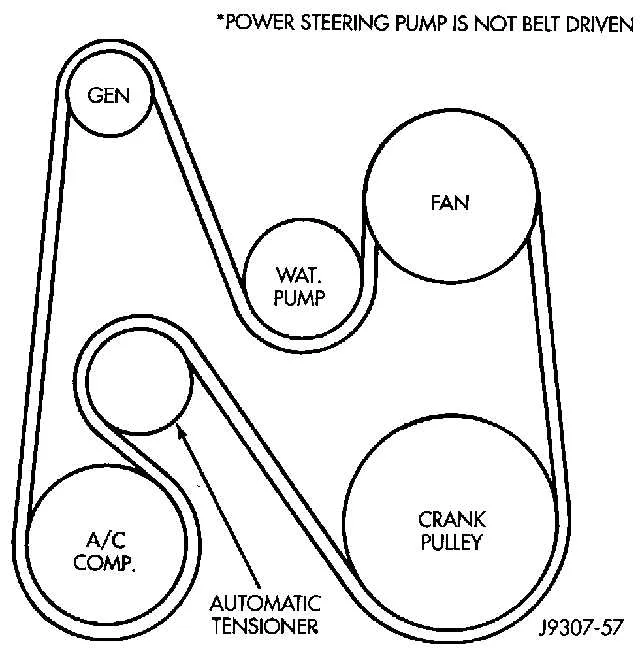

2006 5.9 Cummins Belt Diagram

To properly maintain the 2006 5.9 Cummins engine, it’s crucial to follow the correct belt routing. This ensures that all components, such as the alternator, air conditioning, and power steering, operate smoothly without excessive wear. Start by inspecting the belt for signs of damage, such as cracks or fraying. A worn-out belt can lead to costly repairs if not addressed in time.

Ensure the correct tension on the belt. Too much slack can result in slipping, which causes inefficient performance, while a belt that’s too tight can cause excessive strain on the pulleys. Refer to the Cummins service manual for the precise tension specifications.

The diagram typically includes several pulleys: the crankshaft, water pump, power steering, and alternator. It is essential to follow the exact sequence shown in the belt diagram to avoid misrouting. Start from the crankshaft pulley and carefully route the belt through the other pulleys in the order indicated.

If you’re replacing the belt, ensure the new one matches the original size and type. Incorrect belt specifications can lead to poor engine performance and potential damage. After installation, check the alignment of the belt to ensure it sits properly in each pulley groove.

Regular maintenance checks, including inspecting the belt’s alignment, wear, and tension, will help avoid unexpected engine issues. Replacing the belt as part of your routine maintenance is a simple step in keeping your engine running smoothly.

Understanding the 2006 5.9 Cummins Belt Routing

The belt routing for the 2006 5.9 Cummins is crucial for the engine’s operation. Proper belt routing ensures all components like the alternator, water pump, power steering pump, and AC compressor function effectively. Start by verifying the belt tensioner is in good condition before checking the routing. This will help prevent excessive wear on the belt and related components.

The routing begins at the crankshaft pulley, which drives the serpentine belt. From here, the belt wraps around the alternator, which charges the battery. It continues to the power steering pump, ensuring smooth steering, and then to the air conditioning compressor, keeping the cabin cool. Finally, the belt loops around the water pump, maintaining coolant circulation throughout the engine.

Double-check the belt tensioner placement, as misalignment can cause significant issues. The belt should be snug, with no more than 1/2 inch of deflection when pressed in the middle of its length. If the belt shows signs of cracking, glazing, or excessive wear, replace it immediately. For any tensioning issues, replacing the tensioner may be necessary.

Using a diagram specific to the 2006 5.9 Cummins will help in visually confirming the correct belt path. Ensure each component is securely mounted and the belt does not rub against other parts of the engine, which could cause premature damage.

How to Properly Install the 2006 5.9 Cummins Serpentine Belt

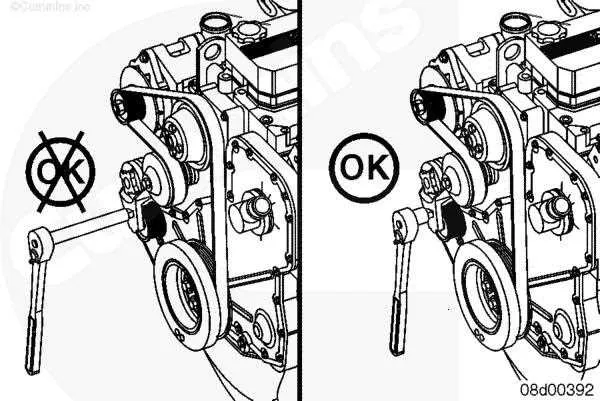

Begin by releasing tension from the serpentine belt using a wrench on the tensioner pulley. Rotate the tensioner clockwise to relieve pressure, and then remove the belt. Be cautious not to let the tensioner snap back during this process.

Inspect all pulleys for damage or wear. Any irregularities, such as grooves or play in the pulleys, should be addressed before installing the new belt. Replace any faulty components to prevent future issues.

Lay the new serpentine belt in place according to the diagram for the 2006 5.9 Cummins. Follow the specific routing for the alternator, power steering, water pump, and other components as shown in the belt diagram. Ensure that the belt is seated correctly in all pulley grooves without twisting.

Once the belt is positioned, use the wrench to rotate the tensioner again and slip the belt onto the final pulley. Ensure the belt remains in position as you release the tensioner slowly, allowing it to apply tension to the belt.

Double-check the alignment of the belt. It should be properly aligned with all pulleys and free of slack. If the belt appears misaligned, remove it and repeat the process, adjusting the routing if necessary.

Finally, start the engine and observe the belt’s operation. Listen for any unusual noises, and check that the belt runs smoothly over all pulleys. If everything is functioning correctly, the installation is complete.

Common Issues with the 2006 5.9 Cummins Belt System

One common issue with the 2006 5.9 Cummins belt system is improper belt tension. Over time, the serpentine belt may lose its tension, causing it to slip or squeak. To prevent this, regularly inspect the belt tensioner and replace any worn-out parts.

Another issue is belt misalignment. If the pulleys or tensioners are damaged or worn, they can cause the belt to run off track. This misalignment leads to premature wear on the belt and surrounding components. Inspect pulleys for wear and replace them as needed.

Cracking or fraying of the belt is also common, especially after extended use. The belt can become brittle and cracked due to heat and friction. Check the belt for visible damage and replace it if you notice any wear or fraying.

In some cases, the alternator or air conditioning compressor can put excessive strain on the belt system. This occurs if either component is malfunctioning, causing the belt to work harder than intended. Listen for unusual noises and check the components regularly for smooth operation.

• Inspect the belt tensioner for wear and ensure proper tension.
• Check pulleys for misalignment or damage.
• Examine the belt for cracking, fraying, or signs of excessive wear.
• Ensure the alternator and air conditioning compressor are operating correctly.

Regular maintenance and timely replacement of worn-out components will help avoid these common issues and keep the 2006 5.9 Cummins belt system in good working condition.
