2012 Chevy Equinox Serpentine Belt Routing Diagram and Installation Guide

If you’re working on the 2012 Chevy Equinox, understanding the serpentine belt layout is key for smooth engine operation. The serpentine belt connects several components, including the alternator, power steering pump, water pump, and air conditioning compressor. A diagram can make it much easier to replace or adjust the belt without unnecessary complications.

The diagram for the 2012 Chevy Equinox typically shows a single belt running through various pulleys. It loops around the crankshaft pulley, alternator, air conditioning compressor, and tensioner pulley. The tensioner pulley is spring-loaded and maintains the proper tension on the belt. Make sure to check the diagram carefully to ensure all pulleys are correctly aligned when replacing or installing a new serpentine belt.

Having this diagram on hand will save you time and effort when it’s time for a replacement. Be sure to compare the diagram with the engine components to avoid any confusion. Proper belt installation will ensure the longevity of your engine and the smooth operation of your vehicle’s critical systems.

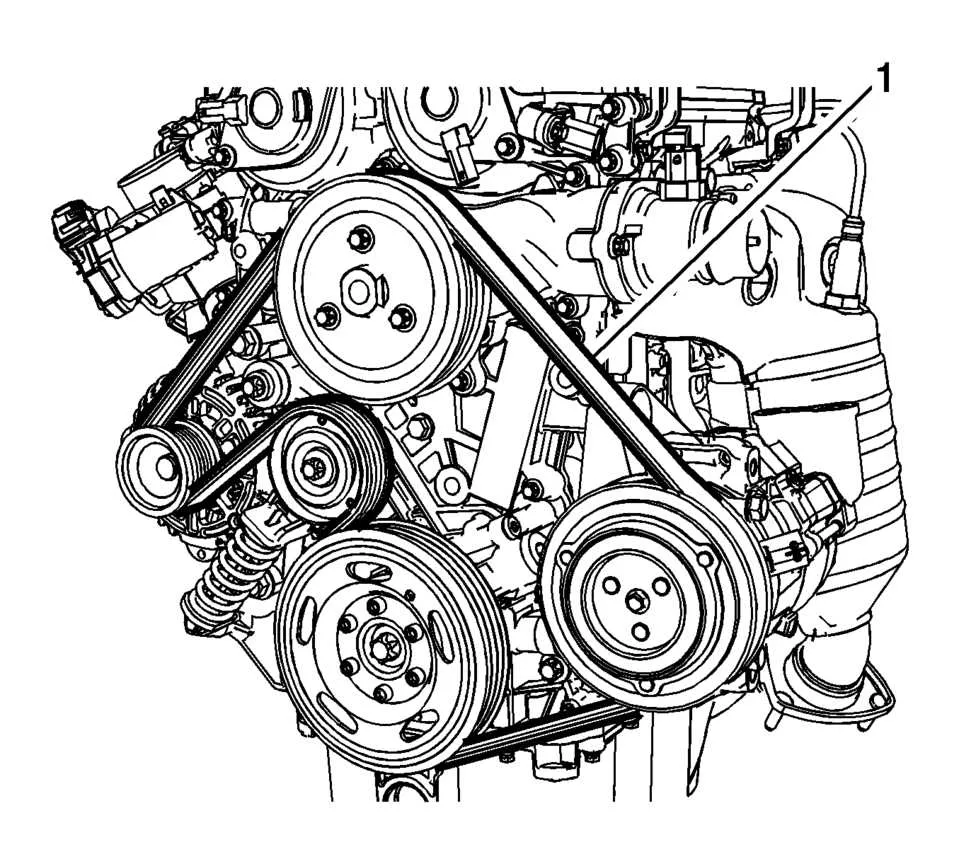

2012 Chevy Equinox Serpentine Belt Diagram

The serpentine belt in the 2012 Chevy Equinox powers critical components such as the alternator, power steering pump, and air conditioning compressor. For an easy replacement or inspection, follow the diagram to ensure proper routing and tension. It’s vital to understand the belt path to avoid damage and maintain engine performance.

Locate the belt tensioner on the engine. Use a wrench to relieve tension, allowing you to remove the belt. The serpentine belt routing follows a simple yet specific path around various pulleys. The tensioner pulley will adjust to maintain the correct belt tension. Ensure the belt loops around the crankshaft, alternator, power steering pump, and A/C compressor in the proper order, with the tensioner at the end.

For a smooth repair, it helps to have a diagram handy during the process. Double-check each step for correct routing. Incorrect placement may result in the belt slipping or over-stretching, leading to engine trouble. If unsure, consult a repair manual or a professional technician for guidance.

How to Identify the Serpentine Belt Routing on a 2012 Chevy Equinox

Locate the serpentine belt routing diagram on the engine bay. For the 2012 Chevy Equinox, this diagram is usually printed on a sticker near the radiator or on the hood. If it’s missing or damaged, you can use the service manual or check online for a clear visual of the routing layout.

Next, take note of the components connected by the serpentine belt. These typically include the alternator, power steering pump, air conditioning compressor, water pump, and the tensioner. The belt should wrap around these parts in a specific order, following the grooves and pulleys. Keep the engine off while you inspect, and make sure the belt is taut and aligned properly along each pulley. Look for any signs of wear like cracks or fraying, which could indicate the need for replacement.

If the belt appears misaligned or damaged, compare the setup with the diagram to verify the routing. A common mistake is improper belt placement, especially around the tensioner, which can cause the belt to slip or wear unevenly. Ensure the belt is seated correctly on each pulley, and double-check the tensioner’s alignment before testing the engine.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2012 Chevy Equinox

First, gather the necessary tools: a new serpentine belt, a 3/8″ drive ratchet, a socket wrench, and a breaker bar. You’ll also need safety gloves and eye protection. Park the vehicle on a flat surface, engage the parking brake, and disconnect the negative terminal of the battery.

Next, locate the serpentine belt. On the 2012 Chevy Equinox, it runs across various pulleys, including the alternator, power steering pump, and A/C compressor. The belt routing diagram is often found under the hood. Double-check the orientation of the current belt before removal.

To remove the old belt, use the ratchet and a socket to rotate the tensioner pulley counterclockwise. This will release the tension on the belt. While holding the tensioner in place, slip the belt off the pulleys one by one, making sure not to damage any components. If the tensioner resists, use a breaker bar for extra leverage.

Inspect the pulleys for damage or wear. If any pulleys are worn, replace them before installing the new serpentine belt. This step can prevent unnecessary damage to the new belt and ensure the longevity of the entire system.

Now, install the new serpentine belt by following the belt routing diagram. Begin by placing the belt around the pulleys one at a time, ensuring the belt sits securely in each groove. Pay close attention to the tensioner pulley–position the belt so it’s under proper tension once the tensioner is released.

Once the belt is in place, rotate the tensioner pulley counterclockwise again to create tension. Double-check that the belt is properly aligned on all pulleys. It should sit snugly without slipping off or crossing any grooves.

Reconnect the negative terminal of the battery and start the engine. Observe the new belt while the engine runs to ensure it’s functioning correctly. Listen for any unusual noises, which may indicate misalignment or improper installation.

Finally, turn off the engine, remove any tools, and check the belt one last time for proper tension and alignment. If everything looks good, you’re all set with a properly installed serpentine belt!

Common Issues with the Serpentine Belt and How to Troubleshoot Them

Inspect the serpentine belt regularly for signs of wear. Cracks, fraying, or a shiny surface indicate it needs replacement. If the belt is making noise, it could be slipping due to misalignment or excessive tension. A quick check of the tensioner will tell you if it’s functioning properly. If the tensioner feels loose or sticks, replace it immediately to avoid further damage.

Examine the pulleys. Worn or damaged pulleys can cause the belt to slip or become misaligned. Use a wrench to manually rotate each pulley and listen for grinding sounds. If you hear noise or feel resistance, the pulley may need to be replaced or lubricated.

If your vehicle is overheating or the air conditioning stops working, it could be a problem with the belt’s connection to critical systems like the water pump or alternator. Check the belt’s alignment and tension. A misaligned belt often results in poor performance of these components. Adjust the alignment or replace the belt if needed.

Lastly, keep an eye on the belt’s tension. Too much tension can stretch the belt, while too little can cause slippage. You can measure the deflection to check the tension, but if you’re unsure, it’s safest to consult a manual or mechanic to avoid premature wear.
