MTD 46 Inch Deck Belt Diagram and Installation Guide

To replace or maintain the deck belt on your MTD 46-inch lawn mower, start by understanding the correct routing of the belt. Follow the diagram carefully to avoid any misalignment that could damage the components. The belt must be routed around the pulleys and spindles according to the manufacturer’s specifications.

First, remove the deck from the mower to access the belt system. If the belt is worn out, check for cracks, fraying, or stretching before replacing it. When installing the new belt, ensure it is properly tensioned to avoid slippage. A loose belt will affect the mower’s performance and may cause further wear on the pulleys.

Ensure the belt is aligned correctly on each pulley. Misalignment may result in uneven cutting or additional wear on the mower components. If you notice any issues during installation, double-check the diagram for correct belt routing.

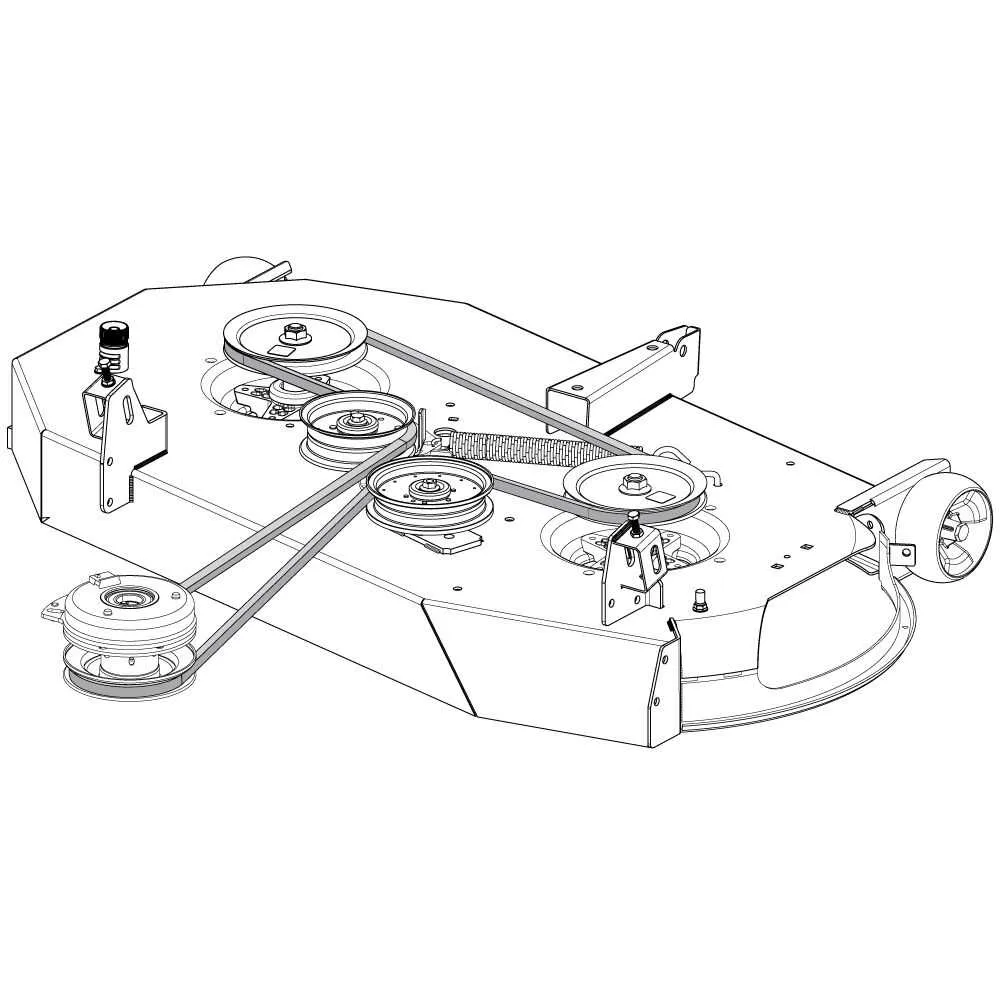

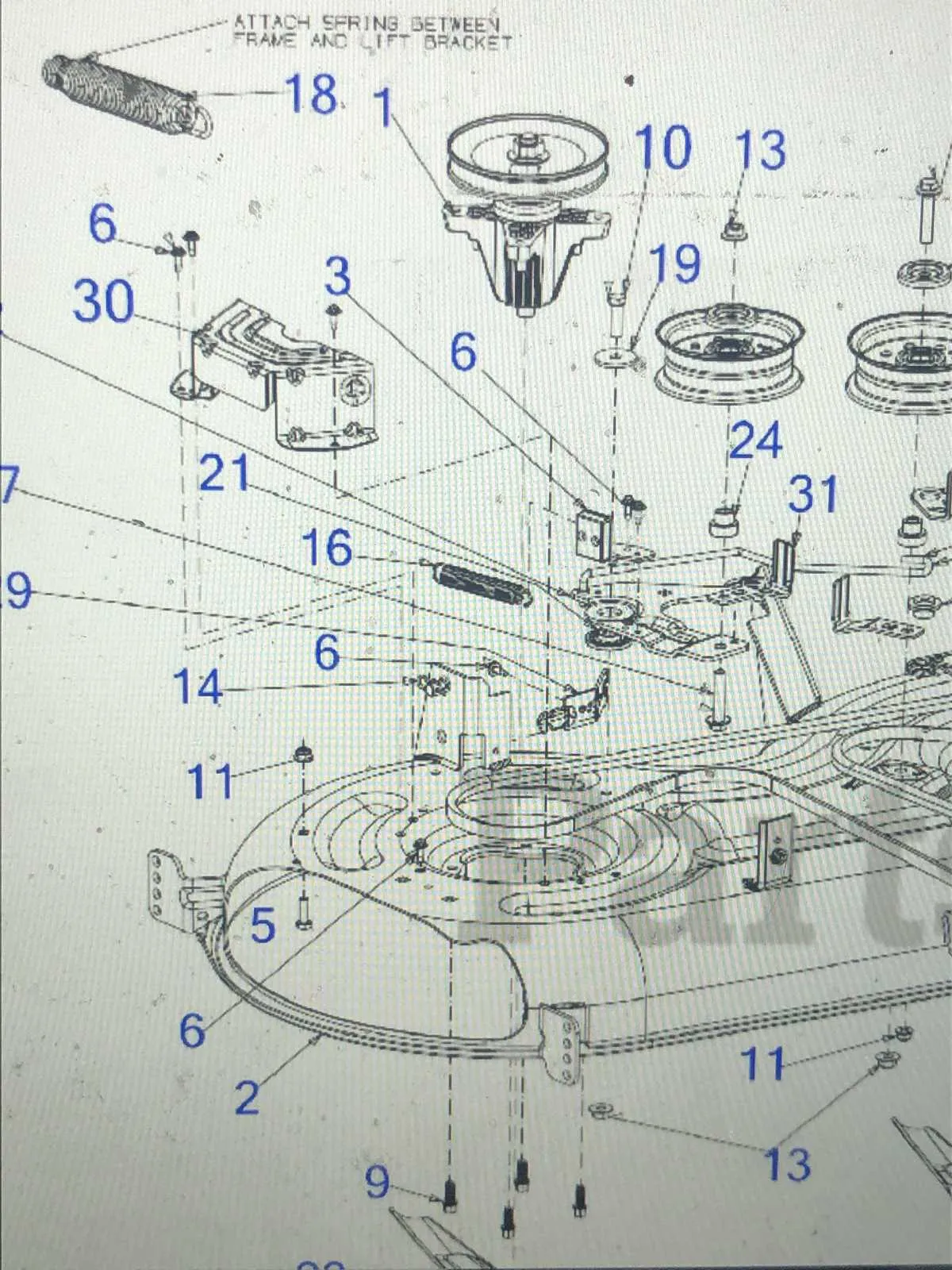

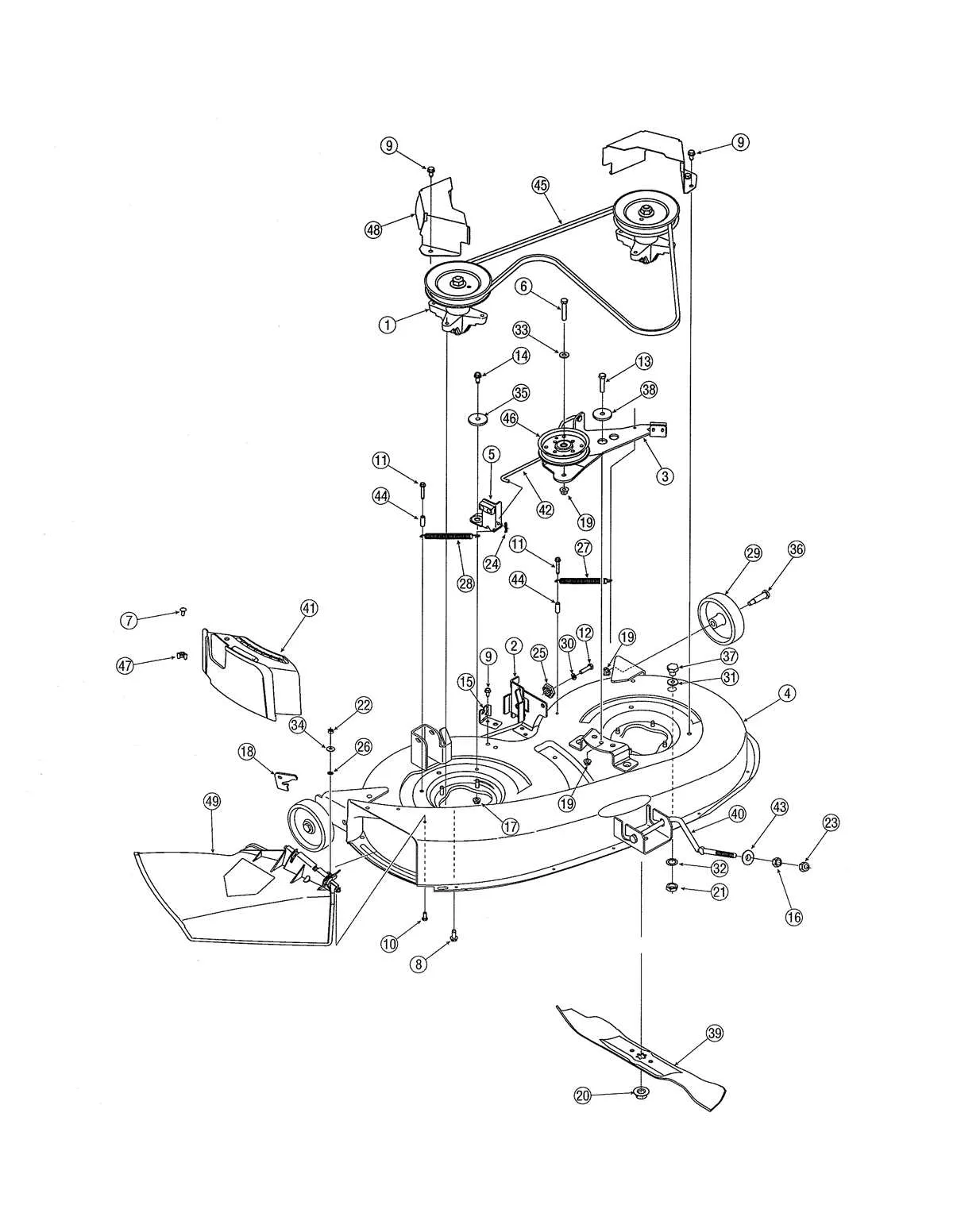

MTD 46 Inch Deck Belt Diagram

The MTD 46-inch deck belt diagram helps you understand how to correctly install and troubleshoot the belt on your MTD lawn mower. Begin by identifying the components involved: the deck belt, pulleys, idler arms, and the engine pulley. Refer to the diagram to ensure that the belt is routed properly across these parts.

Ensure the belt is aligned with the pulleys to prevent premature wear. It should not be twisted or too tight. To install, first, remove any existing worn-out belt by loosening the idler arm and detaching it from the mower. Place the new belt over the pulleys as shown in the diagram, making sure it rests securely in each groove.

If the belt appears too loose or too tight after installation, adjust the tension by using the idler spring. Follow the diagram for correct routing and tension specifications. Regular inspection of the belt’s condition can prevent breakdowns and extend the life of your mower.

Identifying Key Components of the MTD 46 Inch Deck Belt System

The MTD 46-inch deck belt system consists of several important parts that work together to ensure the proper functioning of the mower. Start by identifying the drive belt, which transmits power from the engine to the mower deck. The belt tensioner keeps the drive belt tight, preventing slipping and ensuring smooth operation. The idler pulley adjusts the belt’s tension, maintaining optimal performance.

The mower deck includes pulleys that guide the belt around the cutting blades. These pulleys are critical for controlling the rotation speed of the blades and ensuring they cut effectively. The blades are driven by the belt system, and their rotation is directly influenced by the condition and alignment of the belt.

Another key component is the deck engagement lever, which allows you to engage or disengage the mower blades. The condition of the belt and pulleys affects how well this mechanism works. If the belt is worn or misaligned, it can prevent the blades from engaging properly.

Lastly, the belt guard protects the belt from damage and helps to keep it in place during operation. Regular inspection of these components is necessary to maintain proper belt function and prevent costly repairs.

Step-by-Step Guide for Replacing the MTD 46 Inch Deck Belt

Start by disconnecting the battery to ensure safety while working on the mower. Remove the ignition key to prevent accidental startup.

Lift the mower deck. Use a suitable jack or a lift to raise the deck to a comfortable working height.

Remove the belt cover to access the deck belt. Use a wrench or socket to undo the bolts securing the cover in place.

Release the tension on the belt by loosening the idler pulley. This can be done by turning the bolt or nut that holds it in place.

Carefully remove the old deck belt from the pulleys, making sure to note the routing of the belt. You can refer to the belt diagram for reference if needed.

Install the new belt by following the same routing path as the old belt. Ensure it is properly aligned on all pulleys.

Reattach the idler pulley to apply tension to the belt. Tighten the bolt or nut to secure it in place.

Replace the belt cover and secure it with the bolts you removed earlier.

Lower the mower deck back into its original position and reconnect the battery. Test the mower by starting it and checking the belt’s operation.

Troubleshooting Common Issues with the MTD 46 Inch Deck Belt

Check the belt for wear or damage. A worn or frayed belt can slip or fail to engage properly. Inspect it for cracks, tears, or frayed edges. Replace the belt if it shows significant signs of wear.

Verify the belt tension. If the belt is too loose, it may slip off or fail to turn the blades efficiently. Adjust the tension using the spring-loaded tensioner to ensure the belt is tight enough for proper operation.

Inspect the pulleys. Damaged or misaligned pulleys can cause the belt to wear unevenly or skip. Look for signs of corrosion, rust, or any obstacles that may affect pulley rotation. If pulleys are damaged, replace or realign them to ensure smooth movement.

Check for obstructions. Objects stuck in the belt system can cause strain on the belt, leading to slipping or damage. Clear any debris from the belt path and ensure nothing obstructs the pulleys or the belt itself.

Ensure the belt routing is correct. An incorrectly routed belt can cause slipping, misalignment, or damage. Compare the current routing to the MTD 46-inch deck belt diagram to confirm proper installation.
