2013 Ford Focus Belt Diagram Guide for Proper Routing and Installation
Locate the serpentine belt routing on your 2013 Ford Focus by checking the diagram near the engine compartment or inside the owner’s manual. Following the correct path ensures smooth operation of the alternator, power steering, and AC compressor without causing misalignment or premature wear.
Inspect belt tension and alignment before installation. The tensioner pulley must maintain proper pressure on the belt to avoid slipping. Compare each pulley position to the diagram and confirm that every groove matches the belt profile.
Replace worn or cracked belts promptly. Use the diagram to guide removal and installation, preventing the belt from twisting or damaging components. Maintaining the correct routing minimizes vibration, extends component life, and maintains engine performance.
Keep a printed or digital copy of the belt diagram handy during maintenance. It saves time, reduces errors, and allows quick reference if you need to replace the belt or check for issues related to engine accessories.

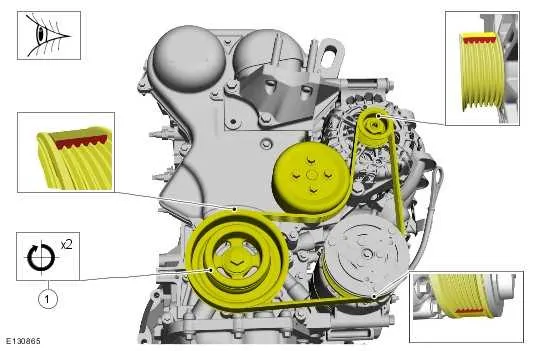

2013 Ford Focus Belt Diagram

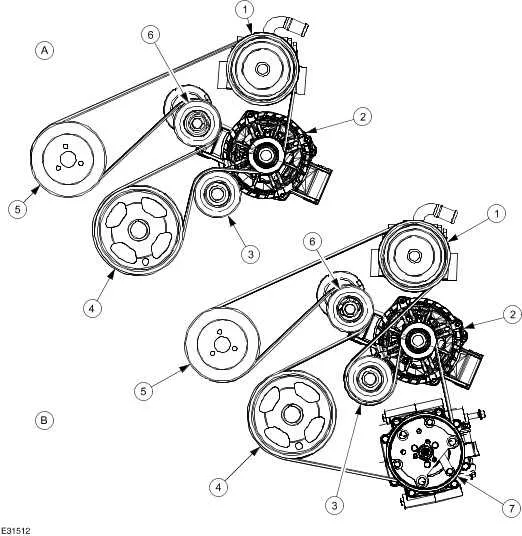

Locate the serpentine belt routing clearly by referring to the diagram specific for the 2013 Ford Focus with the 2.0L or 2.5L engine. The belt wraps around the crankshaft pulley, alternator, tensioner, water pump, and air conditioning compressor in a precise sequence. Follow the arrows on the diagram to guide proper installation.
Use a belt tensioner tool to relieve tension before removing the old belt. Align the new belt along the exact path shown in the diagram, ensuring all ribs sit correctly in each pulley groove. Double-check that the belt fully contacts each pulley surface to prevent slipping or uneven wear.
Inspect all pulleys for damage or excessive play while the belt is off. Replace any worn components to maintain smooth operation. After installing, rotate the crankshaft manually to confirm correct routing and proper tension. Adjust the tensioner if necessary to match the manufacturer’s specifications.
Keep a printed or digital copy of the belt diagram in the engine bay for future reference. This simplifies maintenance and reduces the risk of routing errors during replacements or repairs.
Locating the Serpentine Belt on a 2013 Ford Focus
Open the hood and position yourself in front of the engine bay. The serpentine belt runs along the front of the engine, connecting the alternator, power steering pump, and air conditioning compressor. Identify the tensioner pulley, usually on the passenger side, which keeps the belt tight. Look for the belt routing diagram printed on a sticker near the radiator or on the underside of the hood; this shows the exact path for your engine configuration. Trace the belt from the crankshaft pulley at the bottom, moving upward around the other pulleys according to the diagram. Ensure the belt sits correctly in all pulley grooves before attempting any removal or replacement. Check for signs of wear, such as cracks or fraying, along the entire belt length. Proper positioning prevents slippage and ensures smooth operation of connected components.
Step-by-Step Guide to Reading the Belt Routing Diagram
Locate the diagram: Find the belt routing diagram under the hood or in the owner’s manual. Ensure it matches your 2013 Ford Focus engine type.
Identify components: Recognize the alternator, power steering pump, water pump, tensioner, and A/C compressor. Each pulley is usually labeled with a clear symbol or abbreviation.
Trace the path: Follow the belt line from the crankshaft pulley first. Note the direction arrows if present. Ensure the belt wraps around each component exactly as shown.
Check the tensioner: Locate the tensioner pulley and understand how it maintains belt tension. Identify the release point if removal or adjustment is required.
Compare with engine layout: Match the diagram to your engine’s actual pulley arrangement. Adjust for any small variations caused by accessory positioning.
Confirm alignment: Make sure the belt sits in all pulley grooves without twisting. Misalignment can cause noise, slipping, or premature wear.
Double-check connections: Ensure every pulley shown in the diagram has the belt routed correctly. Verify the belt follows the exact route before starting the engine.
Replacing the Belt Using the Factory Diagram
Consult the factory belt diagram before removing the old belt. This diagram shows the exact path around each pulley, including the alternator, water pump, and tensioner.
- Loosen the tensioner using the recommended wrench or socket to release belt tension.
- Slide the old belt off the pulleys carefully, noting the orientation of any ribs or grooves.
- Compare the new belt with the old one to confirm the correct length and rib alignment.
- Follow the factory diagram to route the new belt around each pulley. Ensure it sits correctly in all grooves.
- Pull the tensioner back to apply pressure to the new belt. Check that the belt sits evenly on all pulleys.
- Rotate the engine manually two full turns to verify proper alignment and tension before starting the vehicle.
Double-check the belt path against the diagram after installation. Incorrect routing can cause squealing, premature wear, or damage to engine components. Keep the diagram visible during installation for reference.
Use only the specified belt type for the 2013 Ford Focus. Avoid forcing the belt over pulleys, and inspect tensioner and idler pulleys for wear while replacing the belt.
