2012 Kia Sorento Serpentine Belt Diagram and Replacement Guide

The 2012 Kia Sorento’s serpentine belt system plays a vital role in powering several critical components of the engine. Understanding its layout and correct routing is key for maintaining the vehicle’s performance. If you’re looking to replace or inspect the belt, follow the precise diagram to avoid potential damage to the engine components.

The serpentine belt on the 2012 Kia Sorento is routed through several pulleys, driving essential parts such as the alternator, power steering pump, and air conditioning compressor. To ensure proper operation, double-check the belt’s tension and alignment according to the manufacturer’s specifications.

If you’re planning to replace the belt, carefully refer to the diagram for the exact pulley configuration. A misaligned belt can lead to poor performance or even cause premature wear on critical parts. Always use the correct size belt to avoid unnecessary strain on the system. Once installed, confirm the belt’s smooth operation to avoid costly repairs down the line.

2012 Kia Sorento Belt Diagram

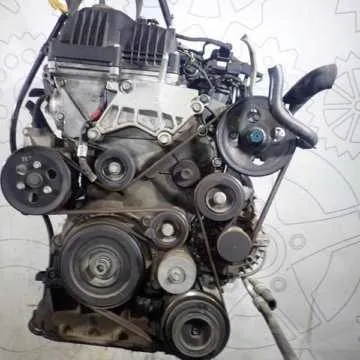

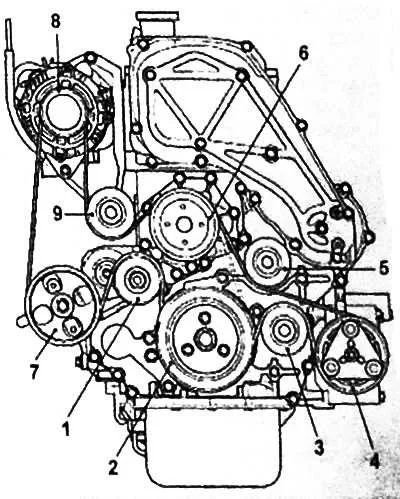

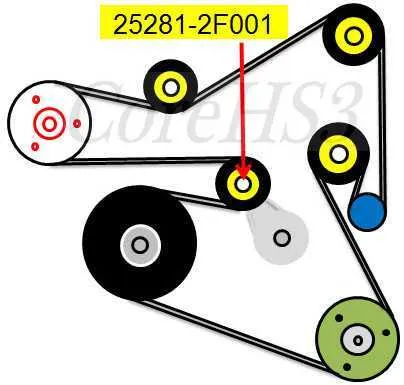

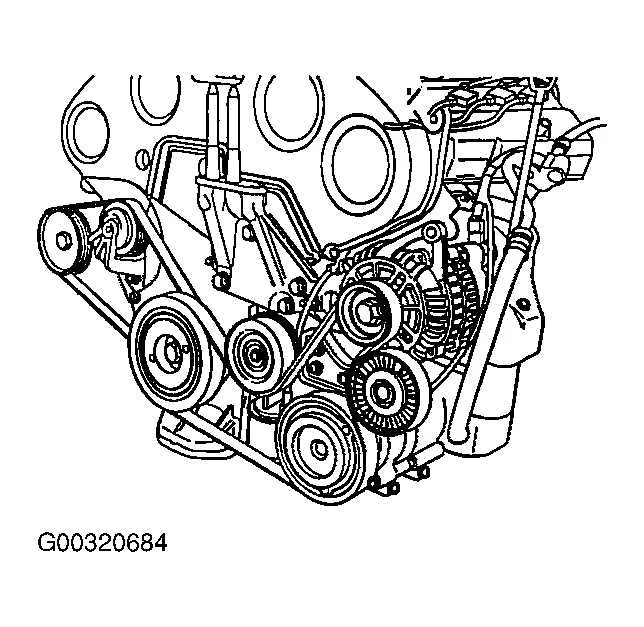

The 2012 Kia Sorento utilizes a serpentine belt to drive multiple components, including the alternator, power steering pump, and air conditioning compressor. Understanding the proper routing of this belt is crucial for maintaining engine performance and avoiding potential damage. Below is the correct belt diagram for the 2012 model:

The serpentine belt is routed around the crankshaft pulley, water pump, alternator, and other accessory components. It’s important to ensure the belt is tensioned correctly to avoid slipping, which could lead to a loss of power to essential systems. Inspect the belt periodically for signs of wear or cracks, and replace it every 60,000 to 100,000 miles, depending on your driving conditions.

Refer to the diagram to check the specific layout and routing of the belt components. It’s recommended to replace the belt with a genuine Kia part to ensure compatibility and proper fit. Always check the tension and alignment during maintenance to prevent future issues.

Identifying the Main Belts in the 2012 Kia Sorento

The 2012 Kia Sorento has several belts responsible for powering different components of the engine. The main belts include the serpentine belt and timing belt, each playing a specific role in the vehicle’s operation.

• Serpentine Belt: This is the most visible and primary belt in the 2012 Kia Sorento. It powers the alternator, air conditioning compressor, power steering pump, and other components. The serpentine belt is long, continuous, and typically routed around multiple pulleys.
• Timing Belt: The timing belt synchronizes the movement of the engine’s camshaft and crankshaft, ensuring that the engine’s valves open and close at the proper times. It is located inside the engine and requires careful attention for wear and tear.

Regular inspection of these belts is crucial to avoid engine damage. A worn serpentine belt can cause failure in one or more components, while a damaged timing belt may lead to severe engine malfunctions.

If either belt appears cracked, frayed, or damaged, replacing it promptly is necessary to maintain the vehicle’s performance and avoid costly repairs.

Step-by-Step Process for Replacing the Serpentine Belt

First, ensure the engine is off and the vehicle is in park or neutral with the parking brake applied. Allow the engine to cool down before starting the replacement process.

Locate the serpentine belt. It runs over multiple pulleys, including the alternator, power steering pump, air conditioning compressor, and tensioner. Use the vehicle’s manual or diagram for exact details on pulley locations.

Release the tension from the serpentine belt by using a ratchet and the correct socket size to rotate the tensioner pulley. The tensioner will move, allowing you to slip the belt off the pulleys.

Remove the old serpentine belt carefully. Pay attention to its routing around each pulley. It’s helpful to take a photo of the belt arrangement before removal to ensure proper installation of the new belt.

Inspect the condition of the pulleys and tensioner. Look for any signs of wear or damage. Replace any faulty components to avoid future issues with the new belt.

Install the new serpentine belt by following the routing diagram. Start by placing the belt over the pulleys, ensuring it fits into each groove properly. Make sure the belt is taut but not overly tight.

Once the belt is in place, use the ratchet to move the tensioner pulley again and slide the belt over it. Release the tensioner to secure the belt in place.

Double-check the belt’s position on all pulleys. Ensure it is aligned correctly and sits securely in place. Rotate the engine manually a few times to verify the belt operates smoothly.

Start the engine and monitor the serpentine belt in action. Listen for any unusual noises or signs of slipping. If the belt appears to be working properly, the replacement is complete.

Common Issues with the Belt System and How to Fix Them

Misalignment of the Serpentine Belt: Misalignment can cause the belt to wear unevenly, leading to slipping and increased strain on components. Check the belt’s alignment using a straight edge. If the belt is misaligned, inspect the pulleys for wear or damage. Replace any faulty pulleys and re-align the belt to prevent further issues.

Worn or Cracked Belt: Over time, belts can develop cracks or become worn down, reducing their efficiency. Regularly inspect the belt for visible signs of wear, such as cracks, fraying, or glazing. If any of these symptoms are present, replace the serpentine belt to avoid sudden failure.

Excessive Noise: A squealing or chirping sound often indicates belt slippage or worn pulleys. This can also happen if the belt is too loose. Check the tensioner for proper function. If the tensioner is faulty, replace it along with the belt to restore normal operation.

Slipping Belt: A slipping serpentine belt leads to power loss in critical systems such as the alternator and air conditioning. To fix this, inspect the tensioner and pulley system for damage. If the belt has stretched or the tensioner is faulty, replace both the belt and tensioner.

Failure of Belt-Driven Accessories: If accessories like the power steering or alternator stop working, it could be due to a failure in the belt system. Inspect the belt routing and pulleys to ensure there are no obstructions or damage. If necessary, replace the affected pulley or belt to restore function.
