2010 Camaro 3.6 Serpentine Belt Diagram and Routing Guide

To replace or inspect the serpentine belt on a 2010 Camaro 3.6, start by understanding the proper routing of the belt. This diagram shows the correct path, ensuring all components are properly engaged. Take note of the components the belt interacts with, including the alternator, power steering pump, and air conditioning compressor.

Proper routing is crucial. Ensure the belt runs in the correct direction, following the diagram’s sequence of pulleys. This avoids unnecessary wear and tear, helping maintain the engine’s performance. Double-check the tensioner location to confirm the belt’s tightness is optimal for smooth operation.

Before removing the old belt, inspect the condition of the pulleys and tensioner. Worn-out components can damage the new belt, so replacing them when necessary is advised. For accurate installation, refer to the diagram to align the new belt precisely as shown. This minimizes the risk of misalignment and extends the lifespan of the belt.

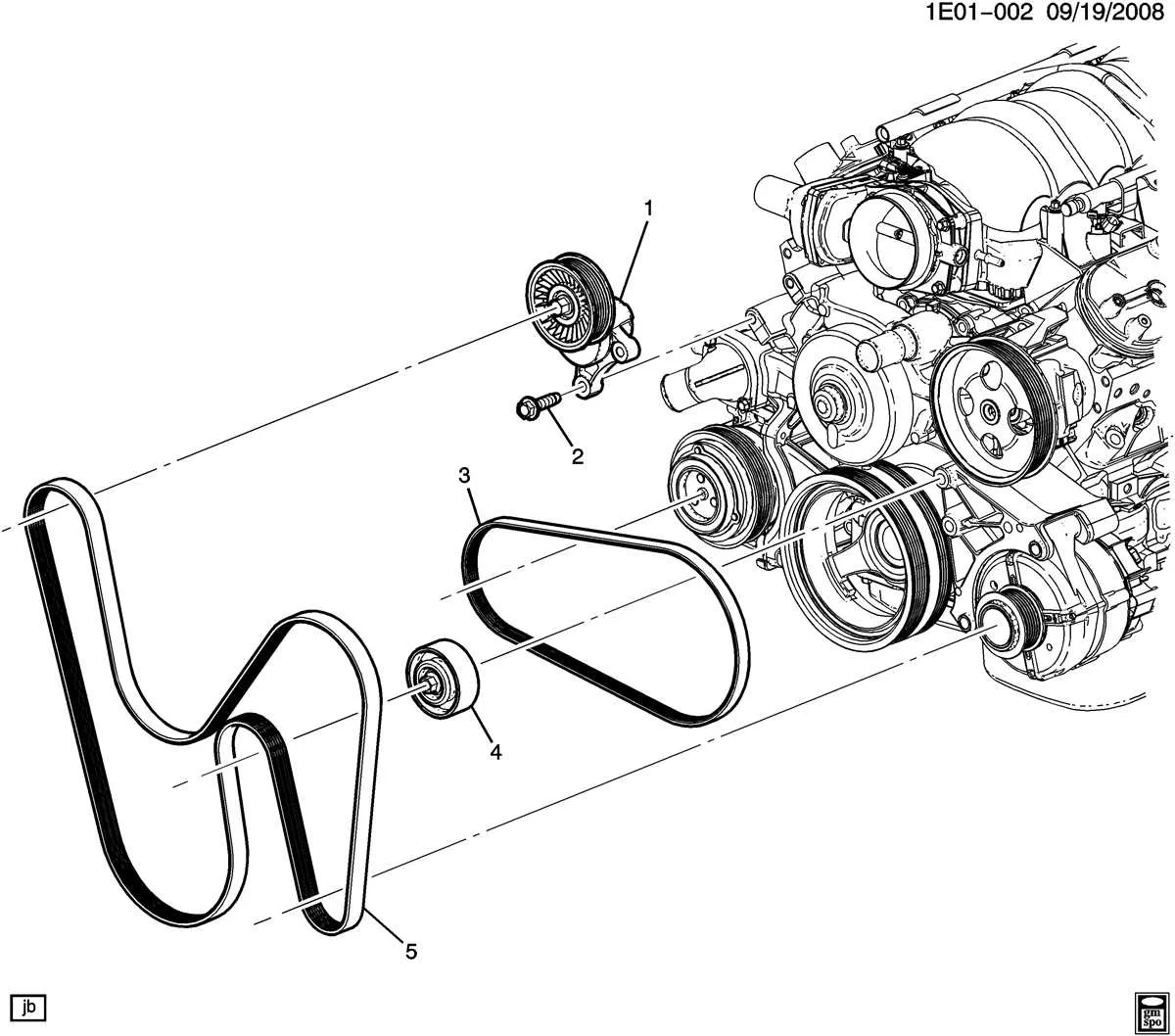

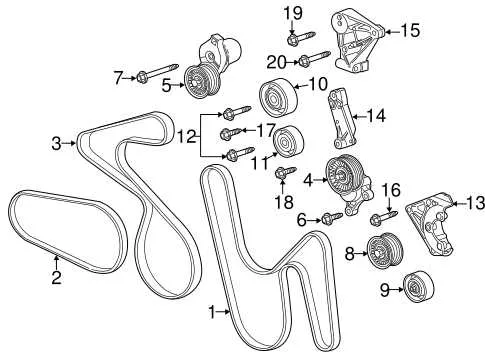

2010 Camaro 3.6 Belt Diagram

The 2010 Camaro 3.6L engine uses a serpentine belt to drive multiple components like the alternator, power steering pump, air conditioning compressor, and water pump. It’s crucial to install the belt correctly to ensure optimal engine performance and avoid premature wear. Always refer to the factory belt diagram, which is typically found under the hood, for the most accurate routing information.

To replace the serpentine belt, first relieve the tension by using a belt tensioner tool. Once the belt is loose, carefully remove it from all pulleys and components. Install the new belt following the diagram’s routing, ensuring that the belt sits snugly in the grooves of each pulley. Double-check that the belt is properly aligned before tightening the tensioner. A misaligned belt can cause damage or reduce performance over time.

If you’re troubleshooting issues related to the belt, such as squealing or slippage, inspect each pulley and the belt for signs of wear. A worn belt may have visible cracks, frays, or glazing. If any pulleys are misaligned or have excessive play, replace them immediately. Regular maintenance checks on the serpentine belt can prevent costly repairs in the future.

Understanding the Belt Routing for 2010 Camaro 3.6

The serpentine belt on the 2010 Camaro 3.6 plays a crucial role in powering essential components like the alternator, power steering pump, and air conditioning compressor. Correct routing ensures smooth engine performance and prevents belt wear or failure.

To properly route the belt, begin by identifying the components it powers. Start at the top of the engine, passing the belt around the alternator and water pump pulleys. Ensure the belt then moves over the tensioner and idler pulleys. The belt should follow the designated path, which can be found in the engine bay diagram or your service manual.

For a smooth installation, ensure the belt has the correct tension. The tensioner pulley should keep the belt tight, without too much slack. If the belt is too loose, it could slip, causing damage or reducing its lifespan. If it’s too tight, it may put excess pressure on the components it powers.

After installing the belt, rotate the engine manually by hand to verify that the belt moves freely along the correct path. Check for any abnormal noise or resistance, which might indicate an incorrect routing or misalignment of pulleys. Regular inspections can prevent problems before they arise.

Step-by-Step Instructions for Replacing the Serpentine Belt on a 2010 Camaro 3.6

1. Raise the car: Begin by lifting the front of the car using a jack and securing it with jack stands. This will provide you with enough clearance to access the serpentine belt.

2. Locate the serpentine belt: The serpentine belt is located at the front of the engine, running over various pulleys. Make sure you can see the entire path of the belt for easier removal and installation.

3. Remove the tension from the belt: Use a ratchet wrench to turn the serpentine belt tensioner pulley. This will release the tension on the belt, allowing you to slide it off the pulleys. Keep the tensioner under control while you remove the belt to avoid damage.

4. Take note of the belt routing: Before removing the belt, take a picture or make a diagram of the belt routing to ensure proper installation later. This step is crucial to avoid confusion during reassembly.

5. Remove the old serpentine belt: Once the tension is released, carefully remove the old belt from the pulleys. If the belt is stuck, check for any debris or obstacles that may be preventing its removal.

6. Install the new serpentine belt: Start by threading the new belt over the pulleys, following the path outlined in the diagram or picture you made earlier. Ensure the belt is properly aligned with all pulleys and that it sits securely in place.

7. Reapply tension: Use the ratchet wrench to apply tension back to the tensioner pulley, ensuring the belt is tight enough for proper operation. Double-check that the belt is positioned correctly on all pulleys.

8. Lower the car: Once the belt is securely in place, remove the jack stands and lower the car back to the ground.

9. Test the new belt: Start the engine and observe the new serpentine belt as it runs. Listen for any unusual noises and check that the belt is running smoothly without slipping off any pulleys.

10. Final inspection: After running the engine for a few minutes, inspect the belt again to ensure it’s properly seated and aligned. If everything looks good, your serpentine belt replacement is complete.

Troubleshooting Common Belt Issues on 2010 Camaro 3.6

If you notice strange noises or issues with your Camaro’s performance, it’s likely related to the serpentine belt. Start by checking for visible damage such as cracks, frays, or signs of excessive wear. A damaged belt should be replaced immediately to prevent further damage to other components.

Another common issue is belt slippage. If the belt is slipping, the vehicle may experience poor engine performance or overheating. This can be caused by a loose tensioner or worn-out pulleys. Check the tensioner for proper tension and inspect the pulleys for signs of wear or misalignment.

If the belt is making squealing noises, especially during cold starts, it could indicate that the belt is too tight or there is an issue with the tensioner. Tighten the tensioner or replace it if it appears worn out. Ensure that the belt is properly routed according to the factory specifications.

Sometimes, the belt may appear to be in good condition but still cause issues. This can happen if there is oil or coolant contamination. Check for leaks from the engine or cooling system that may have come into contact with the belt. Clean or replace the affected components to prevent further contamination.

To troubleshoot more effectively, listen for any abnormal noises when the engine is running. A worn-out bearing in any of the pulleys could also contribute to noise and belt wear. Inspect all pulleys, and replace any that are damaged or noisy.

• Inspect the belt for cracks, frays, or signs of wear.
• Check the belt tensioner for proper tension and alignment.
• Look for oil or coolant leaks that may have affected the belt.
• Listen for unusual noises to identify pulley or bearing issues.
• Replace any worn-out pulleys or components as needed.

Addressing these issues promptly will ensure your Camaro runs smoothly and prevents unnecessary damage to other engine components.
