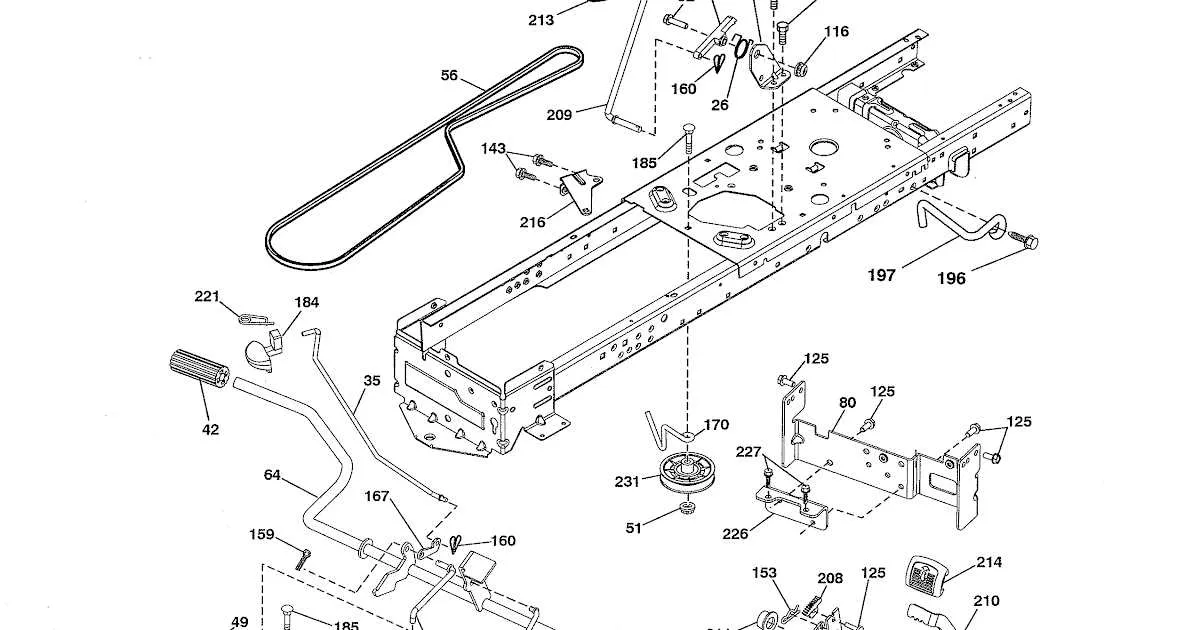

Craftsman T3000 Drive Belt Diagram and Proper Routing Instructions

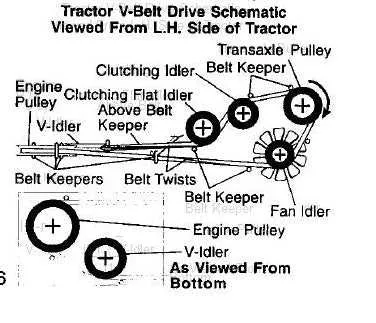

Follow the Craftsman T3000 drive belt diagram carefully to ensure correct routing and tension. The mower uses a single V-belt to connect the engine pulley to the transmission, providing consistent power transfer. Misrouting the belt can cause slipping, premature wear, or damage to the pulleys.
Identify the engine pulley, transmission pulley, and idler pulley before removing the old belt. Keep track of belt orientation and note the path around each pulley. The idler tensioner must be released fully to slide the new belt into position without forcing or stretching it.
After positioning the belt, apply firm pressure to the idler tensioner to seat the belt properly. Rotate the engine pulley by hand to confirm smooth movement and proper alignment. Regular inspection of the belt and pulleys every 25 hours of operation helps maintain consistent performance and prevents unexpected breakdowns.
Use the diagram as a reference during each replacement or maintenance session. Ensure the belt sits squarely in the pulley grooves and that no twists or kinks are present. Proper installation extends belt life and maintains the mower’s cutting efficiency.
Comprehensive Guide to Craftsman T3000 Drive Belt Diagram and Installation
Refer to the Craftsman T3000 drive belt diagram to ensure correct routing before starting installation. This prevents misalignment and premature wear.
Use the following steps for accurate belt installation:
- Disconnect the spark plug wire to prevent accidental engine start.
- Locate the tensioner pulley and release tension using a wrench or lever to remove the old belt safely.
- Compare the new belt with the old one to confirm size and teeth alignment.
- Follow the diagram to route the belt around the pulleys in the correct sequence, ensuring it sits properly in each groove.
- Apply tension gradually by adjusting the tensioner pulley until the belt has proper tension without excessive slack.
- Rotate the engine manually to verify smooth belt movement and correct alignment before reconnecting the spark plug wire.
Check the belt for wear points, fraying, or cracks, and replace immediately if any damage is detected. Lubricate pulleys lightly if recommended to reduce friction.
Maintain consistent inspection intervals, especially after heavy use, to extend the belt’s lifespan and prevent operational issues.
Identifying the Correct Drive Belt for Craftsman T3000 Models
Check the model number on your Craftsman T3000 to match the drive belt specifications. Most T3000 models use a 1/2-inch by 93-inch belt for standard drive systems, while certain hydrostatic versions require a 1/2-inch by 97-inch belt. Verify the belt type stamped on the old belt for accurate replacement.
Inspect the pulley layout and tensioner positions to determine whether a single or dual-belt configuration applies. Single-belt setups are typical on older T3000 models, while newer configurations may use a dual-belt system for enhanced power transfer.
Confirm the belt material and tooth profile. Standard V-belts provide grip for general drive applications, while reinforced or ribbed belts handle higher torque without slipping. Using a belt with incorrect specifications can lead to rapid wear or damage to the transmission system.
Cross-reference the belt part number with Craftsman’s official replacement list. Part numbers like 954-04073 and 954-04130 correspond to different T3000 configurations, ensuring you select a belt compatible with your mower’s engine and transmission combination.
Measure the existing belt if no part number is visible. Measure the outer circumference and width accurately to match replacement belts. Always double-check compatibility with both the engine pulley and mower deck pulley to prevent misalignment issues during installation.
Step-by-Step Drive Belt Routing on Craftsman T3000
Begin by positioning the tractor on a flat surface and engaging the parking brake. Remove any obstructions around the engine pulleys to access the drive belt path clearly.
Locate the main crankshaft pulley and place the new belt around it, ensuring the ribbed side aligns with the pulley grooves. Next, route the belt toward the alternator, keeping it snug but not tight.

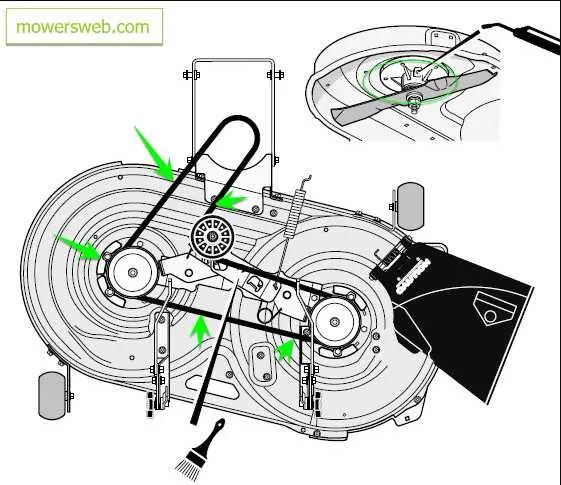

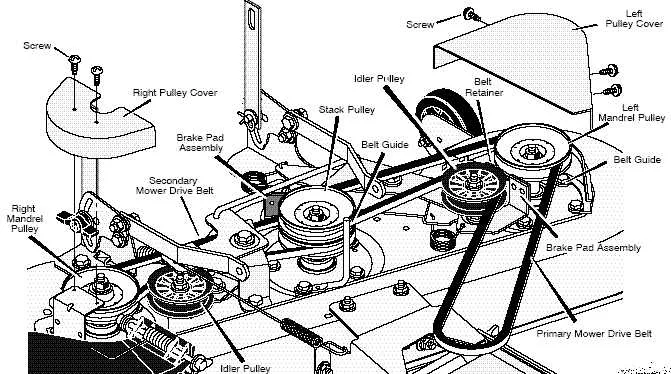

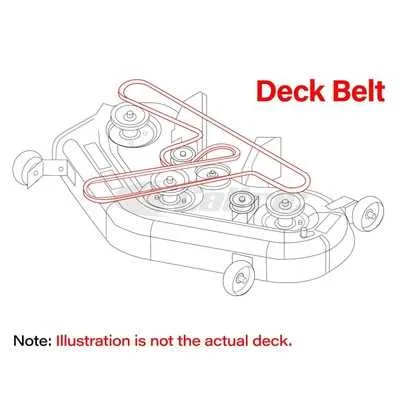

Guide the belt around the idler pulley near the engine’s center. Verify the belt sits evenly in the pulley grooves to prevent slippage or wear. Then, continue routing the belt toward the mower deck pulley if equipped, following the diagram closely.
Loop the belt over the tensioner pulley, applying pressure to maintain tension. Adjust the tensioner so the belt has approximately half an inch of deflection when pressed midway between pulleys.
Check the routing against the Craftsman T3000 drive belt diagram. Ensure the belt does not twist and all grooves align correctly. Spin the pulleys by hand to confirm smooth rotation and proper tension before starting the engine.
Finally, secure any removed covers or guards, double-check the belt path, and run the engine for a few seconds. Observe the belt operation to confirm correct installation and consistent engagement with all pulleys.
Troubleshooting Common Drive Belt Issues on Craftsman T3000
Inspect the belt for visible signs of wear, including cracks, fraying, or glazing. Replace the belt immediately if any of these defects appear to prevent slippage or breakage.
Check belt tension using a tension gauge or by pressing down at the midpoint. The belt should deflect approximately 1/2 inch under moderate pressure. Adjust the tensioner if the deflection exceeds this range.
Listen for squealing or unusual noises during operation. Squealing often indicates misalignment of pulleys or insufficient tension. Realign pulleys and retension the belt to eliminate the noise.
Examine pulleys for wear or buildup of debris. Remove any dirt, grease, or residue that could cause uneven wear or slippage. Replace any pulleys with worn grooves or sharp edges.
Monitor performance issues such as inconsistent speed or difficulty engaging attachments. These symptoms often result from a stretched or slipping belt. Replacing the belt typically restores proper function.
Verify that the belt routing matches the official Craftsman T3000 diagram. Incorrect routing can lead to premature wear, slipping, or failure of connected components.
After any adjustment or replacement, run the mower under no-load conditions for a few minutes and recheck tension. Ensure smooth operation without vibration before full use.
