2004 Jeep 4.0 Belt Diagram and Maintenance Tips
Share

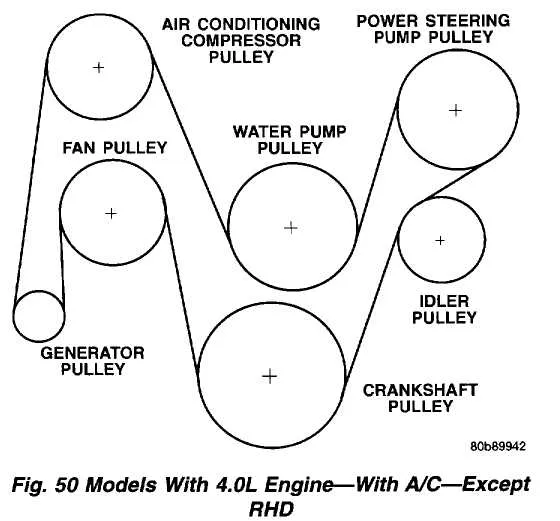

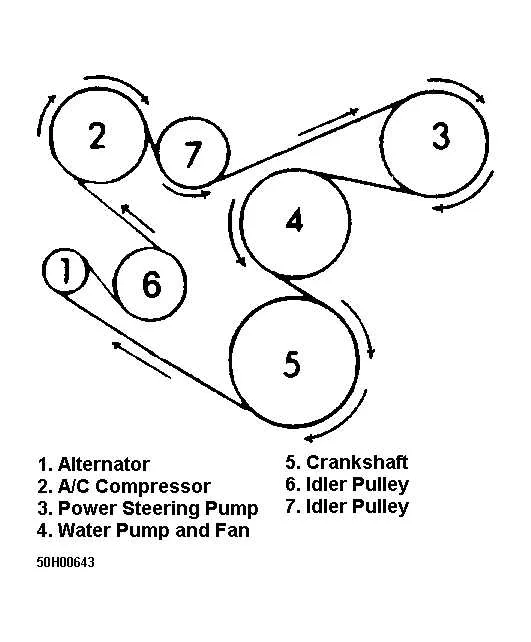

2004 Jeep 4.0 Belt Diagram
For proper belt routing in the 2004 Jeep 4.0, follow the diagram below. Incorrect belt placement can cause significant engine issues and reduce performance. Always ensure the belt is in proper condition and tightly fitted.
- Start with the crankshaft pulley, ensuring the belt loops around it first.
- Next, route the belt over the alternator pulley. This is a common tension point, so make sure it’s aligned correctly.
- Pass the belt under the power steering pulley. It should be placed securely without slipping off the edges.
- Ensure the belt loops around the idler pulley, which helps maintain tension and keeps the belt in place.
- Complete the route by passing the belt over the water pump pulley and then securing it around the tensioner pulley.
Double-check all pulleys for proper alignment. A misaligned pulley can cause premature wear on the belt. If you’re replacing the belt, check the pulleys for any visible damage, and replace them if necessary.
After installation, manually rotate the crankshaft to ensure the belt is correctly positioned and doesn’t slip or twist.
Identifying Key Components in the 2004 Jeep 4.0 Belt System
Alternator: This is one of the most important components, as it keeps the battery charged. It is driven by the serpentine belt and is located on the driver’s side of the engine. Check the condition of the alternator pulley and belt for wear.
Power Steering Pump: The power steering pump is connected to the serpentine belt and allows for smooth steering. Inspect the belt’s tension around this component, as it is crucial for preventing steering issues.
Air Conditioning Compressor: If your Jeep has air conditioning, the compressor will also be powered by the serpentine belt. Ensure the belt is properly aligned and in good condition to prevent AC failure.
Water Pump: The water pump circulates coolant through the engine, maintaining the temperature. It is also driven by the serpentine belt. Listen for any unusual noises that could indicate a worn-out belt or pump.
Idler Pulley and Tensioner Pulley: These pulleys maintain the belt’s tension. If the belt is loose or squealing, check the condition of these pulleys, as worn bearings can lead to belt misalignment and premature wear.
Crankshaft Pulley: This component is located at the bottom of the engine and is responsible for driving the serpentine belt. Any signs of damage or misalignment here can lead to improper belt operation.
How to Replace the Serpentine Belt on a 2004 Jeep 4.0
First, disconnect the negative battery terminal to avoid electrical issues. Use a 3/8″ ratchet to release tension from the serpentine belt tensioner. Rotate the tensioner clockwise to relieve the pressure and remove the belt from the pulleys. Make sure to note the belt routing before removal.
Inspect the old belt for any visible signs of wear or damage, such as cracks or fraying. If there’s any significant wear, it’s time to replace the belt. Compare the new belt with the old one to confirm it matches in size and design.
Install the new serpentine belt by following the same routing pattern. Start by placing the belt over the pulleys, making sure it fits securely in each groove. Once the belt is positioned, use the ratchet to release the tensioner, allowing it to apply pressure to the belt.
Finally, double-check the belt alignment on all pulleys to ensure it’s seated properly. Reconnect the battery and start the engine to confirm the belt is functioning correctly. Listen for any unusual noises that might indicate improper installation.
Troubleshooting Common Issues with the Belt in the 2004 Jeep 4.0
Start by inspecting the serpentine belt for visible signs of wear, such as cracks, fraying, or glazing. These are indicators that the belt might need replacing. If the belt is slipping or squealing, check the tensioner for proper operation. A faulty tensioner can cause the belt to lose tension and slip, leading to performance issues.
If the belt is making a squeaking noise, especially when the engine is cold, it could be a sign of contamination from oil or coolant. In this case, clean the belt and pulleys thoroughly. Also, ensure the belt is properly aligned with the pulleys; misalignment can cause uneven wear and reduce belt life.
If you notice a decrease in power steering or air conditioning performance, check for a loose or worn belt. A loose belt can slip and fail to drive the accessories effectively. Tighten the tensioner if necessary, but if it shows signs of damage, replacement is required.
Another common issue is the belt becoming brittle due to age or exposure to high temperatures. In such cases, the belt can break, causing immediate loss of power to essential systems like the alternator, water pump, and power steering. Replace old belts before they fail completely to avoid major engine damage.
For those experiencing overheating, the serpentine belt is responsible for driving the water pump. A broken or loose belt will cause coolant circulation to stop, leading to engine overheating. Regular inspection and timely replacement can prevent this issue.
| Issue | Cause | Solution |
|---|---|---|
| Belt Squealing | Slipping due to low tension or contamination | Clean the belt and pulleys, check tensioner |
| Power Steering Failure | Loose or worn belt | Tighten or replace the belt |
| Overheating Engine | Broken or loose serpentine belt | Replace the belt to restore coolant circulation |
| Belt Cracks or Fraying | Old or worn-out belt | Replace the belt to avoid complete failure |
