Cub Cadet LT1046 Deck Belt Diagram and Maintenance Guide

To replace or troubleshoot the deck belt on your Cub Cadet LT1046, start by understanding the belt routing. The deck belt connects various pulleys and ensures proper movement for the mower blades. Refer to the detailed diagram before beginning any repairs to avoid unnecessary complications.

The diagram is typically found in the user manual or printed on the mower itself, often near the engine or on the frame. Ensure that you follow the exact path outlined in the diagram. A common mistake is misplacing the belt around the pulleys, which can lead to malfunction or damage to the system.

Step-by-step replacement: Begin by raising the mower deck. Remove any debris around the pulleys to ensure smooth operation during the belt replacement. Disconnect the battery for safety, then proceed to remove the old belt by loosening the tensioner pulley. Afterward, install the new belt according to the diagram, ensuring it is properly aligned and seated.

Keep in mind that the belt may stretch over time. If your mower starts to make unusual noises or the blades don’t spin correctly, check the belt for wear and replace it when necessary.

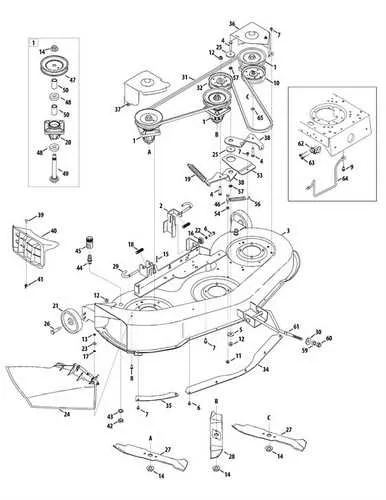

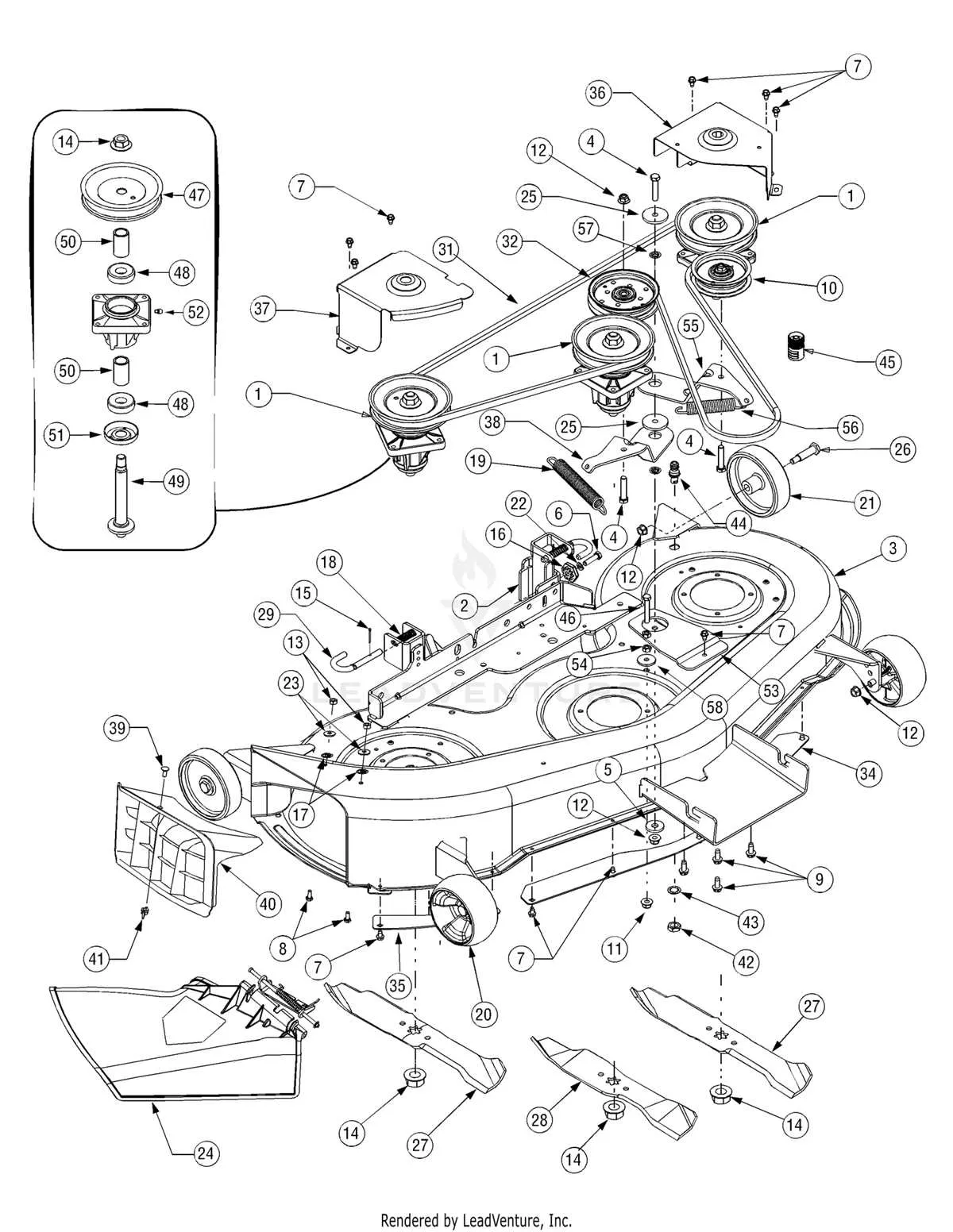

Cub Cadet LT1046 Deck Belt Diagram

The Cub Cadet LT1046 deck belt diagram provides a detailed layout for proper belt routing. To replace or inspect the deck belt, ensure the engine is turned off and the ignition key is removed to avoid accidents. Begin by lifting the deck to its highest position using the lift lever. This will provide sufficient space to work under the deck.

Start by removing the deck belt from the idler pulleys and the engine pulley. Make note of the current positioning of the belt, as this will help guide you in reinstalling the new one. The belt should loop around the spindle pulleys, idler pulleys, and the engine pulley in a specific pattern to ensure smooth operation.

Refer to the diagram for belt routing, which typically shows the path around the pulleys. Pay special attention to the direction of the belt, as incorrect placement can cause slippage or damage to the components. For a smoother installation, gently rotate the deck to align the belt and pulleys correctly.

Once the new belt is in place, rotate the blades manually to confirm the belt is aligned properly and there’s no excessive slack. Tighten the belt using the appropriate tensioner settings, as specified in the owner’s manual. Finally, lower the deck and check for smooth belt movement during operation.

How to Identify the Correct Deck Belt for Cub Cadet LT1046

Start by checking the model and serial number of your Cub Cadet LT1046. You can usually find this information on the frame or the deck of the mower. This is crucial for determining the exact specifications needed for the belt.

Next, refer to the owner’s manual for the recommended belt size and type. If the manual is unavailable, consult the Cub Cadet website or an authorized dealer to get the right replacement belt for your mower’s deck.

Look for the correct belt length and width based on the deck size (46 inches). Typically, for the LT1046, the belt will be a specific length and made of durable material, often reinforced with fabric for strength. Verify these measurements carefully when selecting a replacement belt.

Ensure that the belt matches the deck’s routing diagram. A mismatch in belt configuration can cause operational issues, such as slippage or improper functioning of the blades. Check the belt routing closely before installation to ensure it follows the manufacturer’s diagram exactly.

If you’re unsure about the belt’s compatibility, visit a local dealer or use an online parts finder tool to match the exact specifications of your deck belt. Don’t attempt to use a generic or incorrect belt, as it can lead to performance problems.

Step-by-Step Instructions for Installing the Deck Belt on Cub Cadet LT1046

1. Turn off the mower and disconnect the battery to ensure safety during the installation.

2. Lift the deck to expose the deck belt and pulley system. Use a jack or a deck lift lever to raise the deck.

3. Remove the old deck belt. Carefully release the tension from the belt by using the belt tensioner. Pull the belt off the pulleys.

4. Install the new deck belt by following the pulley routing diagram specific to the Cub Cadet LT1046. Ensure the belt is placed correctly on each pulley.

• Start by feeding the belt around the engine pulley and then through the idler pulley.
• Guide the belt through the deck pulleys, ensuring it stays on the correct grooves.
• Ensure the belt is not twisted and sits flat against the pulleys.

5. Reapply tension to the deck belt by moving the tensioner arm back into position. This will secure the belt in place and ensure it remains taut.

6. Check the belt’s alignment and make sure it moves smoothly along the pulleys without interference.

7. Lower the deck back to its original position and reconnect the battery. Start the mower to verify the new belt is functioning properly.

8. If the belt shows any signs of slipping or misalignment, recheck the installation and adjust the tension as necessary.

Common Issues with the Deck Belt on Cub Cadet LT1046 and How to Fix Them

Slipping Deck Belt: A common problem is a slipping deck belt, which reduces mowing efficiency. This often occurs when the belt is loose or worn out. Inspect the belt for signs of damage and check the tension. If it’s too loose, adjust the tensioner or replace the belt if it’s excessively worn.

Worn or Cracked Belt: Over time, the deck belt can become cracked or frayed, causing it to snap or fail. Examine the entire length of the belt for visible wear. Replace any damaged sections immediately to prevent further damage to other components.

Misalignment of the Belt: Misalignment can cause the belt to move unevenly, leading to premature wear. Ensure the belt is routed correctly according to the Cub Cadet LT1046 deck belt diagram. If the belt is misaligned, recheck the routing and adjust as necessary.

Stretched Belt: A stretched belt is unable to maintain proper tension and may slip or fail to engage. This issue can be corrected by replacing the belt with a new one that matches the manufacturer’s specifications.

Debris in the Pulley System: Accumulated grass, dirt, or other debris can interfere with the smooth operation of the deck belt. Regularly clean the pulleys and belt path to ensure no debris is obstructing the system. This will help maintain optimal performance.

Broken Pulley: A faulty or broken pulley can cause the belt to malfunction. Check the condition of each pulley and ensure that they rotate smoothly. Replace any damaged pulleys to prevent further issues with the belt.
