2008 Lexus ES 350 Serpentine Belt Diagram and Routing Guide

The serpentine belt in a 2008 Lexus ES 350 plays a critical role in powering various engine components. If you’re looking for a diagram, the first step is to locate the tensioner pulley, which helps keep the belt tight and secure. Understanding the path of the belt around the pulleys is essential when replacing or inspecting it.

Step 1: Identify the pulleys on the diagram. These include the alternator, power steering pump, water pump, and air conditioning compressor. Each pulley should align with the proper slots on the belt to ensure everything runs smoothly.

Step 2: Tensioner pulley adjustment is necessary to maintain correct tension. Over time, tension can loosen, leading to belt slippage or even damage. The tensioner should be checked regularly to avoid potential problems.

Step 3: Belt routing and replacement must be followed exactly as shown in the diagram. A misaligned serpentine belt can cause engine failure. Always use the diagram as a guide when installing a new belt to ensure proper alignment and avoid unnecessary strain on the engine components.

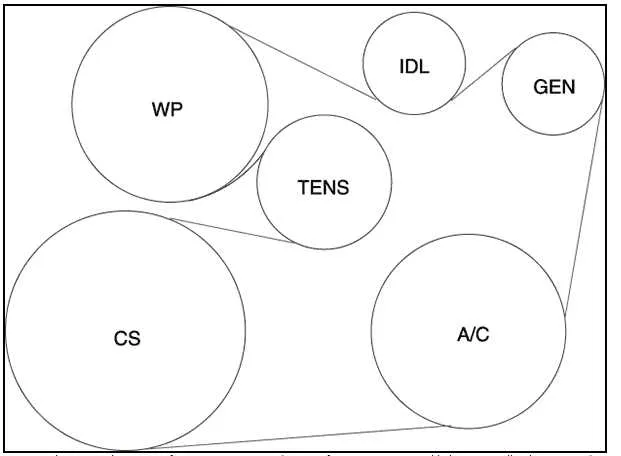

2008 Lexus ES 350 Serpentine Belt Diagram

To replace or inspect the serpentine belt on a 2008 Lexus ES 350, refer to the vehicle’s serpentine belt diagram for proper routing. This diagram ensures the correct positioning of the belt around various pulleys, preventing misalignment or damage to other components. Ensure the belt is routed in the correct direction and under proper tension for optimal performance.

The diagram for the 2008 Lexus ES 350 typically shows the placement of the alternator, power steering pump, water pump, and other key accessories powered by the serpentine belt. Double-check the direction of the belt’s ribs to ensure proper grip on the pulleys, which directly affects the engine’s efficiency and the longevity of the belt itself.

If you’re replacing the serpentine belt, start by locating the tensioner pulley. Use a socket wrench to relieve tension and remove the old belt. Refer to the diagram to ensure the new belt matches the correct path before reinstalling it. If the belt shows any signs of cracking, fraying, or significant wear, replace it immediately to avoid engine damage.

How to Read the 2008 Lexus ES 350 Serpentine Belt Diagram

Begin by identifying the main components of the serpentine belt system. Focus on the alternator, power steering pump, water pump, and air conditioning compressor, which are typically the most prominent elements in the diagram.

Next, understand the layout of the belt’s path. The diagram shows how the belt loops around each pulley. Ensure the belt’s routing matches the diagram to avoid any tension or misalignment issues that could cause premature wear.

Pay attention to the direction of the arrows on the diagram. These indicate the direction of rotation for each pulley and the belt. Knowing this helps you determine the correct path for the belt and ensure it operates smoothly without slipping.

Note any tensioners or idler pulleys, which play a key role in maintaining proper belt tension. These pulleys are usually depicted with a spring-loaded mechanism that ensures the belt stays taut for efficient operation.

Lastly, verify the belt’s overall condition when inspecting it against the diagram. A worn or frayed belt may not follow the path as intended, leading to potential failures in the system. Replacing a damaged belt is crucial for the continued performance of your Lexus ES 350.

Step-by-Step Instructions for Replacing the Serpentine Belt on a 2008 Lexus ES 350

First, disconnect the negative battery terminal to ensure safety while working around the engine components.

Next, locate the serpentine belt tensioner. Use a wrench or socket to relieve tension on the belt by turning the tensioner clockwise. This will loosen the belt, allowing you to remove it easily from the pulleys.

Carefully remove the serpentine belt from the engine, making sure not to damage any other components. Take note of the belt routing or refer to the diagram for proper reinstallation.

Now, check the new serpentine belt to ensure it matches the old one in size and tooth pattern. Align the new belt according to the routing diagram, making sure it sits correctly on each pulley.

Use the tensioner to apply pressure and tighten the new belt, ensuring it fits snugly on all pulleys. Verify that the belt is properly tensioned and does not have any slack.

Finally, reconnect the battery terminal and start the engine. Listen for any unusual noises and check that the belt is running smoothly on all pulleys. If everything appears to be functioning correctly, the replacement is complete.

Common Issues and Troubleshooting Tips for the 2008 Lexus ES 350 Serpentine Belt

One of the most common issues with the serpentine belt in a 2008 Lexus ES 350 is belt wear. Over time, the belt can crack, fray, or lose tension, leading to poor performance of engine components such as the alternator or power steering pump. Regular inspection can help prevent unexpected failures.

If the belt makes a squealing or chirping noise, it may indicate that it’s slipping. This often occurs when the belt is too loose or worn. Check the tensioner for proper operation and adjust or replace the belt if necessary.

Another issue is belt misalignment. If the belt appears to be riding off-center or is visibly out of line, check the pulleys for wear or damage. Misalignment can lead to premature wear and potential belt failure.

Cracking on the belt’s surface can be a sign of aging or exposure to excessive heat. If the cracks are deep, replace the belt immediately to avoid a complete failure that could damage surrounding components.

If you notice reduced performance in the power steering or alternator, this could be due to the serpentine belt not turning these components properly. Inspect the belt for tension and wear, and replace it if necessary to restore full functionality.

It’s also essential to check the belt tensioner. A worn or faulty tensioner can cause the belt to slacken, leading to slipping and inefficient operation. If the tensioner appears faulty, replace it along with the belt to ensure everything operates smoothly.

• Check belt for cracks or wear regularly.
• Adjust belt tension if noise occurs.
• Ensure pulleys are aligned and in good condition.
• Replace the tensioner if it shows signs of wear.
• Replace the serpentine belt if any signs of damage are visible.
