2010 Hyundai Santa Fe Serpentine Belt Diagram and Routing Instructions
If you’re working on a 2010 Hyundai Santa Fe and need to replace or inspect the serpentine belt, having the correct diagram at hand is crucial for an efficient repair. The serpentine belt drives multiple components of the engine, such as the alternator, power steering pump, and air conditioning compressor. Knowing the precise routing of the belt will save you time and prevent mistakes.

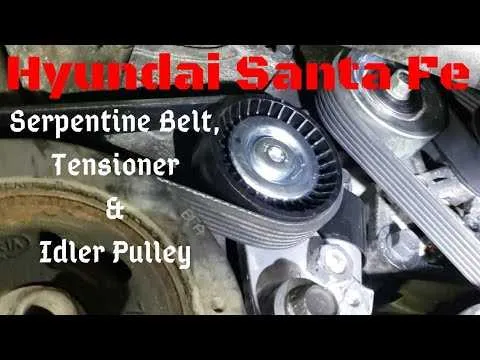

The 2010 Santa Fe uses a single serpentine belt that is routed through several pulleys and tensioners. It’s important to note the belt tensioner’s location, as it must be adjusted properly to ensure smooth operation. A misrouted or incorrectly tensioned belt can lead to premature wear or even cause the belt to snap, potentially damaging other engine components.
To properly replace or adjust the serpentine belt, start by loosening the tensioner pulley, then carefully remove the old belt. Make sure the new belt follows the exact same path as shown in the diagram. Check all the pulleys for signs of wear or damage, and replace any parts if necessary before installing the new belt.

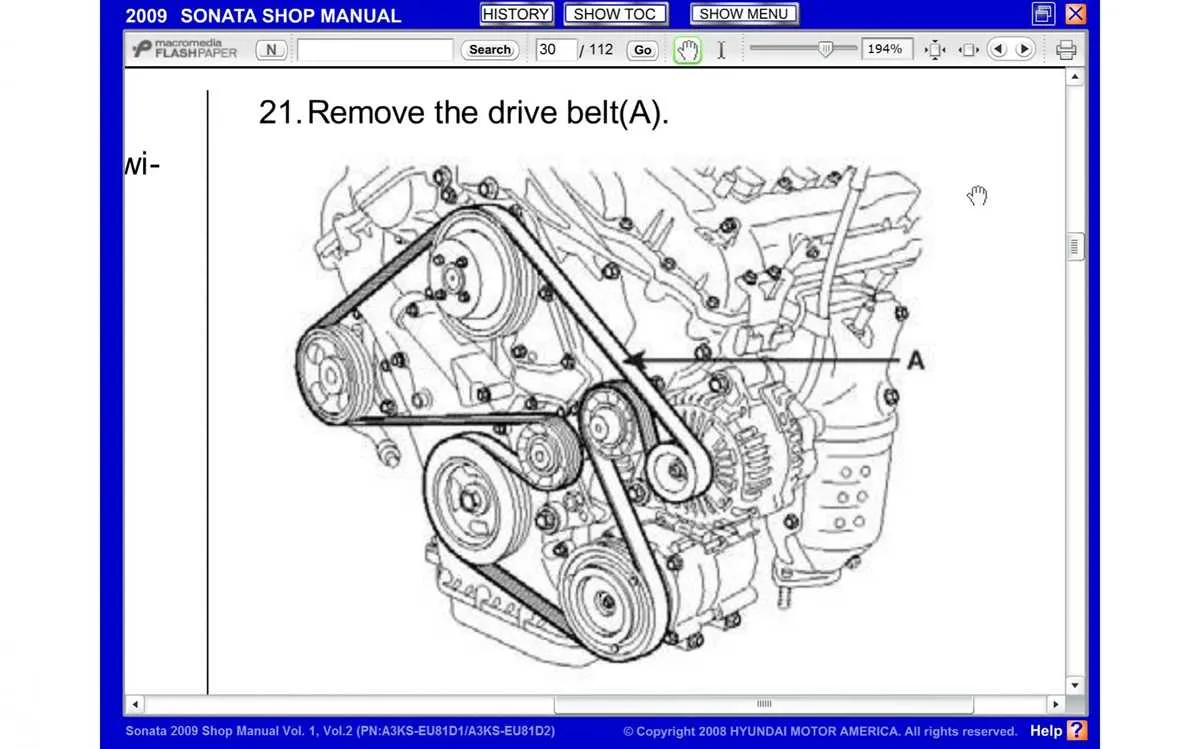

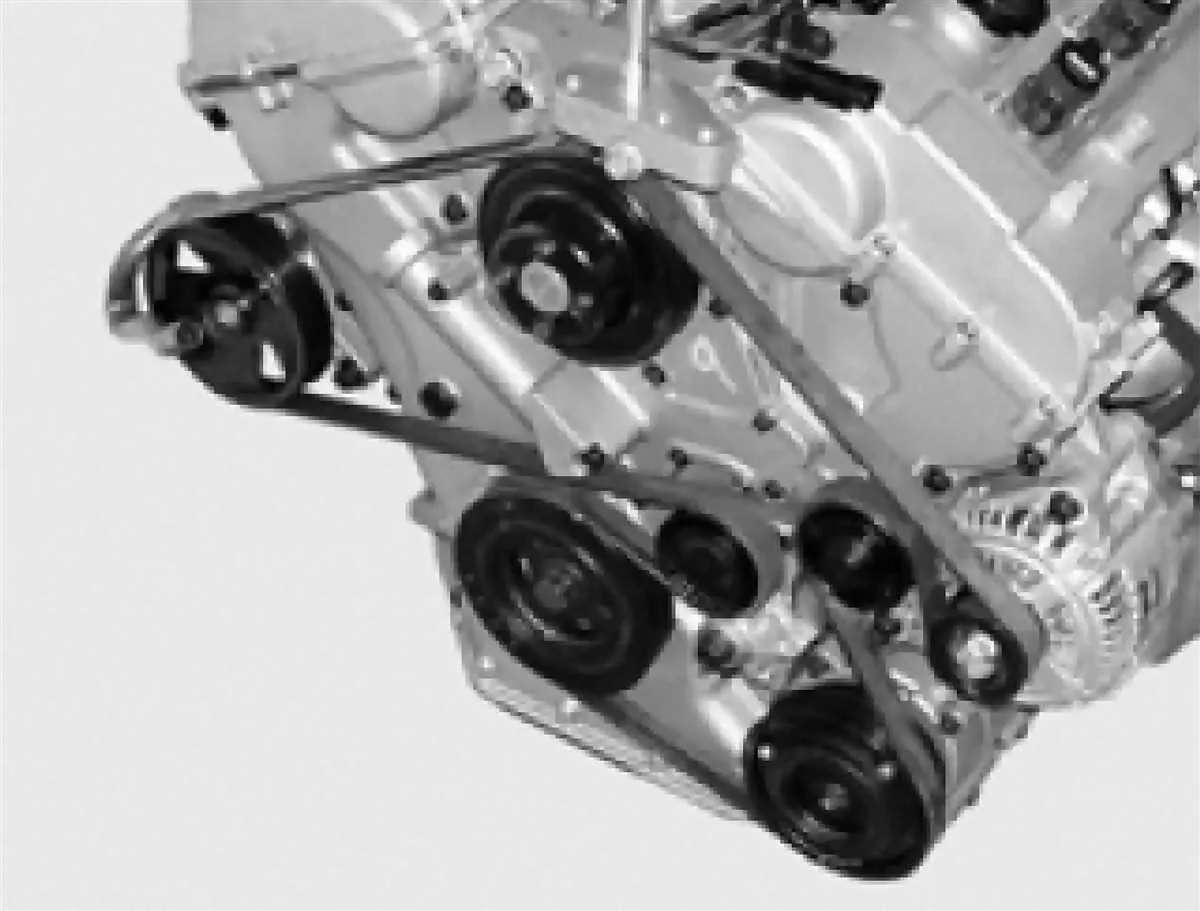

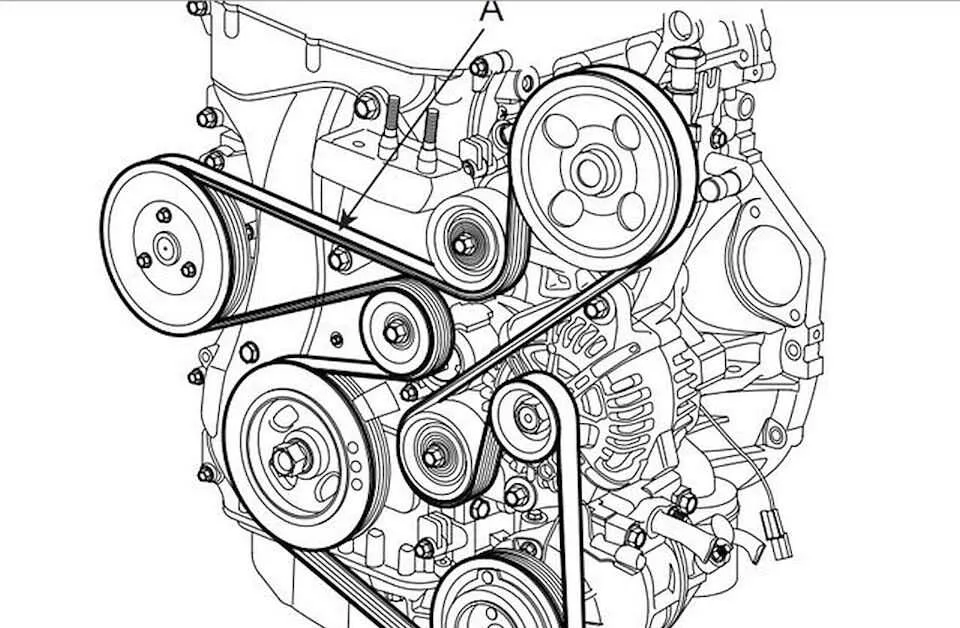

2010 Hyundai Santa Fe Serpentine Belt Diagram
For the 2010 Hyundai Santa Fe, the serpentine belt system operates multiple components like the alternator, power steering pump, air conditioning compressor, and the water pump. Understanding the correct routing of the serpentine belt is crucial for maintaining these systems’ proper functioning.
When replacing or inspecting the serpentine belt, it’s important to follow the exact path shown in the diagram. This will ensure that the belt interacts correctly with all the pulleys and components. Any deviation in routing can lead to improper tension or failure to operate specific accessories like the air conditioning or power steering.
To visualize the serpentine belt routing for the 2010 model, follow these basic steps:
- The belt begins at the crankshaft pulley, running clockwise over the tensioner pulley.
- It moves across the alternator pulley, then to the power steering pulley.
- The belt runs next to the air conditioning compressor pulley and then to the water pump pulley.
- Lastly, the belt loops back around to the crankshaft pulley, completing the cycle.
Using the correct serpentine belt diagram ensures smooth operation and prevents damage to critical engine parts. Always replace the belt if any signs of wear or cracking are visible, as a worn belt can slip, overheat, or snap, leading to costly repairs.
How to Locate the Serpentine Belt on a 2010 Hyundai Santa Fe
To locate the serpentine belt on a 2010 Hyundai Santa Fe, open the hood and stand in front of the vehicle. The serpentine belt runs across the engine, connecting various components such as the alternator, power steering pump, and air conditioning compressor. It is visible along the front side of the engine, typically on the passenger side.
Look for the tensioner pulley, which is responsible for keeping the belt tight. The belt itself will loop around it and several other pulleys. The serpentine belt is usually located near the top or side of the engine and can be easily identified due to its flat, wide appearance.
If you have trouble spotting the belt, check the engine diagram that is often found on a label attached to the hood or near the engine bay. This diagram shows the exact path the belt follows around each pulley, making it easier to track its location.
Once you’ve found the belt, check for any signs of wear, such as cracks, fraying, or glazing. This can help determine if it’s time for a replacement.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2010 Hyundai Santa Fe
To replace the serpentine belt on your 2010 Hyundai Santa Fe, follow these detailed steps to ensure the job is done smoothly.
- Gather Tools and Parts: You’ll need a new serpentine belt, a ratchet wrench, a 3/8″ socket, and a belt tensioner tool. Make sure the new belt matches the part number for your vehicle model.
- Locate the Serpentine Belt: The belt is located in the front of the engine, running through various pulleys, including the alternator, power steering pump, and air conditioning compressor.
- Release Tension: Use the belt tensioner tool to release the tension on the serpentine belt. Insert the tool into the tensioner pulley and rotate it clockwise or counterclockwise, depending on the direction of your tensioner. This will loosen the belt.
- Remove the Old Belt: Once the tension is released, slip the serpentine belt off the pulleys. Take note of its routing for reinstallation.
- Inspect the Pulleys: Check all pulleys for damage or wear. Spin each one by hand to ensure it moves smoothly without any grinding or noise.
- Install the New Belt: Begin by positioning the new belt on the first pulley, then work your way through the rest of the pulleys. Refer to the belt routing diagram under the hood to ensure proper alignment.
- Reapply Tension: Using the belt tensioner tool, rotate the tensioner back into place. Make sure the belt is properly tensioned without being too tight or too loose.
- Double-Check the Installation: Inspect the belt to confirm it’s seated correctly on all pulleys. Look for any signs of misalignment or twisting.
- Test the Engine: Start the engine and let it run for a few minutes. Listen for any unusual noises or vibrations that might indicate the belt is not functioning properly.
Once completed, you’ve successfully replaced the serpentine belt. Regularly check the belt for signs of wear, especially if you hear squealing noises or experience issues with power steering or other accessories. Replacing the serpentine belt on time helps avoid costly repairs later on.
Common Issues with the Serpentine Belt System in 2010 Hyundai Santa Fe
Check for worn-out or cracked serpentine belts as soon as you notice unusual engine noises or a squeaking sound. The serpentine belt in the 2010 Hyundai Santa Fe can wear out over time, leading to decreased efficiency in powering components like the alternator and air conditioning. A cracked or frayed belt can cause these components to fail, potentially leaving you stranded.
Inspect the belt tension regularly. An overly tight or loose belt can strain the system. A loose belt leads to slipping, reducing the performance of powered accessories, while a tight belt might stress the engine components, causing premature wear. Tensioner failure is common, and replacing the tensioner is crucial when issues arise.
Vibration or jerky movement often signals a misaligned pulley. This could be due to a damaged pulley bearing or an issue with the serpentine belt routing. Address misalignment quickly to prevent further damage to the belt or the system.
Check for signs of overheating. A malfunctioning water pump or a clogged radiator can cause the serpentine belt to become too hot, leading to the belt losing its flexibility and cracking. This heat damage can shorten the lifespan of your serpentine belt significantly.
Monitor the alignment and condition of the pulleys. Any irregularities like excessive wear or misalignment should be addressed promptly. If the pulleys wear down unevenly, they can cause the serpentine belt to wear out prematurely or even snap. Regular pulley inspections can save you from costly repairs.
