Ariens Edge 52 Belt Diagram and Installation Guide

To keep your Ariens Edge 52 in optimal working condition, understanding the belt diagram is a must. This diagram helps you ensure that the belts are installed correctly and functioning properly, which is crucial for the mower’s performance. If you’re facing issues with power transmission or unusual noises, checking the belt system could be the first step towards resolving the problem.

Step 1: Start by locating the belt diagram for your Ariens Edge 52. This can usually be found in the owner’s manual or on a label on the mower itself. The diagram provides a clear visual of how the belts should be routed around the pulleys and components.

Step 2: Inspect the belts for any signs of wear or damage. If the belts appear cracked, frayed, or excessively loose, it’s time to replace them. Make sure to replace both the drive belt and the blade belt if necessary to ensure smooth operation.

Step 3: Once the belts are in good condition, follow the diagram to reinstall them. Take extra care to match the routing exactly as shown. Incorrect belt placement can cause misalignment, leading to further mechanical issues.

By following these simple steps and referring to the Ariens Edge 52 belt diagram, you can keep your mower running efficiently for many seasons. Regular maintenance and proper belt inspection will minimize breakdowns and extend the life of your equipment.

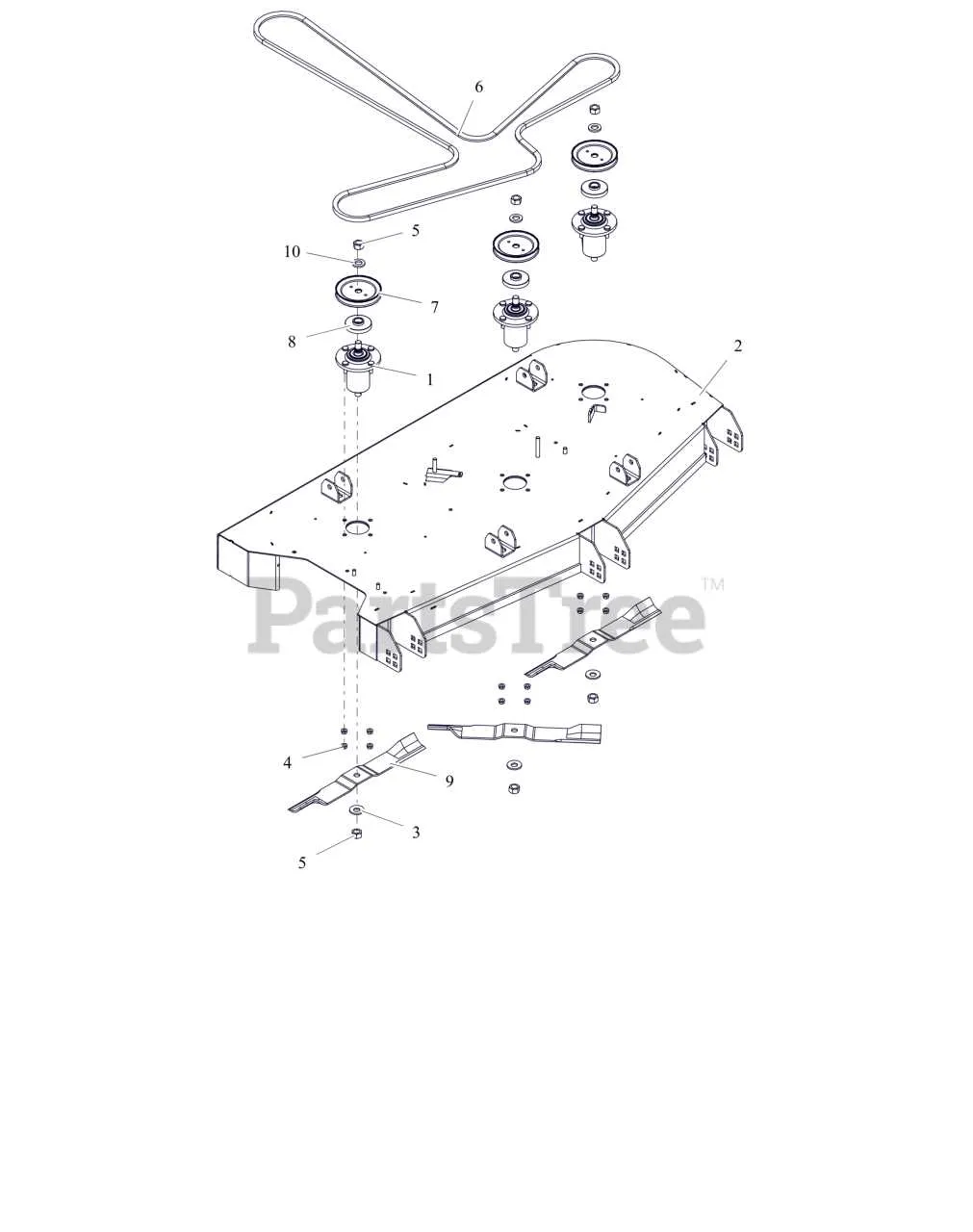

Ariens Edge 52 Belt Diagram

To replace the belt on your Ariens Edge 52, follow this step-by-step diagram for the correct routing. Begin by removing the deck from the mower and locating the belt. The diagram indicates the path from the engine pulley to the idler pulleys and then to the blade drive pulleys.

Make sure to note the position of each pulley and the tensioning spring. The idler pulley helps maintain the tension, ensuring the belt operates smoothly. The diagram highlights the alignment of the belt around the engine and blade pulleys, which must be precise to avoid premature wear or damage.

Refer to the diagram for exact positioning. The belt should be routed in such a way that it fits snugly but is not overly tight. This ensures proper functionality while minimizing strain on the engine and components.

Once you’ve routed the belt according to the diagram, check the tension and ensure that the belt is not twisted. Reattach the deck, and test the mower to confirm the belt is functioning correctly.

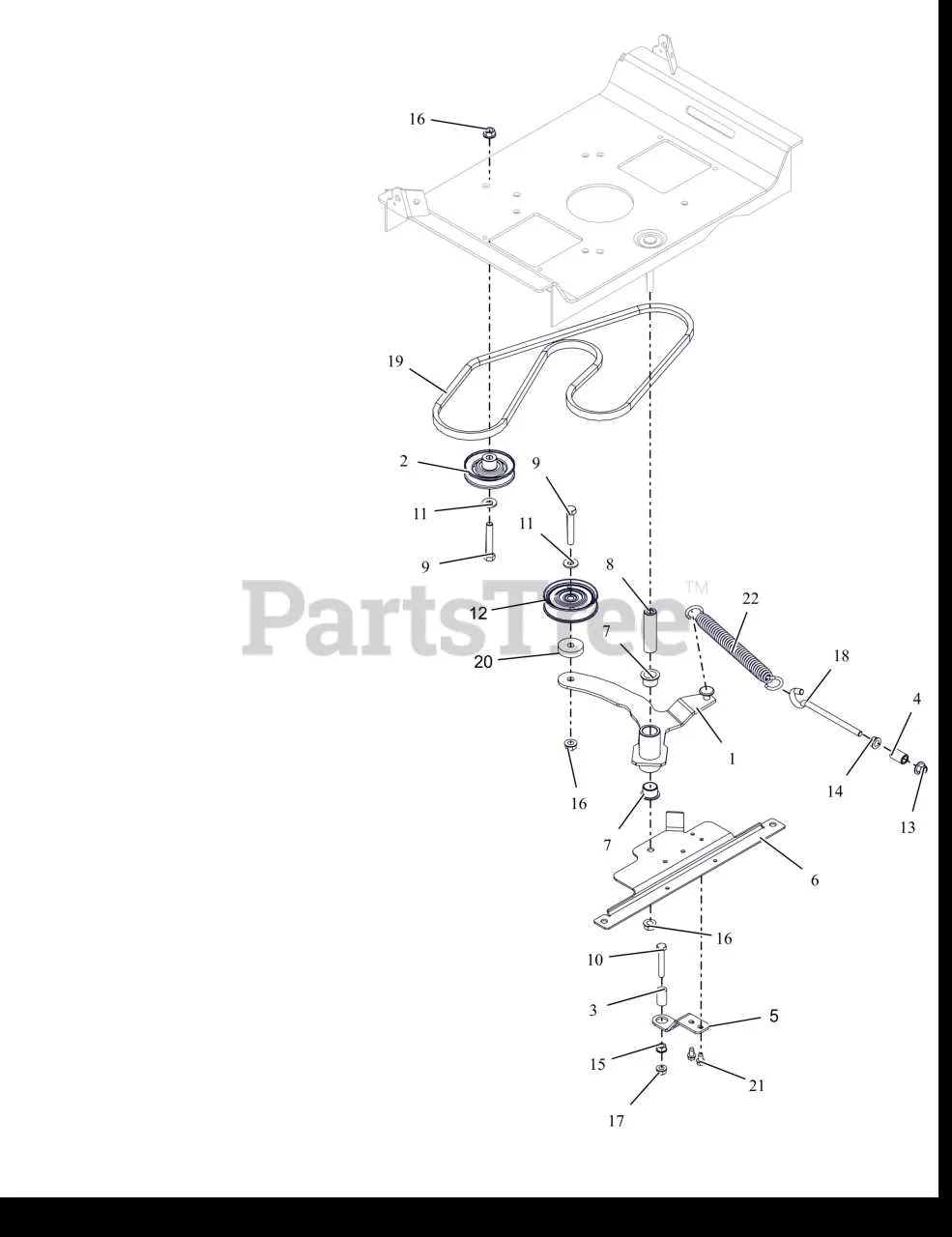

How to Identify Belt Components in the Ariens Edge 52

Check the belt routing diagram for your Ariens Edge 52 to understand how the components are arranged. The primary parts you’ll need to identify are the drive belt, idler pulley, and tensioner. Start by locating the drive belt, which transfers power from the engine to the cutting deck. This belt runs from the engine pulley to the main deck pulley. The belt is typically wider than the other components and may have markings for easy identification.

The idler pulley controls the tension on the drive belt. It helps maintain proper tension to ensure the belt doesn’t slip. Look for a smaller pulley, often mounted on a spring-loaded bracket, positioned along the belt’s path. The tensioner assists in adjusting the belt’s tightness. You can find it near the idler pulley, and it should be able to pivot, adjusting the belt tension automatically as the mower operates.

Pay attention to the belt guides and roller components as well. These parts direct the belt, keeping it aligned with the pulleys. When replacing or inspecting the belt, confirm that the guides are not worn out and that the belt stays in the correct position during operation.

After locating these parts, ensure there is no wear on the belt or pulleys. If the belt is cracked or the pulleys are misaligned, consider replacing the components to maintain optimal performance.

Step-by-Step Guide to Replacing the Drive Belt on Ariens Edge 52

To replace the drive belt on your Ariens Edge 52, follow these steps to ensure smooth operation and extend the life of your machine.

1. Prepare Your Tools and Workspace

Before starting, gather a wrench, socket set, screwdriver, and a replacement belt specific to your Ariens Edge 52 model. Ensure the mower is on a flat, stable surface and the engine is turned off. Disconnect the spark plug for safety.

2. Access the Belt

Locate the belt cover and remove any screws or bolts holding it in place. You may need to remove the mower deck for better access to the drive belt. Once the cover is off, you’ll see the belt’s position clearly.

3. Remove the Old Belt

Loosen the tension on the belt by adjusting the tensioner pulley. If the belt is worn or broken, carefully slide it off the pulleys. Pay attention to how the belt is routed; you’ll need this information when installing the new one.

4. Install the New Belt

Place the new belt around the pulleys in the exact routing pattern as the old one. Make sure it sits properly in the grooves of each pulley to avoid misalignment or premature wear.

5. Adjust Tension

Reinstall the tensioner pulley and ensure the belt is taut but not overly tight. Check for any slack, which could lead to poor performance. Refer to the manufacturer’s specifications for the correct belt tension.

6. Reassemble and Test

Once the belt is properly installed and adjusted, reattach the belt cover and any other parts removed during the process. Reconnect the spark plug, start the mower, and test its operation. Listen for any unusual sounds or signs of improper tension.

By following these steps, you’ll have your Ariens Edge 52 running smoothly with a new drive belt in no time.

Common Issues with Ariens Edge 52 Belts and How to Troubleshoot

If your Ariens Edge 52 mower is experiencing belt issues, the most common problems usually involve wear, tension, or alignment. Here’s how to identify and fix these issues.

• Belt Slipping: If the belt slips or loses tension, it can lead to poor performance or stalling. Check for worn-out pulleys or debris that might be interfering with the belt’s movement. Clean the area and adjust the tension. If the belt is damaged or excessively worn, replace it.
• Loose or Broken Belt: A loose or broken belt is a sign of either improper installation or a stretched belt. To fix this, inspect the belt for signs of wear. If it’s still intact, adjust the tension accordingly. A broken belt will need to be replaced immediately.
• Belt Alignment Issues: Misalignment of the belt can cause it to wear unevenly, leading to excessive friction or skipping. Inspect the pulleys and ensure they are properly aligned. Realign or replace the pulley if necessary.
• Noisy Belt: A noisy belt may indicate that the pulleys are damaged or there’s a build-up of dirt or debris. Clean the pulleys and check for any rough spots. If the noise persists, the belt or pulleys may need to be replaced.

By addressing these common issues, your Ariens Edge 52 mower can run smoothly again, ensuring better performance and longer belt life.
