08 Dodge Avenger Belt Routing and Diagram Guide

To replace or inspect the belt system on a 2008 Dodge Avenger, begin by identifying the correct belt routing. The accessory drive belt follows a specific path that ensures proper operation of the alternator, power steering pump, and other critical components.

Start by locating the tensioner pulley, which is used to adjust the belt’s tension. The belt should be routed through the alternator, idler pulley, and power steering pump before returning to the tensioner. Refer to the vehicle’s service manual for the exact routing diagram to avoid incorrect installation.

Key step: Before replacing the belt, check the condition of other components like the tensioner and idler pulleys. Damaged pulleys can cause premature wear to the new belt. Use a wrench to relieve tension from the tensioner and remove the old belt.

Tip: If replacing the belt is necessary, ensure the new belt matches the original specifications for size and type to prevent issues with component alignment or wear.

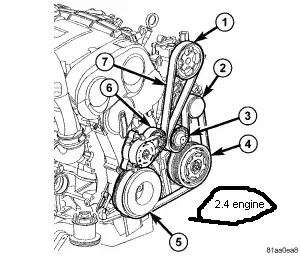

08 Dodge Avenger Belt Diagram

The 08 Dodge Avenger uses a serpentine belt system to drive multiple accessories. To ensure proper function, the belt must be routed correctly and kept under proper tension. Here’s a guide on the routing and replacement procedure.

First, locate the tensioner pulley. The tensioner is responsible for maintaining the right tension on the belt. Using a ratchet or a wrench, turn the tensioner counterclockwise to relieve tension and allow for belt removal. Take note of the belt’s routing path for reinstallation. Pay attention to how the belt loops around the various pulleys, including the alternator, power steering pump, and air conditioning compressor.

After removing the old belt, inspect the pulleys for any signs of wear or damage. Check the smoothness of their operation. If any of the pulleys are worn or noisy, replace them before installing the new belt. When installing the new belt, follow the diagram carefully, ensuring the belt sits properly in all grooves. Apply tension to the new belt by rotating the tensioner clockwise.

After installation, verify the alignment of the belt and test the system by starting the engine. Ensure there is no unusual noise and that all components are operating smoothly. Recheck the tension after a few days to ensure the belt stays tight.

How to Identify the Correct Belt Path for the 08 Dodge Avenger

To identify the correct belt path for the 08 Dodge Avenger, first, locate the belt routing diagram, typically found on a label near the engine compartment. This diagram provides the exact path the serpentine belt must follow. If the diagram is missing, the path can be traced by studying the components the belt interacts with: the alternator, power steering pump, air conditioning compressor, and the tensioner pulley.

Start by following the path of the belt around the main pulleys. Ensure that the belt wraps around the crankshaft pulley first, then moves to the alternator pulley. From there, the belt should pass over the power steering pump and the air conditioning compressor. Lastly, the belt should loop around the tensioner pulley and return to the crankshaft pulley, ensuring proper tension for all components.

Check for any obstructions or misalignments in the pulley system. A misaligned pulley could cause the belt to deviate from its intended path. Make sure the tensioner is functioning properly, as a faulty tensioner may lead to improper belt positioning and eventual slippage.

If the belt path is still unclear, refer to an official service manual for a detailed diagram. This will provide the most accurate information for your specific vehicle model, ensuring the belt is installed properly for optimal performance.

Steps for Replacing the Belt in the 08 Dodge Avenger

Step 1: Disconnect the vehicle’s battery to prevent any electrical accidents. This is an important first step before working with any parts connected to the engine.

Step 2: Locate the belt tensioner on the front of the engine. It is usually positioned near the alternator or power steering pump. Use a wrench to release the tension on the belt by turning the tensioner counterclockwise.

Step 3: Once the tension is released, carefully remove the belt from the pulleys. Keep track of its routing to ensure the new belt follows the same path.

Step 4: Inspect the pulleys for any wear or damage. This includes checking for any rough spots or debris that might cause the new belt to wear prematurely.

Step 5: Place the new belt around the pulleys. Ensure that the belt is routed according to the specific diagram for the 08 Dodge Avenger. Pay close attention to the direction of the belt and the alignment of the grooves with the pulleys.

Step 6: Re-engage the belt tensioner by turning it clockwise. Verify that the new belt is properly tensioned and sits securely in place on all pulleys.

Step 7: Reconnect the vehicle’s battery and start the engine to check the belt’s function. Listen for any unusual noises, and observe the belt’s movement to ensure smooth operation.

Step 8: If everything is in place and functioning properly, close the hood and perform a final check to ensure the belt is properly seated and secured.

Common Issues with the 08 Dodge Avenger Belt and How to Solve Them

When the serpentine belt of the 08 Dodge Avenger starts to wear, it’s crucial to address it promptly to prevent further damage. Here are some common issues and how to resolve them.

1. Belt Slipping

If the belt slips or makes a squealing noise, it may be loose or worn. Check for visible signs of damage or stretching. If the belt appears stretched or cracked, replace it immediately.

• Inspect the belt tensioner for wear and ensure it’s working properly.
• Ensure the alternator and power steering pulleys are properly aligned to avoid unnecessary strain on the belt.

2. Cracks and Fraying

Cracks or fraying on the belt indicate it’s nearing the end of its lifespan. This can cause the belt to break, leading to loss of power to important systems like the alternator and water pump.

• Inspect the belt for visible signs of cracking or fraying along the edges.
• Replace the belt at the first sign of visible damage to avoid sudden failure.

3. Squealing Noise

A squealing noise when starting the car or when idling can indicate a misaligned or worn belt. This often happens when the tension is incorrect or the pulleys are out of alignment.

• Ensure the belt is correctly aligned with all the pulleys.
• If the tension is off, adjust or replace the tensioner.

4. Loss of Power Steering

If you experience difficulty turning the wheel, the belt may have slipped or broken. The power steering system relies on the serpentine belt for proper operation.

• Check if the belt is properly connected to the power steering pump pulley.
• Replace any worn or loose components and check the fluid levels to ensure the power steering system is fully operational.

5. Overheating

If the belt is not functioning properly, it may fail to drive the water pump effectively, leading to engine overheating.

• Inspect the belt for signs of wear or misalignment.
• If the water pump isn’t operating, replace the belt and check the coolant levels.
